Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#40857) — 210 parça

99 99 45 45 208 208 85 85 277 277 164 164 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	RELAY; HORN 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
45	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
45	RELAY; HORN 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
45	RELAY; HORN 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
45	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
85	RELAY; HEADLAMP (B) 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
85	RELAY; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V OMRON IMA	8-97125-441-0	01	1	0509-0606	●	●
85	RELAY; HEADLAMP EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
85	RELAY; HEADLAMP (B) 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
85	RELAY; HEADLAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V YAZAKI THA	8-97309-293-0	02	1	0303-0408	●	●
85	RELAY; HEADLAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
85	RELAY; HEADLAMP EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
85	RELAY; HEADLAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0303-0408	●	●
85	RELAY; HEADLAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0409-0412	●	●
85	RELAY; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0501-0606	●	●
99	RELAY; FOG LAMP 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
99	RELAY; FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
99	RELAY; FOG LAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
99	RELAY; FOG LAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
99	RELAY; FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
164	RELAY; A/C COMPRESSOR 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
164	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
164	RELAY; A/C COMPRESSOR 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0311-0408	●	●
164	RELAY; A/C COMPRESSOR 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
164	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
208	RELAY; DIMMER & PASSING 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-292-0	01	1	0303-0408	●	●
208	RELAY; DIMMER & PASSING 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-292-0	01	1	0409-0410	●	●
208	RELAY; DIMMER & PASSING 12V YAZAKI THA	8-97309-292-0	01	1	0411-	●	●
277	RELAY; FUEL PUMP 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
277	RELAY; FUEL PUMP 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
277	RELAY; FUEL PUMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
277	RELAY; FUEL PUMP 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
490	RELAY; THERMO 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
490	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
490	RELAY; THERMO 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
490	RELAY; THERMO 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
490	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●

99 99 45 45 208 208 85 85 151 164 164 490 490 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	RELAY; HORN 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
45	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
45	RELAY; HORN 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
45	RELAY; HORN 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
45	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
85	RELAY; HEADLAMP (B) 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
85	RELAY; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V OMRON IMA	8-97125-441-0	01	1	0509-0606	●	●
85	RELAY; HEADLAMP EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
85	RELAY; HEADLAMP (B) 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
85	RELAY; HEADLAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V YAZAKI THA	8-97309-293-0	02	1	0303-0408	●	●
85	RELAY; HEADLAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
85	RELAY; HEADLAMP EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
85	RELAY; HEADLAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0303-0408	●	●
85	RELAY; HEADLAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0409-0412	●	●
85	RELAY; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0501-0606	●	●
99	RELAY; FOG LAMP 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
99	RELAY; FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
99	RELAY; FOG LAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
99	RELAY; FOG LAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
99	RELAY; FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
151	RELAY; HTR & A/C 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0310	●	●
164	RELAY; A/C COMPRESSOR 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
164	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
164	RELAY; A/C COMPRESSOR 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0311-0408	●	●
164	RELAY; A/C COMPRESSOR 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
164	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
208	RELAY; DIMMER & PASSING 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-292-0	01	1	0303-0408	●	●
208	RELAY; DIMMER & PASSING 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-292-0	01	1	0409-0410	●	●
208	RELAY; DIMMER & PASSING 12V YAZAKI THA	8-97309-292-0	01	1	0411-	●	●
490	RELAY; THERMO 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
490	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
490	RELAY; THERMO 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
490	RELAY; THERMO 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
490	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●

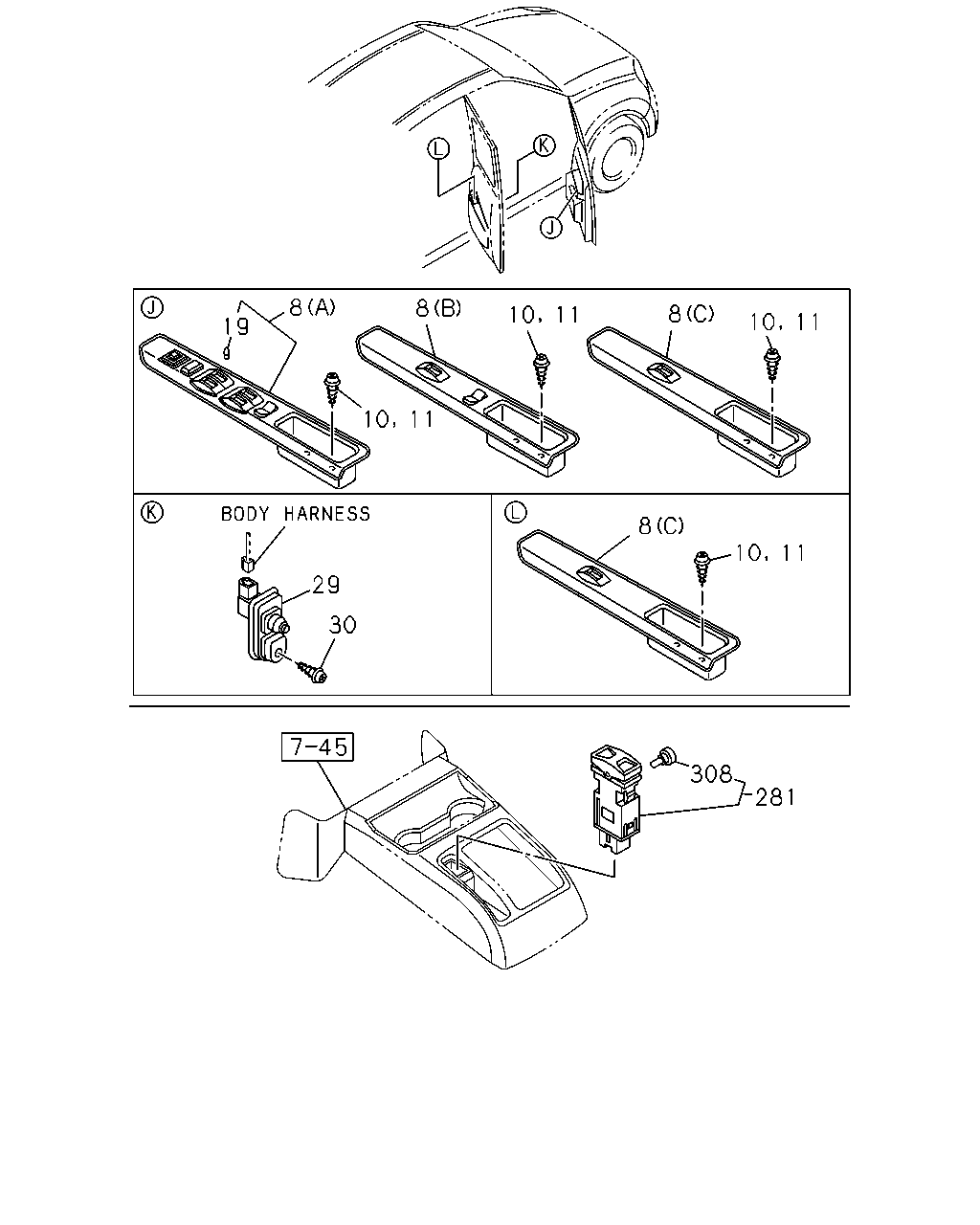

8 8 8 10 11 10 11 19 10 11 8 10 11 29 30 308 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97298-473-0	01	1	0303-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (C) REAR LIGHT GRAY THA	8-97298-473-0	01	1	0308-0408	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97298-473-0	01	1	0409-0501	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97400-392-0	01	1	0502-0606	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97403-896-0	01	1	0607-	●	●
8	SWITCH; POWER WINDOW (B) PASSENGER LIGHT GRAY THA	8-97396-102-0	01	1	0303-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (B) PASSENGER LIGHT GRAY THA	8-97396-102-0	01	1	0308-0408	●	●
8	SWITCH; POWER WINDOW (B) PASSENGER LIGHT GRAY THA	8-97396-102-0	01	1	0409-0508	●	●
8	SWITCH; POWER WINDOW (C) PASSENGER LIGHT GRAY THA	8-97400-385-0	01	1	0509-0606	●	●
8	SWITCH; POWER WINDOW (C) PASSENGER LIGHT GRAY THA	8-97403-893-0	01	1	0607-	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97298-474-0	01	1	0303-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (C) REAR LIGHT GRAY THA	8-97298-474-0	01	1	0308-0408	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97298-474-0	01	1	0409-0501	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97400-394-0	01	1	0502-0606	●	●
8	SWITCH; POWER WINDOW (C) REAR LIGHT GRAY THA	8-97403-897-0	01	1	0607-	●	●
8	SWITCH; POWER WINDOW (A) DRIVER LIGHT GRAY THA	8-97396-103-0	01	1	0303-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) DRIVER LIGHT GRAY THA	8-97396-103-0	01	1	0308-0408	●	●
8	SWITCH; POWER WINDOW DOOR MIRROR ELECTRIC DUAL FOLDING COLOR<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) DRIVER LIGHT GRAY THA	8-97399-709-0	01	1	0409-0508	●	●
8	SWITCH; POWER WINDOW (A) DRIVER LIGHT GRAY THA	8-97399-709-0	01	1	0509-0606	●	●
8	SWITCH; POWER WINDOW (A) DRIVER LIGHT GRAY THA	8-97403-626-0	01	1	0607-0710	●	●
8	SWITCH; POWER WINDOW (A) DRIVER LIGHT GRAY THA	8-97408-581-0	01	1	0711-	●	●
10	SCREW; POWER WINDOW SW M5X14 THA	8-94152-495-0	08	1	0303-0307	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW<A30> M5X14 THA	8-94152-495-0	08	1	0308-0408	●	●
11	BOLT; POWER WINDOW M5X14 THA	8-94152-495-0	04	1	0409-	●	●
11	BOLT; POWER WINDOW M5X14 THA	8-94152-495-0	04	1	0409-	●	●
19	BULB; POWER WINDOW SW THA	8-97327-881-0	01	1	0711-	●	●
19	BULB; POWER WINDOW SW THA	8-97327-881-0	02	1	0303-0307	●	●
19	BULB; POWER WINDOW SW POWER WINDOW<A30> THA	8-97327-881-0	02	1	0308-0408	●	●
19	BULB; POWER WINDOW SW DOOR MIRROR ELECTRIC DUAL FOLDING COLOR<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> THA	8-97327-881-0	01	1	0409-0508	●	●
19	BULB; POWER WINDOW SW THA	8-97327-881-0	01	1	0509-0710	●	●
29	SWITCH; DOOR THA	8-97313-208-0	04	1	0303-0303	●	●
29	SWITCH; DOOR THA	8-97313-208-0	05	1	0304-0408	●	●
29	SWITCH; DOOR THA	8-97313-208-0	01	1	0409-	●	●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	0409-	●	●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	0409-	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	04	1	0303-0303	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	05	1	0304-0408	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	01	1	0409-	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	0409-	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	0409-	●	●
281	SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO<RMK> DARK GRAY THA	8-97300-364-0	01	1	0303-0606	●	●
281	SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO<RMK> DARK GRAY THA	8-97396-692-0	01	1	0607-	●	●
308	BULB; SELECT SW A/T 4 SPEED-JATCO<RMK> 14V 0.84W THA	8-97329-092-0	01	1	0303-	●	●

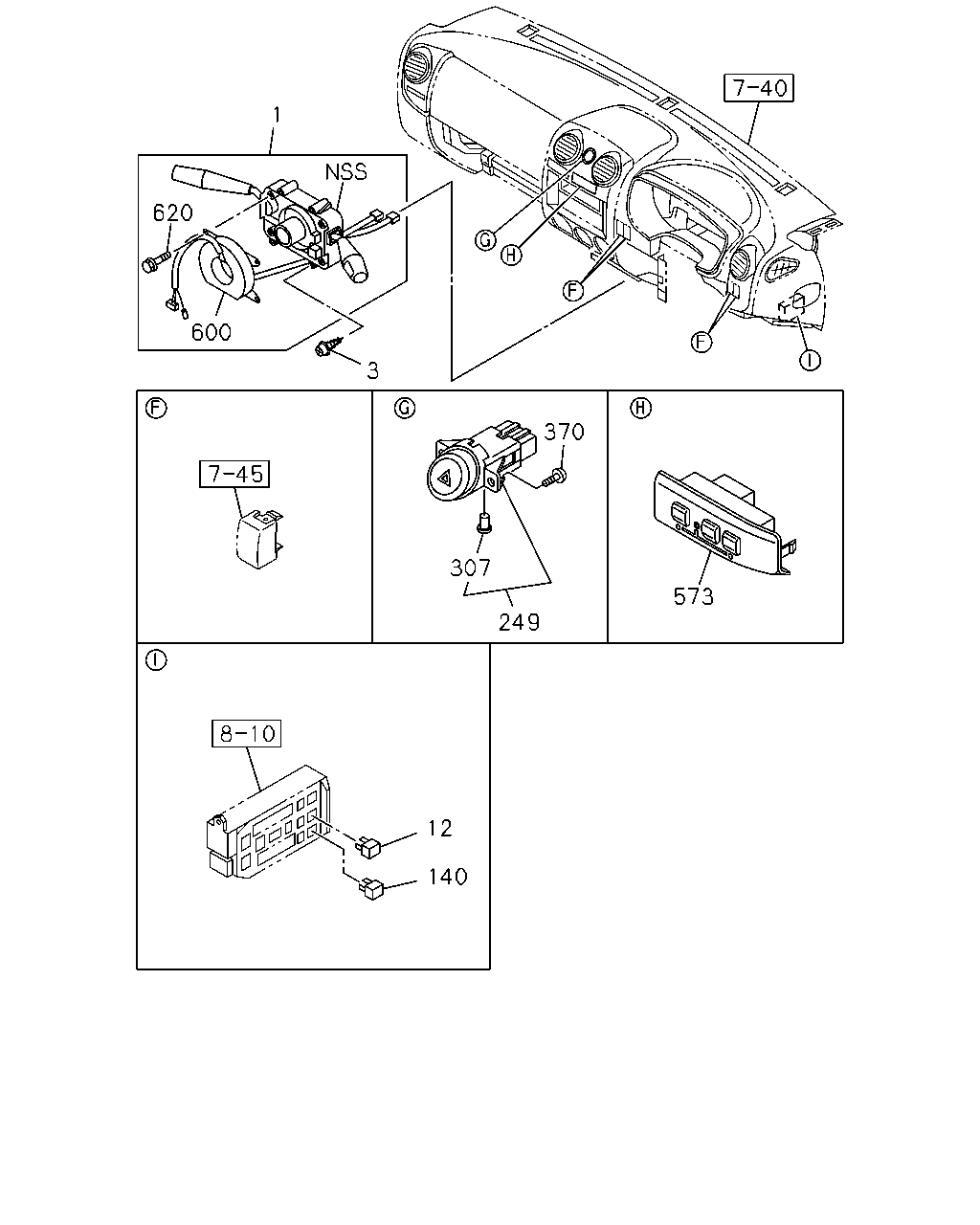

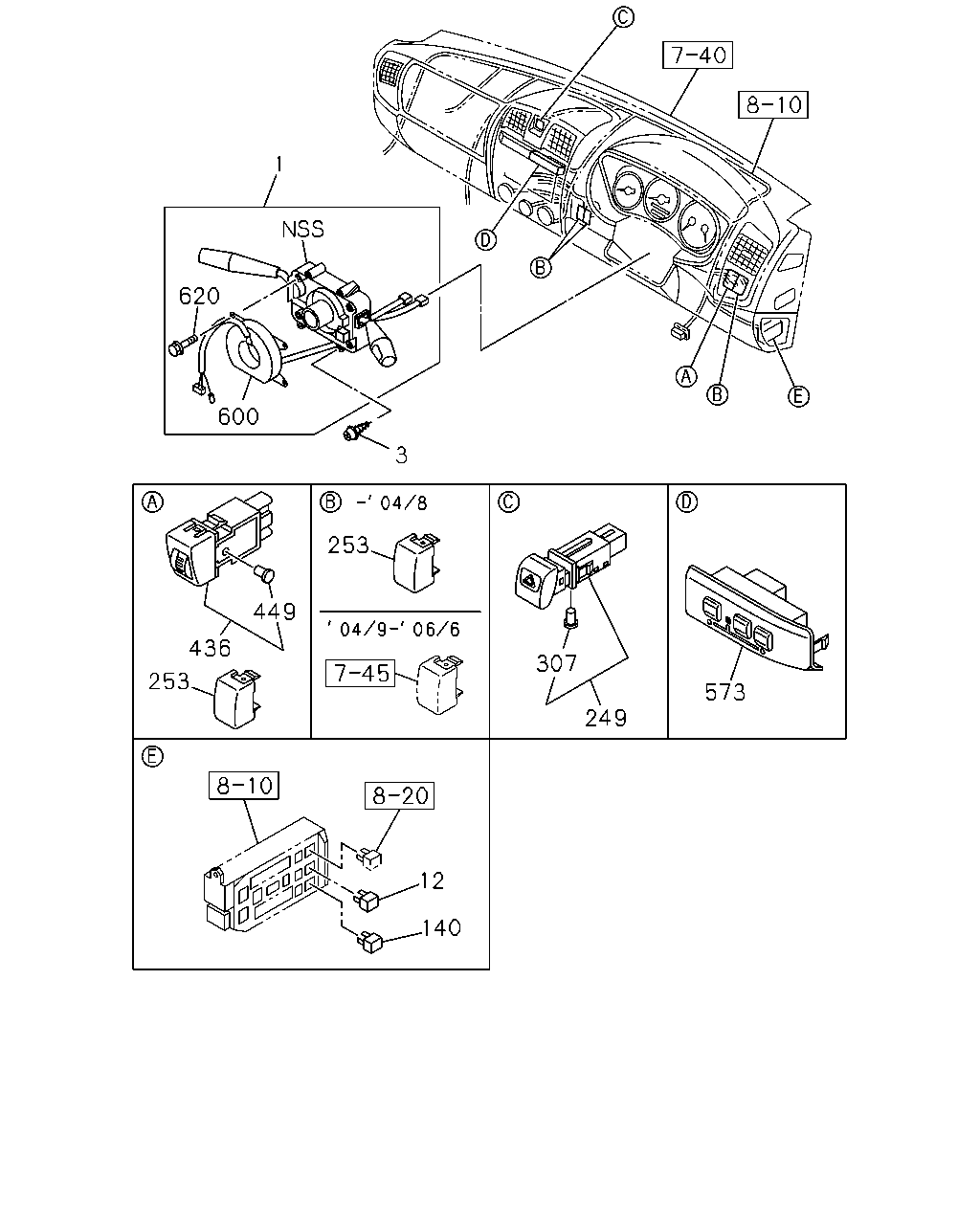

1 620 600 3 253 449 436 307 253 573 249 12 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<7FA> THA	8-97360-687-0	01	1	0303-0408	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER & PASSENGER<7FA> THA	8-97360-686-0	01	1	0303-0408	●	●
1	SWITCH; COMB THA	8-97360-686-0	01	1	0409-0606	●	●
1	SWITCH; COMB THA	8-97363-414-0	01	1	0607-	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	9-03920-514-0	02	1	0303-0606	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	0-36230-514-0	02	1	0607-	●	●
12	RELAY; POWER WINDOW A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
12	RELAY; POWER WINDOW 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0412	●	●
12	RELAY; POWER WINDOW 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0501-0606	●	●
12	RELAY; POWER WINDOW 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
140	RELAY; RR DEFOGGER A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
140	RELAY; RR DEFOGGER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0412	●	●
140	RELAY; RR DEFOGGER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0501-0606	●	●
140	RELAY; RR DEFOGGER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
249	SWITCH; HAZARD DARK GRAY THA	8-97238-511-0	01	1	0303-0606	●	●
249	SWITCH; HAZARD THA	8-98046-194-0	01	1	0607-	●	●
253	COVER; SW HOLE DARK GRAY THA	8-97298-962-0	03	1	0303-0408	●	●
253	COVER; SW HOLE EXC. ADJUST HEADLAMP<6RC> DARK GRAY THA	8-97298-962-0	01	1	0303-0408	●	●
307	BULB ASM; SW 14V 0.91W THA	8-97327-526-0	01	1	0303-0606	●	●
307	BULB ASM; SW THA	8-97532-440-0	01	1	0607-0607	●	●
307	BULB ASM; SW THA	8-98057-959-0	01	1	0608-	●	●
436	SWITCH; HEADLAMP LEVELING ADJUST HEADLAMP<6RC> THA	8-97288-784-0	01	1	0303-0408	●	●
436	SWITCH; HEADLAMP LEVELING HEAD LAMP LEVELING MANUAL<T92> THA	8-97288-784-0	01	1	0409-0606	●	●
449	BULB ASM; HEADLAMP LEVELING SW ADJUST HEADLAMP<6RC> 14V 0.84W THA	8-97327-317-0	01	1	0303-0408	●	●
449	BULB ASM; HEADLAMP LEVELING SW HEAD LAMP LEVELING MANUAL<T92> 14V 0.84W THA	8-97327-317-0	01	1	0409-0606	●	●
573	SWITCH; 4WD LIGHT GRAY THA	8-97298-475-0	01	1	0303-0606		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97407-362-0	01	1	0607-		●
600	COIL ASM; SIR AIR BAG DRIVER & PASSENGER<7FA> THA	8-97308-028-1	01	1	0303-0408	●	●
620	SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<7FA> THA	8-97166-506-0	06	1	0303-0408	●	●

99 99 45 45 208 208 85 85 85 277 277 164 164 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	RELAY; HORN 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
45	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
45	RELAY; HORN 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
45	RELAY; HORN 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
45	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
85	RELAY; HEADLAMP (B) 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
85	RELAY; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V OMRON IMA	8-97125-441-0	01	1	0509-0606	●	●
85	RELAY; HEADLAMP EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
85	RELAY; HEADLAMP (B) 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
85	RELAY; HEADLAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V YAZAKI THA	8-97309-293-0	02	1	0303-0408	●	●
85	RELAY; HEADLAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
85	RELAY; HEADLAMP EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
85	RELAY; HEADLAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0303-0408	●	●
85	RELAY; HEADLAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0409-0412	●	●
85	RELAY; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A) 12V YAZAKI THA	8-97309-294-0	01	1	0501-0606	●	●
99	RELAY; FOG LAMP 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
99	RELAY; FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
99	RELAY; FOG LAMP 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
99	RELAY; FOG LAMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
99	RELAY; FOG LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
164	RELAY; A/C COMPRESSOR 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
164	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
164	RELAY; A/C COMPRESSOR 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> 12V YAZAKI THA	8-97309-293-0	01	1	0311-0408	●	●
164	RELAY; A/C COMPRESSOR 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
164	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
208	RELAY; DIMMER & PASSING 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-292-0	01	1	0303-0408	●	●
208	RELAY; DIMMER & PASSING 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-292-0	01	1	0409-0410	●	●
208	RELAY; DIMMER & PASSING 12V YAZAKI THA	8-97309-292-0	01	1	0411-	●	●
277	RELAY; FUEL PUMP 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
277	RELAY; FUEL PUMP 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
277	RELAY; FUEL PUMP 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
277	RELAY; FUEL PUMP 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●
490	RELAY; THERMO 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●
490	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	0711-	●	●
490	RELAY; THERMO 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
490	RELAY; THERMO 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0410	●	●
490	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	0411-0606	●	●

1 620 600 3 370 307 573 249 12 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER & PASSENGER<7FA> THA	8-97360-687-0	01	1	0303-0408	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER & PASSENGER<7FA> THA	8-97360-686-0	01	1	0303-0408	●	●
1	SWITCH; COMB THA	8-97360-686-0	01	1	0409-0606	●	●
1	SWITCH; COMB THA	8-97363-414-0	01	1	0607-	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	9-03920-514-0	02	1	0303-0606	●	●
3	SCREW; COMB SW M5X14 W/LK&PL WASHER THA	0-36230-514-0	02	1	0607-	●	●
12	RELAY; POWER WINDOW A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
12	RELAY; POWER WINDOW 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0412	●	●
12	RELAY; POWER WINDOW 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0501-0606	●	●
12	RELAY; POWER WINDOW 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
12	RELAY; POWER WINDOW M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
140	RELAY; RR DEFOGGER A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 12V YAZAKI THA	8-97309-293-0	01	1	0303-0408	●	●
140	RELAY; RR DEFOGGER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0409-0412	●	●
140	RELAY; RR DEFOGGER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V YAZAKI THA	8-97309-293-0	01	1	0501-0606	●	●
140	RELAY; RR DEFOGGER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> 12V OMRON THA	8-98005-407-0	01	1	0509-0606	●	●
140	RELAY; RR DEFOGGER M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●
249	SWITCH; HAZARD DARK GRAY THA	8-97238-511-0	01	1	0303-0606	●	●
249	SWITCH; HAZARD THA	8-98046-194-0	01	1	0607-	●	●
307	BULB ASM; SW 14V 0.91W THA	8-97327-526-0	01	1	0303-0606	●	●
307	BULB ASM; SW THA	8-97532-440-0	01	1	0607-0607	●	●
307	BULB ASM; SW THA	8-98057-959-0	01	1	0608-	●	●
370	BOLT; SW M5X16 TAPPING THA	9-09829-323-1	02	1	0607-0702	●	●
370	BOLT; SW M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●
370	BOLT; SW M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●
573	SWITCH; 4WD LIGHT GRAY THA	8-97298-475-0	01	1	0303-0606		●
573	SWITCH; 4WD LIGHT GRAY THA	8-97407-362-0	01	1	0607-		●
600	COIL ASM; SIR AIR BAG DRIVER & PASSENGER<7FA> THA	8-97308-028-1	01	1	0303-0408	●	●
620	SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<7FA> THA	8-97166-506-0	06	1	0303-0408	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
