Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#40856) — 133 parça

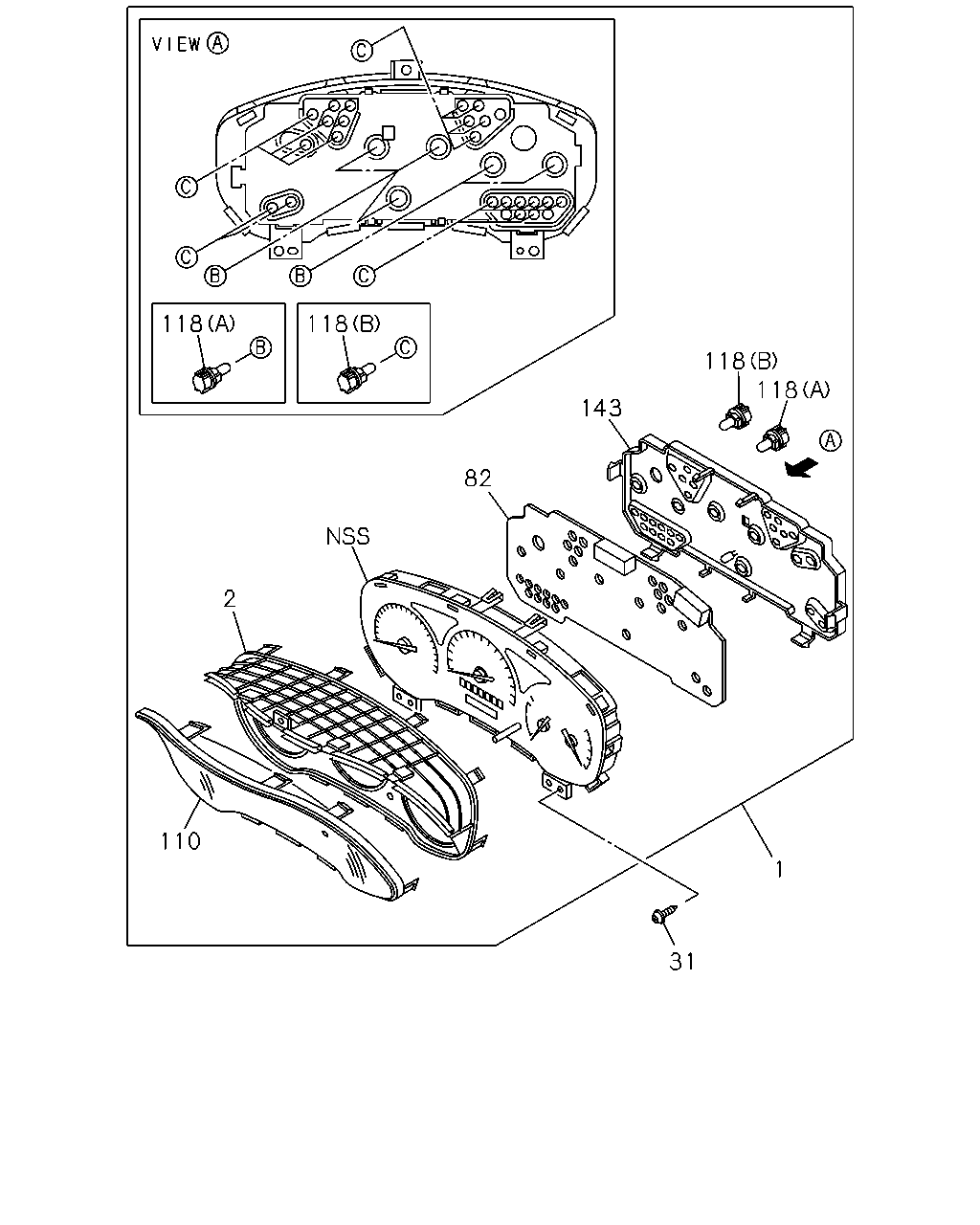

118 118 118 118 143 82 2 110 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-287-0	01	1	0607-0710	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-287-0	01	1	0711-	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97376-962-0	01	1	0501-0508	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97386-708-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-258-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97383-442-0	01	1	0501-0508	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97386-712-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-279-0	01	1	0607-0710	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97304-973-1	01	1	0303-0303	●	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97363-733-0	01	1	0304-0408	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97376-960-0	01	1	0409-0508	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97386-700-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-265-0	01	1	0607-0710	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97304-974-1	01	1	0303-0303	●	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97363-731-0	01	1	0304-0408	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97376-958-0	01	1	0409-0412	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97376-958-0	01	1	0501-0508	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97386-698-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-251-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97363-734-0	01	1	0304-0408		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97376-961-0	01	1	0409-0412		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97376-961-0	01	1	0501-0508		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97386-706-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-282-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97363-732-0	01	1	0304-0408		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97376-959-0	01	1	0409-0412		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97376-959-0	01	1	0501-0508		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97386-699-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-286-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-257-0	01	1	0607-		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-278-0	01	1	0607-0710		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-250-0	01	1	0607-		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-272-0	01	1	0607-		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-264-0	01	1	0607-		●
2	PANEL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA	8-97305-575-0	01	1	0303-0408	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-575-0	01	1	0409-0412	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA	8-97305-575-0	01	1	0501-0606	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-112-0	01	1	0607-	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-113-0	01	1	0607-	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	9-09829-323-1	03	1	0303-0702	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98061-685-0	03	1	0703-1005	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98167-449-0	03	1	1006-	●	●
82	CASE ASM; CLUSTER METER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97379-830-0	01	1	0312-0408	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97379-817-0	01	1	0409-0412	●	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THAILAND EQUIPMENT<B03> TACHOMETER<U16> THA	8-97379-817-0	01	1	0501-0508	●	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97389-954-0	01	1	0509-0606	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97389-954-0	01	1	0509-0606		●
82	CASE ASM; CLUSTER METER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97379-818-0	01	1	0501-0508	●
82	CASE ASM; CLUSTER METER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97389-956-0	01	1	0509-0606	●
82	CASE ASM; CLUSTER METER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97386-860-0	01	1	0501-0508	●
82	CASE ASM; CLUSTER METER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97389-957-0	01	1	0509-0606	●
82	CASE ASM; CLUSTER METER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97305-603-0	01	1	0303-0408	●	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97379-816-0	01	1	0409-0412	●	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THAILAND EQUIPMENT<B03> TACHOMETER<U16> THA	8-97379-816-0	01	1	0501-0508	●	●
82	CASE ASM; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97389-955-0	01	1	0509-0606	●	●
82	CASE ASM; CLUSTER METER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97305-589-0	01	1	0303-0311	●	●
82	CASE ASM; CLUSTER METER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97305-589-0	01	1	0312-0408		●
110	GLASS; CLUSTER METER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA	8-97305-572-0	01	1	0303-0408	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-572-0	01	1	0409-0412	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA	8-97305-572-0	01	1	0501-0606	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-110-0	01	1	0607-	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-111-0	01	1	0607-	●	●
118	BULB; CLUSTER METER (A) 14V 2W THA	8-97305-590-0	AR	1	0303-0508	●	●
118	BULB; CLUSTER METER (B) 14V 1.12W THA	8-97305-600-0	AR	1	0303-0508	●	●
118	BULB; CLUSTER METER (A) 14V 2W THA	8-98003-831-0	AR	1	0509-0606	●	●
118	BULB; CLUSTER METER (B) 14V 1.12W THA	8-98003-832-0	AR	1	0509-0606	●	●
143	COVER; CLUSTER METER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA	8-97305-577-0	01	1	0303-0408	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-577-0	01	1	0409-0412	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA	8-97305-577-0	01	1	0501-0606	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> TACHOMETER<U16> THA	8-98047-114-0	01	1	0607-0908	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-98047-114-0	01	1	0909-	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. TACHOMETER<U16> THA	8-98047-115-0	01	1	0607-	●	●

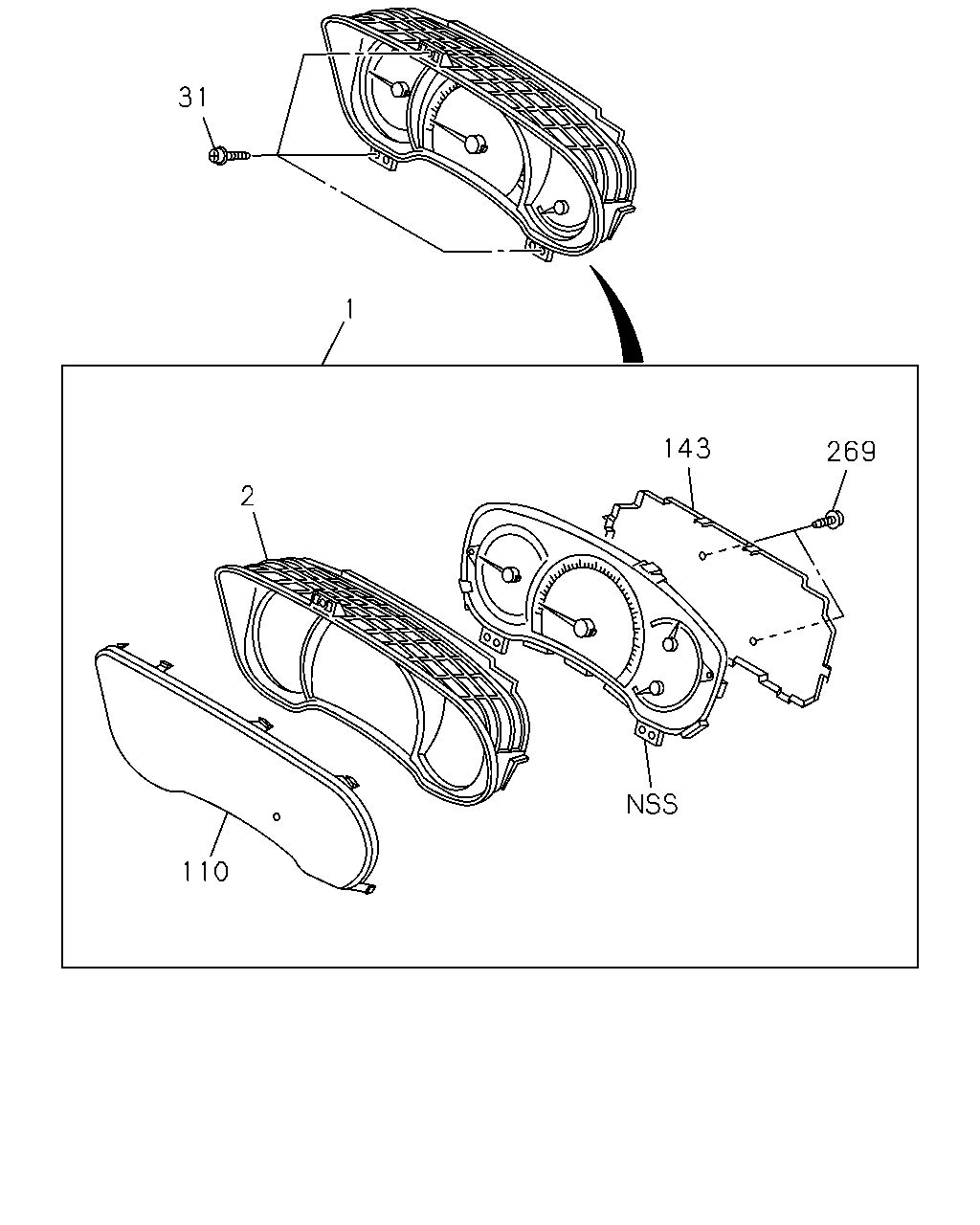

31 1 143 269 2 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-287-0	01	1	0607-0710	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-287-0	01	1	0711-	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97376-962-0	01	1	0501-0508	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97386-708-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-258-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97383-442-0	01	1	0501-0508	●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97386-712-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-279-0	01	1	0607-0710	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97304-973-1	01	1	0303-0303	●	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97363-733-0	01	1	0304-0408	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97376-960-0	01	1	0409-0508	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97386-700-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-265-0	01	1	0607-0710	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97304-974-1	01	1	0303-0303	●	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97363-731-0	01	1	0304-0408	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97376-958-0	01	1	0409-0412	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97376-958-0	01	1	0501-0508	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97386-698-0	01	1	0509-0606	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-251-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA	8-97363-734-0	01	1	0304-0408		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97376-961-0	01	1	0409-0412		●
1	METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97376-961-0	01	1	0501-0508		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97386-706-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-282-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97363-732-0	01	1	0304-0408		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97376-959-0	01	1	0409-0412		●
1	METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97376-959-0	01	1	0501-0508		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97386-699-0	01	1	0509-0606		●
1	METER COMPL; CLUSTER 4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-286-0	01	1	0607-	●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-257-0	01	1	0607-		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-278-0	01	1	0607-0710		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> THA	8-98046-250-0	01	1	0607-		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-272-0	01	1	0607-		●
1	METER COMPL; CLUSTER 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98046-264-0	01	1	0607-		●
2	PANEL; CLUSTER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA	8-97305-575-0	01	1	0303-0408	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-575-0	01	1	0409-0412	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA	8-97305-575-0	01	1	0501-0606	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-112-0	01	1	0607-	●	●
2	PANEL; CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-113-0	01	1	0607-	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	9-09829-323-1	03	1	0303-0702	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98061-685-0	03	1	0703-1005	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING THA	8-98167-449-0	03	1	1006-	●	●
110	GLASS; CLUSTER METER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA	8-97305-572-0	01	1	0303-0408	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-572-0	01	1	0409-0412	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA	8-97305-572-0	01	1	0501-0606	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-110-0	01	1	0607-	●	●
110	GLASS; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98047-111-0	01	1	0607-	●	●
143	COVER; CLUSTER METER 4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA	8-97305-577-0	01	1	0303-0408	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA	8-97305-577-0	01	1	0409-0412	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA	8-97305-577-0	01	1	0501-0606	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> TACHOMETER<U16> THA	8-98047-114-0	01	1	0607-0908	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-98047-114-0	01	1	0909-	●	●
143	COVER; CLUSTER METER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. TACHOMETER<U16> THA	8-98047-115-0	01	1	0607-	●	●
269	SCREW; METER CLUSTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98047-116-0	03	1	0607-	●	●

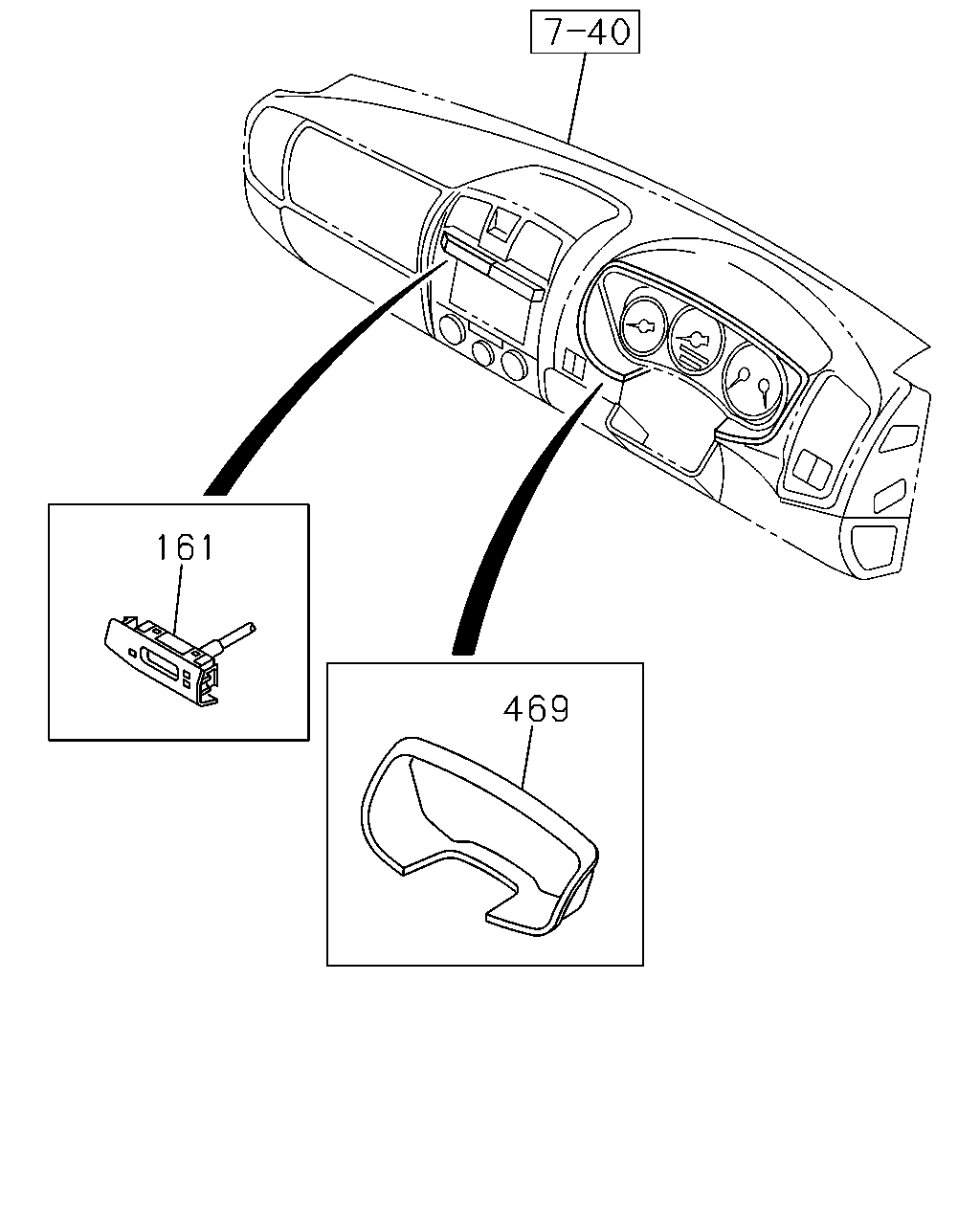

161 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97298-477-0	01	1	0303-0303	●	●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97396-393-0	01	1	0303-0606	●	●
161	CLOCK; CLUSTER METER LIGHT GRAY THA	8-97407-360-0	01	1	0607-	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97294-069-0	01	1	0303-0508	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97404-874-0	01	1	0509-0606	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97404-875-0	01	1	0607-0612	●	●
469	PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97409-178-0	01	1	0701-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
