◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#40854) — 145 parça

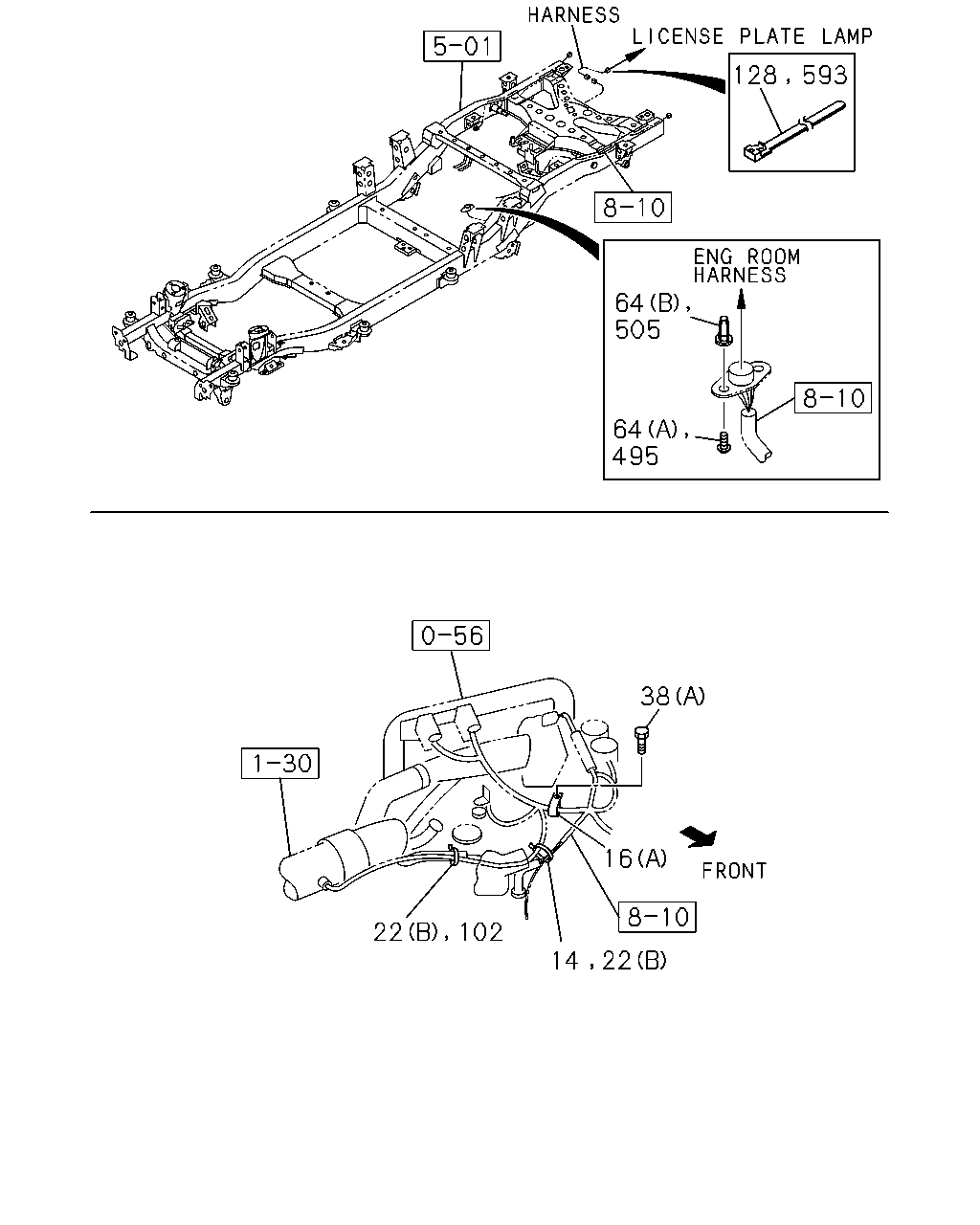

çizim 50921
128 593 64 505 64 495 38 16 22 102 14 22
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
4JH1 ENG<RJX> L=140 THA 		8-97920-656-0 01 1 0303-0408 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0711-0711 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0711-0711 ● ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (A) ID=24 L=32 IMA 		1-09700-766-1 02 1 0303-0408 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB> (B) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) L=197 THA 		1-83574-032-0 01 1 0501-0508 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) L=197 THA 		1-83574-032-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (C) ID=15 THA 		1-09709-003-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) ID=15 THA 		1-09709-003-0 01 1 0501-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=15 THA 		1-09709-003-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) ID=15 THA 		1-09709-003-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0501-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (B) L=140 THA 		8-97920-656-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) L=140 THA 		8-97920-656-0 01 1 0501-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) L=140 THA 		8-97920-656-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (E) L=158.7 THA 		8-97922-209-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (E) L=158.7 THA 		8-97922-209-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
(E) L=158.7 THA 		8-97922-209-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (E) L=158.7 THA 		8-97922-209-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0303-0408 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0303-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607- ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607- ● ●
64 SCREW; CLIP
(A) M5X14 IMA 		8-94120-095-0 02 1 0303-0408 ● ●
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 IMA 		8-94441-539-0 02 1 0303-0408 ● ●
102 CLIP; BAND
4JH1 ENG<RJX> L=140 THA 		8-97920-656-0 01 1 0303-0408 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
L=250 IMA 		5-09707-030-1 01 1 0303-0408 ● ●
495 BOLT; CABLE TO BODY
M5X14 IMA 		8-94120-095-0 02 1 0409- ● ●
505 RETAINER; HARNESS
D=7.9X7.9 L=20 M5 IMA 		8-94441-539-0 02 1 0409- ● ●
593 CLIP
L=250 IMA 		5-09707-030-1 01 1 0409- ● ●

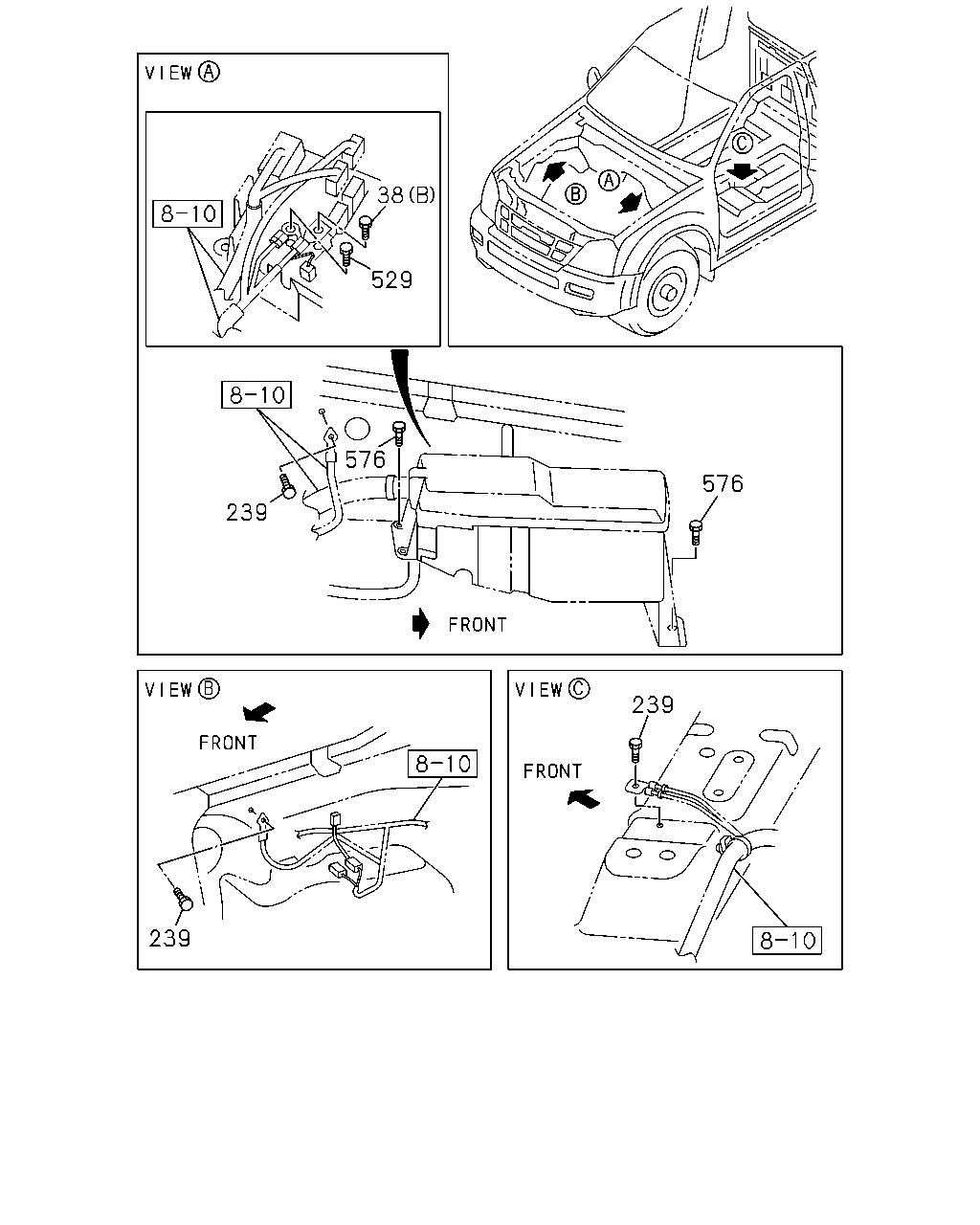

çizim 50922
38 529 576 576 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0303-0408 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0303-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607- ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 03 1 0303-0606 ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 0607- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 03 1 0607- ● ●
529 BOLT; RELAY BOX
M6X16 FLANGE THA 		0-28650-616-0 01 1 0303-0408 ● ●
576 BOLT
M6X16 FLANGE THA 		0-28650-616-0 03 1 0303-0408 ● ●

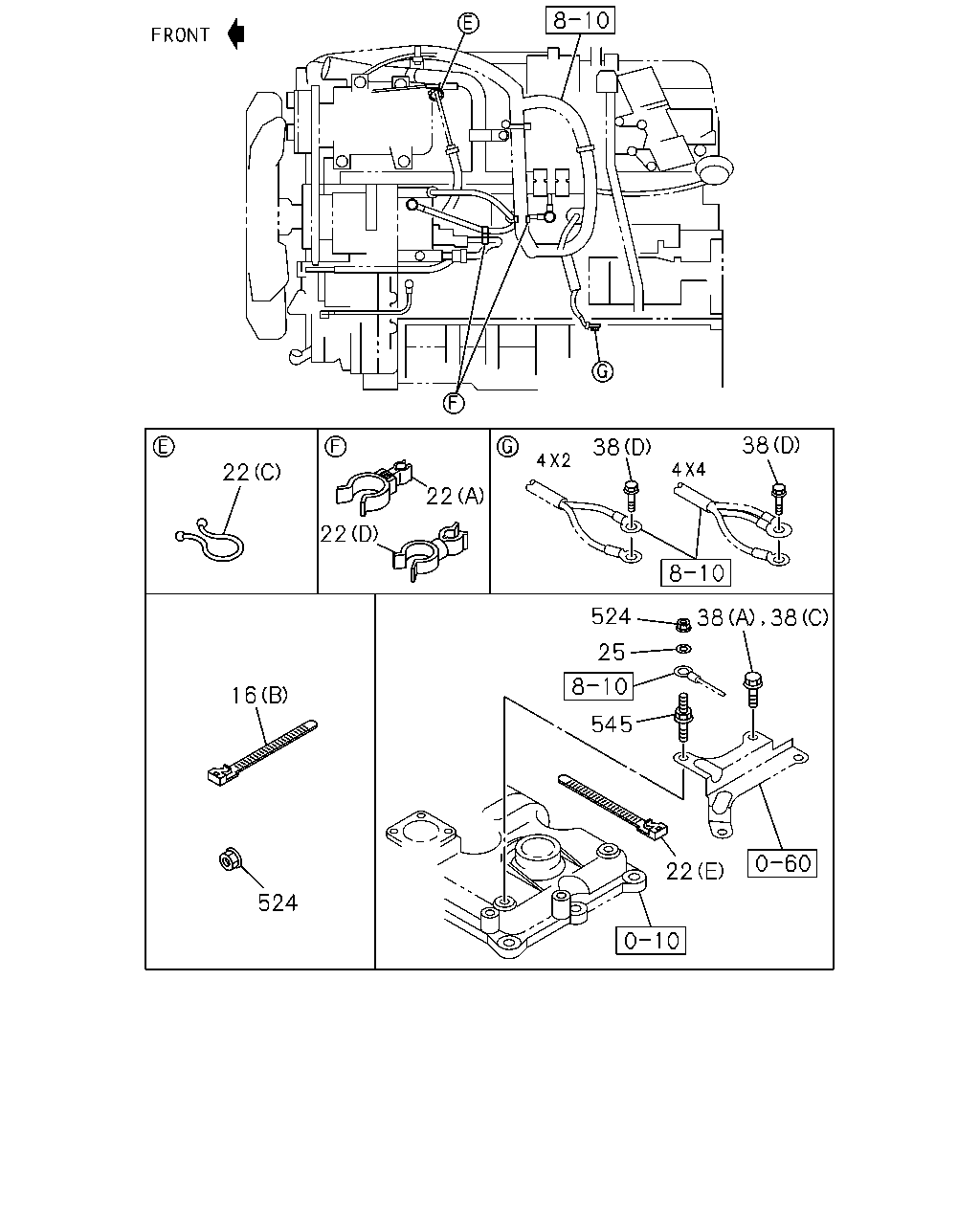

çizim 50923
38 38 22 22 22 524 38 38 25 16 545 22 524
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0711-0711 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0711-0711 ● ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (A) ID=24 L=32 IMA 		1-09700-766-1 02 1 0303-0408 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB> (B) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) L=197 THA 		1-83574-032-0 01 1 0501-0508 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) L=197 THA 		1-83574-032-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (C) ID=15 THA 		1-09709-003-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) ID=15 THA 		1-09709-003-0 01 1 0501-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=15 THA 		1-09709-003-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) ID=15 THA 		1-09709-003-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0501-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (B) L=140 THA 		8-97920-656-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) L=140 THA 		8-97920-656-0 01 1 0501-0508 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) L=140 THA 		8-97920-656-0 01 1 0509-0606 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0607- ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB> (E) L=158.7 THA 		8-97922-209-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (E) L=158.7 THA 		8-97922-209-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
(E) L=158.7 THA 		8-97922-209-0 01 1 0501-0508 ●
22 CLIP; ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (E) L=158.7 THA 		8-97922-209-0 01 1 0509-0606 ● ●
25 WASHER; PL,ENG HARNESS
4JJ1 ENG<LFB> ID=8.4 THA 		9-09164-508-0 01 1 0409-0412 ● ●
25 WASHER; PL,ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> ID=8.4 THA 		9-09164-508-0 01 1 0501-0508 ● ●
25 WASHER; PL,ENG HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=8.4 THA 		9-09164-508-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0303-0408 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0303-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607- ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0508 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0509-0606 ● ●
38 BOLT; CLIP,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607- ● ●
524 NUT; HARNESS
4JJ1 ENG<LFB> M8 FLANGE THA 		0-91180-108-0 02 1 0409-0412 ● ●
524 NUT; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-108-0 02 1 0501-0508 ● ●
524 NUT; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8 FLANGE THA 		0-91180-108-0 02 1 0509-0606 ● ●
524 NUT; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-108-0 01 1 0607- ● ●
545 STUD; HARNESS
4JJ1 ENG<LFB> M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0409-0412 ● ●
545 STUD; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0501-0508 ● ●
545 STUD; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0509-0606 ● ●

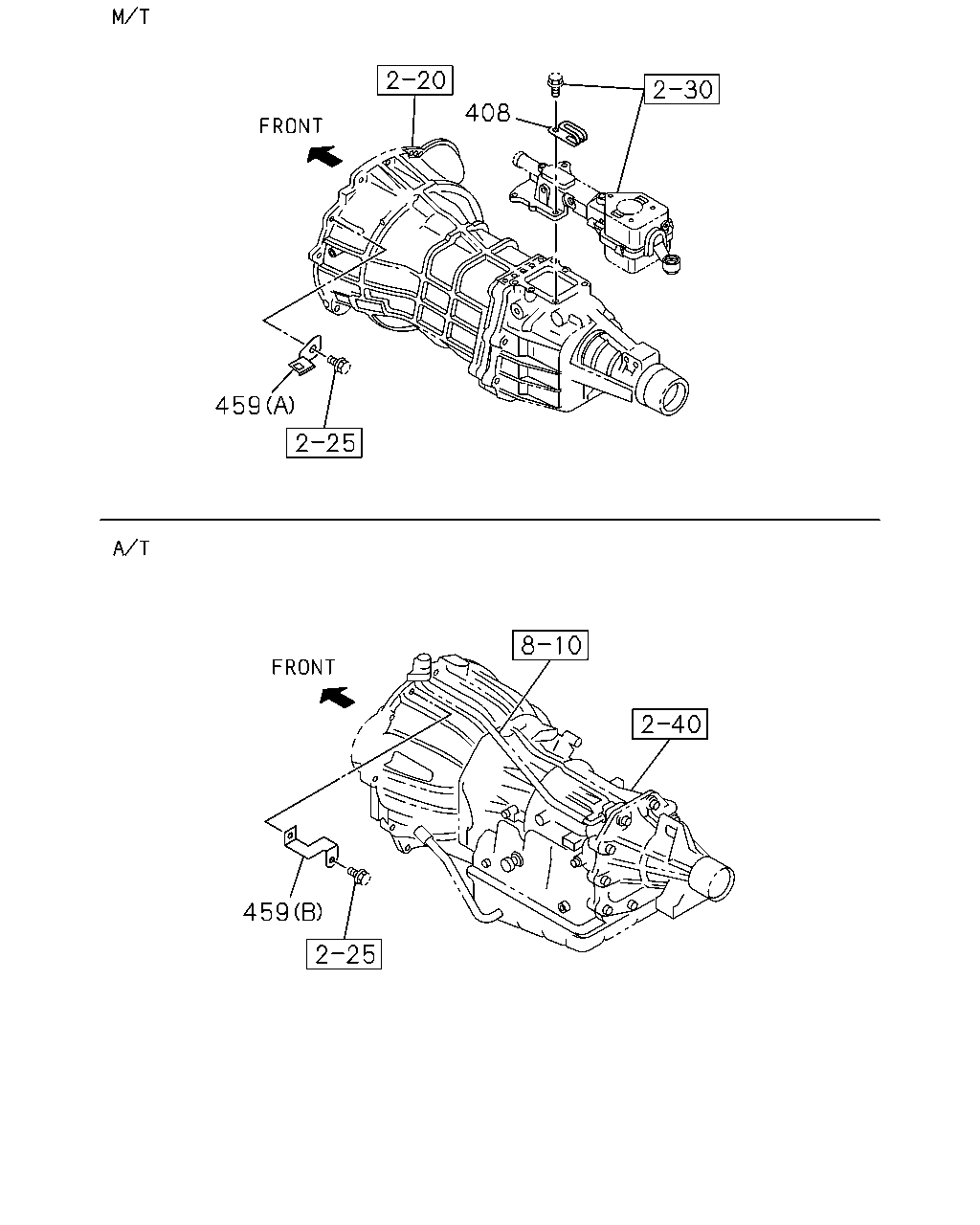

çizim 100967
408 459 459
BalonParca AdiParca NoAdetTipApplied Date A B
408 CLIP; TRANS HARNESS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0409-0412 ● ●
408 CLIP; TRANS HARNESS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0409-0412 ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0501-0604 ● ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0605-0606 ● ●
408 CLIP; TRANS HARNESS
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0607- ●
408 CLIP; TRANS HARNESS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> FINAL GEAR RATIO 41/11<GT4> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0607- ●
408 CLIP; TRANS HARNESS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0607- ●
408 CLIP; TRANS HARNESS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0607- ●
459 BRACKET; SUPPORT,HARNESS
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0303-0408 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0409-0606 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0607- ● ●
459 BRACKET; SUPPORT,HARNESS
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> (A) THA 		8-94315-284-0 01 1 0303-0408 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0409-0412 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0501-0606 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-94315-284-0 01 1 0607-0608 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98050-882-0 01 1 0609- ● ●

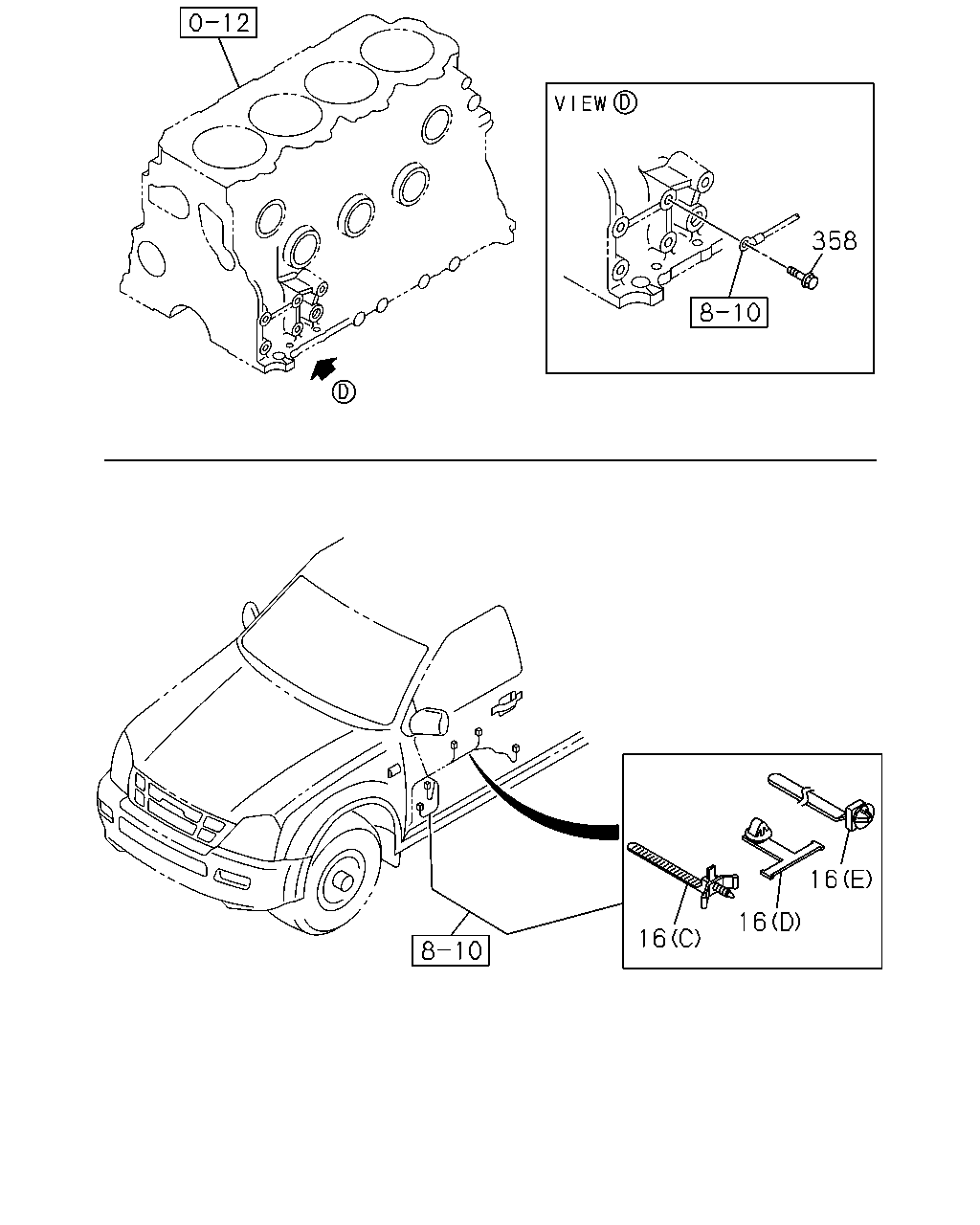

çizim 100968
358 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0711-0711 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0711-0711 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0711-0711 ● ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (A) ID=24 L=32 IMA 		1-09700-766-1 02 1 0303-0408 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB> (B) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) L=197 THA 		1-83574-032-0 01 1 0501-0508 ● ●
16 CLIP; HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) L=197 THA 		1-83574-032-0 01 1 0509-0606 ● ●
358 BOLT; EARTH
4JH1 ENG<RJX> M10X20 FLANGE THA 		0-28651-020-0 01 1 0303-0408 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
