◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#40853) — 368 parça

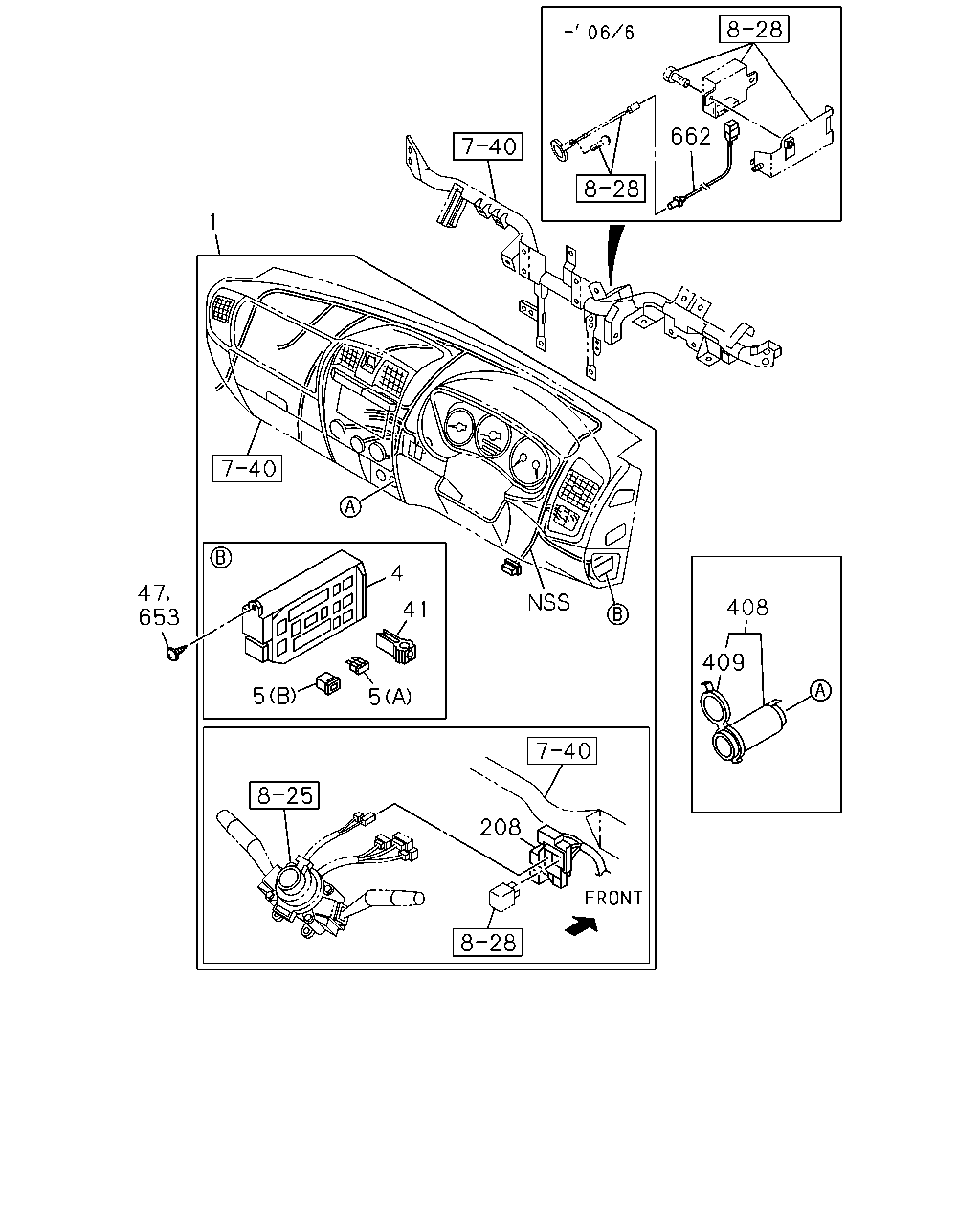

çizim 50394
662 1 4 47 653 408 41 409 5 5 208
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-139-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97370-611-1 01 1 0409-0412 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97370-611-1 01 1 0501-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97370-611-1 01 1 0501-0508 ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98003-285-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98007-246-5 01 1 0607-0710 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-292-2 01 1 0711- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-141-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97378-812-0 01 1 0409-0412 ●
1 HARNESS; CAB
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97378-812-0 01 1 0501-0508 ●
1 HARNESS; CAB
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97384-886-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98007-248-5 01 1 0607-0710 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98053-294-3 01 1 0711- ●
1 HARNESS; CAB
M/T MUA 5 SPEED<RMN> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-143-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97370-615-1 01 1 0409-0412 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97370-615-1 01 1 0501-0508 ●
1 HARNESS; CAB
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97384-877-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98007-277-5 01 1 0607-0710 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98053-307-2 01 1 0711- ●
1 HARNESS; CAB
M/T MUA 5 SPEED<RMN> EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-145-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97384-878-1 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98007-274-5 01 1 0607-0710 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-305-2 01 1 0711- ●
4 BOX ASM; FUSE,HARNESS
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97245-601-0 01 1 0303-0408 ● ●
4 BOX ASM; FUSE,HARNESS
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97245-601-0 01 1 0409-0412 ● ●
4 BOX ASM; FUSE,HARNESS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA 		8-97245-601-0 01 1 0501-0606 ● ●
4 BOX ASM; FUSE,HARNESS
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97245-601-0 01 1 0607- ● ●
5 FUSE; FACIA HARNESS
(A) 10A MINI RED THA 		8-97062-022-0 AR 1 0303- ● ●
5 FUSE; FACIA HARNESS
(A) 15A MINI BLUE THA 		8-97062-023-0 AR 1 0303- ● ●
5 FUSE; FACIA HARNESS
(A) 20A MINI YELLOW THA 		8-97062-024-0 AR 1 0303- ● ●
5 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE THA 		8-97183-642-0 AR 1 0303- ● ●
5 FUSE; FACIA HARNESS
(B) 30A PINK THA 		8-97183-643-0 AR 1 0303- ● ●
41 PULLER; FUSE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97103-388-0 01 1 0303-0408 ● ●
41 PULLER; FUSE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97103-388-0 01 1 0409-0412 ● ●
41 PULLER; FUSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA 		8-97103-388-0 01 1 0501-0606 ● ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97103-388-0 01 1 0607- ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING THA 		9-09829-323-1 01 1 0409-0702 ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING THA 		8-98061-685-0 01 1 0703-1005 ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING THA 		8-98167-449-0 01 1 1006- ● ●
208 HOLDER; CONNECTOR
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97245-597-0 01 1 0303-0408 ● ●
208 HOLDER; CONNECTOR
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97245-597-0 01 1 0409-0412 ● ●
208 HOLDER; CONNECTOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/TMUA 5 SPEED 5G<RSP> THA 		8-97245-597-0 01 1 0501-0606 ● ●
208 HOLDER; CONNECTOR
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97245-597-0 01 1 0607- ● ●
408 SOCKET ASM; ACCESSORY
THA 		8-97288-746-0 02 1 0303-0303 ● ●
408 SOCKET ASM; ACCESSORY
THA 		8-97288-746-0 01 1 0304-0307 ● ●
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-97288-746-0 01 1 0308-0408 ● ●
408 SOCKET ASM; ACCESSORY
THA 		8-97288-746-0 01 1 0409- ● ●
409 CAP; ACCESSORY SOCKET
THA 		8-97327-326-0 02 1 0303-0303 ● ●
409 CAP; ACCESSORY SOCKET
THA 		8-97327-326-0 01 1 0304-0307 ● ●
409 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> THA 		8-97327-326-0 01 1 0308-0408 ● ●
409 CAP; ACCESSORY SOCKET
THA 		8-97327-326-0 01 1 0409- ● ●
653 SCREW; TAPPING
M5X16 TAPPING THA 		9-09829-323-1 01 1 0303-0408 ● ●
662 HARNESS; IMMOBILIZER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97303-923-0 01 1 0509-0606 ● ●
662 HARNESS; IMMOBILIZER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98040-808-0 01 1 0607- ● ●

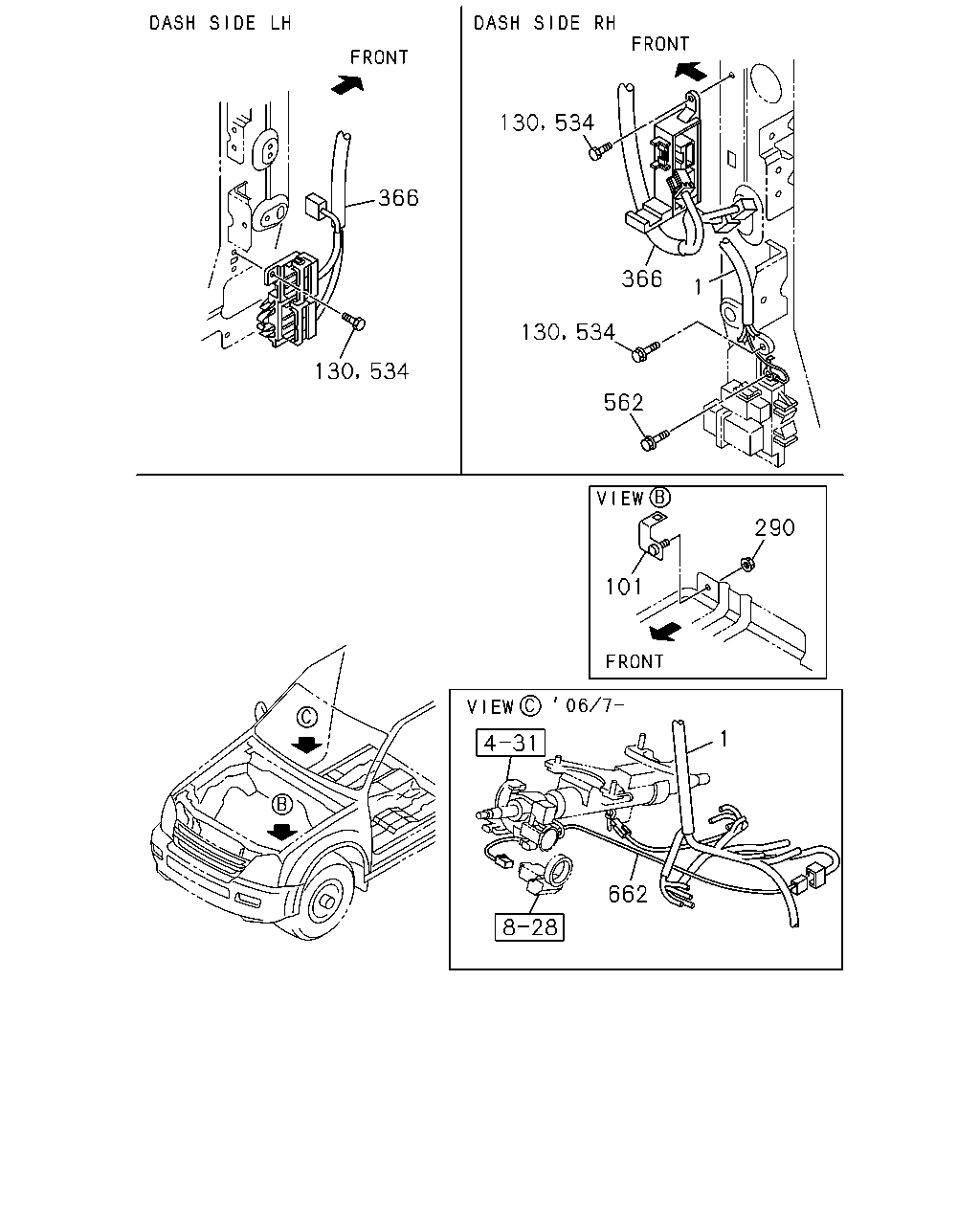

çizim 50913
130 534 366 366 1 130 534 130 534 562 290 101 1 662
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-139-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97370-611-1 01 1 0409-0412 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97370-611-1 01 1 0501-0508 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-97370-611-1 01 1 0501-0508 ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98003-285-0 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98007-246-5 01 1 0607-0710 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-292-2 01 1 0711- ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-141-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97378-812-0 01 1 0409-0412 ●
1 HARNESS; CAB
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97378-812-0 01 1 0501-0508 ●
1 HARNESS; CAB
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97384-886-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98007-248-5 01 1 0607-0710 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98053-294-3 01 1 0711- ●
1 HARNESS; CAB
M/T MUA 5 SPEED<RMN> AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-143-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97370-615-1 01 1 0409-0412 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5G<RSP> THA 		8-97370-615-1 01 1 0501-0508 ●
1 HARNESS; CAB
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97384-877-1 01 1 0509-0606 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98007-277-5 01 1 0607-0710 ●
1 HARNESS; CAB
A/T 4 SPEED-JATCO<RMK> THA 		8-98053-307-2 01 1 0711- ●
1 HARNESS; CAB
M/T MUA 5 SPEED<RMN> EXC. AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97302-145-6 01 1 0303-0408 ● ●
1 HARNESS; CAB
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97384-878-1 01 1 0509-0606 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98007-274-5 01 1 0607-0710 ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-305-2 01 1 0711- ●
101 BRACKET; HARNESS CONNECTOR
4JH1 ENG<RJX> THA 		8-97250-352-1 01 1 0303-0408 ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER THA 		8-94112-987-1 03 1 0409-0606 ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER THA 		8-94112-987-1 02 1 0607-0612 ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER THA 		8-98056-282-0 02 1 0701- ● ●
290 NUT; BRKT
4JH1 ENG<RJX> M6 FLANGE THA 		0-91150-106-0 01 1 0303-0408 ● ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-129-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-829-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-454-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-034-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-383-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-289-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-879-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-130-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-830-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-455-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-035-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97312-243-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-833-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-457-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-037-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-242-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-832-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-456-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-036-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-384-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-290-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-880-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-126-8 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-827-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-451-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-451-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-031-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-127-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-828-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-450-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-450-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-030-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-381-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-287-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-877-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-125-8 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-826-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-453-4 01 1 0409-0410 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-240-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-831-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-452-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-452-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-032-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-382-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-288-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-878-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-033-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-134-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-355-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-837-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-462-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-462-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-042-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-389-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-295-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-885-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-135-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-356-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-838-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-463-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-463-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-043-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97312-247-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-359-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-841-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-465-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-465-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-045-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-246-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97368-358-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-840-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-464-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-464-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-044-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-391-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-297-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-887-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-132-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-353-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-835-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-458-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-458-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-038-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-385-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-291-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-881-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-133-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-354-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-836-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-459-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-459-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-039-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-131-8 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-352-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-834-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-461-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-461-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-041-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-244-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97368-357-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-839-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-460-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-460-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-040-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-387-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-293-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-883-0 01 1 0809- ●
534 BOLT
M6X20 W/WASHER THA 		8-94112-987-1 03 1 0303-0408 ● ●
562 BOLT; GRAND,SRS
AIR BAG DRIVER & PASSENGER<7FA> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 0303-0408 ● ●
662 HARNESS; IMMOBILIZER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97303-923-0 01 1 0509-0606 ● ●
662 HARNESS; IMMOBILIZER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98040-808-0 01 1 0607- ● ●

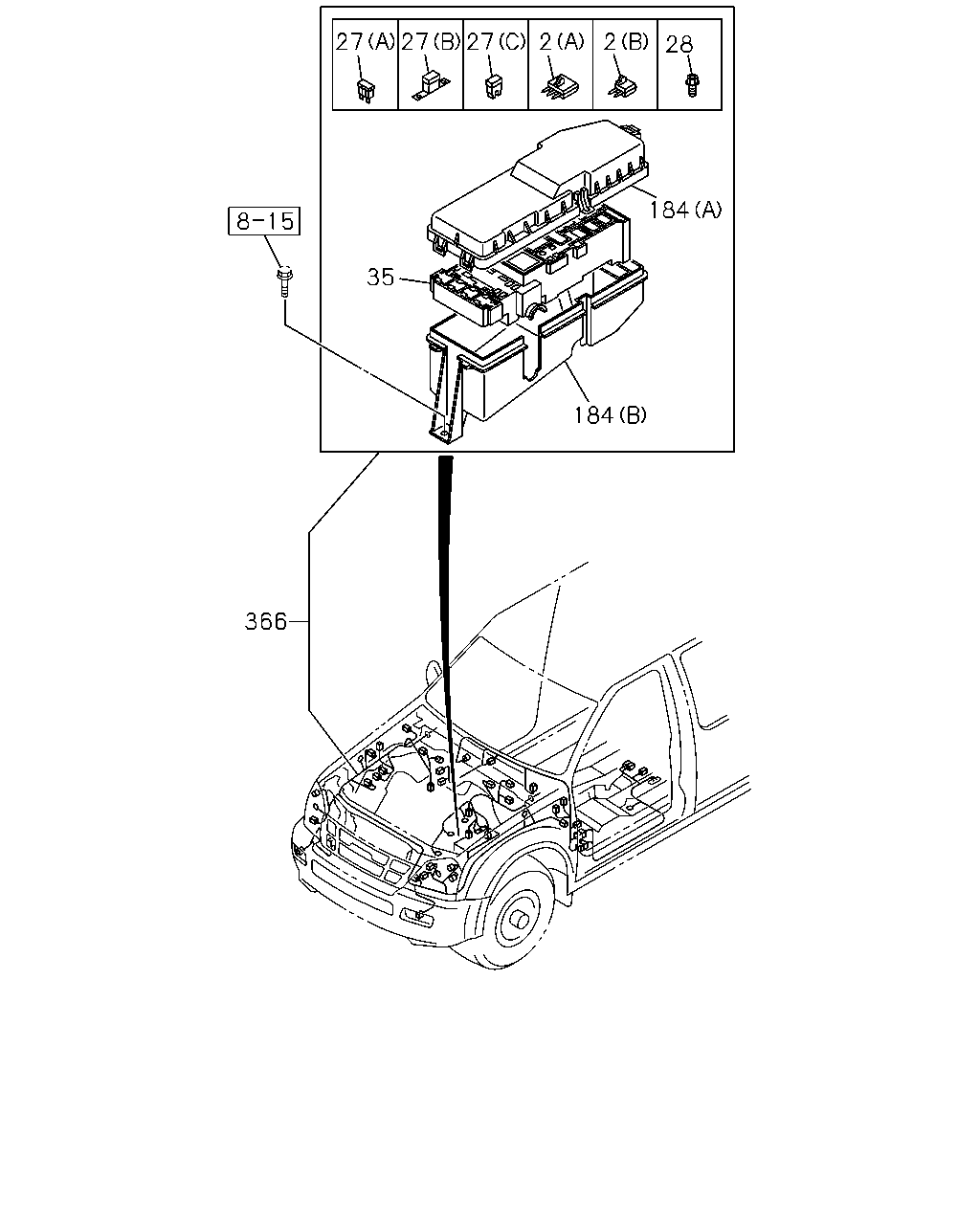

çizim 50914
27 2 2 28 184 35 184 366 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 AR 1 0303- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94422-640-1 AR 1 0303- ● ●
27 FUSE UNIT
(B) 80A BLACK THA 		8-94388-305-1 AR 1 0303-0408 ● ●
27 FUSE UNIT
(A) 10A MINI RED THA 		8-97062-022-0 AR 1 0303- ● ●
27 FUSE UNIT
(A) 15A MINI BLUE THA 		8-97062-023-0 AR 1 0303- ● ●
27 FUSE UNIT
(A) 20A MINI YELLOW THA 		8-97062-024-0 AR 1 0303-0606 ● ●
27 FUSE UNIT
(C) 30A PINK THA 		8-97183-643-0 AR 1 0303- ● ●
27 FUSE UNIT
(C) 40A GREEN THA 		8-97183-644-0 AR 1 0303- ● ●
27 FUSE UNIT
(C) 50A RED THA 		8-97183-645-0 AR 1 0303- ● ●
27 FUSE UNIT
(B) 100A BLUE THA 		8-94388-306-1 AR 1 0409-0606 ● ●
27 FUSE UNIT
(C) 60A YELLOW THA 		8-97219-407-0 AR 1 0409- ● ●
27 FUSE UNIT
(B) 120A WHITE IMA 		1-82516-028-1 AR 1 0607- ● ●
27 FUSE UNIT
(C) 20A LIGHT BLUE THA 		8-97183-642-0 AR 1 0607- ● ●
28 SCREW; FUSE BOX
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97249-192-0 02 1 0303-0408 ● ●
28 SCREW; FUSE BOX
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97249-192-0 02 1 0409-0410 ● ●
28 SCREW; FUSE BOX
THA 		8-97249-192-0 02 1 0411- ● ●
35 BOX; RELAY & FUSE
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97251-395-0 01 1 0303-0408 ● ●
35 BOX; RELAY & FUSE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97251-395-0 01 1 0409-0410 ● ●
35 BOX; RELAY & FUSE
THA 		8-97251-395-0 01 1 0411- ● ●
184 COVER; RELAY & FUSE BOX
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97251-393-0 01 1 0303-0408 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97251-393-0 01 1 0409-0410 ● ●
184 COVER; RELAY & FUSE BOX
(A) THA 		8-97251-393-0 01 1 0411- ● ●
184 COVER; RELAY & FUSE BOX
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97251-394-0 01 1 0303-0408 ● ●
184 COVER; RELAY & FUSE BOX
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97251-394-0 01 1 0409-0410 ● ●
184 COVER; RELAY & FUSE BOX
(B) THA 		8-97251-394-0 01 1 0411- ● ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-129-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-829-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-454-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-034-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-383-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-289-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-879-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-130-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-830-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-455-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-035-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97312-243-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-833-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-457-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-037-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-242-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-832-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-456-4 01 1 0409-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-036-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-384-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-290-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-880-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-126-8 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-827-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-451-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-451-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-031-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-127-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-828-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-450-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-450-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-030-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-381-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-287-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-877-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-125-8 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-826-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-453-4 01 1 0409-0410 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-240-9 01 1 0303-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-831-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-452-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-452-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-032-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-382-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-288-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-878-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-033-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-134-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-355-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-837-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-462-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-462-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-042-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-389-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-295-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-885-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-135-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-356-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-838-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-463-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-463-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-043-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97312-247-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-359-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-841-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-465-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-465-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-045-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-246-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97368-358-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-840-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-464-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-464-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-044-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-391-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-297-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-887-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-132-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-353-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-835-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-458-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-458-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-038-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-385-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-291-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-881-0 01 1 0809- ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-133-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-354-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-836-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-459-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-459-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-039-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97302-131-8 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97368-352-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97375-834-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-461-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97370-461-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> EXC. ANTI LOCK BRAKE SYSTEM<JE5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> THA 		8-97385-041-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97312-244-9 01 1 0303-0307 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97368-357-0 01 1 0308-0310 ●
366 HARNESS; CABLE,ENG ROOM
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-839-0 01 1 0311-0408 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-460-4 01 1 0409-0412 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97370-460-4 01 1 0501-0508 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97385-040-1 01 1 0509-0606 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-387-4 01 1 0607-0710 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98067-293-4 01 1 0711-0808 ●
366 HARNESS; CABLE,ENG ROOM
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98101-883-0 01 1 0809- ●

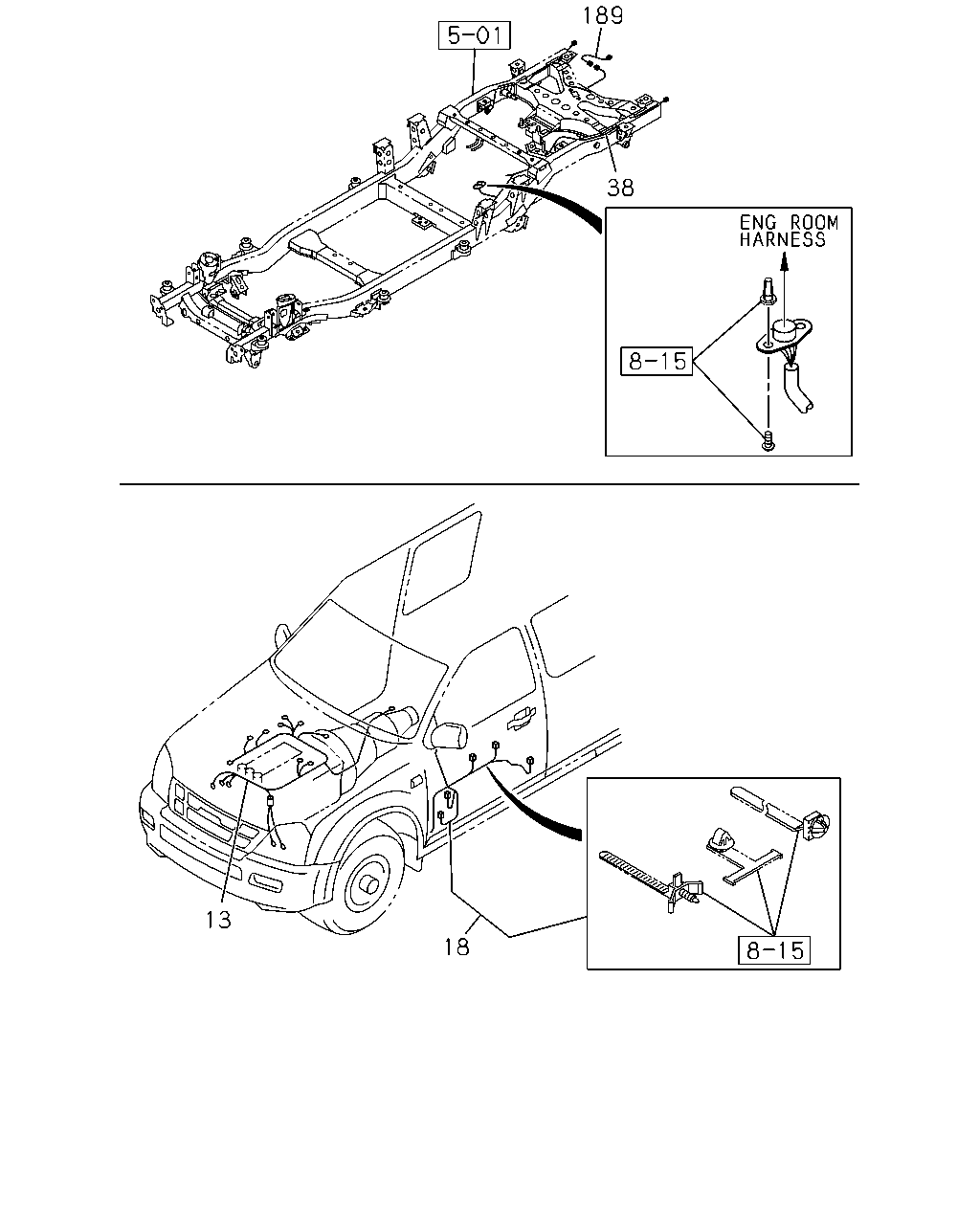

çizim 100985
189 38 13 18
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA 		8-97287-530-7 01 1 0303-0408 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97364-480-9 01 1 0409-0508 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98003-434-3 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98038-660-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98011-541-4 01 1 0607-0710 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98045-083-1 01 1 0711- ●
13 HARNESS; ENG
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97287-528-7 01 1 0303-0408 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97364-478-8 01 1 0409-0412 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97364-478-9 01 1 0501-0508 ●
13 HARNESS; ENG
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97364-478-9 01 1 0501-0508 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-98003-432-3 01 1 0509-0601 ●
13 HARNESS; ENG
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98003-432-3 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-98038-658-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98038-658-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-539-4 01 1 0607-0710 ●
13 HARNESS; ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98045-081-1 01 1 0711- ●
13 HARNESS; ENG
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA 		8-97287-529-8 01 1 0303-0408 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97364-481-9 01 1 0409-0412 ●
13 HARNESS; ENG
A/T 4 SPEED-JATCO<RMK> THA 		8-97364-481-9 01 1 0501-0508 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98003-435-3 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98038-661-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98011-542-4 01 1 0607-0710 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98045-084-1 01 1 0711- ●
13 HARNESS; ENG
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97287-527-8 01 1 0303-0408 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97364-479-9 01 1 0409-0412 ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5G<RSP> THA 		8-97364-479-9 01 1 0501-0508 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-98003-433-3 01 1 0509-0601 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-98038-659-0 01 1 0602-0606 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-540-4 01 1 0607-0710 ●
13 HARNESS; ENG
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98045-082-1 01 1 0711- ●
18 HARNESS; DOOR
THA 		8-98053-484-0 01 1 0711-0711 ● ●
18 HARNESS; DOOR
THA 		8-98053-471-0 01 1 0711-0711 ● ●
38 HARNESS; CHAS
4JH1 ENG<RJX> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97237-012-3 01 1 0303-0408 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-530-0 01 1 0409-0412 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THAILAND EQUIPMENT<B03> THA 		8-97375-530-0 01 1 0501-0508 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-530-0 01 1 0509-0606 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-599-2 01 1 0607- ● ●
38 HARNESS; CHAS
4JH1 ENG<RJX> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97237-013-2 01 1 0303-0408 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-546-0 01 1 0409-0412 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-546-0 01 1 0501-0508 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-97375-546-0 01 1 0509-0606 ● ●
38 HARNESS; CHAS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA 		8-98007-600-2 01 1 0607- ● ●
189 HARNESS; EXT
THA 		8-97250-357-0 01 1 0304-0606 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
