◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#40852) — 51 parça

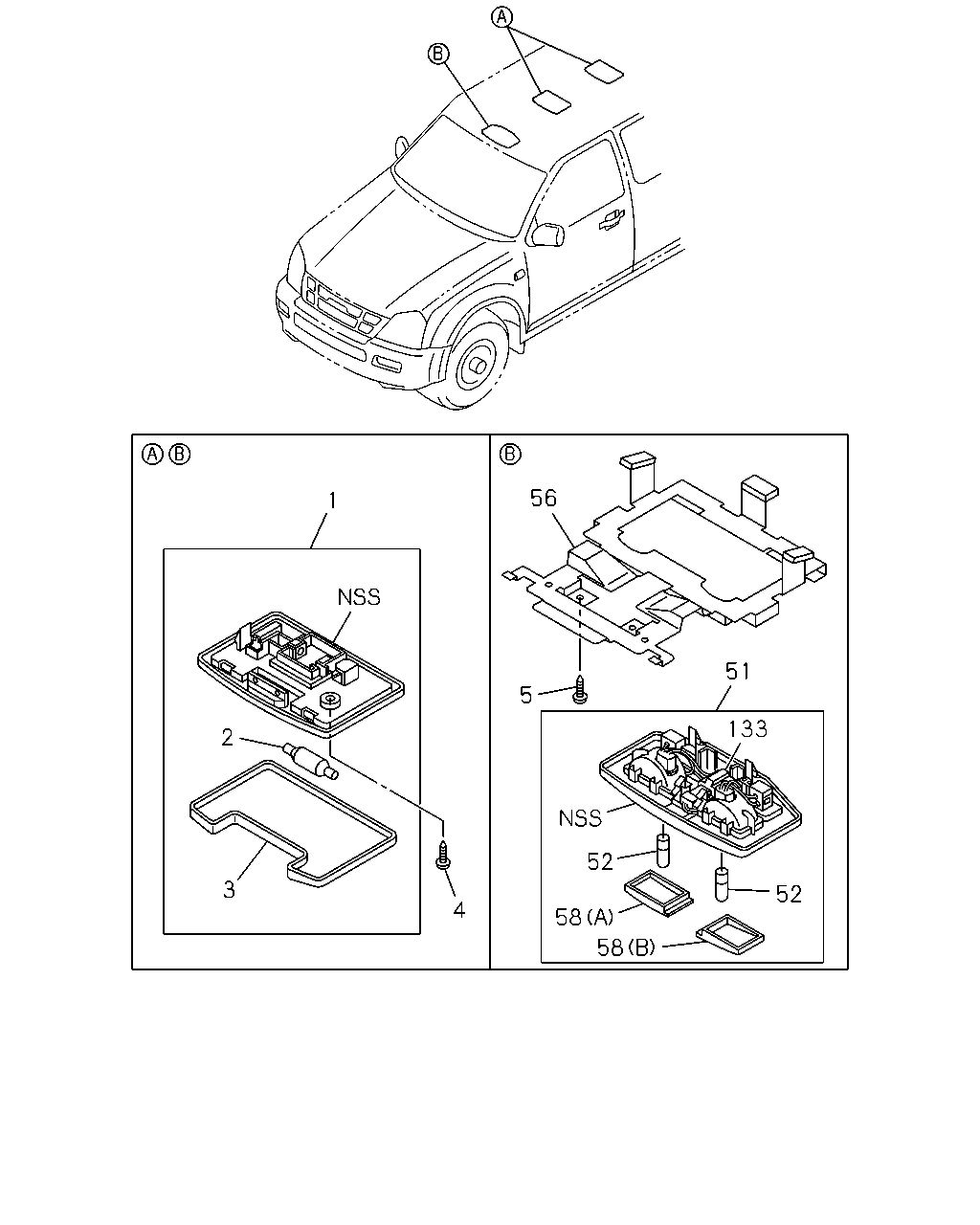

çizim 50305
56 1 51 5 133 2 52 3 52 4 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97294-070-2 02 1 0303-0303 ● ●
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97294-070-2 03 1 0304-0408 ● ●
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97294-070-2 03 1 0409-0606 ● ●
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97403-891-2 03 1 0607-0612 ● ●
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97411-439-0 03 1 0701-0710 ● ●
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97411-439-0 02 1 0711-0806 ● ●
1 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97411-439-0 03 1 0807- ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 02 1 0303-0303 ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 03 1 0304-0408 ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 03 1 0409-0710 ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 02 1 0711-0806 ● ●
2 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 03 1 0807- ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 02 1 0303-0303 ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 03 1 0304-0408 ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 03 1 0409-0710 ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 02 1 0711-0806 ● ●
3 LENS; ROOM LAMP
THA 		8-97333-429-0 03 1 0807- ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING THA 		9-07066-512-0 04 1 0303-0303 ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING THA 		9-07066-512-0 06 1 0304-0604 ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 06 1 0605-0710 ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 04 1 0711-0808 ● ●
4 SCREW; ROOM LAMP
M5X12 TAPPING IMA 		0-71040-512-0 06 1 0809- ● ●
5 SCREW; SPOT LAMP
M5X12 THA 		8-94120-094-0 02 1 0303-0303 ● ●
5 SCREW; SPOT LAMP
MAP LAMP<UF3> M5X12 THA 		8-94120-094-0 02 1 0308-0408 ● ●
5 SCREW; SPOT LAMP
M5X12 THA 		8-94120-094-0 02 1 0409-0508 ● ●
51 LAMP ASM; SPOT
LIGHT GRAY THA 		8-97396-084-0 01 1 0303-0307 ● ●
51 LAMP ASM; SPOT
MAP LAMP<UF3> LIGHT GRAY THA 		8-97396-084-0 01 1 0308-0408 ● ●
51 LAMP ASM; SPOT
LIGHT GRAY THA 		8-97396-084-0 01 1 0409-0508 ● ●
52 BULB; SPOT LAMP
12V 5W THA 		8-94124-595-0 02 1 0303-0307 ● ●
52 BULB; SPOT LAMP
MAP LAMP<UF3> 12V 5W THA 		8-94124-595-0 02 1 0308-0408 ● ●
52 BULB; SPOT LAMP
12V 5W THA 		8-94124-595-0 02 1 0409-0508 ● ●
56 BRACKET; LAMP
THA 		8-97236-839-5 01 1 0303-0307 ● ●
56 BRACKET; LAMP
MAP LAMP<UF3> THA 		8-97236-839-5 01 1 0308-0408 ● ●
56 BRACKET; LAMP
THA 		8-97236-839-5 01 1 0409-0412 ● ●
56 BRACKET; LAMP
THA 		8-97385-493-0 01 1 0501-0508 ● ●
58 LENS; SPOT LAMP
(A) THA 		8-97333-440-0 01 1 0303-0307 ● ●
58 LENS; SPOT LAMP
MAP LAMP<UF3> (A) THA 		8-97333-440-0 01 1 0308-0408 ● ●
58 LENS; SPOT LAMP
(A) THA 		8-97333-440-0 01 1 0409-0508 ● ●
58 LENS; SPOT LAMP
(B) THA 		8-97333-441-0 01 1 0303-0307 ● ●
58 LENS; SPOT LAMP
MAP LAMP<UF3> (B) THA 		8-97333-441-0 01 1 0308-0408 ● ●
58 LENS; SPOT LAMP
(B) THA 		8-97333-441-0 01 1 0409-0508 ● ●
133 SOCKET ASM; SPOT LAMP
THA 		8-97176-526-0 01 1 0303-0307 ● ●
133 SOCKET ASM; SPOT LAMP
MAP LAMP<UF3> THA 		8-97176-526-0 01 1 0308-0408 ● ●
133 SOCKET ASM; SPOT LAMP
THA 		8-97176-526-0 01 1 0409-0508 ● ●

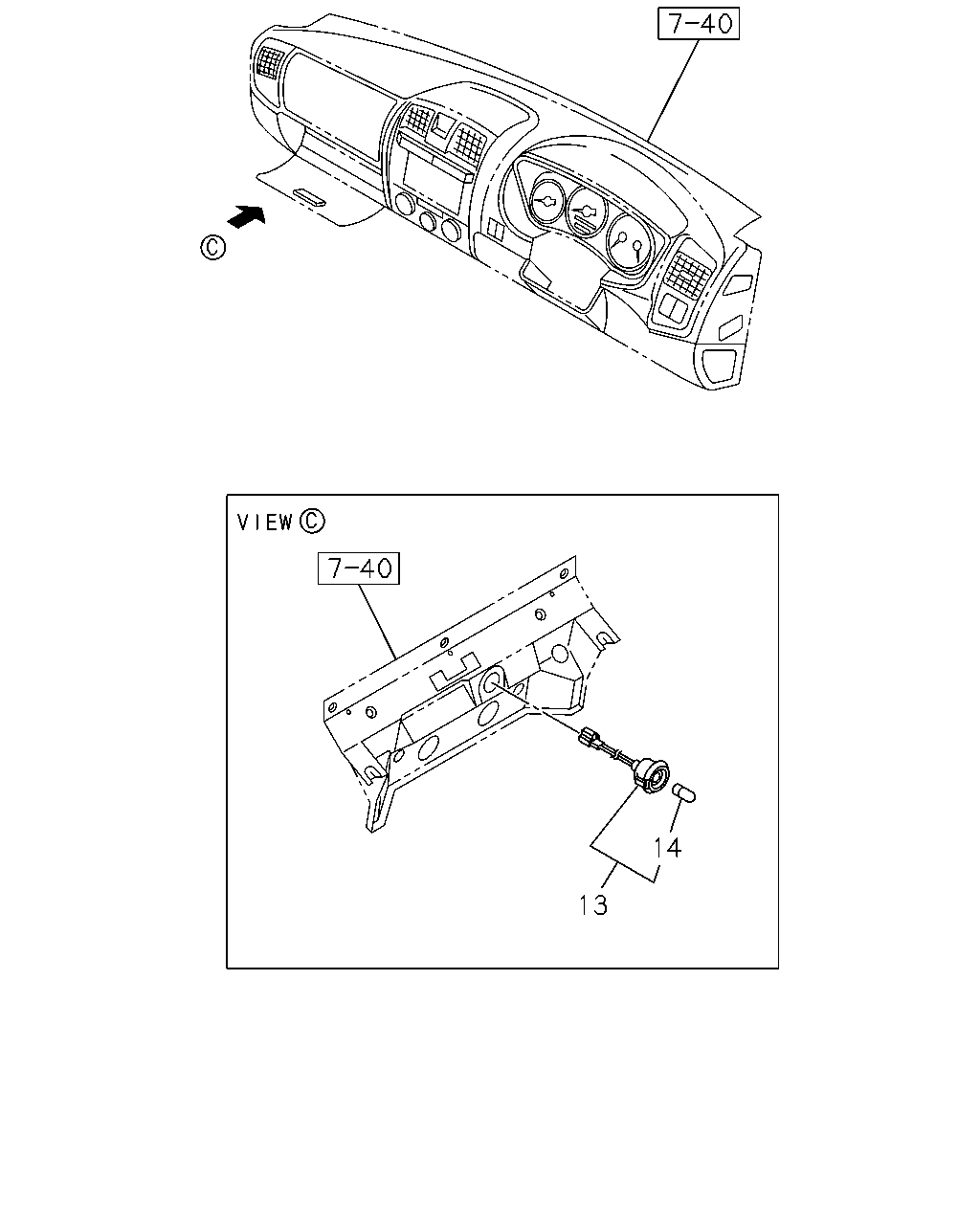

çizim 100946
14 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 LAMP ASM; GLOVE BOX
THA 		8-97302-698-1 01 1 0303-0303 ● ●
13 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0303-0307 ● ●
13 LAMP ASM; GLOVE BOX
LAMP GLOVE BOX<U27> THA 		8-97363-727-0 01 1 0308-0408 ● ●
13 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0409- ● ●
14 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0303-0307 ● ●
14 BULB; GLOVE BOX LAMP
LAMP GLOVE BOX<U27> 12V 1.2W THA 		8-97352-272-0 01 1 0308-0408 ● ●
14 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0409- ● ●
