◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#40849) — 27 parça

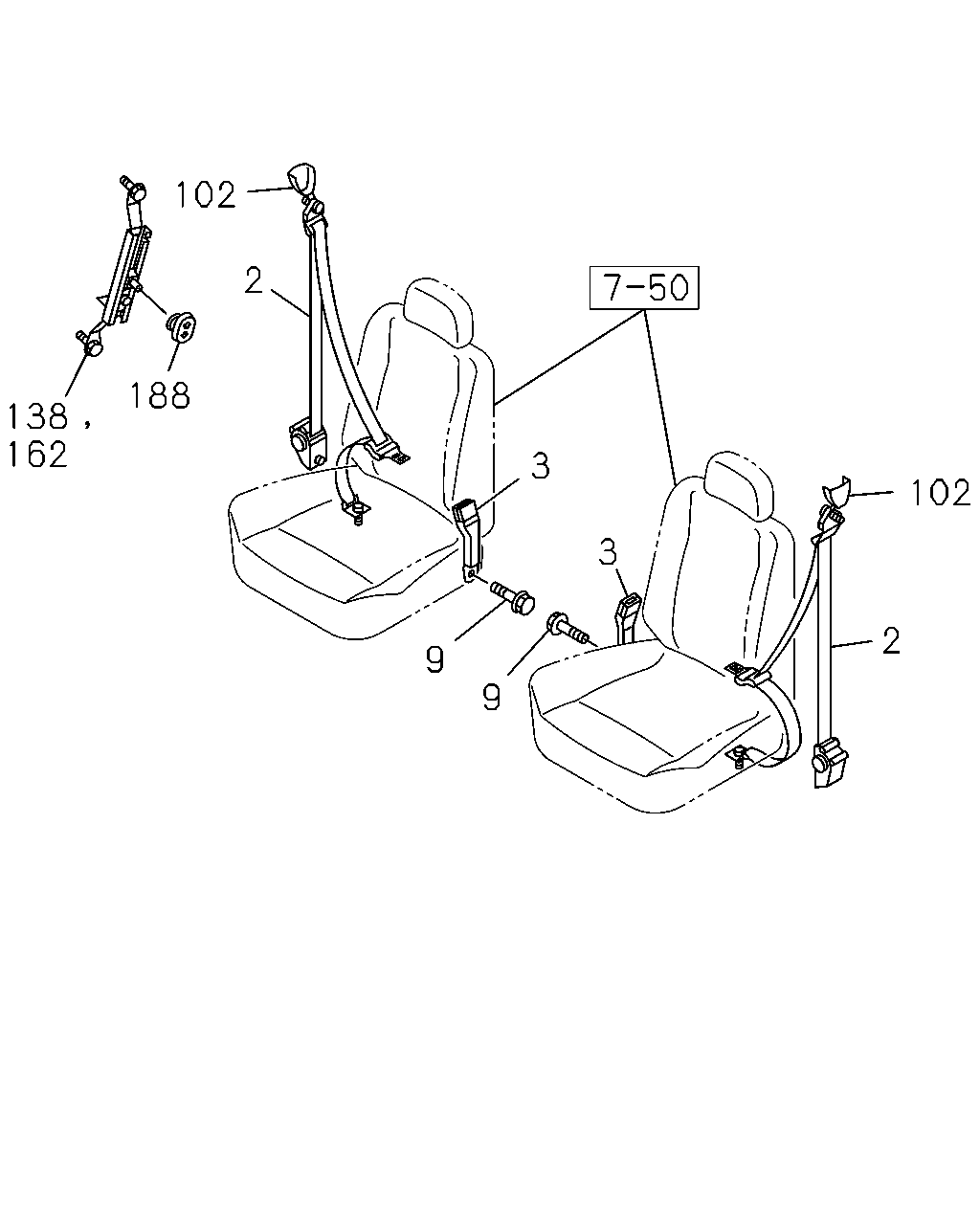

çizim 50299
102 2 188 138 162 3 102 3 2 9 9
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
DARK GRAY THA 		8-97294-002-5 02 1 0303-0405 ● ●
2 BELT; SEAT,TONGUE SIDE
DARK GRAY THA 		8-97399-422-0 02 1 0406-0606 ● ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY THA 		8-97403-336-1 01 1 0607-0808 ● ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY THA 		8-97413-176-0 01 1 0809-0811 ● ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY THA 		8-97417-018-0 01 1 0812-1303 ● ●
2 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY THA 		8-97424-019-0 01 1 1304- ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY THA 		8-97407-845-0 01 1 0607-0808 ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY THA 		8-97413-190-0 01 1 0809-0811 ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY THA 		8-97417-025-0 01 1 0812-1303 ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY THA 		8-97424-020-0 01 1 1304- ● ●
3 BELT; SEAT,BUCKLE SIDE
DARK GRAY THA 		8-97396-476-0 01 1 0303-0408 ● ●
3 BELT; SEAT,BUCKLE SIDE
DARK GRAY THA 		8-97298-690-1 01 1 0303-0408 ● ●
9 BOLT; SEAT BELT ANCHOR
THA 		8-97332-665-0 02 1 0303-0408 ● ●
9 BOLT; SEAT BELT ANCHOR
M12X27.5 W/PL WASHER THA 		8-98050-319-0 01 1 0711-0711 ● ●
102 COVER; SHOULDER ANCHOR
DARK GRAY THA 		8-97395-750-0 02 1 0303-0405 ● ●
102 COVER; SHOULDER ANCHOR
DARK GRAY THA 		8-97399-431-0 02 1 0406-0508 ● ●
102 COVER; SHOULDER ANCHOR
DARK GRAY THA 		8-97399-431-0 02 1 0509-0606 ● ●
102 COVER; SHOULDER ANCHOR
LIGHT GRAY THA 		8-97403-340-0 02 1 0607- ● ●
138 BRACKET; ANCHOR,SEAT BELT
THA 		8-97232-956-0 02 1 0303-0408 ● ●
162 ADJUSTER; SEAT BELT
THA 		8-97232-956-0 02 1 0409-0410 ● ●
162 ADJUSTER; SEAT BELT
THA 		8-97232-956-0 01 1 0411- ● ●
162 ADJUSTER; SEAT BELT
THA 		8-97232-956-0 01 1 0411- ● ●
188 KNOB; LEVER
DARK GRAY THA 		8-97392-647-0 04 1 0303-0410 ● ●
188 KNOB; LEVER
DARK GRAY THA 		8-97392-647-0 02 1 0411-0606 ● ●
188 KNOB; LEVER
DARK GRAY THA 		8-97392-647-0 02 1 0411-0606 ● ●
188 KNOB; LEVER
LIGHT GRAY THA 		8-97403-338-0 02 1 0607- ● ●
188 KNOB; LEVER
LIGHT GRAY THA 		8-97403-338-0 02 1 0607- ● ●
