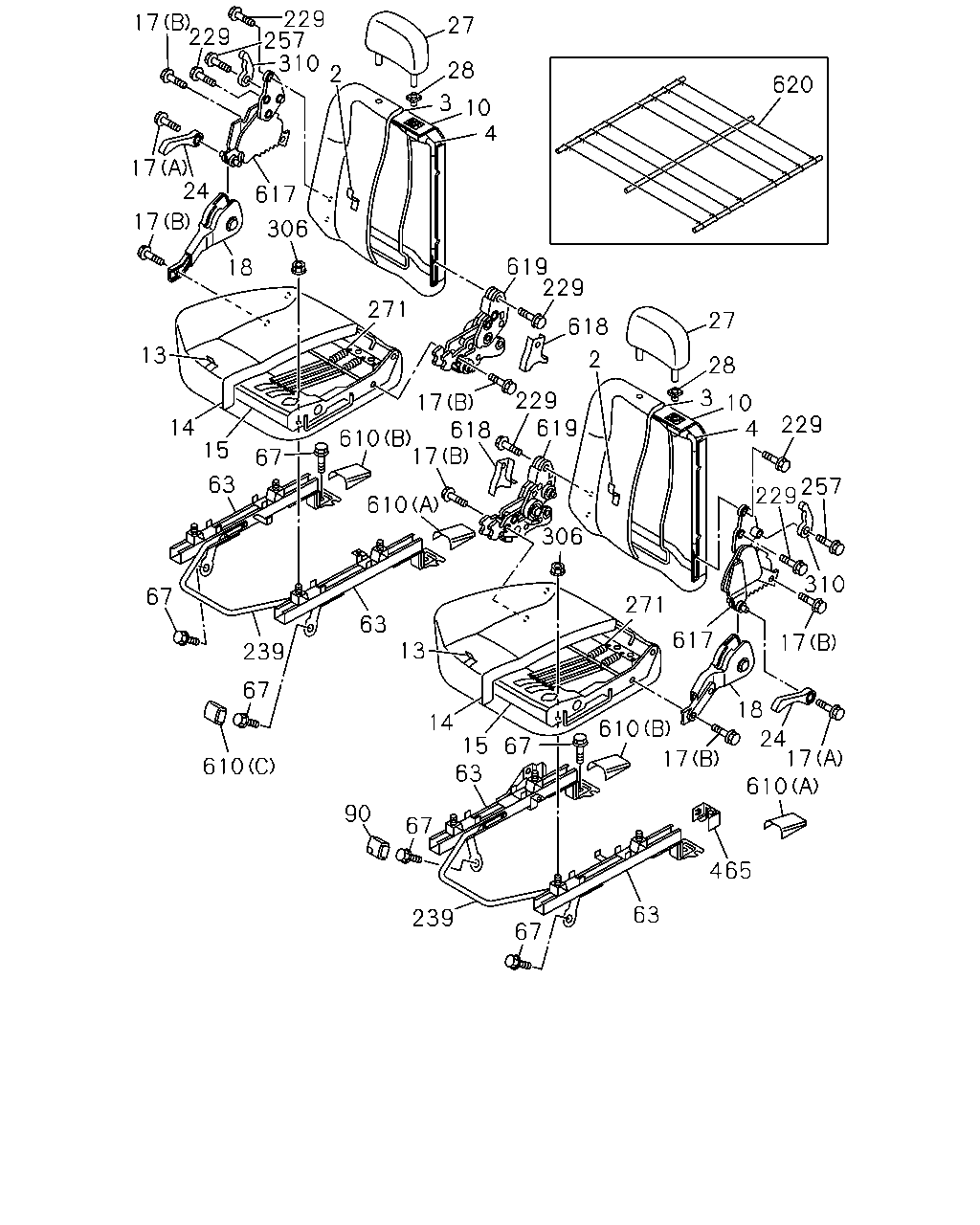

7-50 — FRONT SEAT (#40848) — 49 parça

229 257 310 17 229 27 28 2 620 3 10 4 17 24 617 17 306 619 229 18 271 27 618 13 2 28 3 229 619 17 618 610 17 10 4 229 14 15 67 63 257 229 610 306 310 67 271 63 617 17 13 239 67 18 14 610 24 17 610 15 63 67 17 610 90 67 465 63 239 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; TRIM,FRT SEAT,BACK THA	8-97332-622-0	01	1	0303-0408
2	COVER; TRIM,FRT SEAT,BACK THA	8-97332-619-0	01	1	0303-0408
3	PAD; FRT SEAT BACK THA	8-97332-611-0	01	1	0303-0408
3	PAD; FRT SEAT BACK THA	8-97332-610-0	01	1	0303-0408
4	FRAME ASM; FRT SEAT THA	8-97332-596-0	02	1	0303-0408
10	BOARD; SEAT THA	8-97332-608-0	02	1	0303-0408
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97332-688-0	01	1	0303-0408
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97332-685-0	01	1	0303-0307
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97367-749-0	01	1	0308-0408
14	PAD; FRT SEAT CUSHION THA	8-97332-664-0	01	1	0303-0408
14	PAD; FRT SEAT CUSHION THA	8-97332-663-0	01	1	0303-0307
14	PAD; FRT SEAT CUSHION THA	8-97367-748-0	01	1	0308-0408
15	FRAME; CUSHION,FRT SEAT THA	8-97332-645-0	01	1	0303-0408
15	FRAME; CUSHION,FRT SEAT THA	8-97332-644-0	01	1	0303-0408
17	BOLT; RECLINING (B) THA	8-97332-605-0	08	1	0303-0408
17	BOLT; RECLINING (A) THA	8-97332-630-0	02	1	0303-0408
18	COVER; RECLINING DARK GRAY THA	8-97395-014-0	01	1	0303-0408
18	COVER; RECLINING DARK GRAY THA	8-97395-013-0	01	1	0303-0408
24	KNOB; RECLINING,FRT,SEAT DARK GRAY THA	8-97394-231-0	01	1	0303-0309
24	KNOB; RECLINING,FRT,SEAT DARK GRAY THA	8-97399-411-0	01	1	0310-0408
24	KNOB; RECLINING,FRT,SEAT DARK GRAY THA	8-97394-230-0	01	1	0303-0309
24	KNOB; RECLINING,FRT,SEAT DARK GRAY THA	8-97399-409-0	01	1	0310-0408
27	REST; HD,FRT SEAT THA	8-97332-574-0	02	1	0303-0408
28	HOLDER; GUIDE,HD REST THA	8-97332-607-0	04	1	0303-0408
63	ADJUSTER; SEAT SLIDE PASSENGER OUTER THA	8-97332-653-0	01	1	0303-0408
63	ADJUSTER; SEAT SLIDE PASSENGER INNER THA	8-97332-657-0	01	1	0303-0408
63	ADJUSTER; SEAT SLIDE DRIVER OUTER THA	8-97332-652-0	01	1	0303-0408
63	ADJUSTER; SEAT SLIDE DRIVER INNER THA	8-97332-656-0	01	1	0303-0408
67	BOLT; FRT SEAT TO BODY THA	8-97248-987-0	08	1	0303-0612
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	0701-
90	COVER; SEAT ADJ BRKT INNER THA	8-97328-453-0	01	1	0303-0408
229	BOLT; HINGE,FRT SEAT THA	8-97332-605-0	08	1	0303-0408
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-97332-658-0	02	1	0303-0408
257	BOLT; RECLINING DEVICE THA	8-97332-630-0	02	1	0303-0408
271	SPRING; HELPER THA	8-97332-650-0	08	1	0303-0408
306	NUT; SEAT ADJ THA	8-97332-666-0	08	1	0303-0408
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DARK GRAY THA	8-97394-220-0	01	1	0303-0408
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DARK GRAY THA	8-97394-219-0	01	1	0303-0408
465	COVER; SEAT ADJUSTER THA	8-97328-838-0	04	1	0303-0408
610	COVER; LEG,FRT SEAT (A) DARK GRAY THA	8-97298-463-1	02	1	0303-0408
610	COVER; LEG,FRT SEAT (C) THA	8-97312-372-1	01	1	0303-0408
610	COVER; LEG,FRT SEAT (B) DARK GRAY THA	8-97390-867-1	01	1	0303-0408
610	COVER; LEG,FRT SEAT (B) DARK GRAY THA	8-97298-464-1	01	1	0303-0408
617	RECLINING DEVICE THA	8-97332-599-0	01	1	0303-0408
617	RECLINING DEVICE THA	8-97332-598-0	01	1	0303-0408
618	CARPET; HINGE THA	8-97332-698-0	02	1	0303-0408
619	PIVOT BRACKET THA	8-97332-603-0	01	1	0303-0408
619	PIVOT BRACKET THA	8-97332-602-0	01	1	0303-0408
620	MAT; SUS THA	8-97332-649-0	02	1	0303-0408
