7-45 — CONSOLE BOX (#40847) — 85 parça

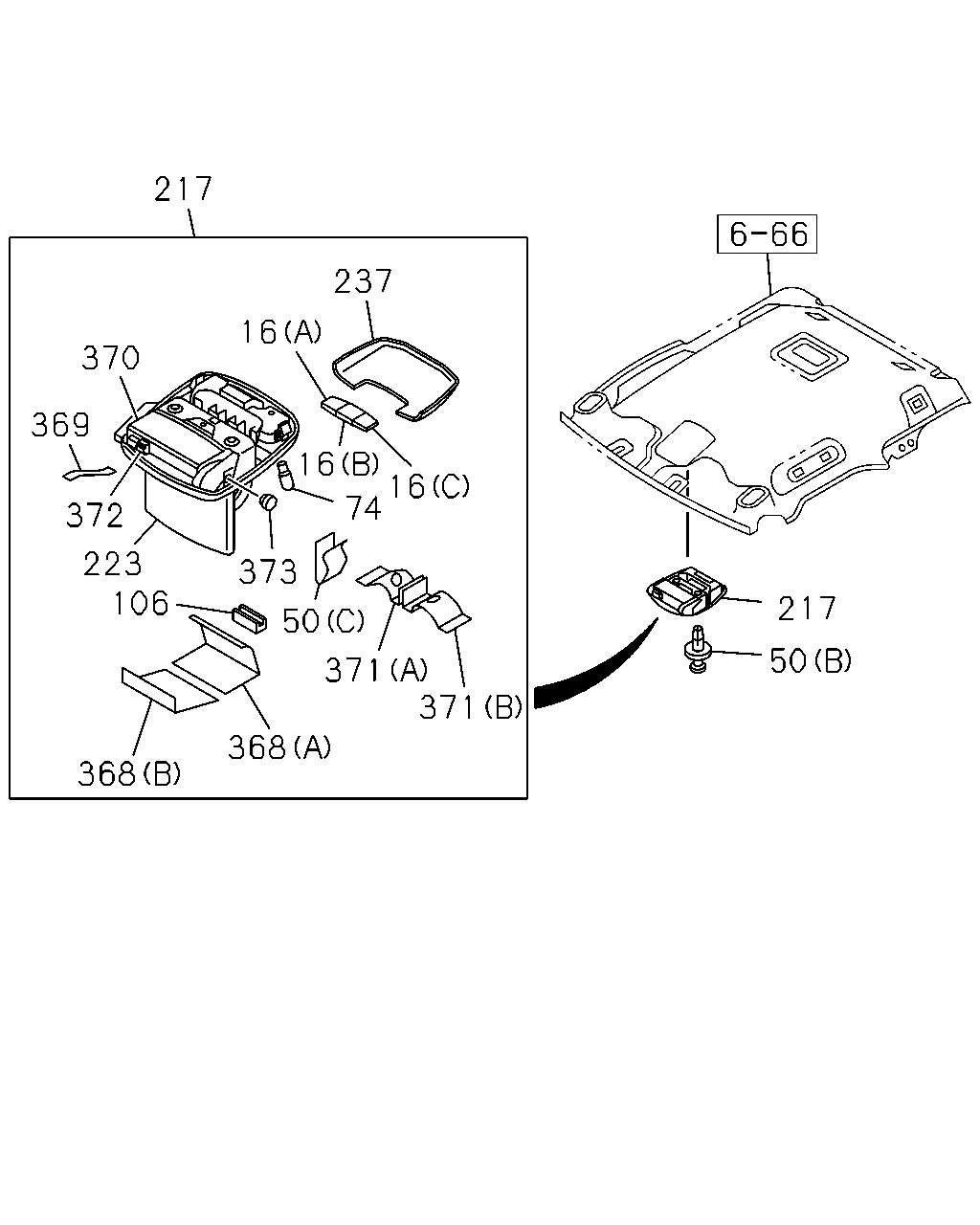

217 237 16 370 369 16 16 74 372 223 106 373 217 50 50 371 371 368 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	KNOB ASM (A) LIGHT GRAY THA	8-97401-422-1	01	1	0509-0606
16	KNOB ASM (A) LIGHT GRAY THA	8-97403-995-1	01	1	0607-
16	KNOB ASM (B) LIGHT GRAY THA	8-97401-426-1	01	1	0509-0606
16	KNOB ASM (B) LIGHT GRAY THA	8-97403-997-1	01	1	0607-
16	KNOB ASM (C) LIGHT GRAY THA	8-97401-429-1	01	1	0509-0606
16	KNOB ASM (C) LIGHT GRAY THA	8-97403-999-1	01	1	0607-
50	CLIP; CONSOLE (A) THA	8-97355-734-0	02	1	0303-
50	CLIP; CONSOLE (C) THA	8-97388-958-0	02	1	0509-
50	CLIP; CONSOLE (B) LIGHT GRAY THA	8-97401-114-0	02	1	0509-0606
50	CLIP; CONSOLE (B) LIGHT GRAY THA	8-97403-529-0	02	1	0607-
74	BULB; CONSOLE THA	8-97388-953-0	02	1	0509-
106	LOCK; CONSOLE LID THA	8-97388-944-0	01	1	0509-
217	CONSOLE; HEADER LIGHT GRAY THA	8-97401-113-3	01	1	0509-0606
217	CONSOLE; HEADER LIGHT GRAY THA	8-97403-527-3	01	1	0607-
223	LID; HEADER CONSOLE LIGHT GRAY THA	8-97401-418-0	01	1	0509-0606
223	LID; HEADER CONSOLE LIGHT GRAY THA	8-97403-993-0	01	1	0607-
237	LENS; HEADER CONSOLE THA	8-97371-299-0	01	1	0509-
368	SHEET; CASE,HEADER CONSOLE (A) THA	8-97388-945-0	01	1	0509-
368	SHEET; CASE,HEADER CONSOLE (B) THA	8-97388-948-0	01	1	0509-
369	SPRING; LID,HEADER CONSOLE THA	8-97388-946-0	01	1	0509-
370	CASE; HEADER CONSOLE THA	8-97388-947-0	01	1	0509-
371	REFLECTOR; LAMP,HEADER CONSOLE (A) THA	8-97388-949-0	01	1	0509-
371	REFLECTOR; LAMP,HEADER CONSOLE (B) THA	8-97388-950-0	01	1	0509-
372	HARNESS ASM; SWITCH,HEADER CONSOLE THA	8-97388-951-0	01	1	0509-
373	DAMPER; LID,HEADER CONSOLE THA	8-97388-954-0	01	1	0509-

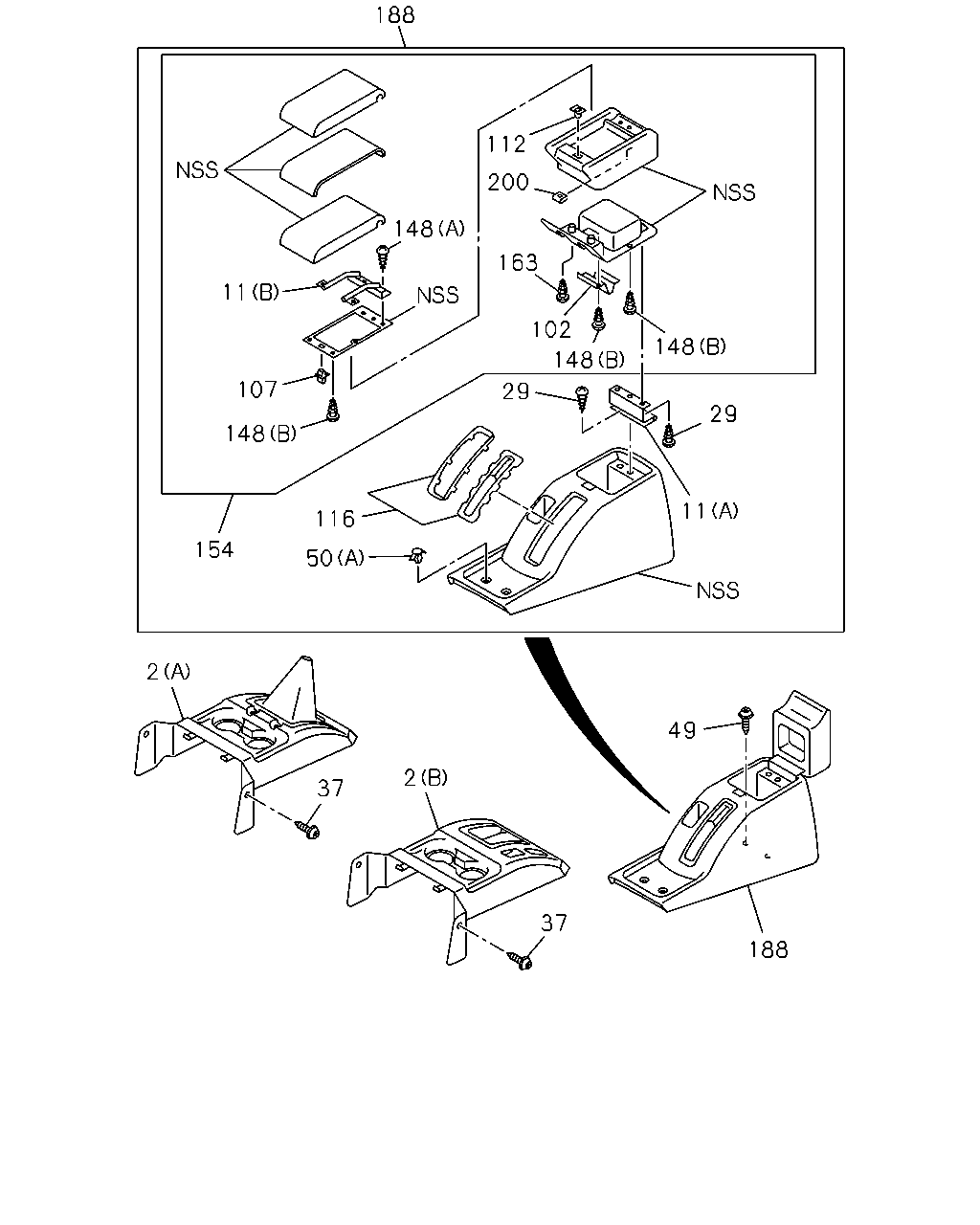

188 112 200 148 163 11 102 148 148 107 29 29 148 11 116 154 50 2 49 2 37 37 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CONSOLE; CENTER A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA	8-97293-884-1	01	1	0303-0606
2	CONSOLE; CENTER A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA	8-97403-357-1	01	1	0607-1104
2	CONSOLE; CENTER A/T 4 SPEED-JATCO<RMK> (B) BLACK THA	8-97422-761-0	01	1	1105-
2	CONSOLE; CENTER FLOOR REMOTE SHIFT<M11> (A) DARK GRAY THA	8-97293-887-1	01	1	0303-0408
2	CONSOLE; CENTER M/T MUA 5 SPEED 5G<RSP> (A) DARK GRAY THA	8-97400-586-0	01	1	0409-0412
2	CONSOLE; CENTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) DARK GRAY THA	8-97400-586-0	01	1	0501-0606
2	CONSOLE; CENTER M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA	8-97403-343-0	01	1	0607-0802
2	CONSOLE; CENTER M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA	8-97407-083-1	01	1	0803-
11	HINGE; CONSOLE LID (A) THA	8-97349-645-0	01	1	0303-
11	HINGE; CONSOLE LID (B) THA	8-97349-646-0	01	1	0303-
29	SCREW; HINGE M5X16 THA	8-94279-312-0	06	1	0303-0612
29	SCREW; HINGE M5X16 TAPPING THA	8-98061-683-0	06	1	0701-
37	SCREW; CONSOLE M5X16 THA	8-94358-694-0	02	1	0303-0702
37	SCREW; CONSOLE M5X16 THA	8-98061-684-0	02	1	0703-1005
37	SCREW; CONSOLE M5X16 THA	8-98167-220-0	02	1	1006-
49	SCREW; CONSOLE M5X16 THA	8-94358-694-0	02	1	0303-0702
49	SCREW; CONSOLE M5X16 THA	8-98061-684-0	02	1	0703-1005
49	SCREW; CONSOLE M5X16 THA	8-98167-220-0	02	1	1006-
50	CLIP; CONSOLE (A) THA	8-97355-734-0	02	1	0303-
50	CLIP; CONSOLE (C) THA	8-97388-958-0	02	1	0509-
50	CLIP; CONSOLE (B) LIGHT GRAY THA	8-97401-114-0	02	1	0509-0606
50	CLIP; CONSOLE (B) LIGHT GRAY THA	8-97403-529-0	02	1	0607-
102	LOCK ASM; RR CONSOLE THA	8-97349-650-0	01	1	0303-
107	LOCK; LID,RR CONSOLE THA	8-97349-644-0	01	1	0303-
112	LOCK; HOLE,RR CONSOLE THA	8-97349-643-0	01	1	0303-
116	COVER; HOLE,CONSOLE,RR DARK GRAY THA	8-97394-454-0	01	1	0303-0607
116	COVER; HOLE,CONSOLE,RR DARK GRAY THA	8-97403-966-0	01	1	0608-1104
116	COVER; HOLE,CONSOLE,RR BLACK THA	8-97422-799-0	01	1	1105-
148	SCREW; LID,CONSOLE (B) M4X14 THA	8-97349-647-0	13	1	0303-
148	SCREW; LID,CONSOLE (A) M5X14 THA	8-97349-872-0	03	1	0303-
154	LID ASM; RR CONSOLE DARK GRAY THA	8-97394-475-0	01	1	0303-0408
154	LID ASM; RR CONSOLE GRAY THA	8-97400-183-0	01	1	0409-0607
154	LID ASM; RR CONSOLE DARK GRAY THA	8-97404-945-1	01	1	0608-
163	RUBBER; CUSHION,PARCEL BOX LID THA	8-97349-682-0	02	1	0303-
188	CONSOLE; RR DARK GRAY THA	8-97395-406-0	01	1	0303-0305
188	CONSOLE; RR DARK GRAY THA	8-97397-321-0	01	1	0306-0408
188	CONSOLE; RR DARK GRAY THA	8-97398-500-0	01	1	0409-0606
188	CONSOLE; RR DARK GRAY THA	8-97403-965-1	01	1	0607-0607
188	CONSOLE; RR DARK GRAY THA	8-97403-365-0	01	1	0608-0612
188	CONSOLE; RR DARK GRAY THA	8-97409-186-1	01	1	0701-
200	NUT; SPIRE,SPR LID THA	8-97349-642-0	03	1	0303-

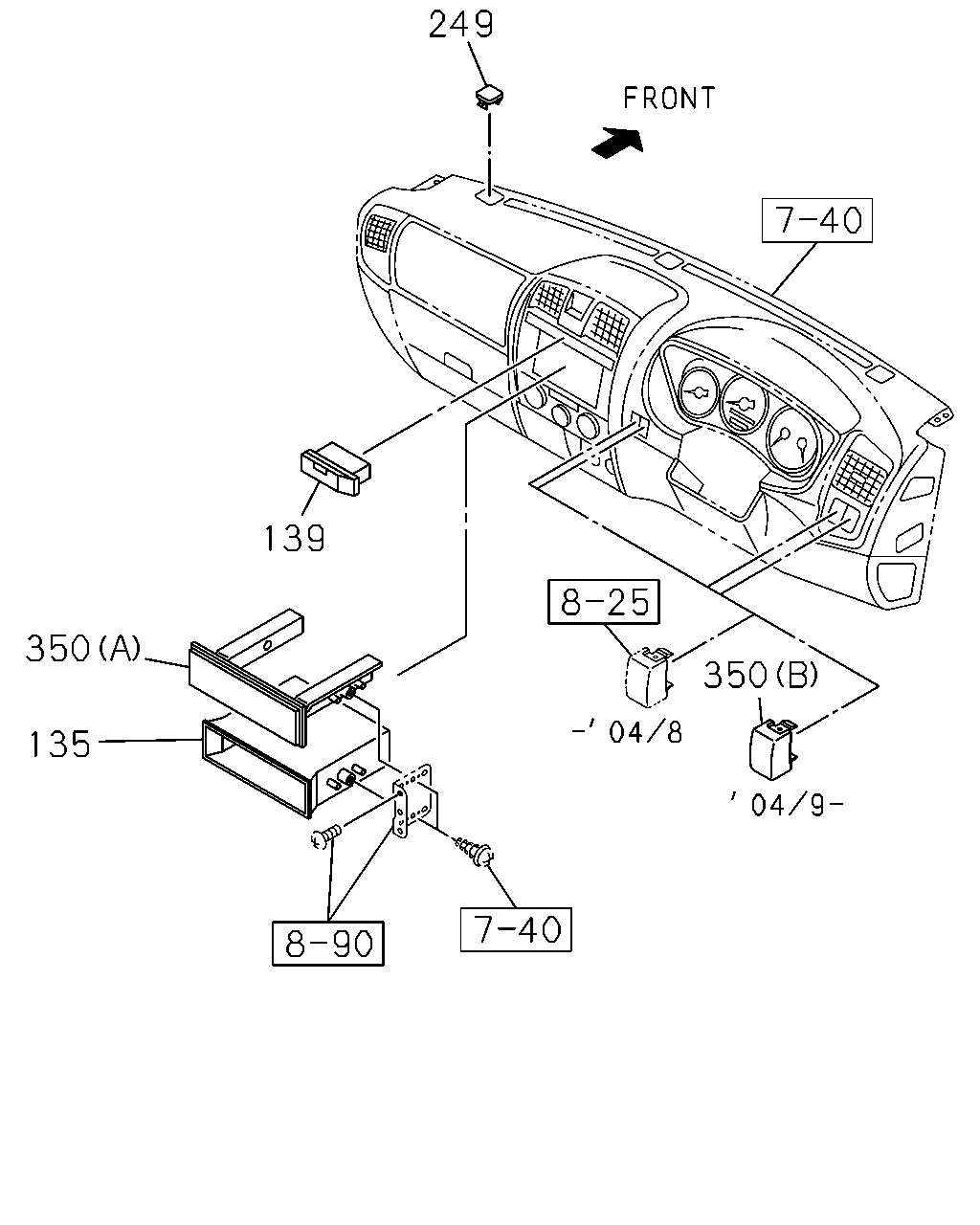

249 139 350 350 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
135	BOX; CONSOLE,LWR EXC. CHANGER 6CD 1DIN TYPE<8CH> DARK GRAY THA	8-97298-419-0	01	1	0303-0408
135	BOX; CONSOLE,LWR RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> DARK GRAY THA	8-97298-419-0	01	1	0409-0508
135	BOX; CONSOLE,LWR RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> DARK GRAY THA	8-97298-419-0	01	1	0509-0606
135	BOX; CONSOLE,LWR 4X4<TFS***> RADIO DELETE<UL5> DARK GRAY THA	8-97396-595-0	01	1	0607-0710
135	BOX; CONSOLE,LWR RADIO DELETE<UL5> DARK GRAY THA	8-97396-595-0	01	1	0711-
139	BOX; CONSOLE,UPR 4X2<TFB***> LIGHT GRAY THA	8-97298-418-0	01	1	0303-0606
139	BOX; CONSOLE,UPR 4X2<TFB***> LIGHT GRAY THA	8-97403-311-2	01	1	0607-
249	COVER DARK GRAY THA	8-97293-913-0	03	1	0303-0606
249	COVER DARK GRAY THA	8-97403-309-0	03	1	0607-1103
249	COVER BLACK THA	8-97422-663-0	03	1	1104-
350	COVER; CONSOLE (B) DARK GRAY THA	8-97298-962-0	02	1	0409-0606
350	COVER; CONSOLE EXC. AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5> (A) DARK GRAY THA	8-97298-421-0	01	1	0303-0408
350	COVER; CONSOLE RADIO DELETE<UL5> (A) DARK GRAY THA	8-97298-421-0	01	1	0409-0606
350	COVER; CONSOLE EXC. HEAD LAMP LEVELING MANUAL<T92> (B) DARK GRAY THA	8-97298-962-0	01	1	0409-0606
350	COVER; CONSOLE (B) DARK GRAY THA	8-97298-962-0	01	1	0409-0606
350	COVER; CONSOLE (B) DARK GRAY THA	8-97396-598-0	02	1	0607-
350	COVER; CONSOLE (B) DARK GRAY THA	8-97396-598-0	02	1	0607-
350	COVER; CONSOLE 4X4<TFS***> RADIO DELETE<UL5> (A) DARK GRAY THA	8-97396-597-0	01	1	0611-0710
350	COVER; CONSOLE RADIO DELETE<UL5> (A) DARK GRAY THA	8-97396-597-0	01	1	0711-
