Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

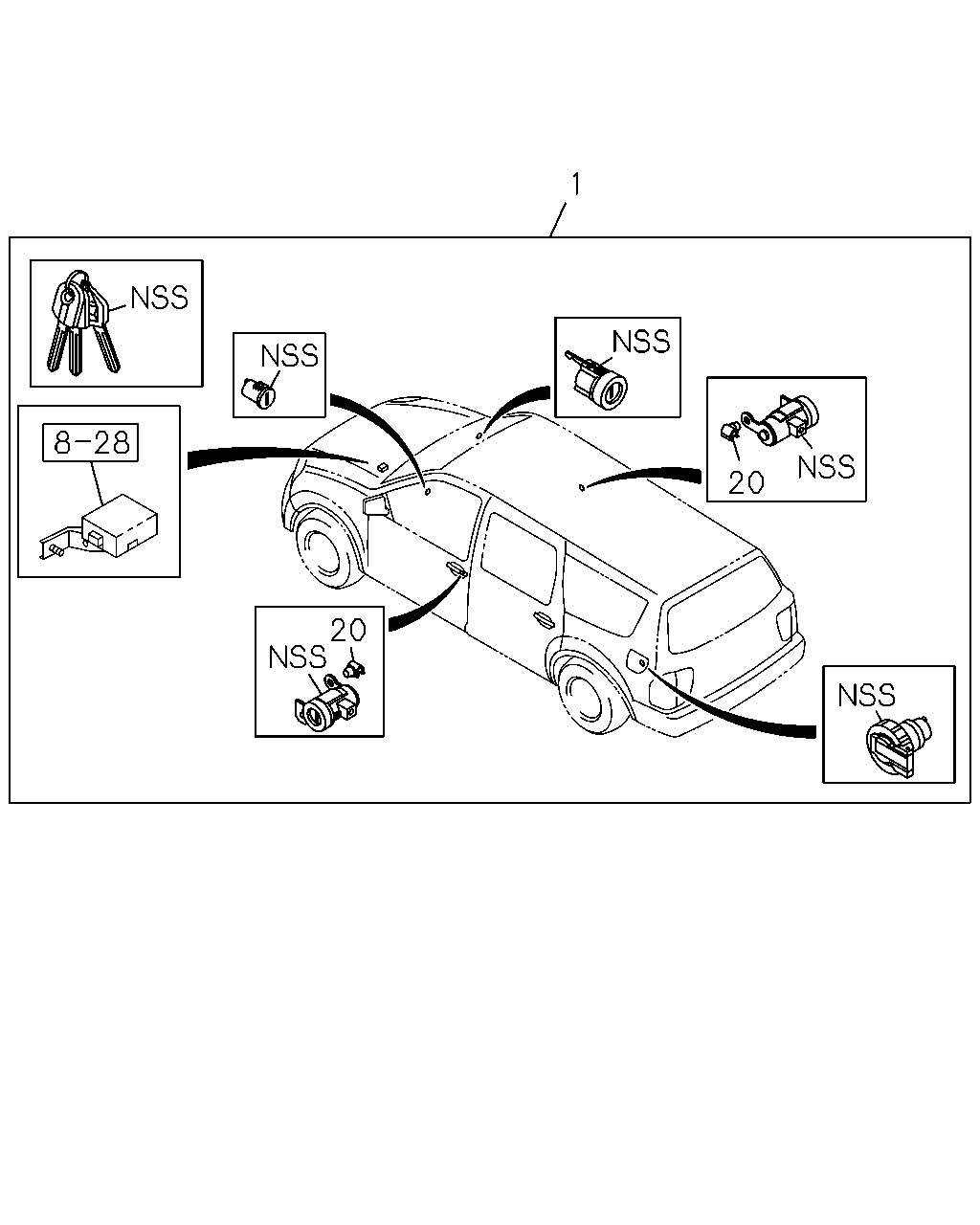

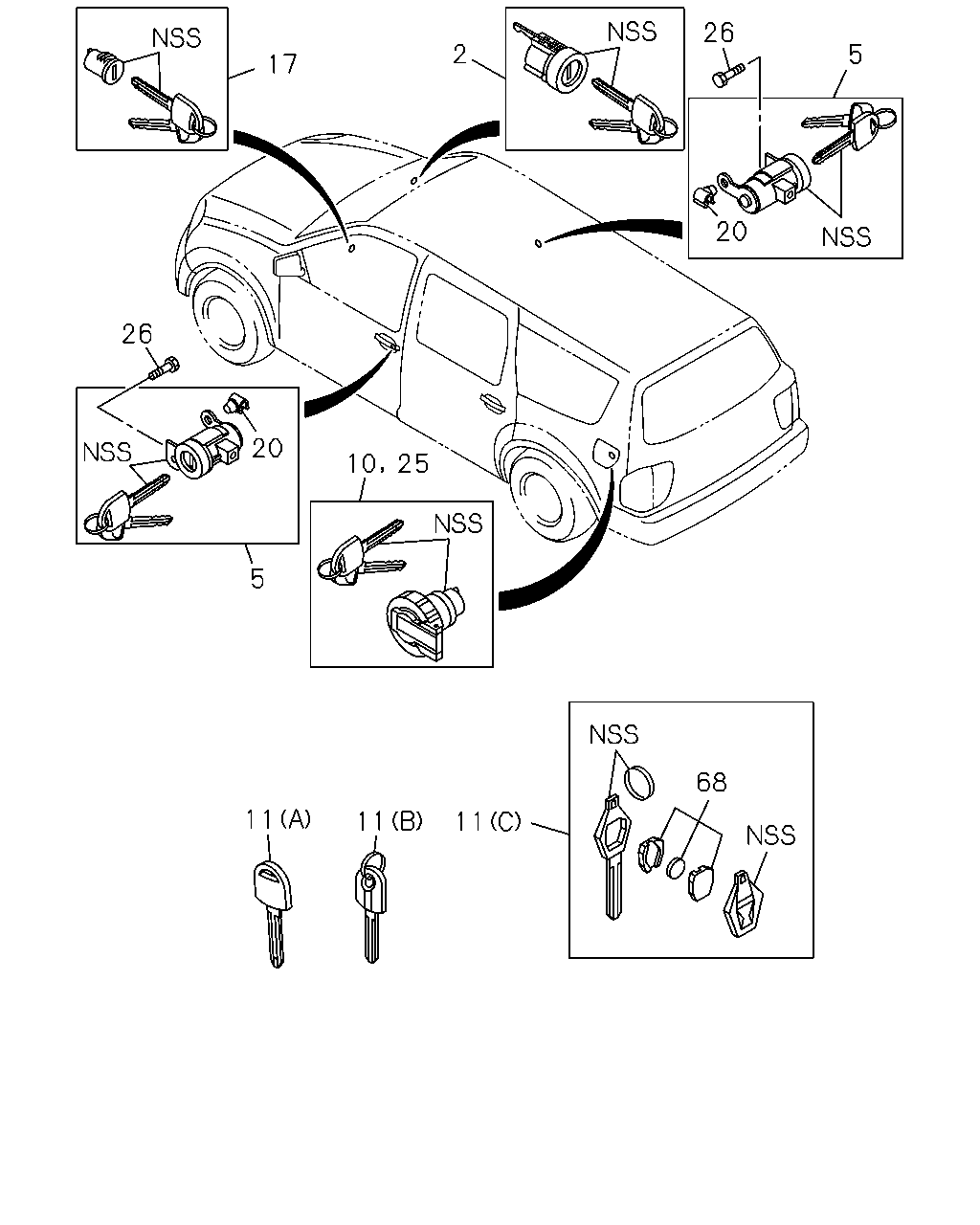

7-30 — LOCK CYLINDER SET (#40843) — 122 parça

1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> THA	8-98008-718-1	01	1	0607-0609	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> THA	8-98060-430-0	01	1	0610-0710	●	●
1	CYLINDER SET; CAR LOCK THA	8-98052-715-3	01	1	0711-	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97359-382-0	01	1	0303-0303	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97364-642-0	01	1	0304-0403	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-444-0	01	1	0404-0408	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-472-0	01	1	0409-0508	●	●
1	CYLINDER SET; CAR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97359-384-0	01	1	0303-0303	●	●
1	CYLINDER SET; CAR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97364-644-0	01	1	0304-0403	●	●
1	CYLINDER SET; CAR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97376-446-0	01	1	0404-0408	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> THA	8-97376-474-0	01	1	0409-0508	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97386-943-0	01	1	0509-0606	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-98008-717-1	01	1	0607-0609	●	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-98060-429-0	01	1	0610-0710	●	●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> YELLOW THA	8-97350-043-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> YELLOW THA	8-97350-043-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB> YELLOW THA	8-97350-043-0	01	1	0409-0412	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> YELLOW THA	8-97350-043-0	01	1	0501-0508	●
20	SNAP; DOOR LOCK CYL YELLOW THA	8-97350-043-0	01	1	0501-0508		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> YELLOW THA	8-97350-043-0	01	1	0509-0606	●	●
20	SNAP; DOOR LOCK CYL YELLOW THA	8-97350-043-0	01	1	0607-	●	●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> WHITE THA	8-97350-044-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> WHITE THA	8-97350-044-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB> WHITE THA	8-97350-044-0	01	1	0409-0412	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> WHITE THA	8-97350-044-0	01	1	0501-0508	●
20	SNAP; DOOR LOCK CYL WHITE THA	8-97350-044-0	01	1	0501-0508		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> WHITE THA	8-97350-044-0	01	1	0509-0606	●	●
20	SNAP; DOOR LOCK CYL WHITE THA	8-97350-044-0	01	1	0607-	●	●

26 2 5 17 20 26 20 25 10 5 68 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97359-446-0	01	1	0303-0303	●	●
2	BARREL ASM; W/KEY,STRG LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97359-446-0	01	1	0303-0303	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97364-706-0	01	1	0304-0403	●	●
2	BARREL ASM; W/KEY,STRG LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97364-706-0	01	1	0304-0403	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-564-0	01	1	0404-0408	●	●
2	BARREL ASM; W/KEY,STRG LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97376-564-0	01	1	0404-0408	●	●
2	BARREL ASM; W/KEY,STRG LOCK 4JJ1 ENG<LFB> THA	8-97376-611-0	01	1	0409-0412	●	●
2	BARREL ASM; W/KEY,STRG LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97376-611-0	01	1	0501-0508	●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-97376-611-0	01	1	0501-0508		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-650-1	01	1	0509-0606	●	●
2	BARREL ASM; W/KEY,STRG LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98049-745-0	01	1	0607-0609	●
2	BARREL ASM; W/KEY,STRG LOCK 4JJ1 ENG<LFB> THA	8-98049-745-0	01	1	0607-0609		●
2	BARREL ASM; W/KEY,STRG LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98060-589-0	01	1	0610-0710	●
2	BARREL ASM; W/KEY,STRG LOCK 4JJ1 ENG<LFB> THA	8-98060-589-0	01	1	0610-0710		●
2	BARREL ASM; W/KEY,STRG LOCK THA	8-98095-175-0	01	1	0711-	●	●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97359-442-0	01	1	0303-0303	●	●
5	CYLINDER ASM; DOOR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97359-442-0	01	1	0303-0303	●	●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97364-702-0	01	1	0304-0403	●	●
5	CYLINDER ASM; DOOR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97364-702-0	01	1	0304-0403	●	●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-560-0	01	1	0404-0408	●	●
5	CYLINDER ASM; DOOR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97376-560-0	01	1	0404-0408	●	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB> THA	8-97376-607-0	01	1	0409-0412	●	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97376-607-0	01	1	0501-0508	●
5	CYLINDER ASM; DOOR LOCK THA	8-97376-607-0	01	1	0501-0508		●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-648-1	01	1	0509-0606	●	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98049-735-0	01	1	0607-0609	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB> THA	8-98049-735-0	01	1	0607-0609		●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98060-581-0	01	1	0610-0710	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB> THA	8-98060-581-0	01	1	0610-0710		●
5	CYLINDER ASM; DOOR LOCK THA	8-98060-581-0	01	1	0711-	●	●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97359-443-0	01	1	0303-0303	●	●
5	CYLINDER ASM; DOOR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97359-443-0	01	1	0303-0303	●	●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97364-703-0	01	1	0304-0403	●	●
5	CYLINDER ASM; DOOR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97364-703-0	01	1	0304-0403	●	●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-561-0	01	1	0404-0408	●	●
5	CYLINDER ASM; DOOR LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97376-561-0	01	1	0404-0408	●	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB> THA	8-97376-608-0	01	1	0409-0412	●	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97376-608-0	01	1	0501-0508	●
5	CYLINDER ASM; DOOR LOCK THA	8-97376-608-0	01	1	0501-0508		●
5	CYLINDER ASM; DOOR LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-649-1	01	1	0509-0606	●	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98049-736-0	01	1	0607-0609	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB> THA	8-98049-736-0	01	1	0607-0609		●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98060-582-0	01	1	0610-0710	●
5	CYLINDER ASM; DOOR LOCK 4JJ1 ENG<LFB> THA	8-98060-582-0	01	1	0610-0710		●
5	CYLINDER ASM; DOOR LOCK THA	8-98060-582-0	01	1	0711-	●	●
10	CYLINDER ASM; W/KEY,FUEL FILLER 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97364-705-0	01	1	0304-0403	●	●
11	KEY; BLANK (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98046-772-1	AR	1	0711-	●	●
11	KEY; BLANK EXC. FUEL TANK CAP W/LOCK<N05> (A) THA	8-97350-342-0	AR	1	0303-0303	●	●
11	KEY; BLANK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> (A) THA	8-97350-342-0	AR	1	0303-0303	●	●
11	KEY; BLANK EXC. FUEL TANK CAP W/LOCK<N05> (A) THA	8-97364-902-0	AR	1	0304-0408	●	●
11	KEY; BLANK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> (A) THA	8-97364-902-0	AR	1	0304-0408	●	●
11	KEY; BLANK 4JJ1 ENG<LFB> (A) THA	8-97378-105-0	AR	1	0409-0412	●	●
11	KEY; BLANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-97378-105-0	AR	1	0501-0508	●
11	KEY; BLANK (A) THA	8-97378-105-0	AR	1	0501-0508		●
11	KEY; BLANK EXC. FUEL TANK CAP W/LOCK<N05> (A) IMMOBILIZER THA	8-97378-106-0	AR	1	0509-0606	●	●
11	KEY; BLANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	0607-0710	●
11	KEY; BLANK 4JJ1 ENG<LFB> (B) IMMOBILIZER THA	8-98007-939-1	AR	1	0607-0710		●
11	KEY; BLANK (B) IMMOBILIZER THA	8-98007-939-1	AR	1	0711-	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97359-441-0	01	1	0303-0303	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97359-441-0	01	1	0303-0303	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97364-701-1	01	1	0304-0408	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97364-701-1	01	1	0304-0408	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JJ1 ENG<LFB> THA	8-97375-927-0	01	1	0409-0412	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97375-927-0	01	1	0501-0508	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK THA	8-97375-927-0	01	1	0501-0508		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK EXC. FUEL TANK CAP W/LOCK<N05> THA	8-97376-647-1	01	1	0509-0606	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98049-734-0	01	1	0607-0609	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JJ1 ENG<LFB> THA	8-98049-734-0	01	1	0607-0609		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98060-580-0	01	1	0610-0710	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK 4JJ1 ENG<LFB> THA	8-98060-580-0	01	1	0610-0710		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK THA	8-98060-580-0	01	1	0711-	●	●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> YELLOW THA	8-97350-043-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> YELLOW THA	8-97350-043-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB> YELLOW THA	8-97350-043-0	01	1	0409-0412	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> YELLOW THA	8-97350-043-0	01	1	0501-0508	●
20	SNAP; DOOR LOCK CYL YELLOW THA	8-97350-043-0	01	1	0501-0508		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> YELLOW THA	8-97350-043-0	01	1	0509-0606	●	●
20	SNAP; DOOR LOCK CYL YELLOW THA	8-97350-043-0	01	1	0607-	●	●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> WHITE THA	8-97350-044-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> WHITE THA	8-97350-044-0	01	1	0303-0408	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB> WHITE THA	8-97350-044-0	01	1	0409-0412	●	●
20	SNAP; DOOR LOCK CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> WHITE THA	8-97350-044-0	01	1	0501-0508	●
20	SNAP; DOOR LOCK CYL WHITE THA	8-97350-044-0	01	1	0501-0508		●
20	SNAP; DOOR LOCK CYL EXC. FUEL TANK CAP W/LOCK<N05> WHITE THA	8-97350-044-0	01	1	0509-0606	●	●
20	SNAP; DOOR LOCK CYL WHITE THA	8-97350-044-0	01	1	0607-	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> THA	8-98049-742-0	01	1	0607-0609	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> THA	8-98060-587-0	01	1	0610-0710	●	●
25	CAP; FUEL TANK,W/KEY THA	8-98060-587-0	01	1	0711-	●	●
25	CAP; FUEL TANK,W/KEY 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97359-445-0	01	1	0303-0303	●	●
25	CAP; FUEL TANK,W/KEY 4JH1 ENG<RJX> FUEL TANK CAP W/LOCK<N05> THA	8-97376-563-0	01	1	0404-0408	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> THA	8-97376-610-0	01	1	0409-0508	●	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE THA	8-97175-668-0	04	1	0303-0701	●	●
26	BOLT; KEY CYL,DOOR THA	8-98062-137-0	04	1	0702-	●	●
68	TRANSMITTER; DOOR LOCK THA	8-98053-166-0	01	1	0711-	●	●
