◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#40841) — 39 parça

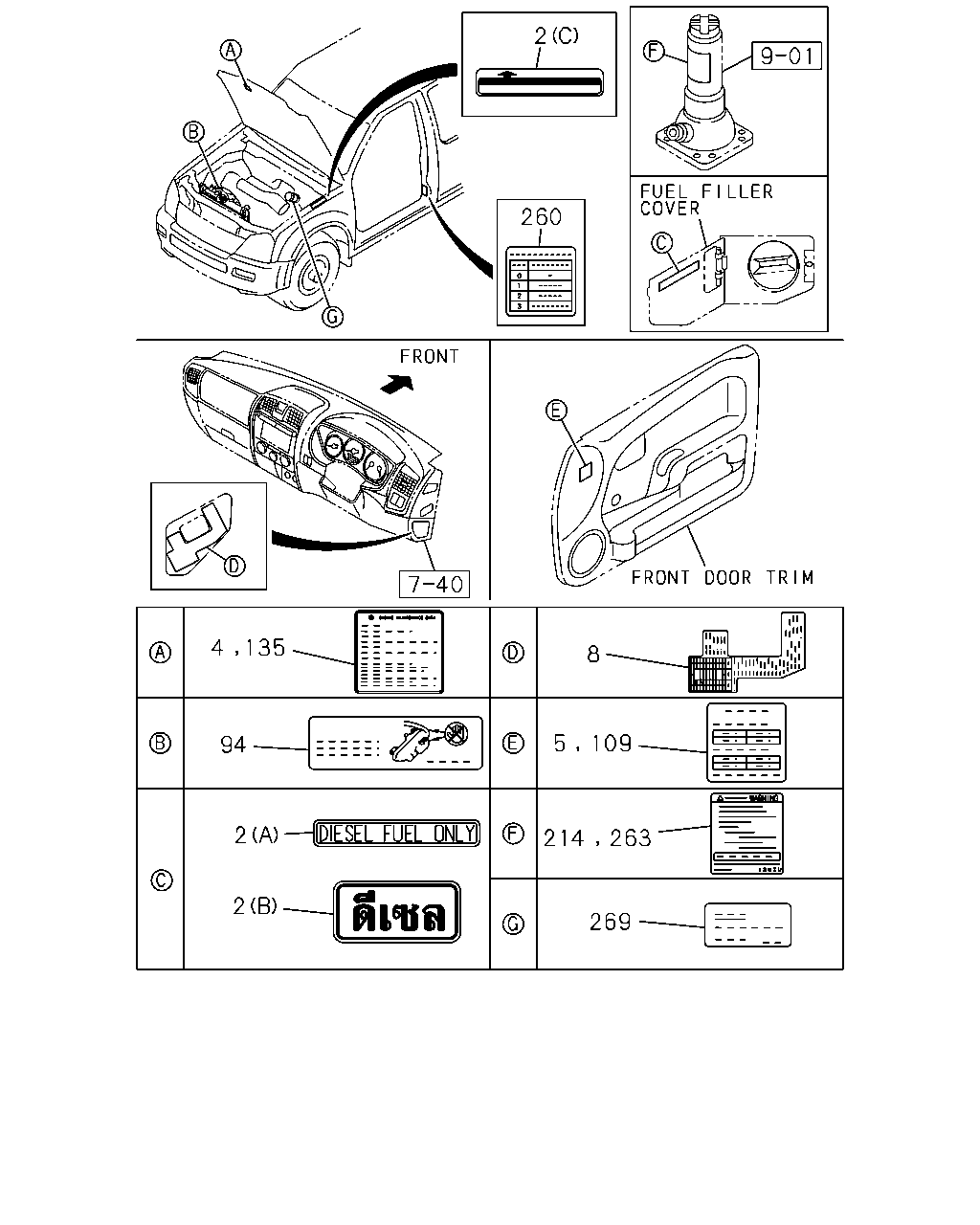

çizim 50912
2 260 135 4 8 5 109 94 2 214 263 2 269
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
(A) THA 		8-97911-415-1 01 1 0303-0402 ● ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97944-098-0 01 1 0403-0408 ● ●
2 LABEL; FUEL CAUTION
4JJ1 ENG<LFB> (B) THA 		8-97944-098-0 01 1 0409-0412 ● ●
2 LABEL; FUEL CAUTION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97944-098-0 01 1 0501-0508 ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97944-098-0 01 1 0501-0508 ●
2 LABEL; FUEL CAUTION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97944-098-0 01 1 0509- ● ●
2 LABEL; FUEL CAUTION
(C) THA 		8-97945-777-0 01 1 0607-0710 ● ●
2 LABEL; FUEL CAUTION
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-97945-777-0 01 1 0711- ● ●
4 LABEL; ENG MAINTENANCE
4JH1 ENG<RJX> THA 		8-97942-964-1 01 1 0303-0408 ● ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97943-361-0 01 1 0303-0408 ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-834-1 01 1 0303-0408 ●
8 LABEL; FUSE
THA 		8-97321-675-1 01 1 0303-0408 ● ●
8 LABEL; FUSE
4JJ1 ENG<LFB> THA 		8-97378-477-0 01 1 0409-0412 ● ●
8 LABEL; FUSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97378-477-0 01 1 0501-0508 ●
8 LABEL; FUSE
THA 		8-97378-477-0 01 1 0501-0508 ●
8 LABEL; FUSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97378-477-0 01 1 0509-0606 ● ●
8 LABEL; FUSE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98007-668-1 01 1 0607-0710 ● ●
8 LABEL; FUSE
THA 		8-98007-668-1 01 1 0711- ● ●
94 PLATE; CAUTION,EGR PIPE
4JH1 ENG<RJX> THA 		8-97910-374-0 01 1 0303-0408 ● ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-97943-361-0 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-97301-834-1 01 1 0409- ●
135 PLATE; CAUTION,ENGINE
4JK1 ENG<LKZ> THA 		8-97370-541-0 01 1 0501-0508 ●
135 PLATE; CAUTION,ENGINE
4JK1 ENG<LKZ> THA 		8-98029-484-0 01 1 0509-0606 ●
135 PLATE; CAUTION,ENGINE
4JK1 ENG<LKZ> THA 		8-98036-187-0 01 1 0607- ●
135 PLATE; CAUTION,ENGINE
4JJ1 ENG<LFB> THA 		8-97370-540-1 01 1 0409-0412 ● ●
135 PLATE; CAUTION,ENGINE
4JJ1 ENG<LFB> THA 		8-97370-540-1 01 1 0501-0508 ●
135 PLATE; CAUTION,ENGINE
THA 		8-97370-540-1 01 1 0501-0508 ●
135 PLATE; CAUTION,ENGINE
4JJ1 ENG<LFB> THA 		8-98029-482-0 01 1 0509-0606 ● ●
135 PLATE; CAUTION,ENGINE
4JJ1 ENG<LFB> THA 		8-98036-186-0 01 1 0607- ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 0409-0508 ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 0509-0606 ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 0607- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97943-123-0 01 1 0303-0408 ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97943-123-0 01 1 0409-0606 ● ●
263 PLATE; CAUTION,JACK
THA 		8-97942-649-0 01 1 0303-0408 ● ●
269 LABEL; CAUTION,EGR
4JJ1 ENG<LFB> THA 		8-97374-989-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97374-989-0 01 1 0501-0508 ●
269 LABEL; CAUTION,EGR
THA 		8-97374-989-0 01 1 0501-0508 ●
269 LABEL; CAUTION,EGR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97374-989-0 01 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
