◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#4084) — 112 parça

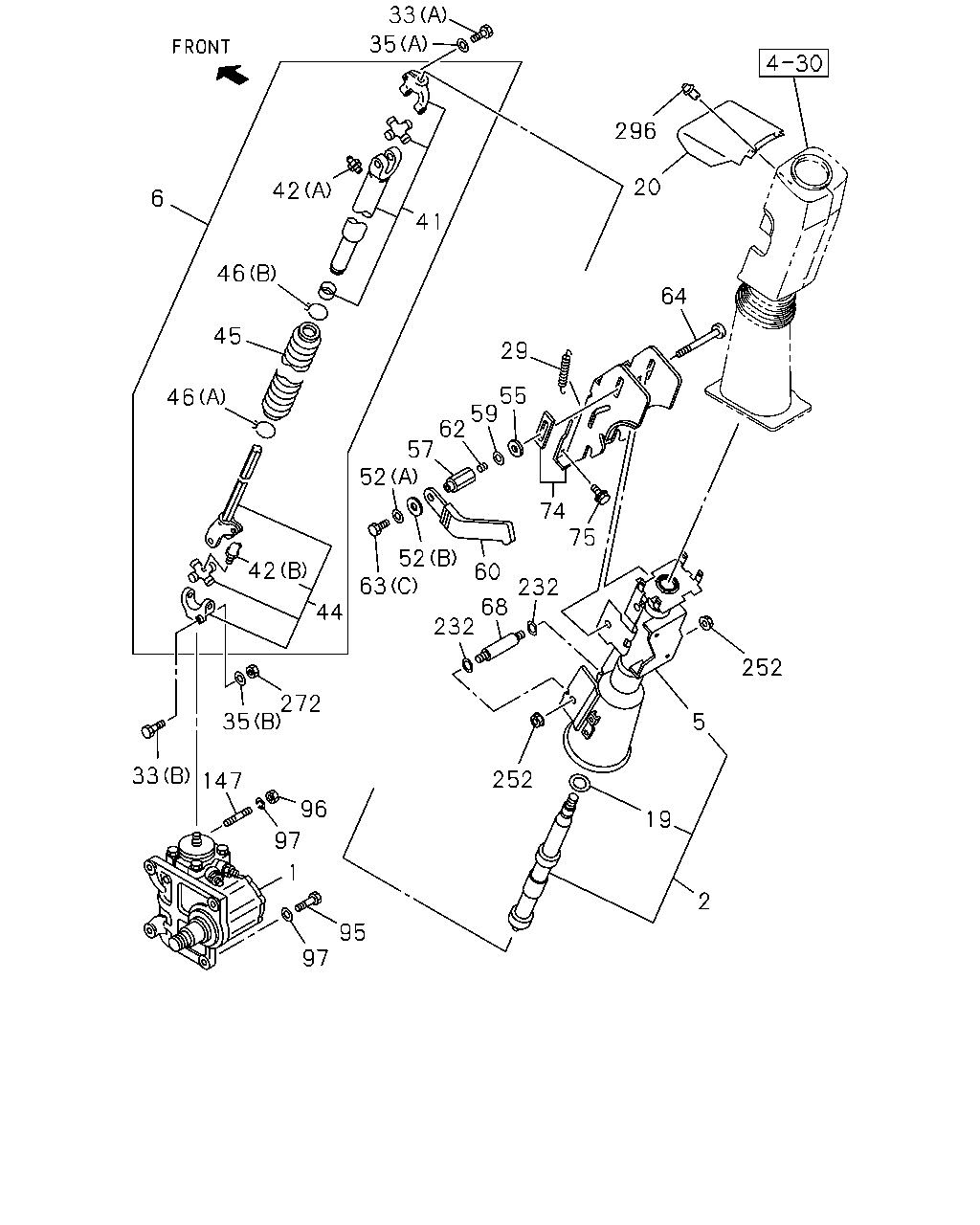

çizim 6148
33 35 296 20 64 29 55 59 62 57 52 52 60 68 232 5 252 74 75 63 232 252 19 2 95 97 1 97 96 147 33 35 272 44 42 46 45 46 6 42 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-819-2 01 1 9603-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-863-1 01 1 9905- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-858-1 01 1 9905- ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-586-0 01 1 9603-9804 ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-694-0 01 1 9805- ● ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-556-1 01 1 9603-9804 ● ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-689-0 01 1 9805- ● ●
5 COLUMN; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44221-078-0 01 1 9805-9806 ● ●
5 COLUMN; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-645-0 01 1 9612-9706 ● ●
5 COLUMN; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,CAB UP +50MM<W60> 		1-44130-645-0 01 1 9707-9804 ● ●
5 COLUMN; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44221-077-0 01 1 9805-9806 ● ●
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9603-9706 ● ●
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9707-9804 ●
6 SHAFT; STRG LWR
EXC. CAB UP +50MM<W60> 		1-44135-301-0 01 1 9707-9804 ●
6 SHAFT; STRG LWR
CAB UP +50MM<W60> 		1-44135-302-0 01 1 9707-9804 ●
19 RING; SNAP,STRG SHAFT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44227-139-0 01 1 9612-9706 ● ●
19 RING; SNAP,STRG SHAFT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,CAB UP +50MM<W60> 		1-44227-139-0 01 1 9707-9804 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9603- ● ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9603-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9603- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805- ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804 ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805- ● ●
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9603- ● ●
41 YOKE; SLEEVE,STRG 1-44135-303-0 01 1 9603-9706 ● ●
41 YOKE; SLEEVE,STRG 1-44135-303-0 01 1 9707-9804 ●
41 YOKE; SLEEVE,STRG
EXC. CAB UP +50MM<W60> 		1-44135-303-0 01 1 9707-9804 ●
41 YOKE; SLEEVE,STRG
CAB UP +50MM<W60> 		1-44135-304-0 01 1 9707-9804 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) M6 STRAIGHT 		9-09031-006-0 01 1 9603-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9804 ● ●
44 SHAFT; SPLINE,STRG 1-44135-305-0 01 1 9603-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805- ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805- ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804 ● ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9603-9804 ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9603-9804 ● ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9603-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805- ● ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9603-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805- ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9603-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9603-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805- ● ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9603-9804 ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9603-9804 ● ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9603-9804 ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607- ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603- ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603- ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603- ● ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9603- ● ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9603-9804 ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9603-9804 ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603- ● ●

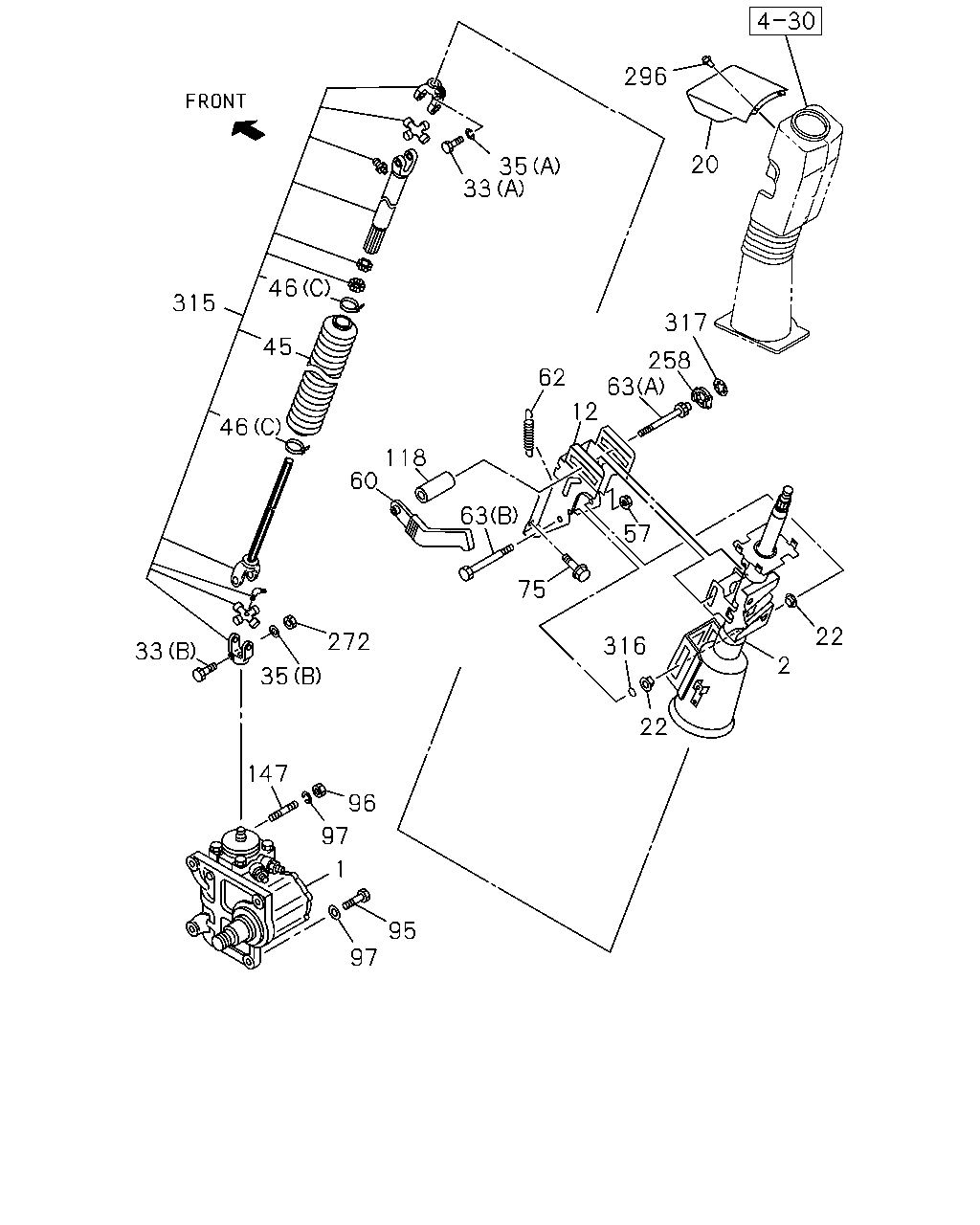

çizim 39542
296 20 35 33 46 315 317 45 258 63 12 62 46 118 60 63 57 75 22 272 316 33 2 35 22 147 96 97 1 95 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-819-2 01 1 9603-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-863-1 01 1 9905- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-858-1 01 1 9905- ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-586-0 01 1 9603-9804 ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-694-0 01 1 9805- ● ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-556-1 01 1 9603-9804 ● ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44130-689-0 01 1 9805- ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9603- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9603- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805- ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804 ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805- ● ●
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9603- ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805- ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805- ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805- ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9603-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9603-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805- ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607- ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603- ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603- ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603- ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805- ● ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9603- ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805- ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603- ● ●
315 JOINT; SPLINE 1-44135-338-0 01 1 9805-9806 ● ●
315 JOINT; SPLINE 1-44135-343-0 01 1 9807-9904 ●
315 JOINT; SPLINE
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. CAB UP +50MM<W60> 		1-44135-343-0 01 1 9807-9904 ●
315 JOINT; SPLINE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-44135-343-0 01 1 9807-9904 ●
315 JOINT; SPLINE
EXC. CAB UP +110MM<TGG> 		1-44135-343-0 01 1 9905- ● ●
315 JOINT; SPLINE
DRIVING POSITION WIDE LEG SPACE<PR2> CAB UP +50MM<W60> 		1-44135-344-0 01 1 9807-9904 ●
315 JOINT; SPLINE
CAB UP +110MM<TGG> 		1-44135-345-0 01 1 9905- ● ●
316 RING 1-44227-152-0 01 1 9805- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 9805- ● ●
