◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#40834) — 110 parça

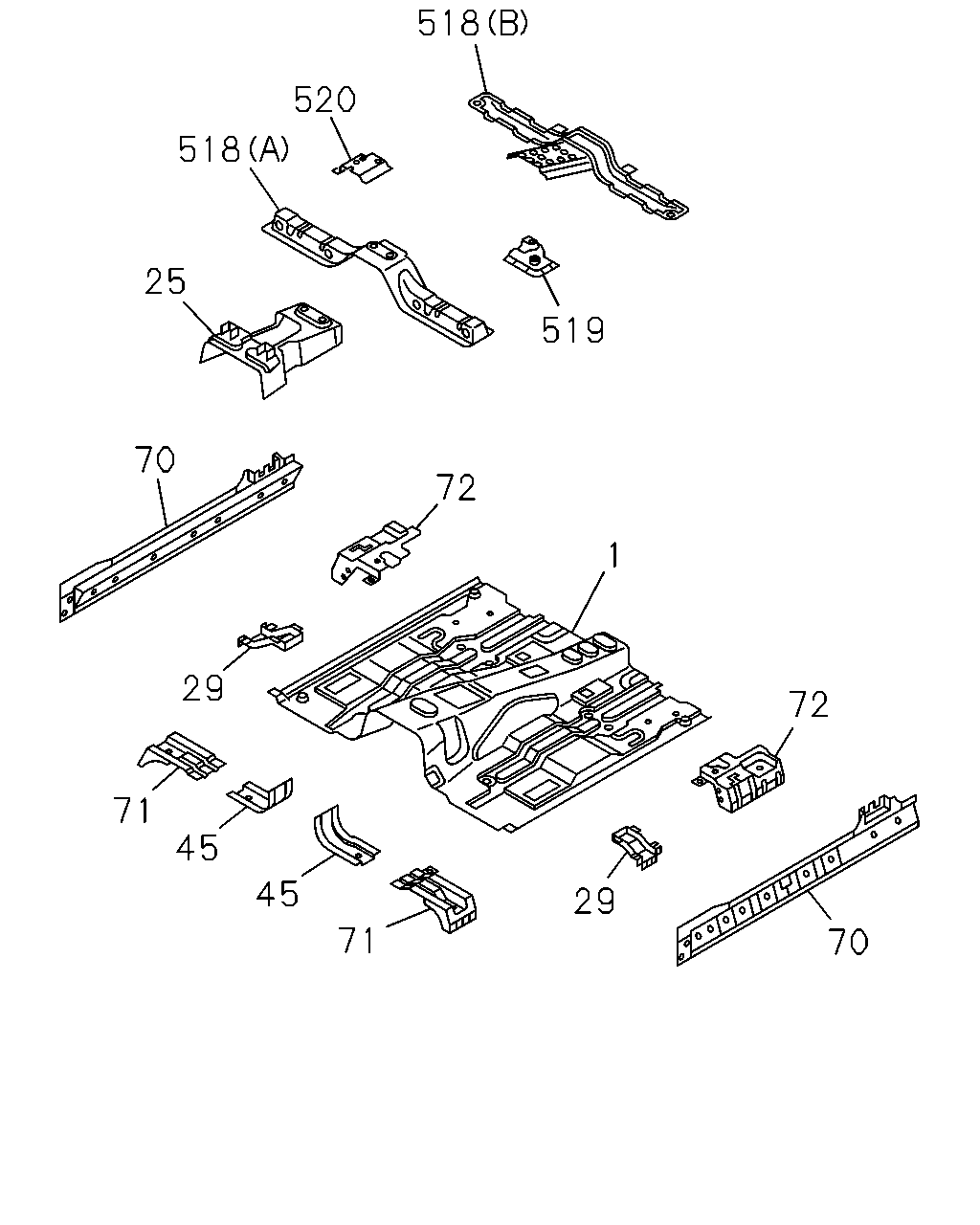

çizim 50879
518 520 518 25 519 70 72 1 29 72 71 45 45 29 71 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
THA 		8-97357-509-0 01 1 0303-0408 ● ●
1 PANEL; FLOOR
4JJ1 ENG<LFB> THA 		8-97357-509-0 01 1 0409-0412 ● ●
1 PANEL; FLOOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97357-509-0 01 1 0501-0508 ●
1 PANEL; FLOOR
THA 		8-97357-509-0 01 1 0501-0508 ●
1 PANEL; FLOOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97357-509-0 01 1 0509-0606 ●
1 PANEL; FLOOR
4JJ1 ENG<LFB> THA 		8-97357-509-0 01 1 0509-0606 ●
1 PANEL; FLOOR
THA 		8-97357-509-0 01 1 0607- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98152-774-0 01 1 0911- ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98152-774-0 01 1 0911- ●
25 REINFORCEMENT; FRAME FLOOR,FRT
THA 		8-97235-751-4 01 1 0303-0408 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB> THA 		8-97235-751-4 01 1 0409-0410 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB> THA 		8-97380-608-0 01 1 0411-0412 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97380-608-0 01 1 0501-0508 ●
25 REINFORCEMENT; FRAME FLOOR,FRT
THA 		8-97380-608-0 01 1 0501-0508 ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97380-608-0 01 1 0509-0606 ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB> THA 		8-97380-608-0 01 1 0509-0606 ●
25 REINFORCEMENT; FRAME FLOOR,FRT
THA 		8-97380-608-0 01 1 0607-0910 ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> A/T 4 SPEED-JATCO<RMK> THA 		8-97380-608-0 01 1 0911- ●
25 REINFORCEMENT; FRAME FLOOR,FRT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97380-608-0 01 1 0911- ●
29 GUSSET
THA 		8-97349-433-0 02 1 0303-0408 ● ●
29 GUSSET
4JJ1 ENG<LFB> THA 		8-97349-433-0 02 1 0409-0412 ● ●
29 GUSSET
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97349-433-0 02 1 0501-0508 ●
29 GUSSET
THA 		8-97349-433-0 02 1 0501-0508 ●
29 GUSSET
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97349-433-0 02 1 0509-0606 ●
29 GUSSET
4JJ1 ENG<LFB> THA 		8-97349-433-0 02 1 0509-0606 ●
29 GUSSET
THA 		8-97349-433-0 02 1 0607- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97235-811-1 01 1 0303-0408 ● ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB> THA 		8-97235-811-1 01 1 0409-0412 ● ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-811-1 01 1 0501-0508 ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97235-811-1 01 1 0501-0508 ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-811-1 01 1 0509-0606 ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB> THA 		8-97235-811-1 01 1 0509-0606 ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97235-811-1 01 1 0607- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97235-810-1 01 1 0303-0408 ● ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB> THA 		8-97235-810-1 01 1 0409-0412 ● ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-810-1 01 1 0501-0508 ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97235-810-1 01 1 0501-0508 ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-810-1 01 1 0509-0606 ●
45 REINFORCEMENT; TUNNEL,FRT
4JJ1 ENG<LFB> THA 		8-97235-810-1 01 1 0509-0606 ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-97235-810-1 01 1 0607- ● ●
70 PANEL; ROCKER INNER
THA 		8-93333-637-3 01 1 0303-0408 ● ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB> THA 		8-93333-637-3 01 1 0409-0412 ● ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-93333-637-3 01 1 0501-0508 ●
70 PANEL; ROCKER INNER
THA 		8-93333-637-3 01 1 0501-0508 ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-93333-637-3 01 1 0509-0606 ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB> THA 		8-93333-637-3 01 1 0509-0606 ●
70 PANEL; ROCKER INNER
THA 		8-93333-637-3 01 1 0607- ● ●
70 PANEL; ROCKER INNER
THA 		8-93333-636-3 01 1 0303-0408 ● ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB> THA 		8-93333-636-3 01 1 0409-0412 ● ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-93333-636-3 01 1 0501-0508 ●
70 PANEL; ROCKER INNER
THA 		8-93333-636-3 01 1 0501-0508 ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-93333-636-3 01 1 0509-0606 ●
70 PANEL; ROCKER INNER
4JJ1 ENG<LFB> THA 		8-93333-636-3 01 1 0509-0606 ●
70 PANEL; ROCKER INNER
THA 		8-93333-636-3 01 1 0607- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97235-861-3 01 1 0303-0408 ● ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB> THA 		8-97235-861-3 01 1 0409-0412 ● ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-861-3 01 1 0501-0508 ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97235-861-3 01 1 0501-0508 ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-861-3 01 1 0509-0606 ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB> THA 		8-97235-861-3 01 1 0509-0606 ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97235-861-3 01 1 0607- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97235-857-4 01 1 0303-0408 ● ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB> THA 		8-97235-857-4 01 1 0409-0412 ● ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-857-4 01 1 0501-0508 ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97235-857-4 01 1 0501-0508 ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-857-4 01 1 0509-0606 ●
71 BRACKET; CAB MTG,CENTER
4JJ1 ENG<LFB> THA 		8-97235-857-4 01 1 0509-0606 ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97235-857-4 01 1 0607- ● ●
72 BRACKET; CAB MTG,RR
THA 		8-97235-871-4 01 1 0303-0408 ● ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB> THA 		8-97235-871-4 01 1 0409-0412 ● ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-871-4 01 1 0501-0508 ●
72 BRACKET; CAB MTG,RR
THA 		8-97235-871-4 01 1 0501-0508 ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-871-4 01 1 0509-0606 ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB> THA 		8-97235-871-4 01 1 0509-0606 ●
72 BRACKET; CAB MTG,RR
THA 		8-97235-871-4 01 1 0607- ● ●
72 BRACKET; CAB MTG,RR
THA 		8-97235-858-4 01 1 0303-0408 ● ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB> THA 		8-97235-858-4 01 1 0409-0412 ● ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-858-4 01 1 0501-0508 ●
72 BRACKET; CAB MTG,RR
THA 		8-97235-858-4 01 1 0501-0508 ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97235-858-4 01 1 0509-0606 ●
72 BRACKET; CAB MTG,RR
4JJ1 ENG<LFB> THA 		8-97235-858-4 01 1 0509-0606 ●
72 BRACKET; CAB MTG,RR
THA 		8-97235-858-4 01 1 0607- ● ●
518 SILL; FLOOR
(A) THA 		8-97235-794-3 01 1 0303-0408 ● ●
518 SILL; FLOOR
4JJ1 ENG<LFB> (A) THA 		8-97235-794-3 01 1 0409-0412 ● ●
518 SILL; FLOOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97235-794-3 01 1 0501-0508 ●
518 SILL; FLOOR
(A) THA 		8-97235-794-3 01 1 0501-0508 ●
518 SILL; FLOOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97235-794-3 01 1 0509-0606 ●
518 SILL; FLOOR
4JJ1 ENG<LFB> (A) THA 		8-97235-794-3 01 1 0509-0606 ●
518 SILL; FLOOR
(A) THA 		8-97235-794-3 01 1 0607-0709 ● ●
518 SILL; FLOOR
(A) THA 		8-98048-087-0 01 1 0710- ● ●
518 SILL; FLOOR
(B) THA 		8-97235-819-5 01 1 0303-0408 ● ●
518 SILL; FLOOR
4JJ1 ENG<LFB> (B) THA 		8-97235-819-5 01 1 0409-0412 ● ●
518 SILL; FLOOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97235-819-5 01 1 0501-0508 ●
518 SILL; FLOOR
(B) THA 		8-97235-819-5 01 1 0501-0508 ●
518 SILL; FLOOR
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97235-819-5 01 1 0509-0606 ●
518 SILL; FLOOR
4JJ1 ENG<LFB> (B) THA 		8-97235-819-5 01 1 0509-0606 ●
518 SILL; FLOOR
(B) THA 		8-97235-819-5 01 1 0607- ● ●
519 BRACKET; CONTROLLER 4WD
THA 		8-97246-499-2 01 1 0303-0408 ● ●
519 BRACKET; CONTROLLER 4WD
4JJ1 ENG<LFB> THA 		8-97246-499-2 01 1 0409-0412 ● ●
519 BRACKET; CONTROLLER 4WD
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97246-499-2 01 1 0501-0508 ●
519 BRACKET; CONTROLLER 4WD
THA 		8-97246-499-2 01 1 0501-0508 ●
519 BRACKET; CONTROLLER 4WD
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97246-499-2 01 1 0509-0606 ●
519 BRACKET; CONTROLLER 4WD
4JJ1 ENG<LFB> THA 		8-97246-499-2 01 1 0509-0606 ●
520 BRACKET; FUEL LID OPENER
THA 		8-97236-152-2 01 1 0303-0408 ● ●
520 BRACKET; FUEL LID OPENER
4JJ1 ENG<LFB> THA 		8-97236-152-2 01 1 0409-0412 ● ●
520 BRACKET; FUEL LID OPENER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-152-2 01 1 0501-0508 ●
520 BRACKET; FUEL LID OPENER
THA 		8-97236-152-2 01 1 0501-0508 ●
520 BRACKET; FUEL LID OPENER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-152-2 01 1 0509-0606 ●
520 BRACKET; FUEL LID OPENER
4JJ1 ENG<LFB> THA 		8-97236-152-2 01 1 0509-0606 ●
520 BRACKET; FUEL LID OPENER
THA 		8-97236-152-2 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
