◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#40830) — 117 parça

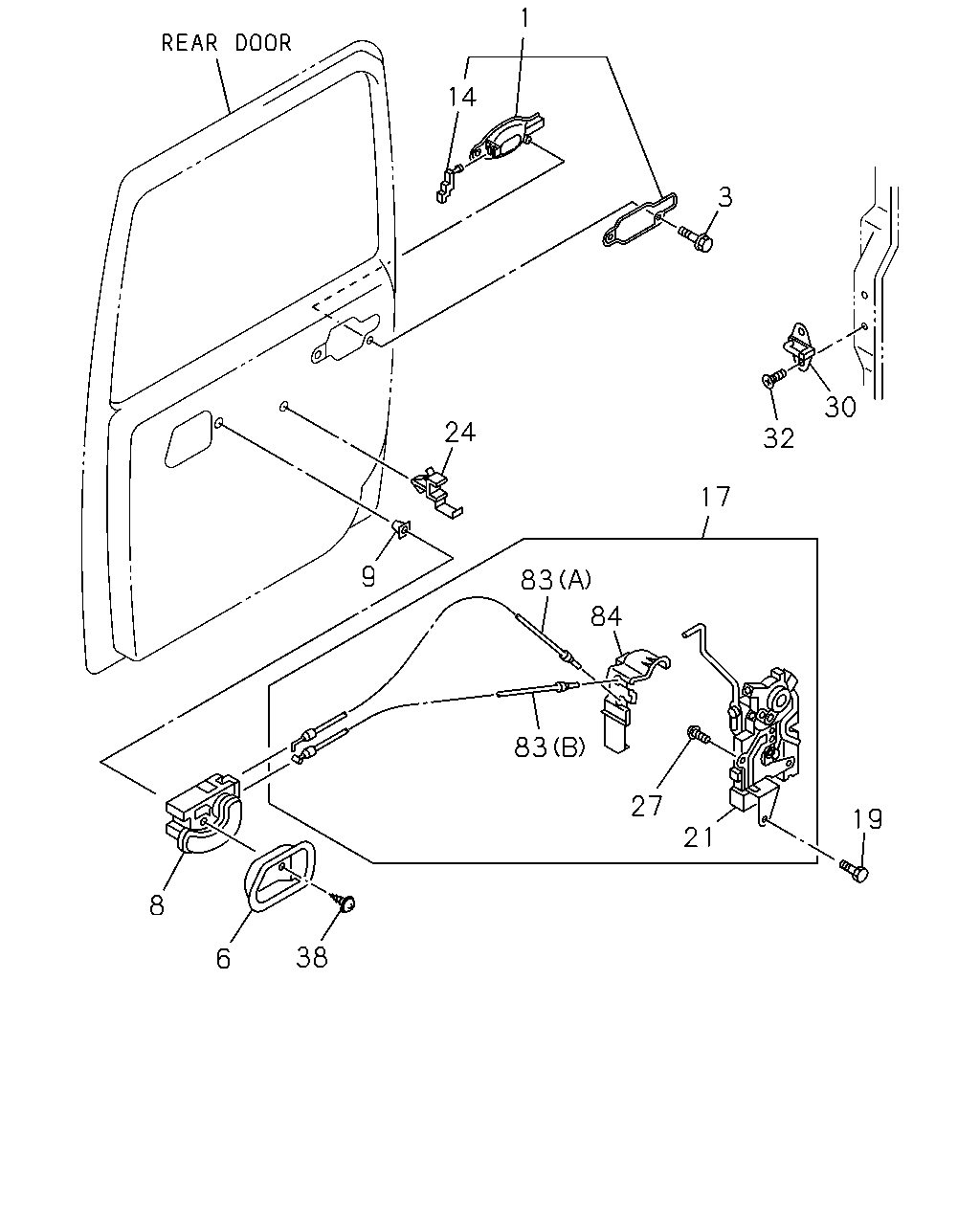

çizim 50262
1 14 3 30 24 32 17 9 83 84 83 27 19 21 8 38 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE BRIGHT<7WM> WHITE THA 		8-97296-143-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE BRIGHT<7WM> WHITE THA 		8-97296-146-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CHAMONIX GREEN MET<644> OUTSIDE HANDLE BRIGHT<7WM> GREEN THA 		8-97298-568-1 01 1 0303-0307 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE BRIGHT<7WM> GRAY THA 		8-97396-059-1 01 1 0308-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97400-003-0 01 1 0409-0508 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97401-046-0 01 1 0509-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-174-0 01 1 0612-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-174-0 01 1 0801- ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CHAMONIX GREEN MET<644> OUTSIDE HANDLE BRIGHT<7WM> GREEN THA 		8-97298-576-1 01 1 0303-0307 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE BRIGHT<7WM> GRAY THA 		8-97396-061-1 01 1 0308-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97400-022-0 01 1 0409-0508 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97401-049-0 01 1 0509-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-189-0 01 1 0612-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-189-0 01 1 0801- ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97400-003-0 01 1 0607-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97408-184-0 01 1 0612-0710 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MISTY ONYX MICA<518> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-202-0 01 1 0711-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97400-022-0 01 1 0607-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR COSMIC GRAY MET<682> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97408-169-0 01 1 0612-0710 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LAPIS BLUE MET<512> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-442-0 01 1 0711-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE BRIGHT<7WM> RED THA 		8-97298-572-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97400-007-0 01 1 0409-0508 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STARRY BLACK MICA<935> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97401-045-0 01 1 0509-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STARRY BLACK MICA<935> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97408-173-0 01 1 0612-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE BRIGHT<7WM> RED THA 		8-97298-580-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97400-026-0 01 1 0409-0508 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STARRY BLACK MICA<935> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97401-048-0 01 1 0509-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STARRY BLACK MICA<935> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97408-188-0 01 1 0612-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR GLACIER BLUE MET<645> OUTSIDE HANDLE BRIGHT<7WM> BLUE THA 		8-97298-569-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MOONSTONE BLUE MICA<687> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97399-998-0 01 1 0409-0606 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TOPAZ GOLD MET<501> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97403-099-0 01 1 0607-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TOPAZ GOLD MET<501> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-178-0 01 1 0612-0710 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CHARDONNAY GOLD MET<511> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-440-0 01 1 0711-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR GLACIER BLUE MET<645> OUTSIDE HANDLE BRIGHT<7WM> BLUE THA 		8-97298-577-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MOONSTONE BLUE MICA<687> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97400-017-0 01 1 0409-0606 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TOPAZ GOLD MET<501> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97403-104-0 01 1 0607-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TOPAZ GOLD MET<501> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-193-0 01 1 0612-0710 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LAPIS BLUE MET<512> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-437-0 01 1 0711-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.QUARTZ GRAY MET<642> OUTSIDE HANDLE BRIGHT<7WM> LIGHT GRAY THA 		8-97298-566-1 01 1 0303-0307 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR KRYPTNITE MET<683> OUTSIDE HANDLE BRIGHT<7WM> LIGHT GREEN THA 		8-97396-060-1 01 1 0308-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR LT.QUARTZ GRAY MET<642> OUTSIDE HANDLE BRIGHT<7WM> LIGHT GRAY THA 		8-97298-574-1 01 1 0303-0307 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR KRYPTNITE MET<683> OUTSIDE HANDLE BRIGHT<7WM> LIGHT GREEN THA 		8-97396-062-1 01 1 0308-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SAHARA BEIGE MET<648> OUTSIDE HANDLE BRIGHT<7WM> BEIGE THA 		8-97298-571-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SAHARA BEIGE MET<648> OUTSIDE HANDLE BRIGHT<7WM> BEIGE THA 		8-97298-579-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SANDAL WOOD MET<643> OUTSIDE HANDLE BRIGHT<7WM> WHITE THA 		8-97298-567-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ASTRAL SILVER<718> OUTSIDE HANDLE CHROME<E20> LIGHT SILVER THA 		8-97400-006-0 01 1 0409-0508 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CRYSTAL BLUE MET<937> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97401-047-0 01 1 0509-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CRYSTAL BLUE MET<937> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-175-0 01 1 0612-0710 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CHARDONNAY GOLD MET<511> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-175-0 01 1 0711-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SANDAL WOOD MET<643> OUTSIDE HANDLE BRIGHT<7WM> WHITE THA 		8-97298-575-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ASTRAL SILVER<718> OUTSIDE HANDLE CHROME<E20> LIGHT SILVER THA 		8-97400-025-0 01 1 0409-0508 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CRYSTAL BLUE MET<937> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97401-050-0 01 1 0509-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CRYSTAL BLUE MET<937> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-190-0 01 1 0612-0710 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MISTY ONYX MICA<518> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-203-0 01 1 0711-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ZENITH BLUE MICA<646> OUTSIDE HANDLE BRIGHT<7WM> BLUE THA 		8-97298-570-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97400-011-0 01 1 0409-0606 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DUNE GRAY MET<506> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97403-097-0 01 1 0607-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DUNE GRAY MET<506> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97408-176-0 01 1 0612-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ZENITH BLUE MICA<646> OUTSIDE HANDLE BRIGHT<7WM> BLUE THA 		8-97298-578-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97400-030-0 01 1 0409-0606 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DUNE GRAY MET<506> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97403-102-0 01 1 0607-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR DUNE GRAY MET<506> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97408-191-0 01 1 0612-0712 ● ●
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> BLACK THA 		8-93295-314-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-93295-314-1 01 1 0409-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-616-0 01 1 0612- ● ●
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> BLACK THA 		8-93291-102-1 01 1 0303-0408 ● ●
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-93291-102-1 01 1 0409-0611 ● ●
1 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-615-0 01 1 0612- ● ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STEEL BLACK MET<641> OUTSIDE HANDLE BRIGHT<7WM> BLACK THA 		8-97298-565-1 01 1 0303-0408 ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STEEL BLACK MET<641> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97400-001-0 01 1 0409-0508 ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STEEL BLACK MET<641> OUTSIDE HANDLE BRIGHT<7WM> BLACK THA 		8-97298-573-1 01 1 0303-0408 ●
1 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STEEL BLACK MET<641> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97400-020-0 01 1 0409-0508 ●
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 THA 		8-94155-893-0 04 1 0304-0609 ● ●
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 FLANGE THA 		8-98048-996-0 04 1 0610- ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY THA 		8-97294-000-1 01 1 0303-0408 ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY THA 		8-97294-000-1 01 1 0409-0606 ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY THA 		8-97396-657-1 01 1 0607- ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY THA 		8-97293-999-1 01 1 0303-0408 ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY THA 		8-97293-999-1 01 1 0409-0606 ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY THA 		8-97396-656-1 01 1 0607- ● ●
8 HANDLE; INSIDE,RR DOOR
DARK GRAY THA 		8-97293-998-1 01 1 0303-0303 ● ●
8 HANDLE; INSIDE,RR DOOR
DARK GRAY THA 		8-97293-997-1 01 1 0303-0303 ● ●
8 HANDLE; INSIDE,RR DOOR
DARK GRAY THA 		8-97408-668-1 01 1 0711-0806 ● ●
8 HANDLE; INSIDE,RR DOOR
DARK GRAY THA 		8-97408-669-1 01 1 0711-0806 ● ●
9 GROMMET; SCREW,INSIDE HANDLE
THA 		8-94152-494-0 02 1 0304- ● ●
14 HOLDER; DOOR LK ROD
YELLOW THA 		8-97333-304-0 01 1 0303- ● ●
14 HOLDER; DOOR LK ROD
WHITE IMA 		8-97333-303-0 01 1 0303- ● ●
17 LOCK; DOOR,RR DOOR
THA 		8-93298-372-0 01 1 0303-0303 ● ●
17 LOCK; DOOR,RR DOOR
THA 		8-93298-373-0 01 1 0303-0303 ● ●
17 LOCK; DOOR,RR DOOR
THA 		8-98012-197-0 01 1 0711-0806 ● ●
17 LOCK; DOOR,RR DOOR
THA 		8-98012-198-0 01 1 0711-0806 ● ●
19 BOLT; RR DOOR LOCK
M6X8 THA 		8-94155-893-0 02 1 0304-0408 ● ●
19 BOLT; RR DOOR LOCK
M6X8 THA 		8-94155-893-0 02 1 0409-0609 ● ●
19 BOLT; RR DOOR LOCK
M6X8 FLANGE THA 		8-98048-996-0 02 1 0610- ● ●
21 ACTUATOR; RR DOOR LOCK
THA 		8-97351-081-0 01 1 0303-0303 ● ●
21 ACTUATOR; RR DOOR LOCK
THA 		8-97351-082-0 01 1 0303-0303 ● ●
21 ACTUATOR; RR DOOR LOCK
THA 		8-97351-081-0 01 1 0711-0806 ● ●
21 ACTUATOR; RR DOOR LOCK
THA 		8-97351-082-0 01 1 0711-0806 ● ●
24 ANTIRATTLER; DOOR INSIDE HANDLE
THA 		8-97251-932-0 02 1 0304- ● ●
27 SCREW; RR DOOR LOCK
THA 		8-97349-997-0 04 1 0303-0303 ● ●
27 SCREW; RR DOOR LOCK
THA 		8-97349-997-0 04 1 0711-0806 ● ●
30 STRIKER; RR DOOR
THA 		8-97235-985-1 02 1 0304-0606 ● ●
30 STRIKER; RR DOOR
THA 		8-98012-203-0 02 1 0607- ● ●
32 SCREW; DOOR STRIKER
M8X35 THA 		8-97324-511-0 04 1 0304-0610 ● ●
32 SCREW; DOOR STRIKER
M8X35 THA 		8-98049-360-0 04 1 0611- ● ●
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 THA 		8-94152-495-0 02 1 0304- ● ●
83 CABLE ASM; LOCK CONTROL
(A) THA 		8-97351-075-0 01 1 0303-0303 ● ●
83 CABLE ASM; LOCK CONTROL
(B) THA 		8-97351-077-0 01 1 0303-0303 ● ●
83 CABLE ASM; LOCK CONTROL
(A) THA 		8-97351-076-0 01 1 0303-0303 ● ●
83 CABLE ASM; LOCK CONTROL
(B) THA 		8-97351-078-0 01 1 0303-0303 ● ●
83 CABLE ASM; LOCK CONTROL
(B) THA 		8-97351-077-0 02 1 0711-0806 ● ●
83 CABLE ASM; LOCK CONTROL
(A) THA 		8-97351-075-0 01 1 0711-0806 ● ●
83 CABLE ASM; LOCK CONTROL
(A) THA 		8-97351-076-0 01 1 0711-0806 ● ●
84 COVER; DOOR LOCK
THA 		8-97351-079-0 01 1 0303-0303 ● ●
84 COVER; DOOR LOCK
THA 		8-97351-080-0 01 1 0303-0303 ● ●
84 COVER; DOOR LOCK
THA 		8-97351-079-1 01 1 0711-0806 ● ●
84 COVER; DOOR LOCK
THA 		8-97351-080-1 01 1 0711-0806 ● ●
