6-47 — MUD GUARD AND INSULATOR (#40827) — 38 parça

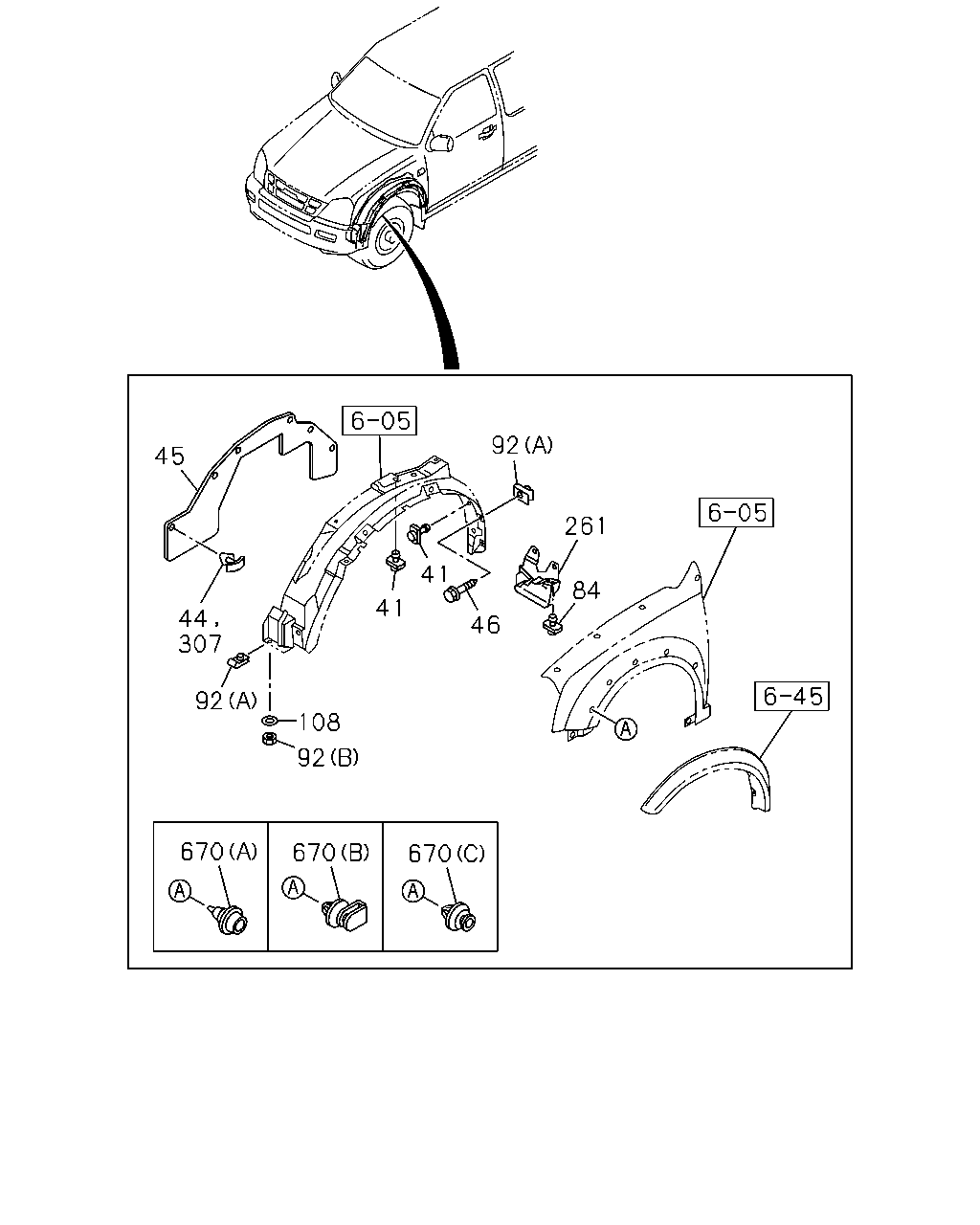

çizim 51471
92 45 261 41 84 41 44 46 92 108 92 670 670 670 307
BalonParca AdiParca NoAdetTipApplied Date A B
41 RIVET; INNER LINER
THA 		8-94221-150-0 16 1 0406- ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0303-0405 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0406- ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0303-0606 ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 0607- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0303- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0303- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0303- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0303- ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0406-0612 ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98052-950-0 10 1 0701-1005 ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 10 1 1006- ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0303-0405 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0406-0612 ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98052-950-0 12 1 0701-1005 ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1006- ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0303-0606 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 06 1 0607-0607 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0608- ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 12 1 0406-0606 ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 10 1 0607- ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 14 1 0303-0405 ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 14 1 0406-0606 ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 12 1 0607- ●
92 NUT; MUD COVER
(B) M6 CAP NUT THA 		8-98049-850-0 02 1 0607- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
THA 		8-97235-474-1 01 1 0303-0408 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-97386-724-0 01 1 0409- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-97235-473-1 01 1 0303-0408 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-97386-723-0 01 1 0409- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98002-239-0 01 1 0303-0606 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98024-149-0 01 1 0607- ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98002-237-0 01 1 0303-0606 ●
261 RUBBER; FRT,MUD GUARD
THA 		8-98024-148-0 01 1 0607- ●
307 RETAINER
THA 		8-98050-462-0 02 1 0607- ● ●
670 FASTENER
(A) THA 		8-97359-942-0 10 1 0303-0606 ●
670 FASTENER
(C) THA 		8-98023-676-0 06 1 0607- ●
670 FASTENER
(B) THA 		8-98023-691-0 04 1 0607- ●
