◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶

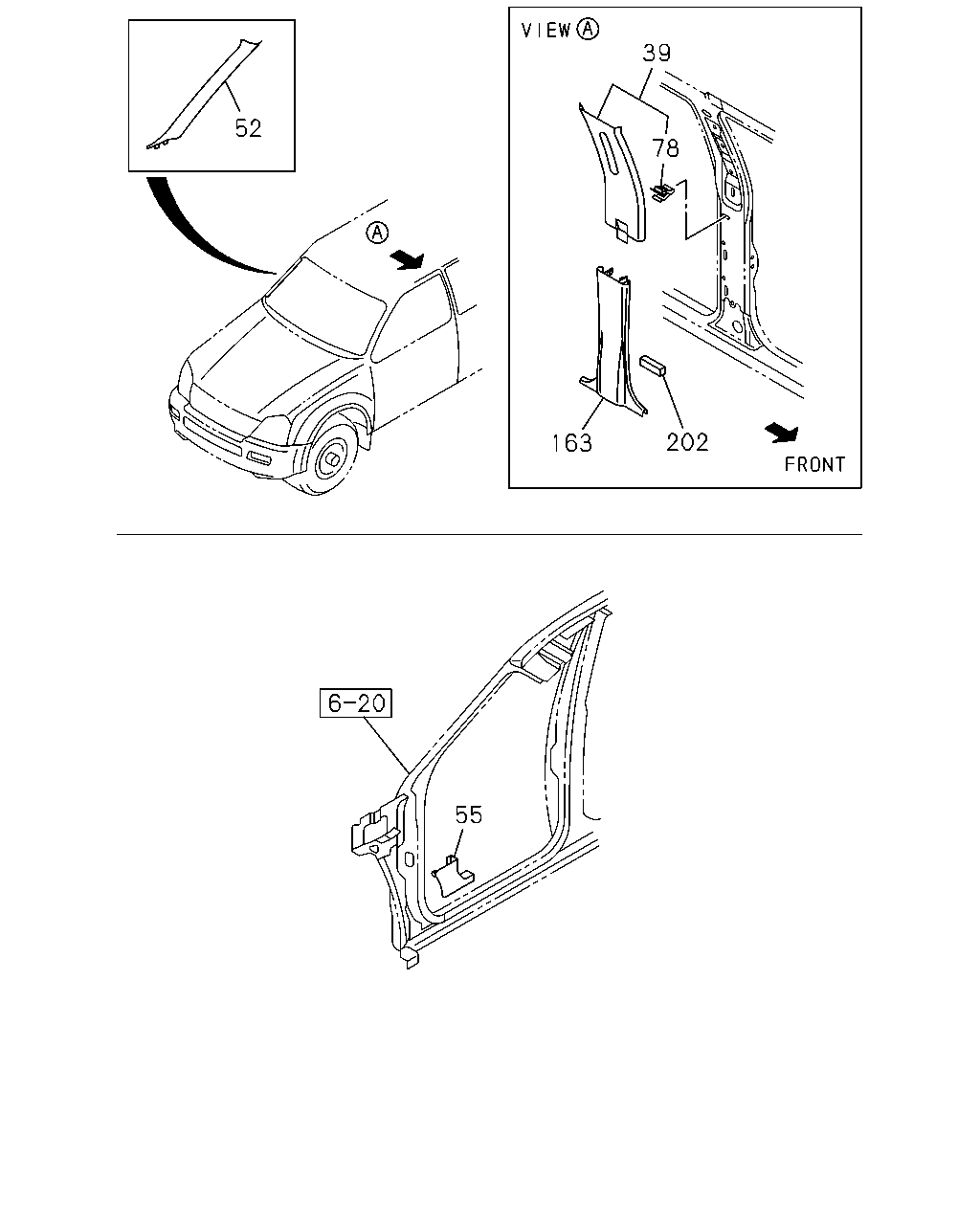

6-43 — SIDE TRIM (#40825) — 23 parça

39 52 78 202 163 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	COVER; TRIM,CENTER PILLAR DARK GRAY THA	8-97298-447-1	01	1	0303-0606
39	COVER; TRIM,CENTER PILLAR LIGHT GRAY THA	8-97403-540-1	01	1	0607-0612
39	COVER; TRIM,CENTER PILLAR LIGHT GRAY THA	8-97408-878-0	01	1	0701-
39	COVER; TRIM,CENTER PILLAR DARK GRAY THA	8-97298-448-1	01	1	0303-0606
39	COVER; TRIM,CENTER PILLAR LIGHT GRAY THA	8-97403-542-1	01	1	0607-0612
39	COVER; TRIM,CENTER PILLAR LIGHT GRAY THA	8-97408-880-0	01	1	0701-
52	COVER; TRIM,FRT PILLAR LIGHT GRAY THA	8-97298-426-5	01	1	0303-0606
52	COVER; TRIM,FRT PILLAR LIGHT GRAY THA	8-97403-464-5	01	1	0607-0612
52	COVER; TRIM,FRT PILLAR LIGHT GRAY THA	8-97408-871-0	01	1	0701-
52	COVER; TRIM,FRT PILLAR LIGHT GRAY THA	8-97298-427-5	01	1	0303-0606
52	COVER; TRIM,FRT PILLAR LIGHT GRAY THA	8-97403-466-5	01	1	0607-0612
52	COVER; TRIM,FRT PILLAR LIGHT GRAY THA	8-97408-873-0	01	1	0701-
55	PAD; TRIM,DASH SIDE DARK GRAY THA	8-97396-086-0	01	1	0303-0606
55	PAD; TRIM,DASH SIDE DARK GRAY THA	8-97403-459-0	01	1	0607-
55	PAD; TRIM,DASH SIDE DARK GRAY THA	8-97396-087-0	01	1	0303-0606
55	PAD; TRIM,DASH SIDE DARK GRAY THA	8-97403-461-0	01	1	0607-
78	CLIP; TRIM PAD,SIDE PANEL THA	8-97319-704-0	04	1	0303-0612
78	CLIP; TRIM PAD,SIDE PANEL THA	8-98057-469-0	04	1	0701-
163	COVER; TRIM,CENTER PILLAR,LWR DARK GRAY THA	8-97298-445-3	01	1	0303-0606
163	COVER; TRIM,CENTER PILLAR,LWR DARK GRAY THA	8-97403-544-3	01	1	0607-
163	COVER; TRIM,CENTER PILLAR,LWR DARK GRAY THA	8-97298-446-3	01	1	0303-0606
163	COVER; TRIM,CENTER PILLAR,LWR DARK GRAY THA	8-97403-546-3	01	1	0607-
202	SEAL; CENTER PILLAR THA	8-97362-561-0	02	1	0303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
