◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#40824) — 26 parça

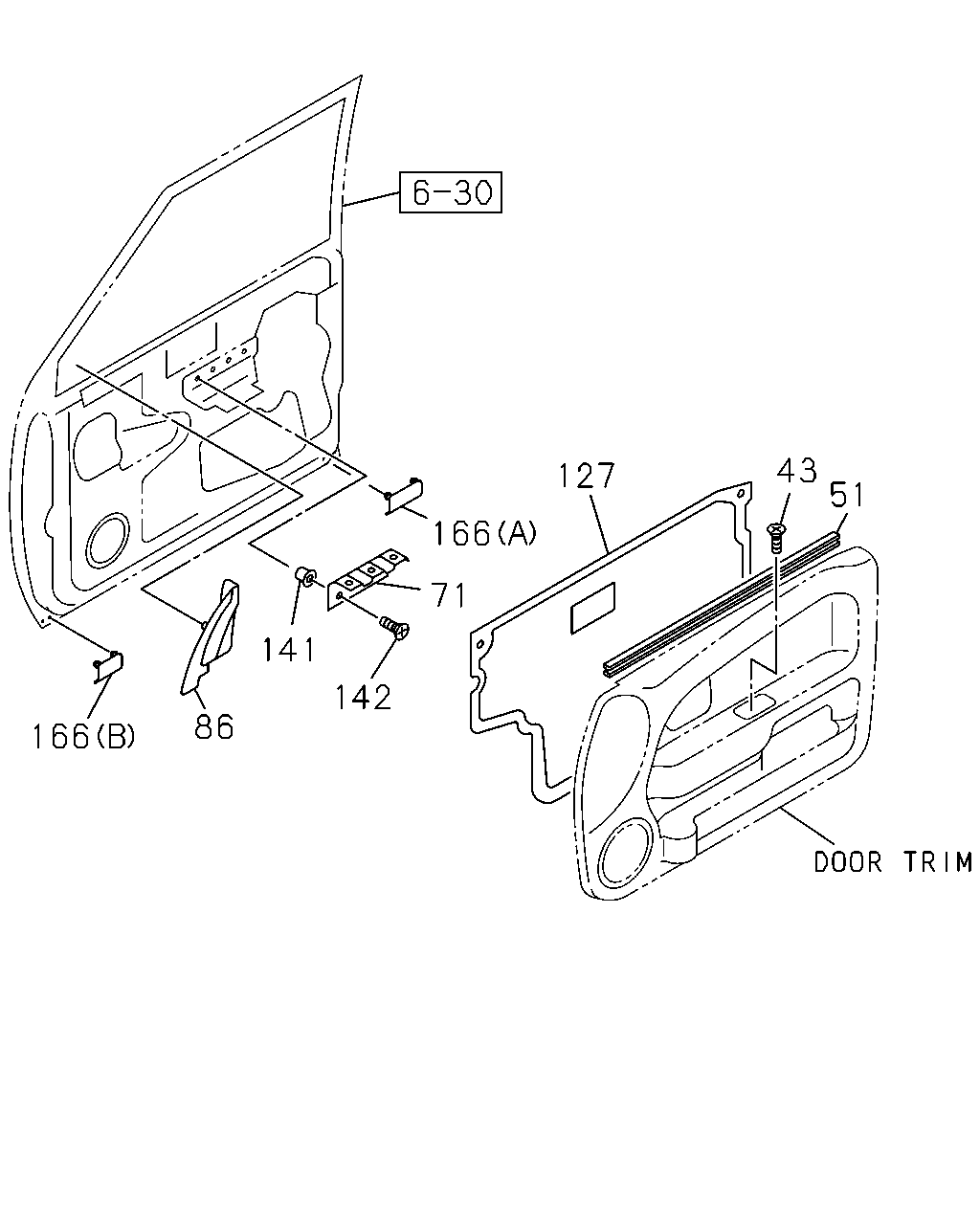

çizim 51426
43 51 127 166 71 141 142 86 166
BalonParca AdiParca NoAdetTipApplied Date
43 SCREW; DOOR POCKET
M5X14 THA 		8-94152-495-0 04 1 0303-0504
51 WEATHERSTRIP; FRONT DOOR
DARK GRAY THA 		8-97294-029-1 02 1 0303-0412
51 WEATHERSTRIP; FRONT DOOR
DARK GRAY THA 		8-97402-843-0 02 1 0501-0606
51 WEATHERSTRIP; FRONT DOOR
DARK GRAY THA 		8-97403-590-0 02 1 0607-0908
51 WEATHERSTRIP; FRONT DOOR
DARK GRAY THA 		8-97403-590-0 02 1 0909-
71 BRACKET; ARM REST
THA 		8-97238-106-2 02 1 0303-
86 COVER ASM; DOOR POCKET
BLACK THA 		8-97298-456-2 01 1 0303-
86 COVER ASM; DOOR POCKET
BLACK THA 		8-97298-455-2 01 1 0303-
127 SEAL; DOOR INNER
THA 		8-97360-885-0 01 1 0303-0307
127 SEAL; DOOR INNER
POWER WINDOW<A30> THA 		8-97360-885-0 01 1 0308-0310
127 SEAL; DOOR INNER
POWER WINDOW<A30> THA 		8-97373-017-1 01 1 0311-0408
127 SEAL; DOOR INNER
THA 		8-97373-017-1 01 1 0409-
127 SEAL; DOOR INNER
THA 		8-97360-884-0 01 1 0303-0307
127 SEAL; DOOR INNER
POWER WINDOW<A30> THA 		8-97360-884-0 01 1 0308-0310
127 SEAL; DOOR INNER
POWER WINDOW<A30> THA 		8-97373-016-1 01 1 0311-0408
127 SEAL; DOOR INNER
THA 		8-97373-016-1 01 1 0409-
127 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> THA 		8-97360-883-0 01 1 0308-0310
127 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> THA 		8-97373-015-1 01 1 0311-0408
127 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> THA 		8-97360-882-0 01 1 0308-0310
127 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> THA 		8-97373-014-1 01 1 0311-0408
141 GROMMET; SCREW,LWR COVER
THA 		8-94152-494-0 04 1 0303-
142 SCREW; LWR COVER,DOOR TRIM
M5X14 THA 		8-94152-495-0 04 1 0303-
166 PLUG; HOLE
(A) THA 		8-98009-499-0 02 1 0508-0908
166 PLUG; HOLE
(A) THA 		8-98009-499-0 02 1 0909-
166 PLUG; HOLE
(B) THA 		8-98009-500-0 02 1 0508-0908
166 PLUG; HOLE
(B) THA 		8-98009-500-0 02 1 0909-
