6-20 — SIDE PANEL AND STEP (#40820) — 30 parça

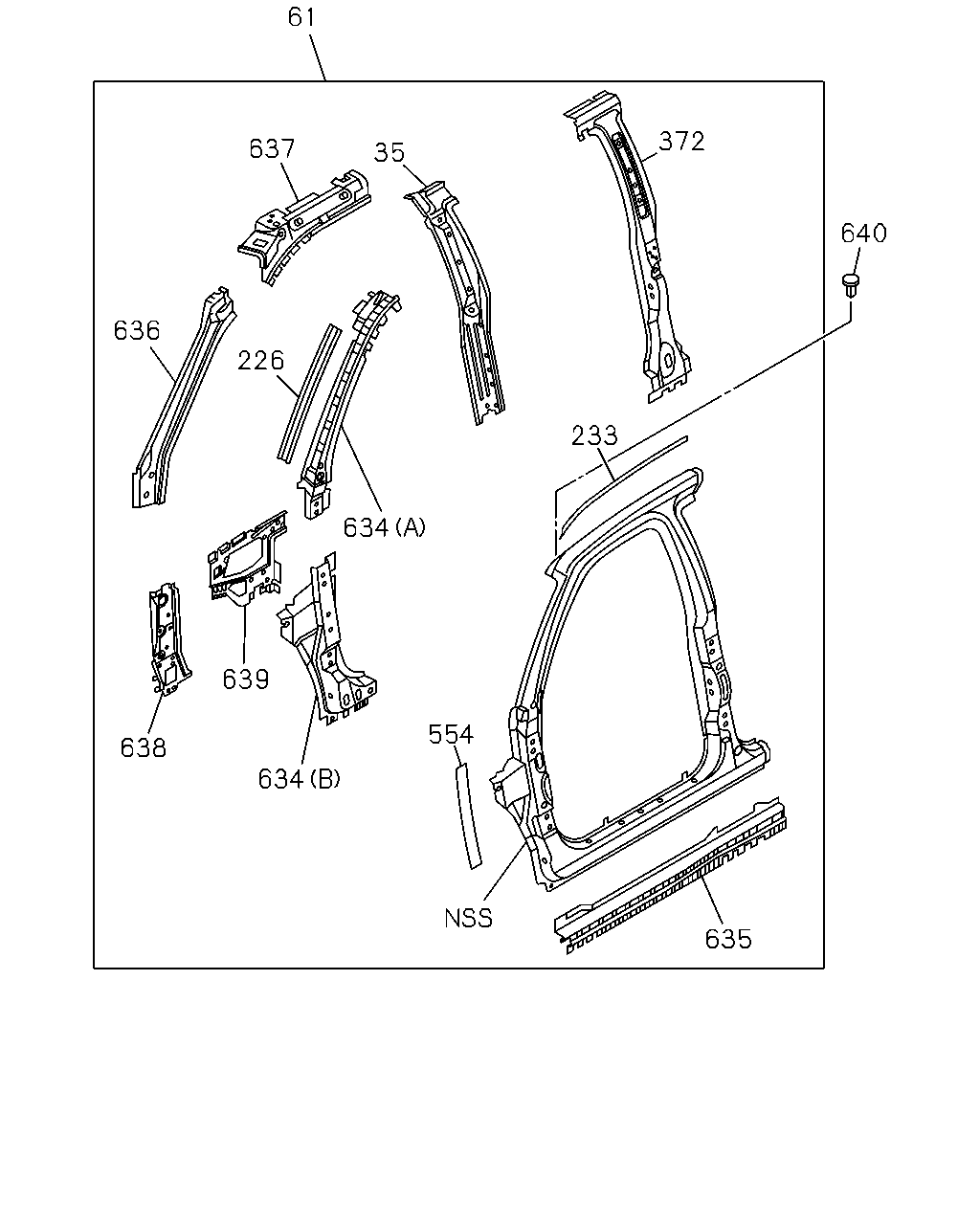

çizim 50390
61 372 637 35 640 636 226 233 634 639 554 638 634 635
BalonParca AdiParca NoAdetTipApplied Date A B
35 PANEL; CENTER PILLAR,INNER
THA 		8-93291-049-3 01 1 0303- ● ●
35 PANEL; CENTER PILLAR,INNER
THA 		8-93291-050-3 01 1 0303- ● ●
61 PANEL; SIDE OUTER
THA 		8-97922-244-2 01 1 0303- ● ●
61 PANEL; SIDE OUTER
THA 		8-97922-245-2 01 1 0303- ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0303- ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0303- ● ●
233 RAIL; RR ROOF
THA 		8-97922-248-0 01 1 0303- ● ●
233 RAIL; RR ROOF
THA 		8-97922-249-0 01 1 0303- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-501-5 01 1 0303-0408 ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97360-543-0 01 1 0409- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-502-5 01 1 0303-0408 ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97360-542-0 01 1 0409- ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0303-0408 ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0303-0408 ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0409- ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0303- ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0303- ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0303- ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0303- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97922-246-0 01 1 0303- ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97922-247-0 01 1 0303- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0303- ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0303- ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0303- ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0303- ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0303- ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0303- ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0303- ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0303- ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0303-0303 ● ●
