6-10 — ENGINE HOOD AND LOCK (#40818) — 73 parça

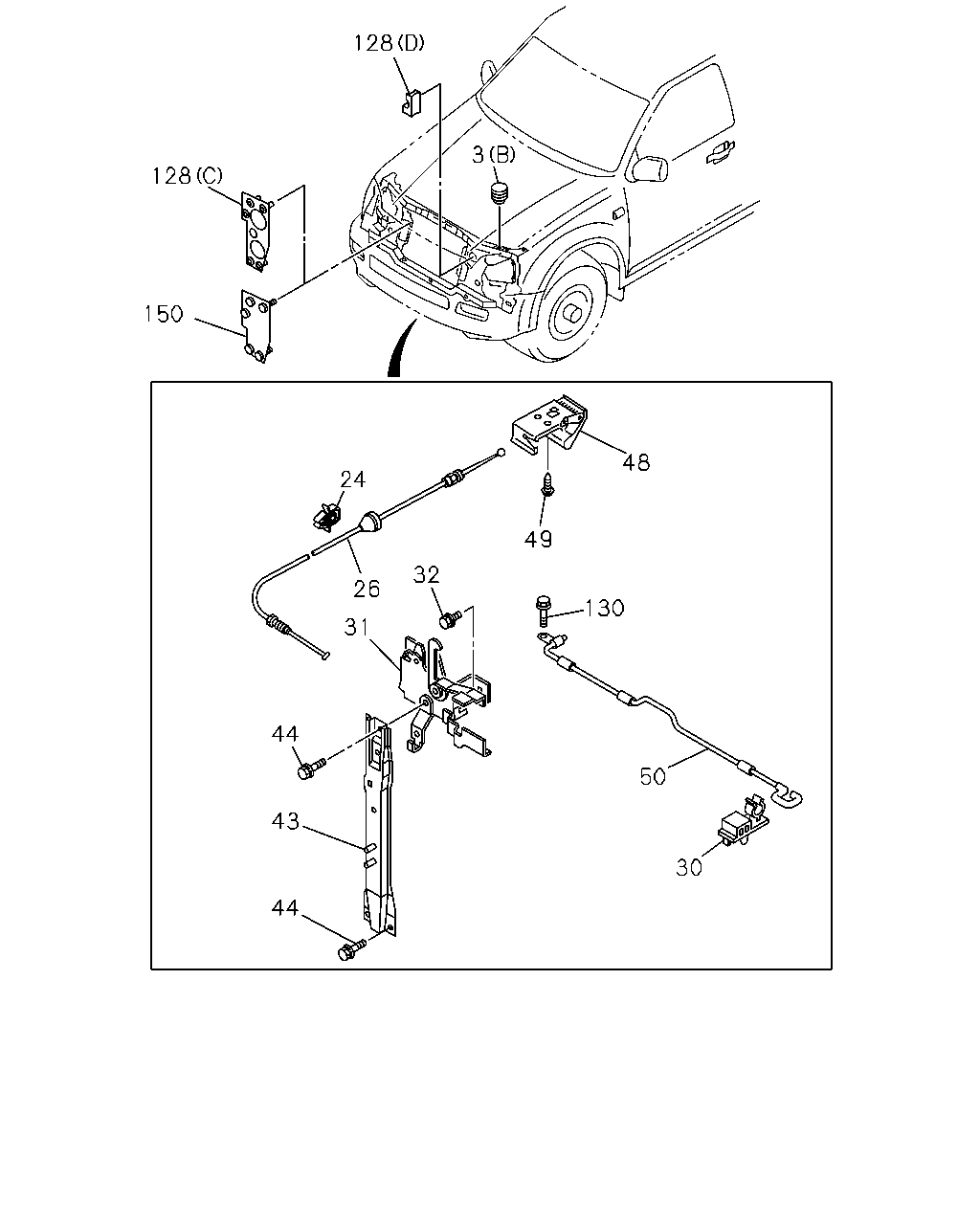

çizim 49979
128 3 128 150 48 24 49 32 26 130 31 44 50 43 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 0303- ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0303- ● ●
24 CLIP; CONT CABLE
THA 		8-97182-405-0 02 1 0303- ● ●
26 CABLE; ENG HOOD CONT
THA 		8-97333-143-2 01 1 0303-0612 ● ●
26 CABLE; ENG HOOD CONT
THA 		8-98072-367-0 01 1 0701- ● ●
30 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 0303- ● ●
31 LOCK; ENG HOOD
THA 		8-97235-915-1 01 1 0303- ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97249-670-1 02 1 0303-0405 ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97370-668-0 02 1 0406- ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-97362-229-0 01 1 0303-0606 ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-98031-229-0 01 1 0607-0908 ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-98031-229-0 01 1 0909- ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97249-670-1 04 1 0303-0405 ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 0406-0408 ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97389-218-0 04 1 0409-0706 ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 0707-0908 ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 0909- ● ●
48 LEVER; ENG HOOD
THA 		8-97333-142-0 01 1 0303-0308 ● ●
48 LEVER; ENG HOOD
DARK GRAY THA 		8-97397-848-0 01 1 0309-0606 ● ●
48 LEVER; ENG HOOD
DARK GRAY THA 		8-97397-849-0 01 1 0607-0612 ● ●
48 LEVER; ENG HOOD
DARK GRAY THA 		8-97411-781-0 01 1 0701- ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		9-09829-323-1 02 1 0303-0701 ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98061-685-0 02 1 0702-1005 ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-97361-206-0 01 1 0303-0606 ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-98044-500-0 01 1 0607- ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0303-0606 ● ●
128 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0607- ● ●
128 SEAL; PLATFORM
(B) THA 		8-97308-751-1 02 1 0303-0305 ● ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> (C) THA 		8-97333-442-0 01 1 0409-0412 ● ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-97333-442-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
(C) THA 		8-97333-442-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-98023-877-0 01 1 0509- ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> (C) THA 		8-98023-877-0 01 1 0509- ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0409-0412 ● ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0509- ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28680-625-0 01 1 0303-0601 ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28650-625-0 01 1 0602- ● ●
150 SEAL; DEFLECTOR
4JH1 ENG<RJX> THA 		8-97312-538-0 01 1 0303-0408 ● ●

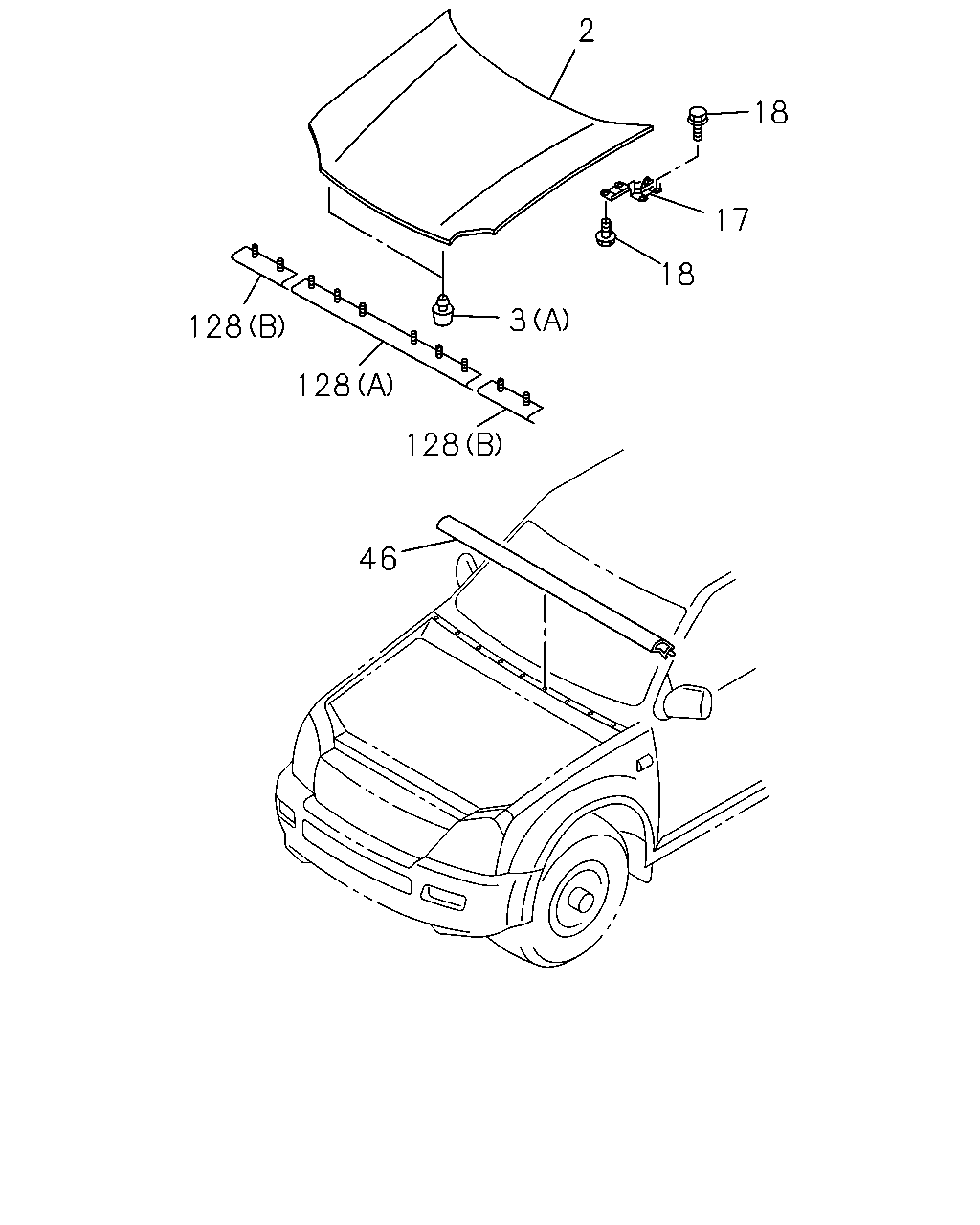

çizim 50389
2 18 17 18 3 128 128 128 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 PANEL; ENG HOOD
THA 		8-97363-781-0 01 1 0303-0606 ● ●
2 PANEL; ENG HOOD
THA 		8-97387-346-1 01 1 0607-0608 ● ●
2 PANEL; ENG HOOD
THA 		8-98046-692-0 01 1 0609- ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 0303- ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0303- ● ●
17 HINGE; ENG HOOD
THA 		8-97235-398-1 01 1 0303-0701 ● ●
17 HINGE; ENG HOOD
THA 		8-98050-665-0 01 1 0702- ● ●
17 HINGE; ENG HOOD
THA 		8-97235-397-1 01 1 0303-0701 ● ●
17 HINGE; ENG HOOD
THA 		8-98050-664-0 01 1 0702- ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 08 1 0303-0606 ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 04 1 0607-0701 ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 04 1 0607-0701 ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 0702- ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 0702- ● ●
46 SEAL; ENG HOOD
4JK1 ENG<LKZ> THA 		8-97235-437-0 01 1 0501- ●
46 SEAL; ENG HOOD
THA 		8-97235-437-0 01 1 0303-0408 ● ●
46 SEAL; ENG HOOD
4JJ1 ENG<LFB> THA 		8-97380-860-0 01 1 0409-0412 ● ●
46 SEAL; ENG HOOD
4JJ1 ENG<LFB> THA 		8-97380-860-0 01 1 0501-0508 ●
46 SEAL; ENG HOOD
THA 		8-97380-860-0 01 1 0501-0508 ●
46 SEAL; ENG HOOD
4JJ1 ENG<LFB> THA 		8-97380-860-0 01 1 0509- ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0303-0606 ● ●
128 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0607- ● ●
128 SEAL; PLATFORM
(B) THA 		8-97308-751-1 02 1 0303-0305 ● ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> (C) THA 		8-97333-442-0 01 1 0409-0412 ● ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-97333-442-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
(C) THA 		8-97333-442-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-98023-877-0 01 1 0509- ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> (C) THA 		8-98023-877-0 01 1 0509- ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0409-0412 ● ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0501-0508 ●
128 SEAL; PLATFORM
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0509- ● ●
