50958 - TFR/TFS THAI-RUNG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

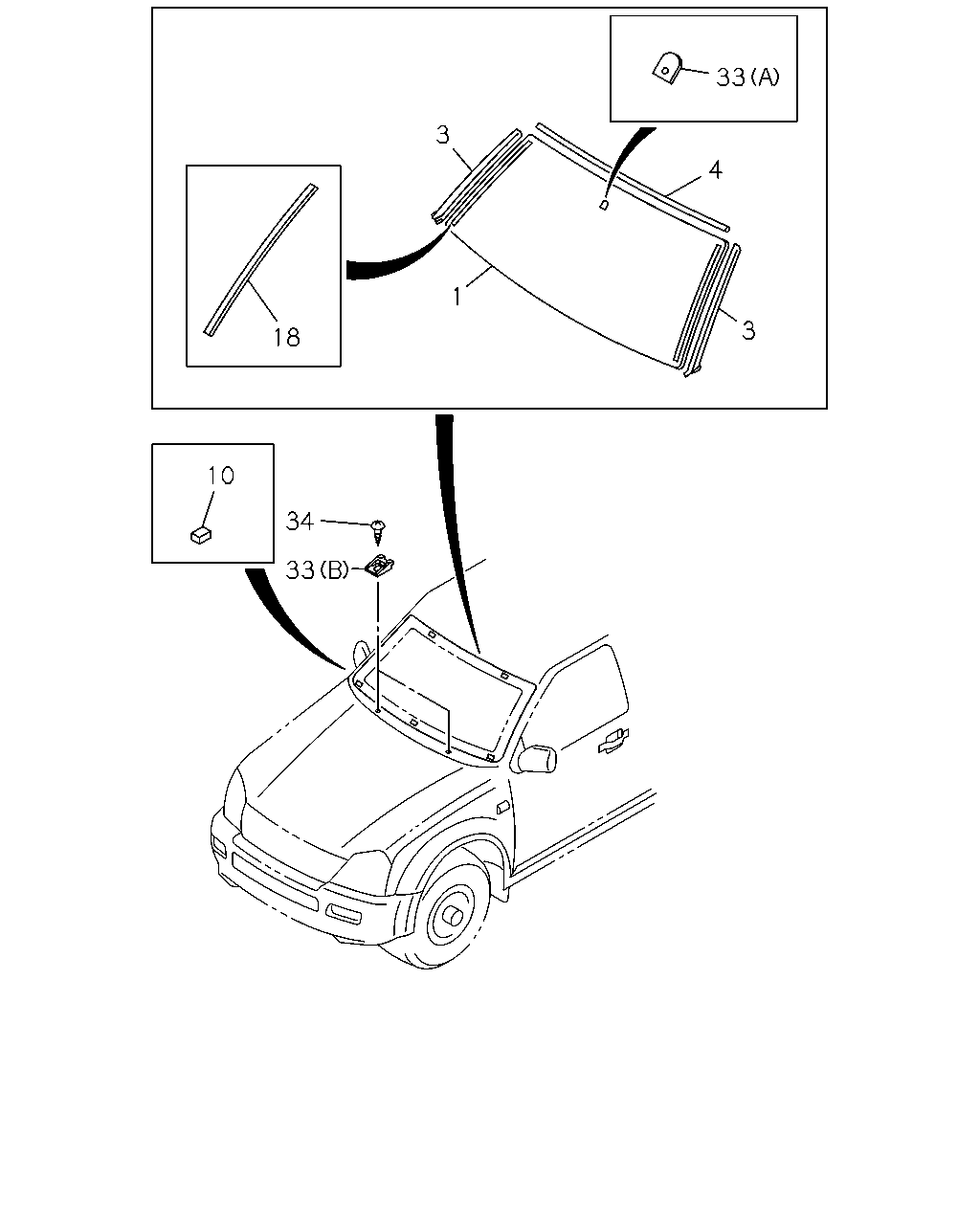

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#40817) — 17 parça
Tümü
A - TFB5JF
B - TFS5JF
33
3
4
1
3
18
10
34
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GLASS; WINDSHIELD
THA
8-97331-593-1
01
1
0303-0609
●
●
1
GLASS; WINDSHIELD
THA
8-97359-575-0
01
1
0610-0710
●
●
1
GLASS; WINDSHIELD
THA
8-97359-575-0
01
1
0711-0808
●
●
1
GLASS; WINDSHIELD
THA
8-98134-280-0
01
1
0809-
●
●
3
MOLDING; WINDSHIELD
THA
8-97234-878-1
01
1
0303-0511
●
●
3
MOLDING; WINDSHIELD
THA
8-98030-884-0
01
1
0512-
●
●
3
MOLDING; WINDSHIELD
THA
8-97234-877-1
01
1
0303-0510
●
●
3
MOLDING; WINDSHIELD
THA
8-98030-883-0
01
1
0511-
●
●
4
MOLDING; WINDSHIELD,UPR
THA
8-97239-342-0
01
1
0303-
●
●
10
SPACER; WINDSHIELD GLASS
THA
8-94434-770-0
05
1
0303-
●
●
18
SEAL; WINDSHIELD
THA
8-97362-794-0
02
1
0303-0305
●
●
18
SEAL; WINDSHIELD
THA
8-97367-390-0
02
1
0306-
●
●
33
SUPPORT; WINDSHIELD,LWR
(A) THA
8-15954-649-0
01
1
0303-
●
●
33
SUPPORT; WINDSHIELD,LWR
(B) THA
8-94434-771-0
02
1
0303-
●
●
34
SCREW; SUPPORT TO BRKT
M6X10 THA
9-09829-194-0
02
1
0303-0701
●
●
34
SCREW; SUPPORT TO BRKT
M6X10 THA
8-98062-143-0
02
1
0702-1005
●
●
34
SCREW; SUPPORT TO BRKT
M6X10 THA
8-98167-450-0
02
1
1006-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
