◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#40816) — 53 parça

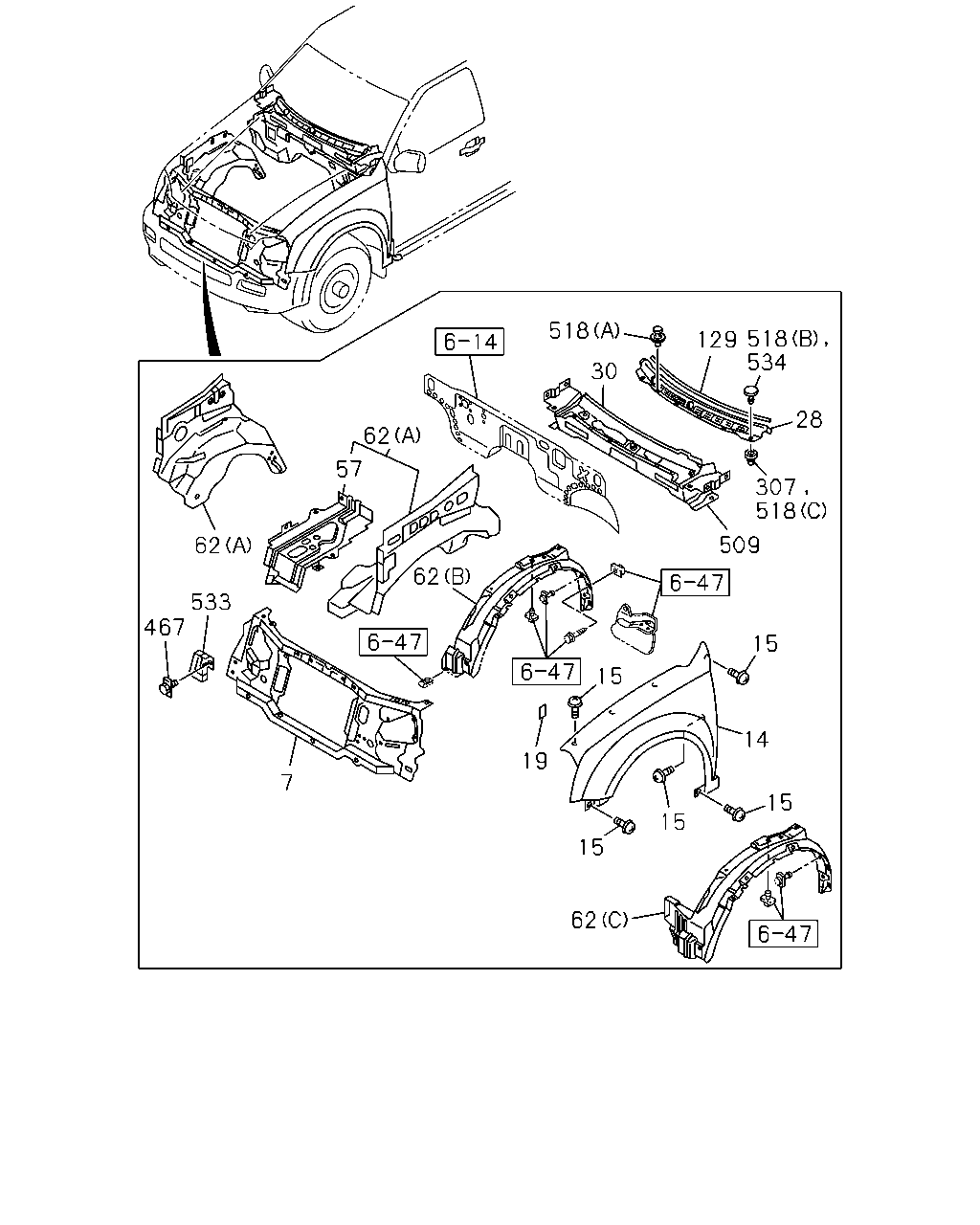

çizim 51468
518 518 534 129 30 28 62 57 307 518 509 62 62 533 467 15 15 14 19 7 15 15 15 62
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR
THA 		8-97234-873-4 01 1 0303-0303 ● ●
7 PANEL; DEFLECTOR
THA 		8-97366-938-0 01 1 0304-0408 ● ●
7 PANEL; DEFLECTOR
THA 		8-97364-302-1 01 1 0409-0606 ● ●
7 PANEL; DEFLECTOR
THA 		8-97387-380-0 01 1 0607- ● ●
14 FENDER; FRT
THA 		8-97234-753-6 01 1 0303-0508 ●
14 FENDER; FRT
THA 		8-97374-639-0 01 1 0509-0606 ●
14 FENDER; FRT
THA 		8-97387-366-0 01 1 0607- ●
14 FENDER; FRT
THA 		8-97234-752-6 01 1 0303-0508 ●
14 FENDER; FRT
THA 		8-97374-638-0 01 1 0509-0606 ●
14 FENDER; FRT
THA 		8-97387-365-0 01 1 0607- ●
14 FENDER; FRT
THA 		8-97234-755-6 01 1 0303-0508 ●
14 FENDER; FRT
THA 		8-97367-006-0 01 1 0509-0606 ●
14 FENDER; FRT
THA 		8-97387-364-0 01 1 0607- ●
14 FENDER; FRT
THA 		8-97234-754-6 01 1 0303-0508 ●
14 FENDER; FRT
THA 		8-97367-005-0 01 1 0509-0606 ●
14 FENDER; FRT
THA 		8-97387-363-0 01 1 0607- ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-97172-961-1 16 1 0303-0701 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98056-294-0 16 1 0702-0804 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98111-470-0 16 1 0805-1009 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 16 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
THA 		8-97329-076-2 02 1 0303-0408 ● ●
28 COVER; DASH COWL
THA 		8-97363-070-0 01 1 0303-0503 ● ●
28 COVER; DASH COWL
THA 		8-98009-237-0 01 1 0504- ● ●
30 PANEL; COWL UPR
THA 		8-97234-339-5 01 1 0303-0701 ● ●
30 PANEL; COWL UPR
THA 		8-98061-608-0 01 1 0702- ● ●
57 TRAY; BATTERY
THA 		8-97287-397-1 01 1 0303-0403 ● ●
57 TRAY; BATTERY
THA 		8-97326-537-1 01 1 0404- ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-97358-316-1 01 1 0303-0702 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98074-558-0 01 1 0703-0910 ● ●
62 PANEL; WHEEL HOUSE
ANTI LOCK BRAKE SYSTEM<JE5> (A) THA 		8-98074-558-0 01 1 0911- ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-97234-964-4 01 1 0303-0303 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-97367-335-0 01 1 0303-0702 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98074-559-0 01 1 0703-0910 ● ●
62 PANEL; WHEEL HOUSE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (A) THA 		8-98153-443-0 01 1 0911- ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98153-442-0 01 1 1001-1001 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98074-559-0 01 1 1002- ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-97235-443-1 01 1 0303-0606 ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98007-130-3 01 1 0607- ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-97235-441-2 01 1 0303-0606 ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98007-129-3 01 1 0607- ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98007-132-3 01 1 0607- ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98007-131-3 01 1 0607- ●
129 FINISHER; COWL COVER
THA 		8-97333-282-2 01 1 0303- ● ●
307 GROMMET; FRT PANEL
THA 		8-97329-761-0 01 1 0303-0408 ● ●
467 RIVET; PLASTIC,DRIP MOLDING
THA 		8-94221-150-0 01 1 0303- ● ●
509 PANEL; DASH
THA 		8-97234-356-2 01 1 0303-0701 ● ●
509 PANEL; DASH
THA 		8-98061-610-0 01 1 0702- ● ●
518 SCREW; BRKT,COWL COVER
(A) IMA 		8-97013-997-0 05 1 0303-0503 ● ●
518 SCREW; BRKT,COWL COVER
(A) IMA 		8-97013-997-0 03 1 0504- ● ●
518 SCREW; BRKT,COWL COVER
(B) THA 		8-97329-760-0 01 1 0409- ● ●
518 SCREW; BRKT,COWL COVER
(C) THA 		8-97329-761-0 01 1 0409- ● ●
533 SEAL; FRT PANEL
THA 		8-97316-861-0 01 1 0303- ● ●
534 FASTENER
THA 		8-97329-760-0 01 1 0303-0408 ● ●
