6-01 — FRONT BUMPER (#40814) — 139 parça

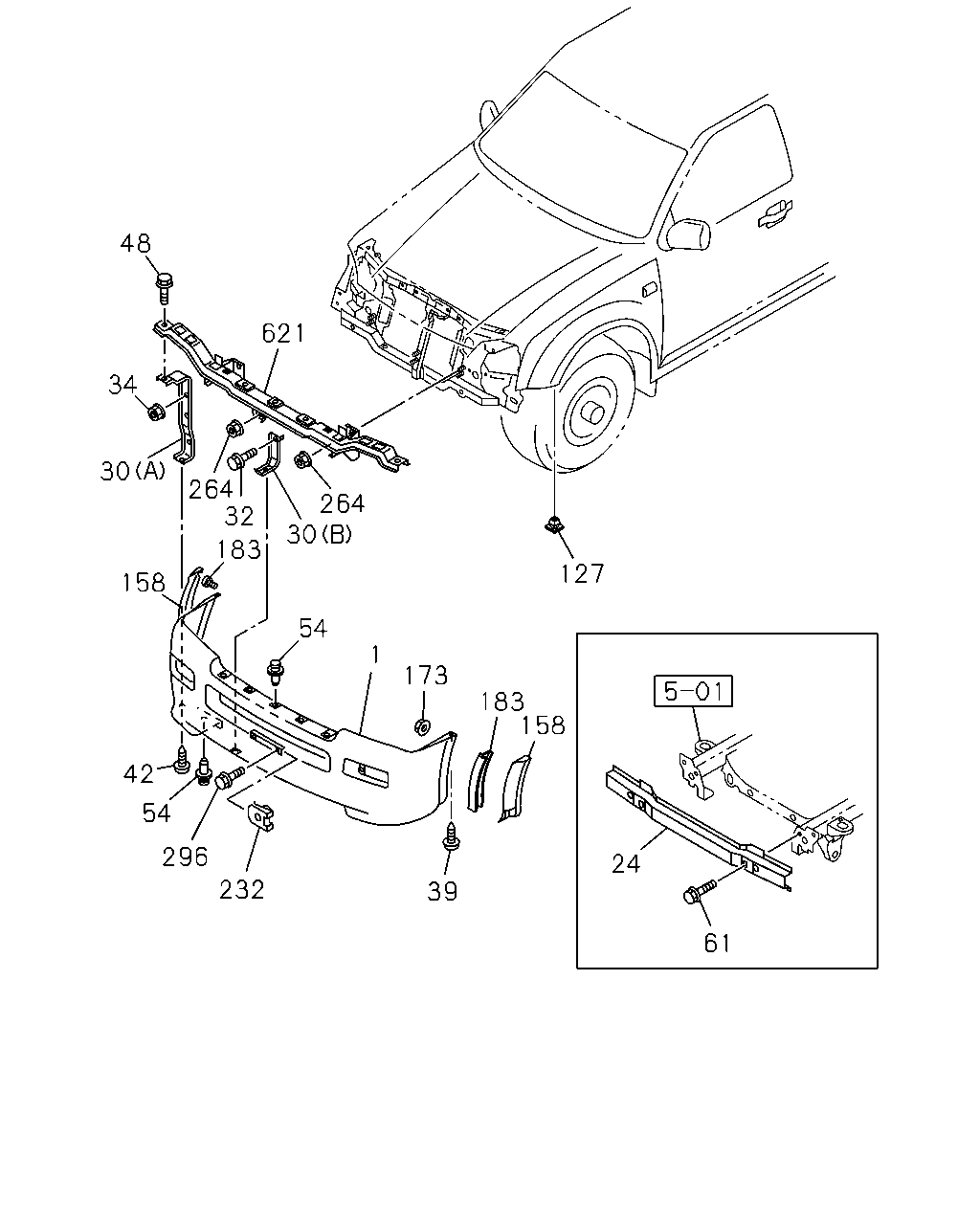

48 621 34 30 264 32 264 30 183 127 158 54 1 173 183 158 42 54 296 24 232 39 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT GRAY THA	8-97235-962-2	01	1	0303-0408	●
1	BUMPER ASM; FRT GRAY THA	8-97367-038-4	01	1	0409-0508	●
1	BUMPER ASM; FRT GRAY THA	8-98007-800-0	01	1	0509-0606	●
1	BUMPER ASM; FRT THA	8-98007-151-4	01	1	0607-1009	●
1	BUMPER ASM; FRT THA	8-98158-611-0	01	1	1010-	●
1	BUMPER ASM; FRT GRAY THA	8-97235-966-2	01	1	0303-0307		●
1	BUMPER ASM; FRT FRT BUMPER DARK GRAY<EQ9> GRAY THA	8-97235-966-2	01	1	0308-0408		●
1	BUMPER ASM; FRT GRAY THA	8-97367-040-4	01	1	0409-0508		●
1	BUMPER ASM; FRT GRAY THA	8-98017-104-0	01	1	0509-0606		●
1	BUMPER ASM; FRT THA	8-98007-155-2	01	1	0607-1009		●
1	BUMPER ASM; FRT THA	8-98158-618-0	01	1	1010-		●
24	BAR; FRT BUMPER THA	8-97235-867-2	01	1	0303-0408	●	●
24	BAR; FRT BUMPER THA	8-97367-044-0	01	1	0409-	●	●
30	BRACKET; FRT BUMPER (A) THA	8-97236-049-0	02	1	0303-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0303-0609	●	●
30	BRACKET; FRT BUMPER (B) THA	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	02	1	0303-0408	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28680-616-0	04	1	0409-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE THA	0-91180-106-0	04	1	0303-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0303-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING THA	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1006-	●	●
42	BOLT; BUMPER M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0303-0408	●	●
48	BOLT; SUPPORT M6X16 FLANGE THA	0-28650-616-0	02	1	0303-0408	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0303-0606	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	07	1	0607-	●	●
61	BOLT; BACK BAR M10X25 FLANGE THA	0-28661-025-0	04	1	0303-0408	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0303-	●	●
158	EXTENSION; FRT BUMPER GRAY THA	8-97331-863-1	01	1	0303-0606		●
158	EXTENSION; FRT BUMPER GRAY THA	8-97331-862-1	01	1	0303-0606		●
173	NUT; EXT M6 FLANGE THA	0-91180-106-0	06	1	0303-0606		●
183	FINISHER; FRT BUMPER GRAY THA	8-97331-850-0	02	1	0303-0408		●
183	FINISHER; FRT BUMPER DARK GRAY THA	8-97393-892-0	02	1	0409-0606		●
232	NUT; EXPANSION,LICENSE PLATE THA	8-94342-576-1	02	1	0303-0408	●	●
264	NUT; SUPPORT TO BODY M6 FLANGE THA	0-91180-106-0	06	1	0303-0408	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28080-616-0	02	1	0303-0601	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●
621	SUPPORT; FRT BUMPER THA	8-97235-872-3	01	1	0303-0408	●	●
621	SUPPORT; FRT BUMPER THA	8-97367-043-1	01	1	0409-0606	●	●
621	SUPPORT; FRT BUMPER THA	8-98007-150-3	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER THA	8-98060-773-0	01	1	0703-	●	●

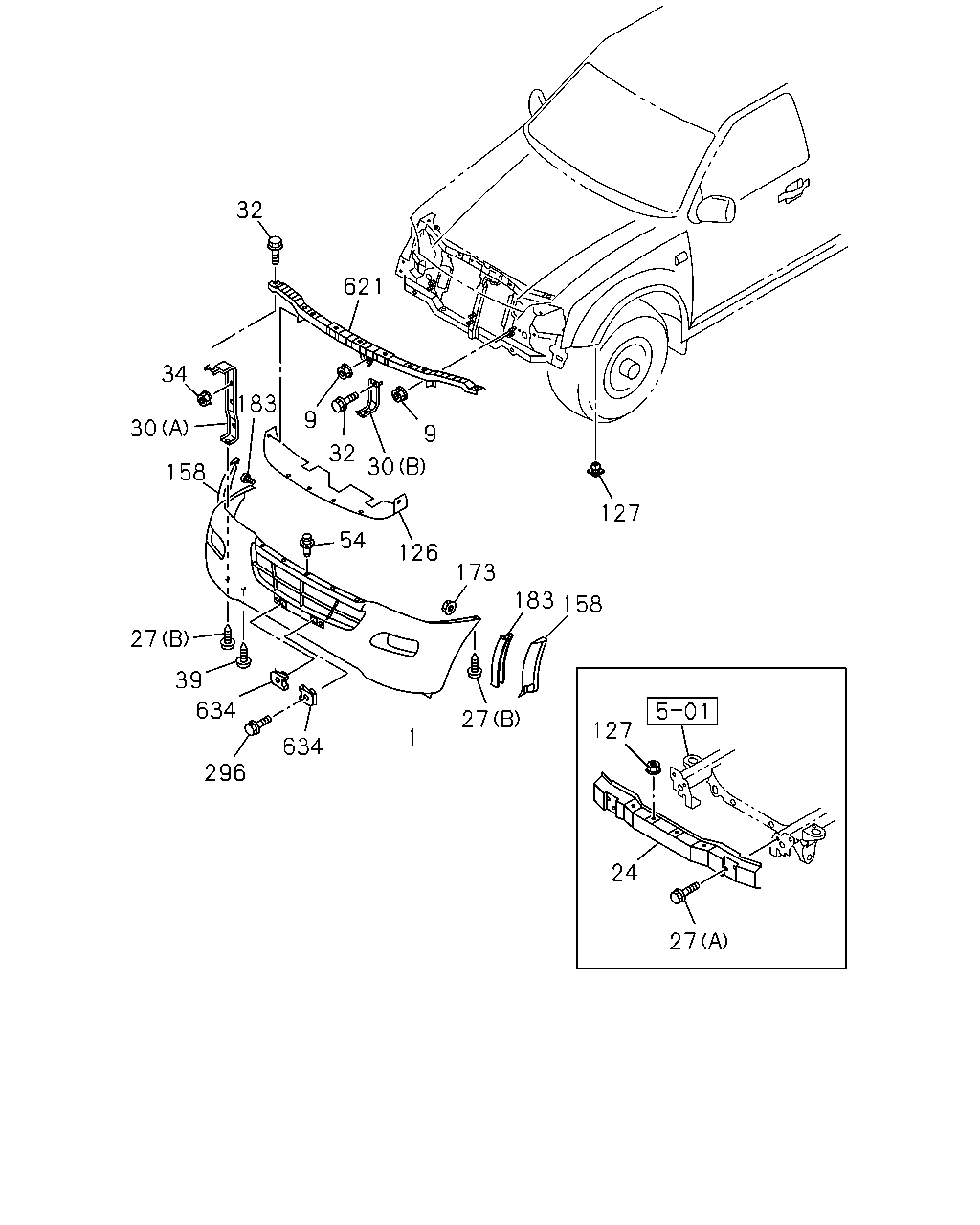

32 621 34 183 9 30 9 32 30 158 127 54 126 173 183 158 27 39 634 27 127 1 634 296 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT GRAY THA	8-97235-962-2	01	1	0303-0408	●
1	BUMPER ASM; FRT GRAY THA	8-97367-038-4	01	1	0409-0508	●
1	BUMPER ASM; FRT GRAY THA	8-98007-800-0	01	1	0509-0606	●
1	BUMPER ASM; FRT THA	8-98007-151-4	01	1	0607-1009	●
1	BUMPER ASM; FRT THA	8-98158-611-0	01	1	1010-	●
1	BUMPER ASM; FRT GRAY THA	8-97235-966-2	01	1	0303-0307		●
1	BUMPER ASM; FRT FRT BUMPER DARK GRAY<EQ9> GRAY THA	8-97235-966-2	01	1	0308-0408		●
1	BUMPER ASM; FRT GRAY THA	8-97367-040-4	01	1	0409-0508		●
1	BUMPER ASM; FRT GRAY THA	8-98017-104-0	01	1	0509-0606		●
1	BUMPER ASM; FRT THA	8-98007-155-2	01	1	0607-1009		●
1	BUMPER ASM; FRT THA	8-98158-618-0	01	1	1010-		●
9	NUT; REINF,FRT BUMPER M6 FLANGE THA	0-91180-106-0	06	1	0409-	●	●
24	BAR; FRT BUMPER THA	8-97235-867-2	01	1	0303-0408	●	●
24	BAR; FRT BUMPER THA	8-97367-044-0	01	1	0409-	●	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE THA	0-28661-025-0	04	1	0409-	●	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0409-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-97236-049-0	02	1	0303-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0303-0609	●	●
30	BRACKET; FRT BUMPER (B) THA	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	02	1	0303-0408	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28680-616-0	04	1	0409-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE THA	0-91180-106-0	04	1	0303-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0303-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING THA	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1006-	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0303-0606	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	07	1	0607-	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-97367-045-0	01	1	0409-0412	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-97367-045-0	01	1	0501-0508	●
126	SEAL; BUMPER THA	8-97367-045-0	01	1	0501-0508		●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-97367-045-0	01	1	0509-0510	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-98030-942-0	01	1	0511-0606	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-98007-149-1	01	1	0607-	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0303-	●	●
158	EXTENSION; FRT BUMPER GRAY THA	8-97331-863-1	01	1	0303-0606		●
158	EXTENSION; FRT BUMPER GRAY THA	8-97331-862-1	01	1	0303-0606		●
173	NUT; EXT M6 FLANGE THA	0-91180-106-0	06	1	0303-0606		●
183	FINISHER; FRT BUMPER GRAY THA	8-97331-850-0	02	1	0303-0408		●
183	FINISHER; FRT BUMPER DARK GRAY THA	8-97393-892-0	02	1	0409-0606		●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28080-616-0	02	1	0303-0601	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●
621	SUPPORT; FRT BUMPER THA	8-97235-872-3	01	1	0303-0408	●	●
621	SUPPORT; FRT BUMPER THA	8-97367-043-1	01	1	0409-0606	●	●
621	SUPPORT; FRT BUMPER THA	8-98007-150-3	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER THA	8-98060-773-0	01	1	0703-	●	●
634	NUT; LICENCE PLATE THA	8-94342-576-1	02	1	0409-0707	●	●
634	NUT; LICENCE PLATE THA	8-98054-813-0	02	1	0708-	●	●

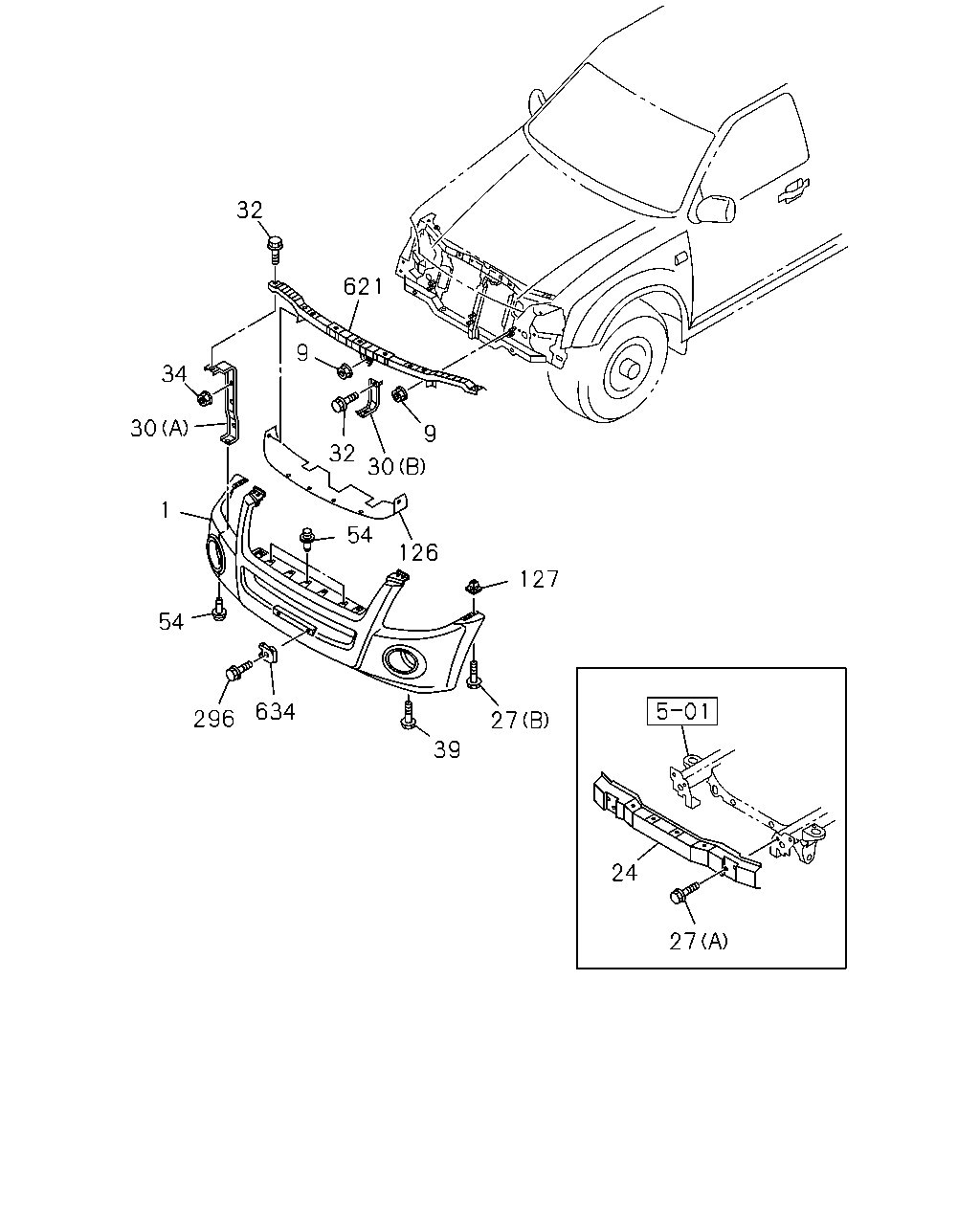

32 621 9 34 30 9 32 30 1 54 126 127 54 634 296 27 39 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT GRAY THA	8-97235-962-2	01	1	0303-0408	●
1	BUMPER ASM; FRT GRAY THA	8-97367-038-4	01	1	0409-0508	●
1	BUMPER ASM; FRT GRAY THA	8-98007-800-0	01	1	0509-0606	●
1	BUMPER ASM; FRT THA	8-98007-151-4	01	1	0607-1009	●
1	BUMPER ASM; FRT THA	8-98158-611-0	01	1	1010-	●
1	BUMPER ASM; FRT GRAY THA	8-97235-966-2	01	1	0303-0307		●
1	BUMPER ASM; FRT FRT BUMPER DARK GRAY<EQ9> GRAY THA	8-97235-966-2	01	1	0308-0408		●
1	BUMPER ASM; FRT GRAY THA	8-97367-040-4	01	1	0409-0508		●
1	BUMPER ASM; FRT GRAY THA	8-98017-104-0	01	1	0509-0606		●
1	BUMPER ASM; FRT THA	8-98007-155-2	01	1	0607-1009		●
1	BUMPER ASM; FRT THA	8-98158-618-0	01	1	1010-		●
9	NUT; REINF,FRT BUMPER M6 FLANGE THA	0-91180-106-0	06	1	0409-	●	●
24	BAR; FRT BUMPER THA	8-97235-867-2	01	1	0303-0408	●	●
24	BAR; FRT BUMPER THA	8-97367-044-0	01	1	0409-	●	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE THA	0-28661-025-0	04	1	0409-	●	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0409-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-97236-049-0	02	1	0303-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0303-0609	●	●
30	BRACKET; FRT BUMPER (B) THA	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	02	1	0303-0408	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28680-616-0	04	1	0409-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE THA	0-91180-106-0	04	1	0303-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0303-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING THA	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1006-	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0303-0606	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	07	1	0607-	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-97367-045-0	01	1	0409-0412	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-97367-045-0	01	1	0501-0508	●
126	SEAL; BUMPER THA	8-97367-045-0	01	1	0501-0508		●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-97367-045-0	01	1	0509-0510	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-98030-942-0	01	1	0511-0606	●	●
126	SEAL; BUMPER 4JJ1 ENG<LFB> THA	8-98007-149-1	01	1	0607-	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0303-	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28080-616-0	02	1	0303-0601	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●
621	SUPPORT; FRT BUMPER THA	8-97235-872-3	01	1	0303-0408	●	●
621	SUPPORT; FRT BUMPER THA	8-97367-043-1	01	1	0409-0606	●	●
621	SUPPORT; FRT BUMPER THA	8-98007-150-3	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER THA	8-98060-773-0	01	1	0703-	●	●
634	NUT; LICENCE PLATE THA	8-94342-576-1	02	1	0409-0707	●	●
634	NUT; LICENCE PLATE THA	8-98054-813-0	02	1	0708-	●	●
