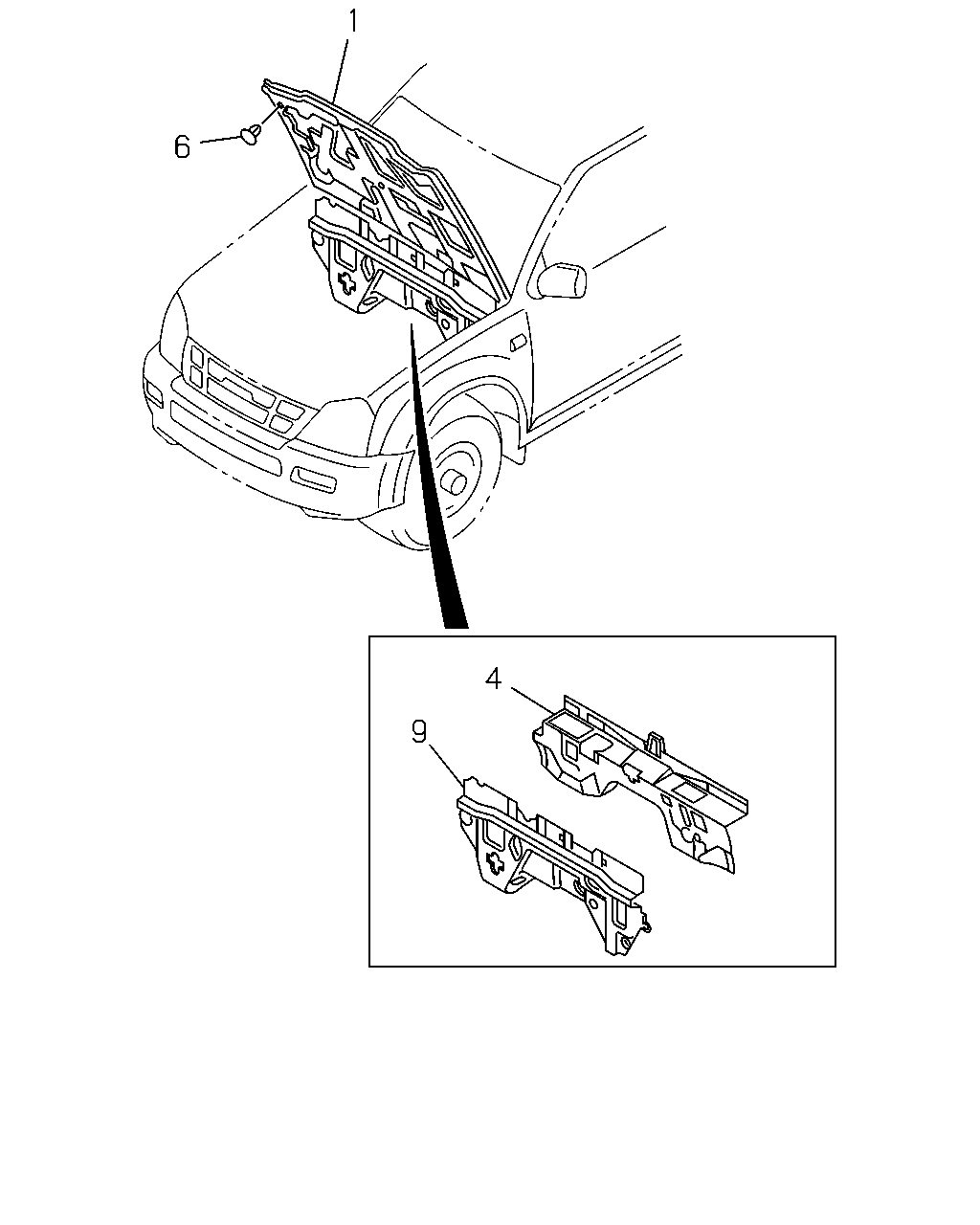

5-40 — ENGINE ROOM INSULATOR (#40813) — 29 parça

1 6 4 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	INSULATION; ENG HOOD 4JH1 ENG<RJX> THA	8-97361-321-0	01	1	0303-0408	●	●
1	INSULATION; ENG HOOD 4JJ1 ENG<LFB> THA	8-97361-321-0	01	1	0409-0412	●	●
1	INSULATION; ENG HOOD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97361-321-0	01	1	0501-0508	●
1	INSULATION; ENG HOOD THA	8-97361-321-0	01	1	0501-0508		●
1	INSULATION; ENG HOOD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97361-321-0	01	1	0509-0606	●	●
1	INSULATION; ENG HOOD THA	8-98007-122-3	01	1	0607-	●	●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> THA	8-98003-294-0	01	1	0501-0503	●
4	INSULATION; DASH PNL,INNER 4JK1 ENG<LKZ> THA	8-98012-634-0	01	1	0504-	●
4	INSULATION; DASH PNL,INNER THA	8-97238-108-3	01	1	0303-0307	●	●
4	INSULATION; DASH PNL,INNER THA	8-97369-012-0	01	1	0308-0408	●	●
4	INSULATION; DASH PNL,INNER 4JJ1 ENG<LFB> THA	8-97370-965-0	01	1	0409-0409	●	●
4	INSULATION; DASH PNL,INNER 4JJ1 ENG<LFB> THA	8-98002-801-0	01	1	0410-0412	●	●
4	INSULATION; DASH PNL,INNER 4JJ1 ENG<LFB> THA	8-98002-801-0	01	1	0501-0508	●
4	INSULATION; DASH PNL,INNER THA	8-98002-801-0	01	1	0501-0508		●
4	INSULATION; DASH PNL,INNER 4JJ1 ENG<LFB> THA	8-98002-801-0	01	1	0509-	●	●
6	CLIP; ENG HOOD INSULATION 4JH1 ENG<RJX> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0303-0408	●	●
6	CLIP; ENG HOOD INSULATION 4JJ1 ENG<LFB> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0409-0412	●	●
6	CLIP; ENG HOOD INSULATION 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0501-0508	●
6	CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0501-0508		●
6	CLIP; ENG HOOD INSULATION 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0509-0606	●	●
6	CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	13	1	0607-	●	●
9	INSULATION; DASH ENG ROOM 4JH1 ENG<RJX> THA	8-97357-839-0	01	1	0303-0306	●	●
9	INSULATION; DASH ENG ROOM 4JH1 ENG<RJX> THA	8-97368-041-0	01	1	0307-0408	●	●
9	INSULATION; DASH ENG ROOM 4JJ1 ENG<LFB> THA	8-97368-041-0	01	1	0409-0412	●	●
9	INSULATION; DASH ENG ROOM 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97368-041-0	01	1	0501-0508	●
9	INSULATION; DASH ENG ROOM THA	8-97368-041-0	01	1	0501-0508		●
9	INSULATION; DASH ENG ROOM 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97368-041-0	01	1	0509-0509	●	●
9	INSULATION; DASH ENG ROOM 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98021-496-0	01	1	0510-0606	●	●
9	INSULATION; DASH ENG ROOM THA	8-98021-496-0	01	1	0607-	●	●
