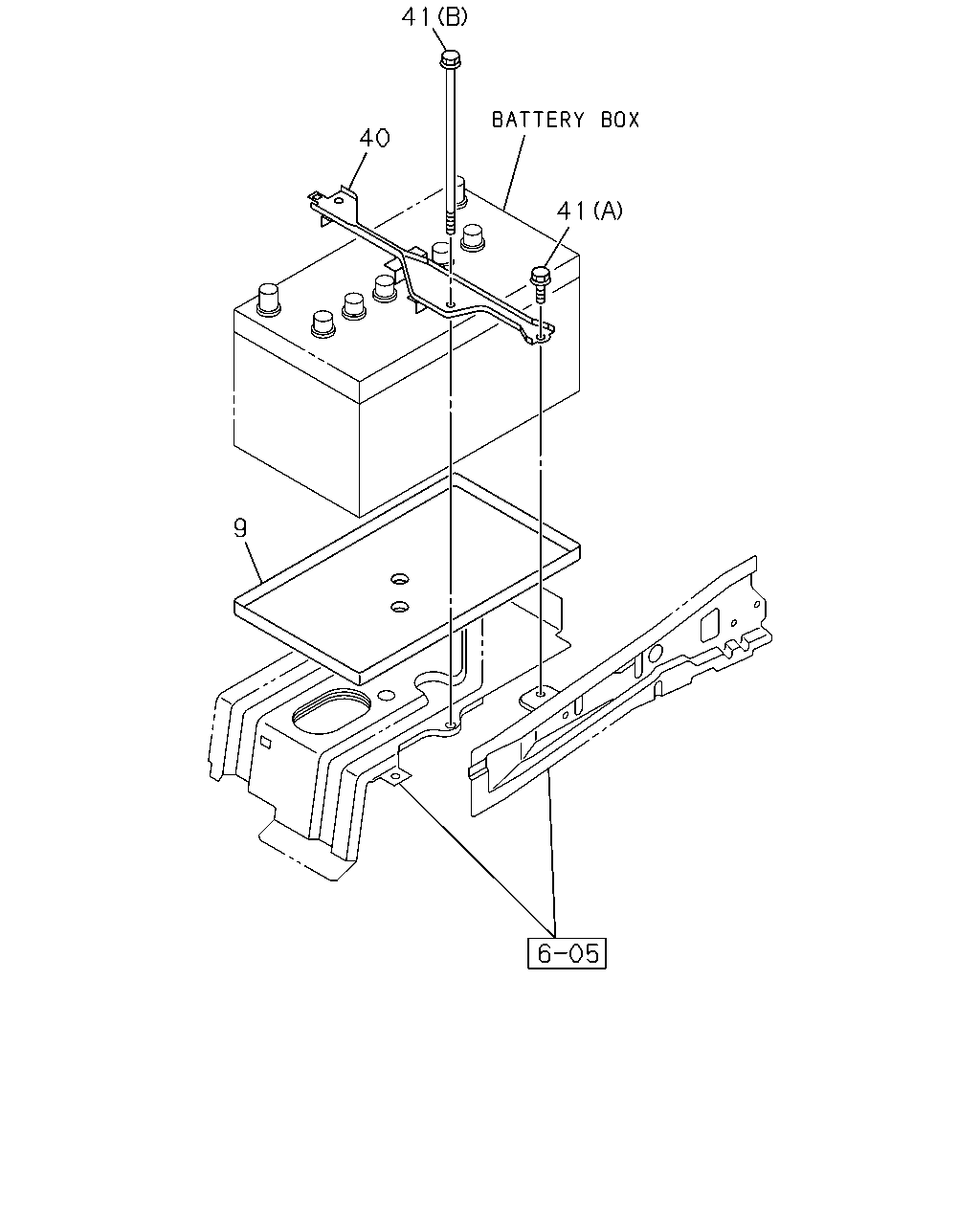

5-20 — BATTERY CARRIER (#40812) — 13 parça

41 40 41 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SEAT; BATTERY 4JH1 ENG<RJX> THA	8-97318-865-1	01	1	0303-0408	●	●
9	SEAT; BATTERY BATTERY 65D31L<TQ4> THA	8-97318-865-1	01	1	0409-0508	●	●
9	SEAT; BATTERY BATTERY 80D26L<TM1> THA	8-97328-060-0	01	1	0509-0606	●	●
9	SEAT; BATTERY BATTERY 65D31L<TQ4> THA	8-97318-865-1	01	1	0607-0808	●	●
9	SEAT; BATTERY BATTERY 80D26L<TM1> THA	8-97328-060-0	01	1	0809-	●	●
40	CLAMP; BATTERY 4JH1 ENG<RJX> THA	8-97357-407-0	01	1	0303-0408	●	●
40	CLAMP; BATTERY BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0409-0508	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1> THA	8-97357-407-0	01	1	0509-0606	●	●
40	CLAMP; BATTERY BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0607-0808	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1> THA	8-97357-407-0	01	1	0809-	●	●
41	BOLT; CLAMP,BATTERY (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0303-	●	●
41	BOLT; CLAMP,BATTERY (B) M8X222 FLANGE THA	8-97308-979-0	02	1	0303-0408	●	●
41	BOLT; CLAMP,BATTERY (B) M8X222 FLANGE THA	8-97378-041-0	02	1	0409-	●	●
