◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#40811) — 34 parça

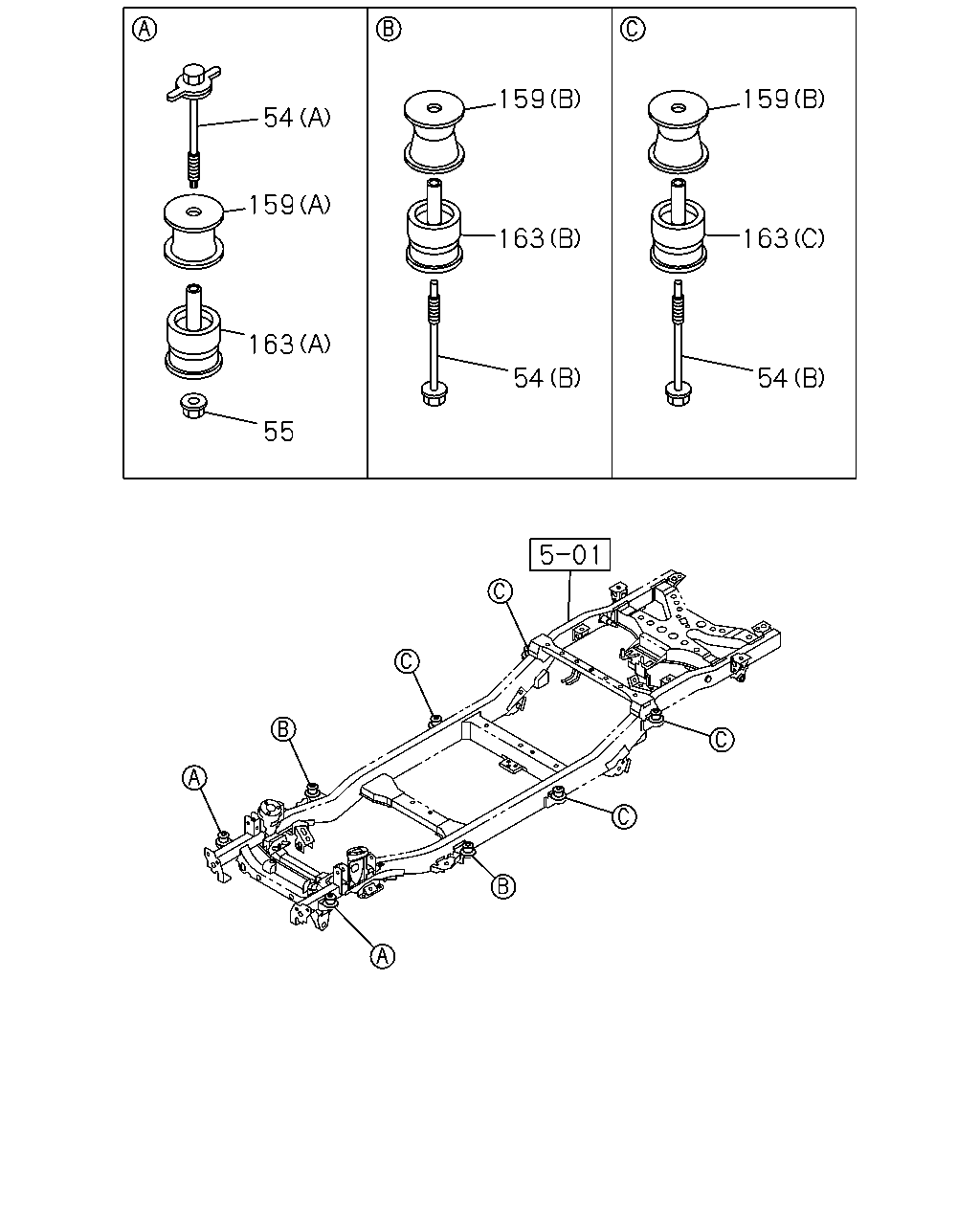

çizim 50354
159 159 54 159 163 163 163 54 54 55
BalonParca AdiParca NoAdetTipApplied Date A B
54 BOLT; RUBBER
(A) THA 		8-97245-653-0 02 1 0303-0305 ● ●
54 BOLT; RUBBER
(A) M10X117.3 FLANGE THA 		8-97365-219-0 02 1 0306- ● ●
54 BOLT; RUBBER
(B) THA 		8-97245-657-1 08 1 0303-0305 ● ●
54 BOLT; RUBBER
(B) THA 		8-97365-220-0 08 1 0306-0408 ● ●
54 BOLT; RUBBER
(B) THA 		8-97365-220-0 04 1 0409-1009 ● ●
54 BOLT; RUBBER
(B) THA 		8-98178-536-0 04 1 1010- ● ●
54 BOLT; RUBBER
(B) THA 		8-97365-220-0 02 1 0409-1009 ● ●
54 BOLT; RUBBER
(B) THA 		8-97365-220-0 02 1 0409-1009 ● ●
54 BOLT; RUBBER
(B) THA 		8-98178-536-0 02 1 1010- ● ●
54 BOLT; RUBBER
(B) THA 		8-98178-536-0 02 1 1010- ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91250-210-0 02 1 0303-0603 ● ●
55 NUT; RUBBER
M10 FLANGE THA 		0-91280-210-0 02 1 0604- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) STAMP SB THA 		8-97256-674-1 02 1 0303-0303 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) STAMP SB THA 		8-97367-285-0 02 1 0304- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W THA 		8-97301-825-2 08 1 0303-0303 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W THA 		8-97367-286-0 08 1 0304-0408 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W THA 		8-97367-286-0 02 1 0409- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W THA 		8-97367-286-0 02 1 0409- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W THA 		8-97367-286-0 02 1 0409- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) STAMP W THA 		8-97367-286-0 02 1 0409- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP THA 		8-97256-676-0 02 1 0303-0303 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP THA 		8-97367-288-0 02 1 0304-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP THA 		8-98051-326-0 02 1 0610- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y THA 		8-97256-677-1 02 1 0303-0303 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y THA 		8-97367-289-0 02 1 0304-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y THA 		8-98051-327-0 02 1 0610- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-97301-826-1 06 1 0303-0303 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-97367-290-0 06 1 0304-0408 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-97367-290-0 02 1 0409-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-97367-290-0 02 1 0409-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-97367-290-0 02 1 0409-0609 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-98051-328-0 02 1 0610- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-98051-328-0 02 1 0610- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G THA 		8-98051-328-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
