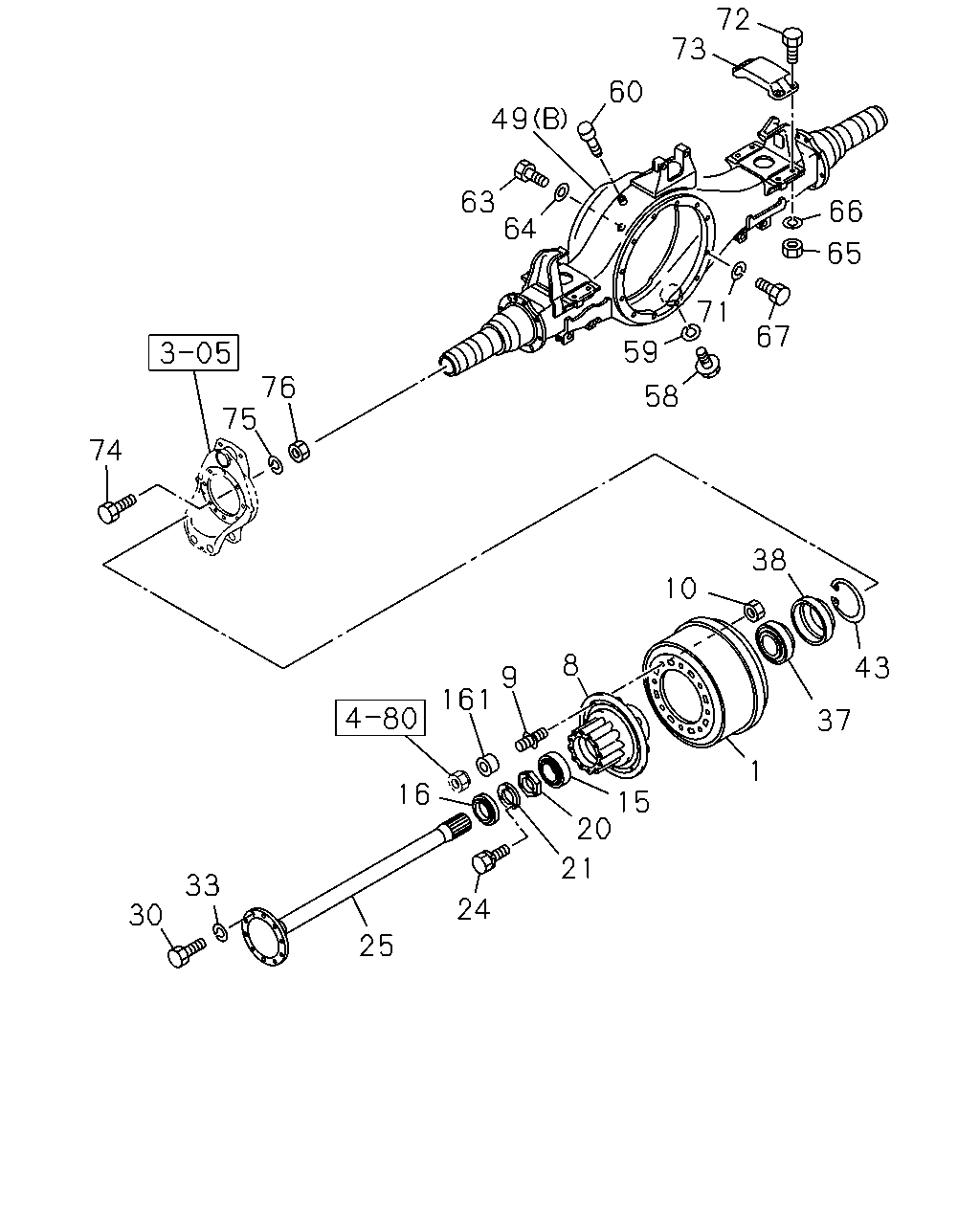

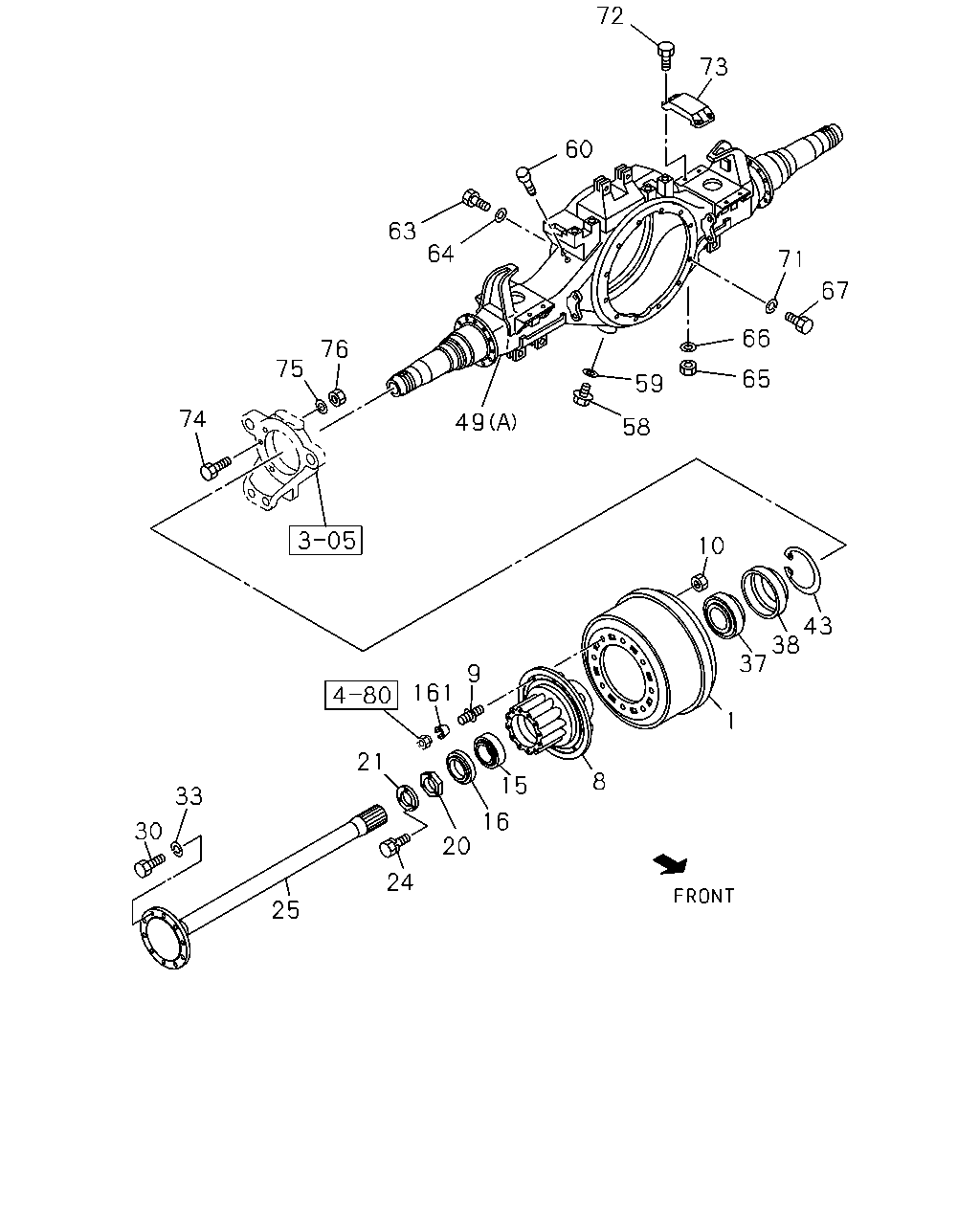

4-20 — REAR AXLE CASE AND SHAFT (#4081) — 378 parça

72 73 60 49 63 64 66 65 71 67 59 76 75 58 74 38 10 8 43 9 161 37 1 16 15 20 21 33 24 30 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	02	1	9911-	●
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	02	1	9911-	●
1	DRUM; BRK,RR WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9905-9905	●	●
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9911-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9712-9904	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9712-9904	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9905-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9905-	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9603-9904	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9603-9904	●	●
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9905-	●	●
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9905-	●	●
8	HUB; RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9603-9711	●	●
8	HUB; RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9603-9711	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9712-9904		●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9712-9904		●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9905-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9905-	●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20X53.5 LH THREAD,M22X51.5 RH THREAD	1-42332-119-0	16	1	9911-9912	●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20X53.5,M22X51.5 RH THREAD	1-42331-119-0	16	1	9911-9912	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	20	1	9603-9711	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	20	1	9603-9711	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9712-9904	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9712-9904	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9905-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9603-9904		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9603-9904		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9905-9910	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9905-9910	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9911-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9911-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9911-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9911-	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	16	1	9603-9609	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	16	1	9603-9609	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9610-9904	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9610-9904	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9905-9905	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9905-9905	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-065-0	16	1	9905-	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-065-0	16	1	9905-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9603-9904	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9603-9904	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9905-9910	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9905-9910	●	●
10	NUT; WHEEL PIN,RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9911-	●	●
10	NUT; WHEEL PIN,RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9911-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	02	1	9603-9809	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	02	1	9603-9809	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	9810-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	9810-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	02	1	9603-9809	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	02	1	9603-9809	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9603-0102	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9603-0102	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9603-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9603-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9603-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9603-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9603-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9603-	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9603-9701	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9603-9701	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	01	1	9603-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	01	1	9603-	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	01	1	9603-	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	01	1	9603-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9603-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9603-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9603-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9603-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	02	1	9603-9809	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	02	1	9603-9809	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	9810-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	9810-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	02	1	9603-9809	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	02	1	9603-9809	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9603-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9603-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9603-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9603-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9603-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9603-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42150-709-4	01	1	9911-9912	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42160-919-1	01	1	0001-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42150-711-3	01	1	9911-9912	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42160-961-1	01	1	0001-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42150-898-4	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42160-921-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42160-225-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42160-965-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42190-119-1	01	1	0002-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42190-120-1	01	1	0002-	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-216-0	01	1	0007-0007	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-978-1	01	1	0010-	●	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> (A)	1-42160-107-0	01	1	9603-9904	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. BRAKE REGULATION ECE<TDV> (A)	1-42160-107-0	01	1	9905-9910	●	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-107-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. BRAKE REGULATION ECE<TDV> (A)	1-42160-107-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-107-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. BRAKE REGULATION ECE<TDV> (A)	1-42160-934-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-934-1	01	1	0001-	●	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-124-1	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-124-1	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-979-1	01	1	0001-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> (A)	1-42160-120-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-120-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-935-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-449-1	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-936-1	01	1	0001-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-120-0	01	1	9603-9810	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-120-0	01	1	9811-9904	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42160-227-0	01	1	9603-9707	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> (B)	1-42160-227-0	01	1	9708-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> (B)	1-42160-227-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> (B)	1-42160-977-0	01	1	0001-0003	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-977-1	01	1	0004-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42160-653-0	01	1	9911-9911	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42160-653-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42160-952-1	01	1	0001-0003	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42190-167-1	01	1	0004-	●	●
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B> (B)	1-42160-108-0	01	1	9603-9904	●	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-108-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-108-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-976-1	01	1	0001-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-106-0	01	1	9603-9706		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9707-9904		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-933-1	01	1	0001-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A)	1-42160-550-0	01	1	9707-9808		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-550-0	01	1	9809-9904		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A)	1-42160-550-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A)	1-42160-550-0	01	1	9911-9912		●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A)	1-42160-938-1	01	1	0001-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9603-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9603-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9603-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9603-	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9603-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9603-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9603-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9603-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9603-	●	●
65	NUT M14	9-99110-514-0	08	1	9603-	●	●
65	NUT M14	9-99110-514-0	08	1	9603-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	9603-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9707-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9603-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9603-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9603-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	9603-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	9603-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	9603-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	9603-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9603-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9603-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9603-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9603-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9603-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9603-	●	●
161	RING; SPRING,REAR WHEEL EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9603-9704	●	●

72 73 60 63 64 71 67 66 76 75 65 59 74 49 58 10 43 38 37 9 161 1 21 8 15 33 16 30 20 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	02	1	9911-	●
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	02	1	9911-	●
1	DRUM; BRK,RR WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-194-4	02	1	9911-	●	●
1	DRUM; BRK,RR EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9603-9904	●	●
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9905-9905	●	●
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9905-9910	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9911-	●	●
1	DRUM; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9911-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9712-9904	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9712-9904	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9905-	●	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42331-143-0	02	1	9905-	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9603-9904	●	●
8	HUB; RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9603-9904	●	●
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9905-	●	●
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-104-0	02	1	9905-	●	●
8	HUB; RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9603-9711	●	●
8	HUB; RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9603-9711	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9712-9904		●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9712-9904		●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9905-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-085-0	02	1	9905-	●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20X53.5 LH THREAD,M22X51.5 RH THREAD	1-42332-119-0	16	1	9911-9912	●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20X53.5,M22X51.5 RH THREAD	1-42331-119-0	16	1	9911-9912	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	20	1	9603-9711	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	20	1	9603-9711	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9712-9904	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9712-9904	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9905-	●	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9603-9904	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9905-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9603-9904		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9603-9904		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9905-9910	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9905-9910	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9911-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	9911-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9911-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22X79.8,M22X53.5 RH THREAD	1-42337-027-0	20	1	9911-	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	16	1	9603-9609	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	16	1	9603-9609	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9610-9904	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9610-9904	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9905-9905	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-055-0	16	1	9905-9905	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-065-0	16	1	9905-	●	●
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 FLANGE	1-09440-065-0	16	1	9905-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9603-9904	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9603-9904	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9905-9910	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9905-9910	●	●
10	NUT; WHEEL PIN,RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9911-	●	●
10	NUT; WHEEL PIN,RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	20	1	9911-	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	02	1	9603-9809	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	02	1	9603-9809	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	9810-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	9810-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	02	1	9603-9809	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	02	1	9603-9809	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9603-0102	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9603-0102	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9603-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9603-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9603-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	9603-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9603-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	9603-	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9603-9701	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	06	1	9603-9701	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	9702-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	01	1	9603-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	01	1	9603-	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	01	1	9603-	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	01	1	9603-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9603-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	9603-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9603-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9603-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	02	1	9603-9809	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	02	1	9603-9809	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	9810-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	9810-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	02	1	9603-9809	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	02	1	9603-9809	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9603-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	9603-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9603-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	9603-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9603-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	9603-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42150-709-4	01	1	9911-9912	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42160-919-1	01	1	0001-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42150-711-3	01	1	9911-9912	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42160-961-1	01	1	0001-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42150-898-4	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42160-921-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42160-225-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42160-965-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-42190-119-1	01	1	0002-	●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-42190-120-1	01	1	0002-	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-216-0	01	1	0007-0007	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-978-1	01	1	0010-	●	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> (A)	1-42160-107-0	01	1	9603-9904	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. BRAKE REGULATION ECE<TDV> (A)	1-42160-107-0	01	1	9905-9910	●	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-107-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. BRAKE REGULATION ECE<TDV> (A)	1-42160-107-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-107-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. BRAKE REGULATION ECE<TDV> (A)	1-42160-934-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-934-1	01	1	0001-	●	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-124-1	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-124-1	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-979-1	01	1	0001-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> (A)	1-42160-120-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-120-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-935-1	01	1	0001-	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-449-1	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-42160-936-1	01	1	0001-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-120-0	01	1	9603-9810	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-120-0	01	1	9811-9904	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42160-227-0	01	1	9603-9707	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> (B)	1-42160-227-0	01	1	9708-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> (B)	1-42160-227-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> (B)	1-42160-977-0	01	1	0001-0003	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-977-1	01	1	0004-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42160-653-0	01	1	9911-9911	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42160-653-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42160-952-1	01	1	0001-0003	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-42190-167-1	01	1	0004-	●	●
49	CASE; RR AXLE EXC. REAR AXLE RT260<C2B> (B)	1-42160-108-0	01	1	9603-9904	●	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-108-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-108-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-42160-976-1	01	1	0001-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42160-106-0	01	1	9603-9706		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9707-9904		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-106-0	01	1	9911-9912	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-933-1	01	1	0001-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A)	1-42160-550-0	01	1	9707-9808		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42160-550-0	01	1	9809-9904		●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A)	1-42160-550-0	01	1	9905-9910	●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A)	1-42160-550-0	01	1	9911-9912		●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A)	1-42160-938-1	01	1	0001-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9603-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9603-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9603-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9603-	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9603-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9603-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9603-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9603-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9603-	●	●
65	NUT M14	9-99110-514-0	08	1	9603-	●	●
65	NUT M14	9-99110-514-0	08	1	9603-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	9603-	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9603-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9707-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9603-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9603-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9603-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	9603-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	9603-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	9603-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	9603-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9603-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9603-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9603-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	9603-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9603-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	9603-	●	●
161	RING; SPRING,REAR WHEEL EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9603-9704	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
