4-80 — ROAD WHEEL (#40809) — 39 parça

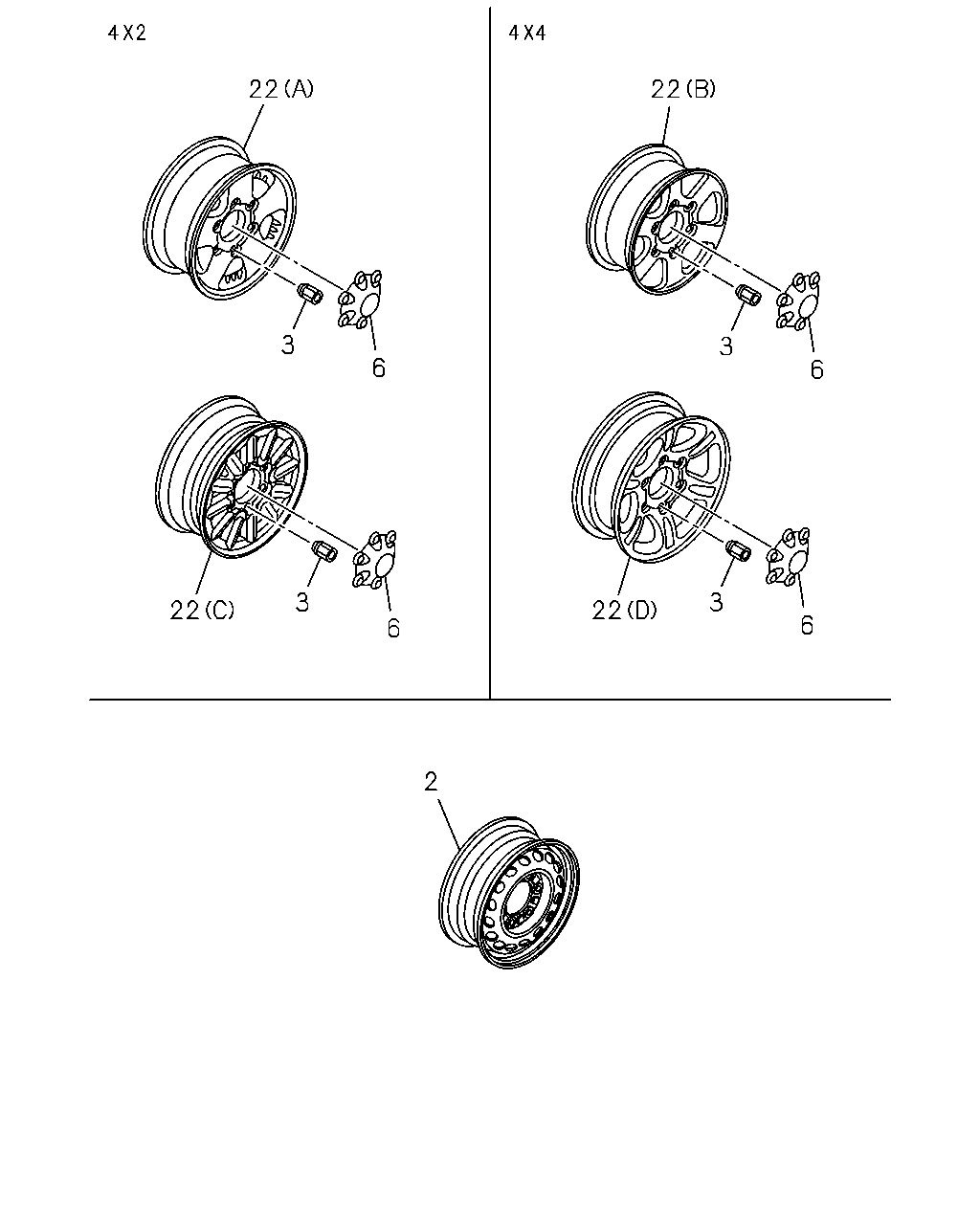

çizim 50672
22 22 3 3 6 6 3 3 22 22 6 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-97323-283-1 01 1 0303-1212 ●
2 WHEEL; DISC
SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-98218-140-0 01 1 1301- ●
2 WHEEL; DISC
SPARE THA 		8-97324-669-1 01 1 0711-0711 ●
3 NUT; WHEEL,FRT AXLE
M12 H=25.5 THA 		8-97323-754-1 24 1 0303-0306 ● ●
3 NUT; WHEEL,FRT AXLE
M12 H=25.5 THA 		8-97365-932-0 24 1 0307-0908 ● ●
3 NUT; WHEEL,FRT AXLE
M12 H=23 THA 		8-98101-983-0 24 1 0909- ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> ISUZU MARK THA 		8-97945-399-0 04 1 0909- ●
6 CAP; WHEEL
ISUZU MARK THA 		8-97302-000-1 04 1 0303-0606 ●
6 CAP; WHEEL
ISUZU MARK THA 		8-97302-001-1 04 1 0303-0408 ●
6 CAP; WHEEL
ISUZU MARK THA 		8-97374-697-0 04 1 0409-0606 ●
6 CAP; WHEEL
ISUZU MARK THA 		8-97374-697-0 04 1 0607-0908 ● ●
6 CAP; WHEEL
ISUZU MARK THA 		8-97374-697-0 04 1 0909- ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI<PX0> ISUZU MARK THA 		8-97374-697-0 04 1 0909- ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (D) SPARE THA 		8-98149-136-0 01 1 0909-1006 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (D) SPARE THA 		8-98172-697-0 01 1 1007-1212 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (D) SPARE THA 		8-98218-145-0 01 1 1301- ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (D) FRONT,REAR THA 		8-98149-136-0 04 1 0909-1006 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (D) FRONT,REAR THA 		8-98172-697-0 04 1 1007-1212 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (D) FRONT,REAR THA 		8-98218-145-0 04 1 1301- ●
22 WHEEL; DISC,AL
(B) SPARE THA 		8-98009-207-0 01 1 0712-0808 ●
22 WHEEL; DISC,AL
(D) SPARE THA 		8-98101-921-0 01 1 0809-0908 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (D) SPARE THA 		8-98101-921-0 01 1 0909-1006 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (D) SPARE THA 		8-98172-696-0 01 1 1007-1212 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (D) SPARE THA 		8-98218-144-0 01 1 1301- ●
22 WHEEL; DISC,AL
(A) FRONT,REAR THA 		8-97355-383-0 04 1 0303-0307 ●
22 WHEEL; DISC,AL
(A) FRONT,REAR THA 		8-97365-054-0 04 1 0308-0408 ●
22 WHEEL; DISC,AL
(C) FRONT,REAR THA 		8-97370-082-3 04 1 0409-0606 ●
22 WHEEL; DISC,AL
(B) FRONT,REAR THA 		8-98009-204-0 04 1 0607-1006 ●
22 WHEEL; DISC,AL
(B) FRONT,REAR THA 		8-98172-695-0 04 1 1007- ●
22 WHEEL; DISC,AL
(B) FRONT,REAR,SPARE THA 		8-97355-384-0 05 1 0303-0307 ●
22 WHEEL; DISC,AL
(B) FRONT,REAR,SPARE THA 		8-97365-055-0 05 1 0308-0408 ●
22 WHEEL; DISC,AL
(B) FRONT,REAR THA 		8-97363-556-1 04 1 0409-0606 ●
22 WHEEL; DISC,AL
(B) FRONT,REAR THA 		8-98009-207-0 04 1 0607-0808 ●
22 WHEEL; DISC,AL
(D) FRONT,REAR THA 		8-98101-921-0 04 1 0809-0908 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (D) FRONT,REAR THA 		8-98101-921-0 04 1 0909-1006 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (D) FRONT,REAR THA 		8-98172-696-0 04 1 1007-1212 ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (D) FRONT,REAR THA 		8-98218-144-0 04 1 1301- ●
22 WHEEL; DISC,AL
(B) SPARE THA 		8-97363-556-1 01 1 0409-0606 ●
22 WHEEL; DISC,AL
(B) SPARE THA 		8-98009-207-0 01 1 0607-0710 ●
