4-65 — REAR LEAF SPRING (#40808) — 50 parça

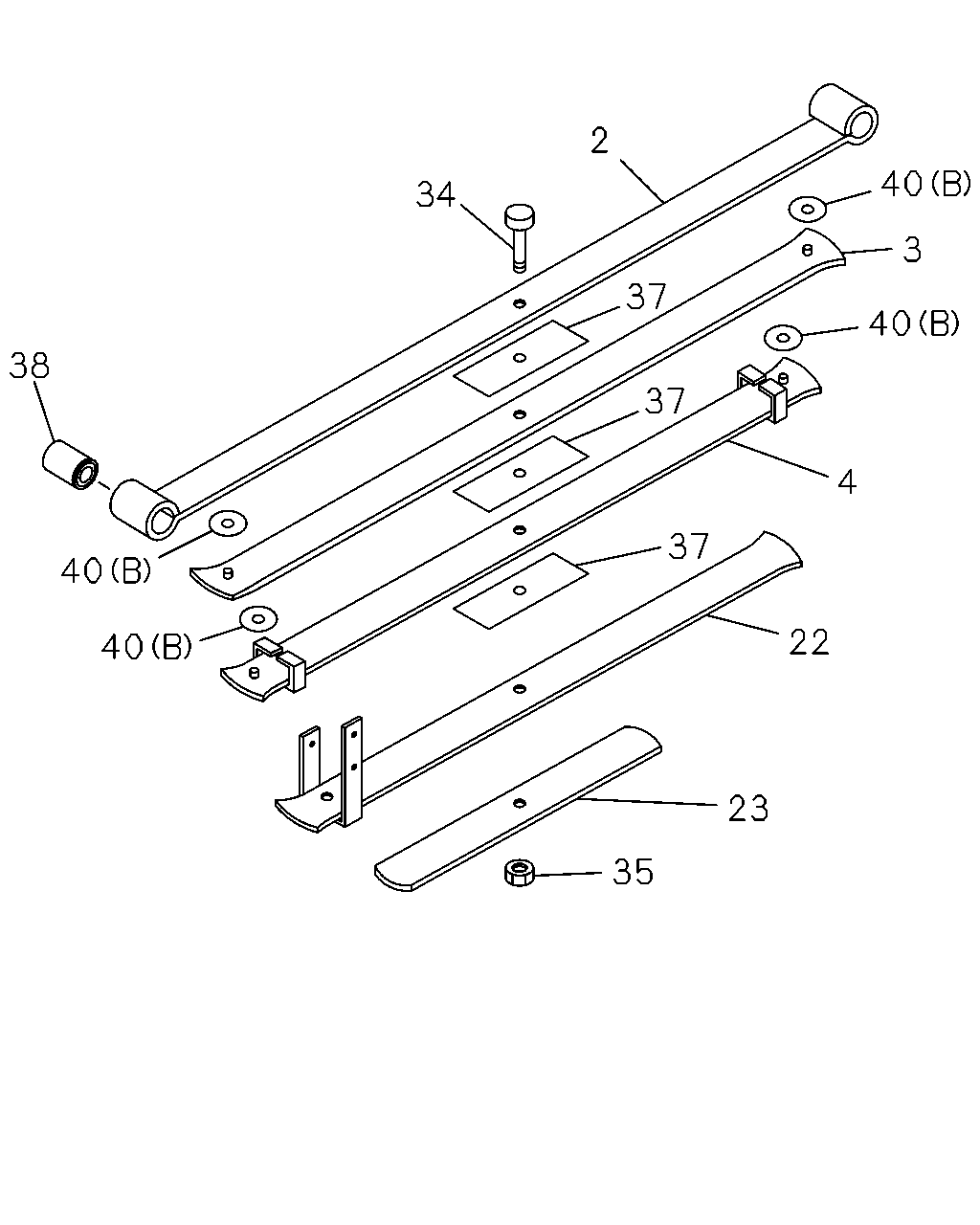

2 40 34 3 37 40 38 37 4 37 40 22 40 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-237-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-238-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97361-181-1	8-97368-649-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97368-651-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-239-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: B = 8-97361-182-1, C = 8-97389-270-0, D = 8-97946-812-0, E = 8-97946-820-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97361-181-1	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97361-181-1, B = 8-97361-182-1, C = 8-97389-270-0, D = 8-97946-812-0, E = 8-97946-820-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-97360-246-0	02	1	-

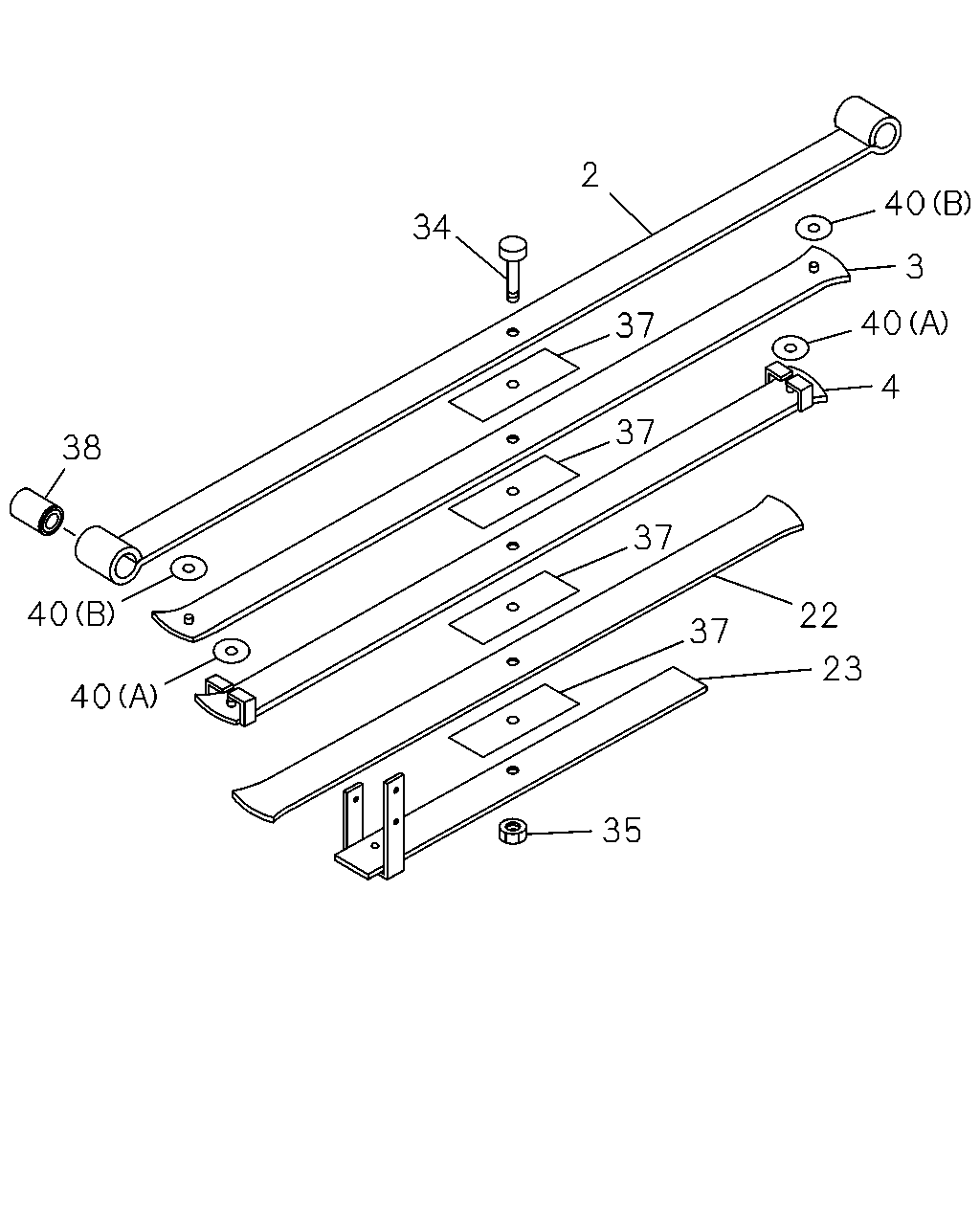

2 40 34 3 40 37 4 37 38 37 40 22 37 23 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97361-181-1	8-97361-166-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97361-171-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-235-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97361-181-1	8-97361-167-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97361-172-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-236-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97361-181-1	8-97361-168-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97361-173-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-237-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97361-181-1	8-97368-648-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97368-650-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-238-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97361-181-1	8-97368-649-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97368-651-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: C = 8-97389-270-0, D = 8-97946-812-0	8-97389-239-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M8X56, THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-94468-050-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-97304-262-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: B = 8-97361-182-1, C = 8-97389-270-0, D = 8-97946-812-0, E = 8-97946-820-0	8-97945-821-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97361-181-1	9-09110-508-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-94468-305-0	04	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97361-181-1, B = 8-97361-182-1, C = 8-97389-270-0, D = 8-97946-812-0, E = 8-97946-820-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-97360-245-0	02	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: B = 8-97361-182-1, E = 8-97946-820-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97361-181-1, C = 8-97389-270-0, D = 8-97946-812-0	8-97360-246-0	02	1	-
