Isuzu WW
▶
PICKUP
▶
TFR
▶
50958 - TFR/TFS THAI-RUNG
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

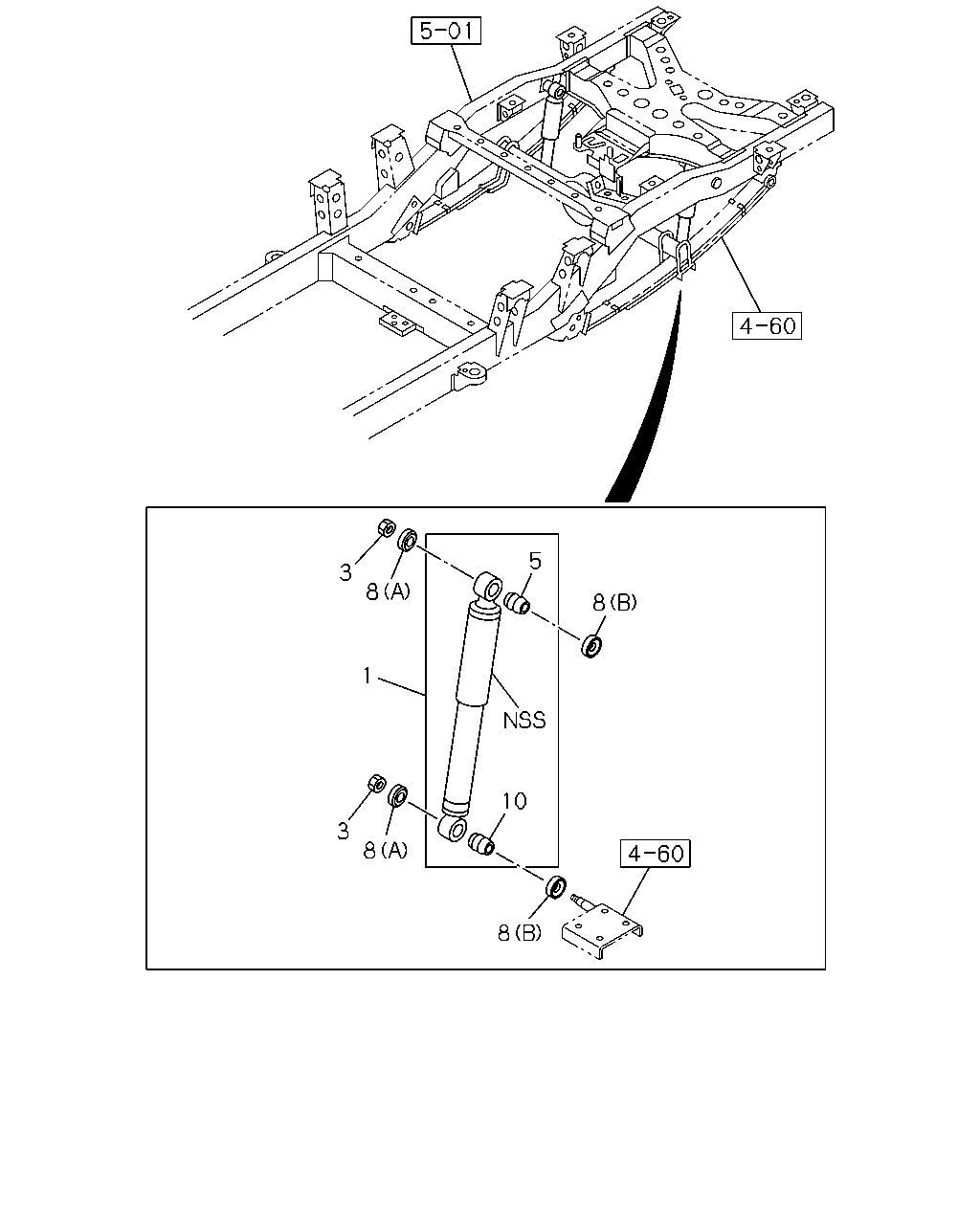

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#40807) — 19 parça
Tümü
A - TFB5JF
B - TFS5JF
5
3
8
8
1
10
3
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ABSORBER ASM; SHOCK,RR
THA
8-97361-710-0
02
1
0303-0306
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97368-602-0
02
1
0307-0705
●
1
ABSORBER ASM; SHOCK,RR
THA
8-98056-036-0
02
1
0706-0706
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97946-671-0
02
1
0707-0710
●
1
ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> THA
8-97946-671-0
02
1
0711-
●
1
ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION RIDE&HANDLING<FE2> THA
8-97946-649-0
02
1
0711-
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97361-711-0
02
1
0303-0306
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97368-603-0
02
1
0307-0705
●
1
ABSORBER ASM; SHOCK,RR
THA
8-98056-038-0
02
1
0706-0706
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97946-673-0
02
1
0707-0710
●
1
ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> THA
8-97946-673-0
02
1
0711-
●
1
ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION RIDE&HANDLING<FE2> THA
8-97946-665-0
02
1
0711-
●
3
NUT; S/ABS
M12 FLANGE THA
8-97256-670-0
04
1
0303-
●
●
5
BUSHING; RUBBER,S/ABS,UPR
THA
8-97302-810-0
02
1
0303-
●
●
8
WASHER; S/ABS
(A) ID=16.5 THA
8-94445-688-0
04
1
0303-0606
●
●
8
WASHER; S/ABS
(A) ID=16.5 THA
8-98005-970-0
04
1
0607-
●
●
8
WASHER; S/ABS
(B) ID=12.5 IMA
9-51679-022-0
04
1
0303-0606
●
●
8
WASHER; S/ABS
(B) ID=12.5 THA
8-98005-969-0
04
1
0607-
●
●
10
BUSHING; RUBBER,S/ABS
THA
8-97302-810-0
02
1
0303-
●
●
