◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#40805) — 519 parça

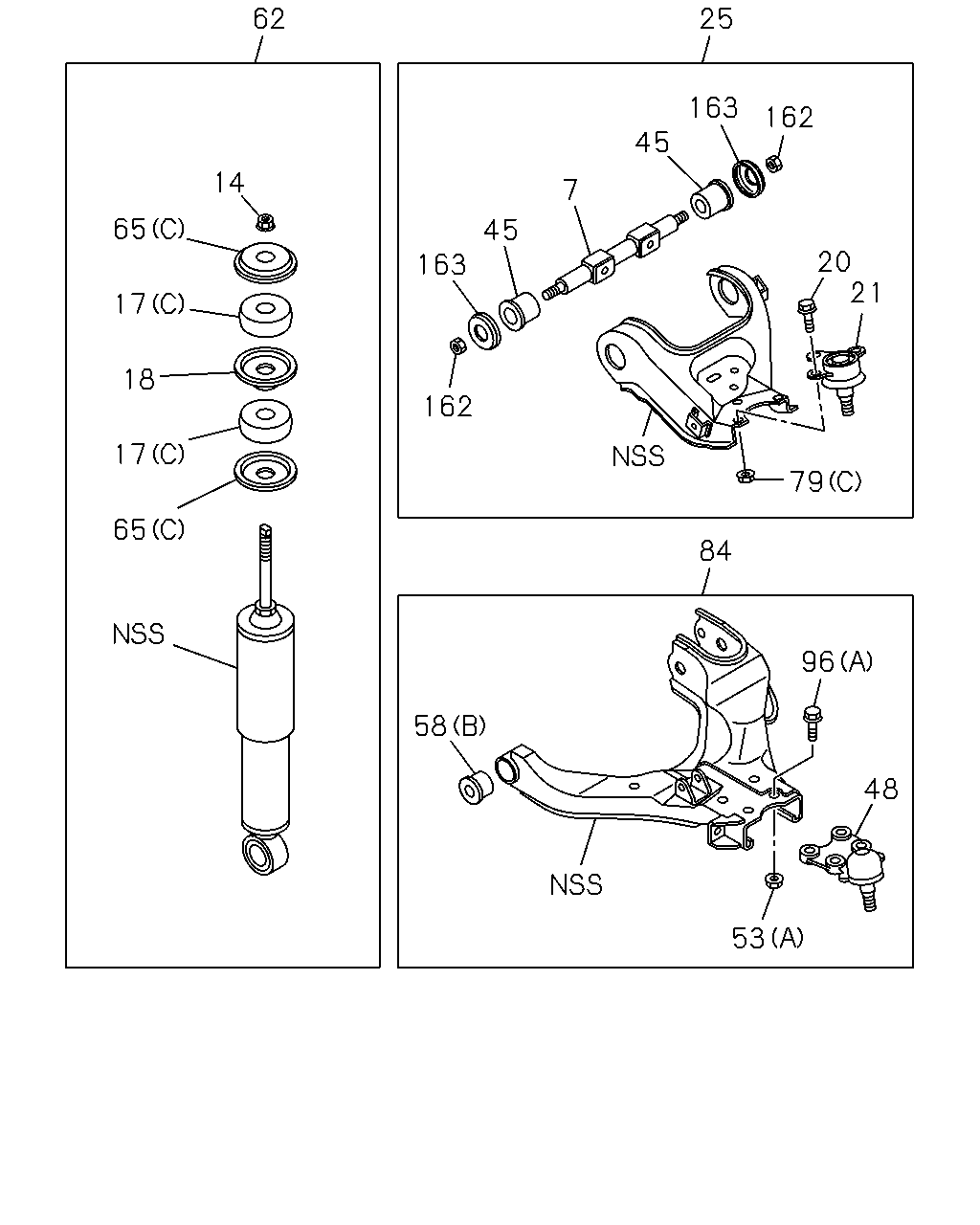

çizim 46860
62 25 163 162 45 14 7 65 45 20 21 163 17 18 162 17 79 65 84 96 58 48 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 PIN; FULCRUM,UPR LINK
THA 		8-97245-690-0 02 1 0303-0606 ●
7 PIN; FULCRUM,UPR LINK
THA 		8-98005-825-0 02 1 0607- ●
14 NUT; S/ABS,UPR
4JH1 ENG<RJX> M12 FLANGE THA 		8-97236-304-0 02 1 0303-0408 ●
14 NUT; S/ABS,UPR
4JJ1 ENG<LFB> M12 FLANGE THA 		8-97236-304-0 02 1 0409-0412 ●
14 NUT; S/ABS,UPR
M12 FLANGE THA 		8-97236-304-0 02 1 0501- ●
14 NUT; S/ABS,UPR
M10 FLANGE THA 		0-91180-110-0 02 1 0303- ●
17 BUSHING; RUBBER,S/ABS
4JH1 ENG<RJX> (A) THA 		8-97236-303-0 02 1 0303-0408 ●
17 BUSHING; RUBBER,S/ABS
4JJ1 ENG<LFB> (A) THA 		8-97236-303-0 02 1 0409-0412 ●
17 BUSHING; RUBBER,S/ABS
(A) THA 		8-97236-303-0 02 1 0501- ●
17 BUSHING; RUBBER,S/ABS
4JH1 ENG<RJX> (B) THA 		8-97264-184-0 02 1 0303-0408 ●
17 BUSHING; RUBBER,S/ABS
4JJ1 ENG<LFB> (B) THA 		8-97264-184-0 02 1 0409-0412 ●
17 BUSHING; RUBBER,S/ABS
(B) THA 		8-97264-184-0 02 1 0501- ●
17 BUSHING; RUBBER,S/ABS
(C) THA 		8-97120-138-0 04 1 0303- ●
18 WASHER; CENTERING,S/ABS
THA 		8-97120-137-0 02 1 0303-0606 ●
18 WASHER; CENTERING,S/ABS
THA 		8-98005-974-0 02 1 0607- ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 0303- ●
20 BOLT; UPR LINK END TO UPR LINK
THA 		8-97245-636-0 06 1 0303- ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97235-777-0 02 1 0303-0303 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-018-0 02 1 0304-0606 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-827-0 02 1 0607- ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-94374-424-0 02 1 0303-0303 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-019-0 02 1 0304-0606 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-826-0 02 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-883-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-011-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-837-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-882-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-010-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-836-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-081-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-080-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ●
45 BUSHING; UPR LINK,FRT
THA 		8-97220-043-0 04 1 0303-0303 ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-173-0 04 1 0304- ●
45 BUSHING; UPR LINK,FRT
THA 		8-97220-077-0 04 1 0303-0303 ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-175-0 04 1 0304- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97235-776-0 02 1 0303-0303 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-020-0 02 1 0304-0606 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-874-0 02 1 0607- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-94459-465-2 02 1 0303-0303 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-021-0 02 1 0304-0606 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 0607- ●
53 NUT; LWR LINK
(B) M18 SLOTTED THA 		8-97245-632-0 02 1 0303- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0303-0408 ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0409- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 12 1 0409- ●
53 NUT; LWR LINK
(C) M18 SLOTTED THA 		0-91116-518-0 02 1 0303-1308 ●
53 NUT; LWR LINK
(C) M18 THA 		0-91110-518-0 02 1 1309- ●
53 NUT; LWR LINK
(D) M18 FLANGE THA 		8-97245-634-0 02 1 0409- ●
58 BUSHING; LWR LINK
(A) THA 		8-97220-065-0 04 1 0303-0303 ●
58 BUSHING; LWR LINK
(A) THA 		8-97364-174-0 04 1 0304- ●
58 BUSHING; LWR LINK
(B) THA 		8-97220-115-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(B) THA 		8-97364-176-0 02 1 0304- ●
58 BUSHING; LWR LINK
(C) THA 		8-97301-506-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(C) THA 		8-97364-177-0 02 1 0304- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-678-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-164-0 02 1 0911- ●
62 ABSORBER ASM; SHOCK,FRT
4JH1 ENG<RJX> THA 		8-97236-299-0 02 1 0303-0408 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB> THA 		8-97236-299-0 02 1 0409-0412 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-299-0 02 1 0501-0606 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97944-850-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-964-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97940-815-3 02 1 0303-0306 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97368-597-0 02 1 0307-0308 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97372-287-0 02 1 0309-0606 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98005-935-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98056-028-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-663-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-216-0 02 1 0911- ●
65 WASHER; S/ABS
(D) THA 		8-97944-892-0 02 1 0911- ●
65 WASHER; S/ABS
(A) THA 		8-98005-971-0 02 1 0607- ●
65 WASHER; S/ABS
(B) THA 		8-98005-972-0 02 1 0607- ●
65 WASHER; S/ABS
4JH1 ENG<RJX> (A) THA 		8-97236-301-0 02 1 0303-0408 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB> (A) THA 		8-97236-301-0 02 1 0409-0412 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97236-301-0 02 1 0501-0606 ●
65 WASHER; S/ABS
4JH1 ENG<RJX> (B) THA 		8-97246-918-0 02 1 0303-0408 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB> (B) THA 		8-97246-918-0 02 1 0409-0412 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97246-918-0 02 1 0501-0606 ●
65 WASHER; S/ABS
(C) THA 		8-97120-136-1 04 1 0303-0606 ●
65 WASHER; S/ABS
(C) THA 		8-98005-973-0 04 1 0607- ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 0303- ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0303-1308 ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1309- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(C) M10 FLANGE THA 		8-97245-637-0 06 1 0303- ●
84 ARM; LWR CONT
THA 		8-97234-959-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-015-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-833-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-958-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-014-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-832-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-961-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-960-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 0303- ● ●
96 BOLT; LWR LINK
(B) THA 		8-97214-813-0 04 1 0409-1007 ●
96 BOLT; LWR LINK
(B) THA 		8-97946-369-0 04 1 1008-1305 ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1306- ●
96 BOLT; LWR LINK
(A) M12X45 FLANGE THA 		0-29261-245-0 08 1 0303-0401 ●
96 BOLT; LWR LINK
(C) M16X95.4 THA 		8-97214-719-0 02 1 0409- ●
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE THA 		8-97245-635-0 04 1 0303- ●
163 PLATE; FULCRUM PIN,UPR LINK
THA 		8-94407-707-0 04 1 0303-0606 ●
163 PLATE; FULCRUM PIN,UPR LINK
THA 		8-98005-932-0 04 1 0607- ●

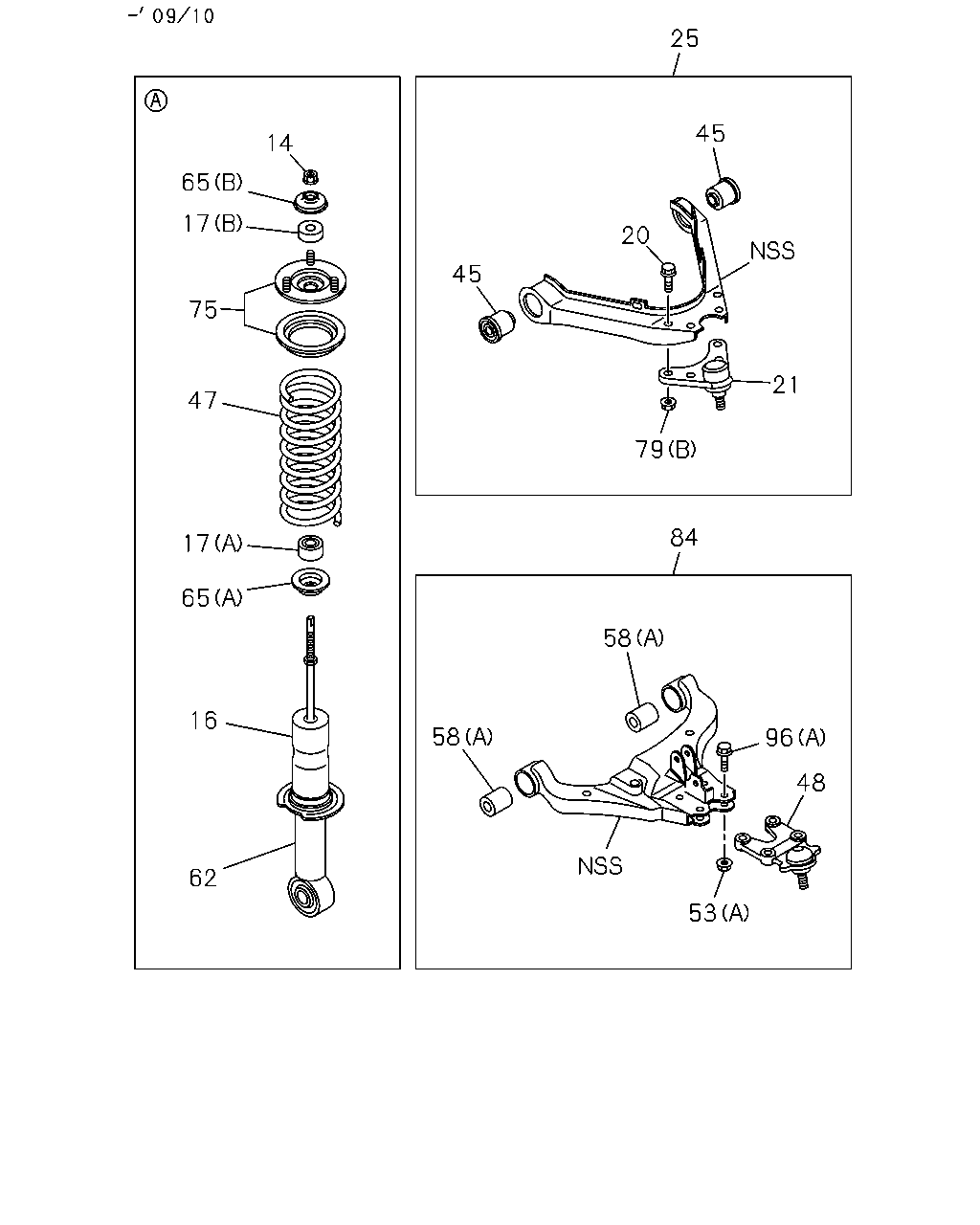

çizim 50125
25 45 14 65 17 20 45 75 21 47 79 84 17 65 58 16 58 96 48 62 53
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
4JH1 ENG<RJX> M12 FLANGE THA 		8-97236-304-0 02 1 0303-0408 ●
14 NUT; S/ABS,UPR
4JJ1 ENG<LFB> M12 FLANGE THA 		8-97236-304-0 02 1 0409-0412 ●
14 NUT; S/ABS,UPR
M12 FLANGE THA 		8-97236-304-0 02 1 0501- ●
14 NUT; S/ABS,UPR
M10 FLANGE THA 		0-91180-110-0 02 1 0303- ●
16 COVER; DUST,FRT S/ABS
4JH1 ENG<RJX> THA 		8-97371-005-0 02 1 0303-0408 ●
16 COVER; DUST,FRT S/ABS
4JJ1 ENG<LFB> THA 		8-97371-005-0 02 1 0409-0412 ●
16 COVER; DUST,FRT S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97371-005-0 02 1 0501-0606 ●
16 COVER; DUST,FRT S/ABS
THA 		8-97944-566-0 02 1 0607- ●
17 BUSHING; RUBBER,S/ABS
4JH1 ENG<RJX> (A) THA 		8-97236-303-0 02 1 0303-0408 ●
17 BUSHING; RUBBER,S/ABS
4JJ1 ENG<LFB> (A) THA 		8-97236-303-0 02 1 0409-0412 ●
17 BUSHING; RUBBER,S/ABS
(A) THA 		8-97236-303-0 02 1 0501- ●
17 BUSHING; RUBBER,S/ABS
4JH1 ENG<RJX> (B) THA 		8-97264-184-0 02 1 0303-0408 ●
17 BUSHING; RUBBER,S/ABS
4JJ1 ENG<LFB> (B) THA 		8-97264-184-0 02 1 0409-0412 ●
17 BUSHING; RUBBER,S/ABS
(B) THA 		8-97264-184-0 02 1 0501- ●
17 BUSHING; RUBBER,S/ABS
(C) THA 		8-97120-138-0 04 1 0303- ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 0303- ●
20 BOLT; UPR LINK END TO UPR LINK
THA 		8-97245-636-0 06 1 0303- ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97235-777-0 02 1 0303-0303 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-018-0 02 1 0304-0606 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-827-0 02 1 0607- ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-94374-424-0 02 1 0303-0303 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-019-0 02 1 0304-0606 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-826-0 02 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-883-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-011-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-837-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-882-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-010-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-836-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-081-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-080-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ●
45 BUSHING; UPR LINK,FRT
THA 		8-97220-043-0 04 1 0303-0303 ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-173-0 04 1 0304- ●
45 BUSHING; UPR LINK,FRT
THA 		8-97220-077-0 04 1 0303-0303 ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-175-0 04 1 0304- ●
47 SPRING; COIL,FRT SUSP
4JH1 ENG<RJX> THA 		8-97245-069-0 02 1 0303-0408 ●
47 SPRING; COIL,FRT SUSP
4JJ1 ENG<LFB> THA 		8-97245-069-0 02 1 0409-0412 ●
47 SPRING; COIL,FRT SUSP
THA 		8-97245-069-0 02 1 0501- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97235-776-0 02 1 0303-0303 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-020-0 02 1 0304-0606 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-874-0 02 1 0607- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-94459-465-2 02 1 0303-0303 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-021-0 02 1 0304-0606 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 0607- ●
53 NUT; LWR LINK
(B) M18 SLOTTED THA 		8-97245-632-0 02 1 0303- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0303-0408 ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0409- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 12 1 0409- ●
53 NUT; LWR LINK
(C) M18 SLOTTED THA 		0-91116-518-0 02 1 0303-1308 ●
53 NUT; LWR LINK
(C) M18 THA 		0-91110-518-0 02 1 1309- ●
53 NUT; LWR LINK
(D) M18 FLANGE THA 		8-97245-634-0 02 1 0409- ●
58 BUSHING; LWR LINK
(A) THA 		8-97220-065-0 04 1 0303-0303 ●
58 BUSHING; LWR LINK
(A) THA 		8-97364-174-0 04 1 0304- ●
58 BUSHING; LWR LINK
(B) THA 		8-97220-115-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(B) THA 		8-97364-176-0 02 1 0304- ●
58 BUSHING; LWR LINK
(C) THA 		8-97301-506-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(C) THA 		8-97364-177-0 02 1 0304- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-678-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-164-0 02 1 0911- ●
62 ABSORBER ASM; SHOCK,FRT
4JH1 ENG<RJX> THA 		8-97236-299-0 02 1 0303-0408 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB> THA 		8-97236-299-0 02 1 0409-0412 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-299-0 02 1 0501-0606 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97944-850-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-964-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97940-815-3 02 1 0303-0306 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97368-597-0 02 1 0307-0308 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97372-287-0 02 1 0309-0606 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98005-935-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98056-028-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-663-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-216-0 02 1 0911- ●
65 WASHER; S/ABS
(D) THA 		8-97944-892-0 02 1 0911- ●
65 WASHER; S/ABS
(A) THA 		8-98005-971-0 02 1 0607- ●
65 WASHER; S/ABS
(B) THA 		8-98005-972-0 02 1 0607- ●
65 WASHER; S/ABS
4JH1 ENG<RJX> (A) THA 		8-97236-301-0 02 1 0303-0408 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB> (A) THA 		8-97236-301-0 02 1 0409-0412 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97236-301-0 02 1 0501-0606 ●
65 WASHER; S/ABS
4JH1 ENG<RJX> (B) THA 		8-97246-918-0 02 1 0303-0408 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB> (B) THA 		8-97246-918-0 02 1 0409-0412 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97246-918-0 02 1 0501-0606 ●
65 WASHER; S/ABS
(C) THA 		8-97120-136-1 04 1 0303-0606 ●
65 WASHER; S/ABS
(C) THA 		8-98005-973-0 04 1 0607- ●
75 BRACKET; FRT S/ABS
THA 		8-98005-829-0 02 1 0711- ●
75 BRACKET; FRT S/ABS
4JH1 ENG<RJX> THA 		8-97236-300-0 02 1 0303-0408 ●
75 BRACKET; FRT S/ABS
4JJ1 ENG<LFB> THA 		8-97236-300-0 02 1 0409-0412 ●
75 BRACKET; FRT S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-300-0 02 1 0501-0606 ●
75 BRACKET; FRT S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98005-829-0 02 1 0607-0710 ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 0303- ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0303-1308 ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1309- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(C) M10 FLANGE THA 		8-97245-637-0 06 1 0303- ●
84 ARM; LWR CONT
THA 		8-97234-959-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-015-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-833-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-958-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-014-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-832-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-961-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-960-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 0303- ● ●
96 BOLT; LWR LINK
(B) THA 		8-97214-813-0 04 1 0409-1007 ●
96 BOLT; LWR LINK
(B) THA 		8-97946-369-0 04 1 1008-1305 ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1306- ●
96 BOLT; LWR LINK
(A) M12X45 FLANGE THA 		0-29261-245-0 08 1 0303-0401 ●
96 BOLT; LWR LINK
(C) M16X95.4 THA 		8-97214-719-0 02 1 0409- ●

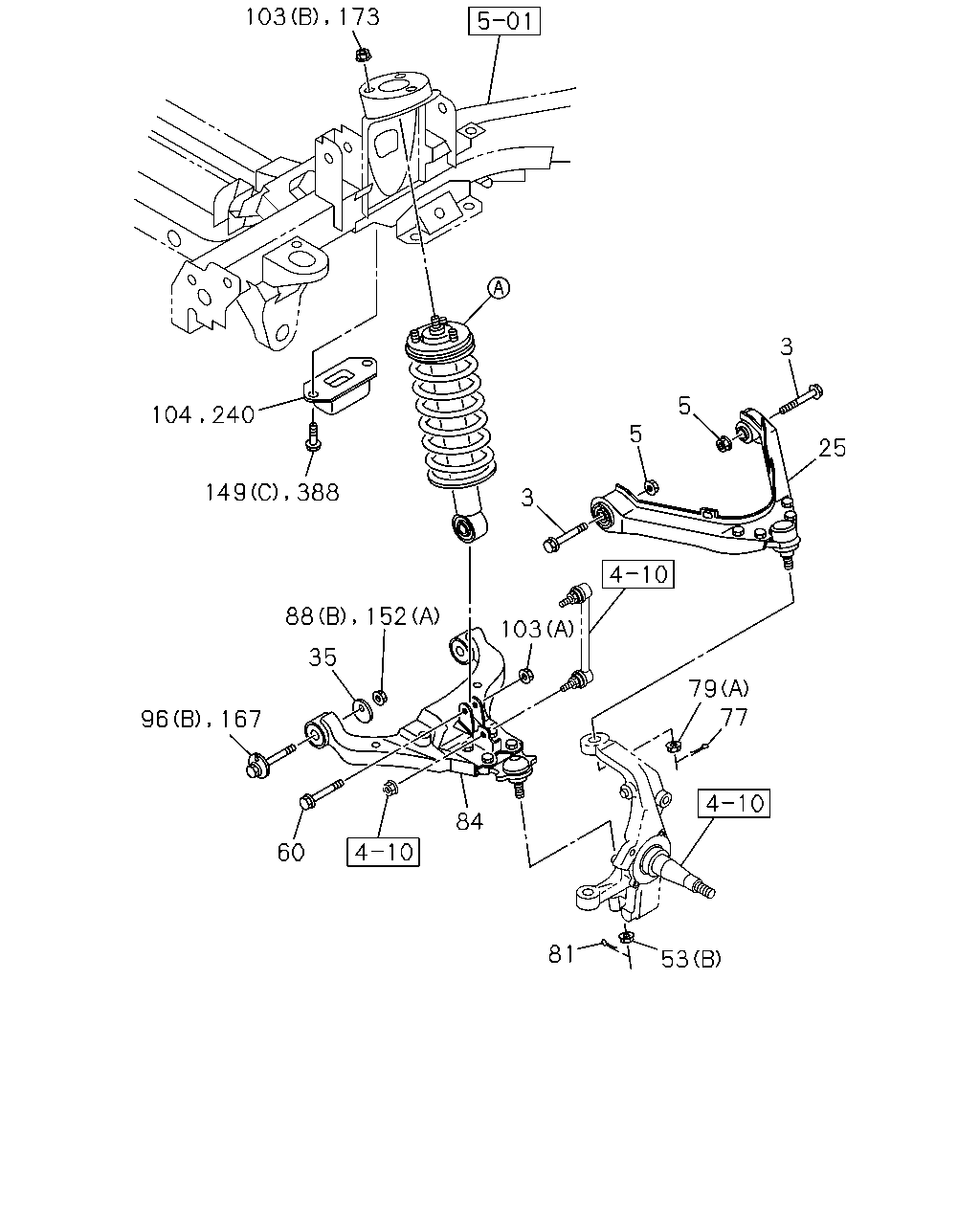

çizim 50278
103 173 3 5 5 25 3 88 152 103 35 79 77 96 167 84 60 81 53 104 240 149 388
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME
THA 		8-97214-816-0 04 1 0303- ●
3 BOLT; UPR LINK TO FRAME
THA 		8-97245-628-0 04 1 0409- ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE THA 		8-97245-635-0 04 1 0303- ●
5 NUT; UPR LINK TO FRAME
THA 		8-97245-629-0 02 1 0409- ●
25 ARM; UPR CONT
THA 		8-97306-883-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-011-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-837-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-882-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-010-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-836-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-081-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-080-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-814-0 04 1 0303- ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-721-0 02 1 0409- ●
53 NUT; LWR LINK
(B) M18 SLOTTED THA 		8-97245-632-0 02 1 0303- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0303-0408 ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0409- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 12 1 0409- ●
53 NUT; LWR LINK
(C) M18 SLOTTED THA 		0-91116-518-0 02 1 0303-1308 ●
53 NUT; LWR LINK
(C) M18 THA 		0-91110-518-0 02 1 1309- ●
53 NUT; LWR LINK
(D) M18 FLANGE THA 		8-97245-634-0 02 1 0409- ●
60 BOLT; S/ABS TO LWR LINK
M14X69 FLANGE THA 		8-97245-641-0 02 1 0303- ●
60 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE THA 		0-29261-260-0 02 1 0303- ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 THA 		9-08113-028-0 02 1 0303-0606 ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 0607- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 0303- ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0303-1308 ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1309- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(C) M10 FLANGE THA 		8-97245-637-0 06 1 0303- ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 THA 		9-08113-028-0 02 1 0303-0606 ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 0607- ● ●
84 ARM; LWR CONT
THA 		8-97234-959-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-015-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-833-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-958-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-014-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-832-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-961-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-960-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ●
88 NUT; LWR LINK
(B) M16 FLANGE THA 		8-97245-631-0 04 1 0409- ●
88 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 04 1 0303-0408 ●
88 NUT; LWR LINK
(B) M16 FLANGE THA 		8-97245-631-0 02 1 0409- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 0303- ● ●
96 BOLT; LWR LINK
(B) THA 		8-97214-813-0 04 1 0409-1007 ●
96 BOLT; LWR LINK
(B) THA 		8-97946-369-0 04 1 1008-1305 ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1306- ●
96 BOLT; LWR LINK
(A) M12X45 FLANGE THA 		0-29261-245-0 08 1 0303-0401 ●
96 BOLT; LWR LINK
(C) M16X95.4 THA 		8-97214-719-0 02 1 0409- ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE THA 		8-97245-635-0 02 1 0303- ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE THA 		8-97245-637-0 06 1 0409- ●
103 NUT; S/ABS TO LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 02 1 0303- ●
104 RUBBER; BUMPER,STRUT
THA 		8-97215-052-0 02 1 0303-0408 ●
104 RUBBER; BUMPER,STRUT
THA 		8-97234-967-0 01 1 0303-0408 ●
104 RUBBER; BUMPER,STRUT
THA 		8-97234-966-0 01 1 0303-0408 ●
149 BOLT; ARM TO LWR CONT ARM
(C) M10X25 FLANGE THA 		0-28651-025-0 04 1 0409- ● ●
149 BOLT; ARM TO LWR CONT ARM
(A) THA 		8-97245-660-0 04 1 0303-0408 ●
149 BOLT; ARM TO LWR CONT ARM
(B) THA 		8-97235-908-0 02 1 0409- ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 FLANGE THA 		8-97245-631-0 04 1 0303-0408 ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 FLANGE THA 		8-97245-631-0 02 1 0303-0408 ●
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 FLANGE THA 		8-97245-634-0 02 1 0303-0408 ●
167 BOLT; LWR LINK TO FRT C/MBR
THA 		8-97214-813-0 04 1 0303-0408 ●
173 NUT; S/ABS
M10 FLANGE THA 		8-97245-637-0 06 1 0303-0408 ●
240 BUMPER; LWR CONT ARM
THA 		8-97215-052-0 02 1 0409- ●
240 BUMPER; LWR CONT ARM
THA 		8-97234-966-0 01 1 0409- ●
240 BUMPER; LWR CONT ARM
THA 		8-97234-967-0 01 1 0409- ●
388 BOLT; BUMP RUBBER
M10X25 FLANGE THA 		0-28651-025-0 04 1 0303-0408 ● ●
çizim 50629
14 65 17 62 16 65 65 17 47 75 45 20 45 25 21 79 84 58 96 48 53 58
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
4JH1 ENG<RJX> M12 FLANGE THA 		8-97236-304-0 02 1 0303-0408 ●
14 NUT; S/ABS,UPR
4JJ1 ENG<LFB> M12 FLANGE THA 		8-97236-304-0 02 1 0409-0412 ●
14 NUT; S/ABS,UPR
M12 FLANGE THA 		8-97236-304-0 02 1 0501- ●
14 NUT; S/ABS,UPR
M10 FLANGE THA 		0-91180-110-0 02 1 0303- ●
16 COVER; DUST,FRT S/ABS
4JH1 ENG<RJX> THA 		8-97371-005-0 02 1 0303-0408 ●
16 COVER; DUST,FRT S/ABS
4JJ1 ENG<LFB> THA 		8-97371-005-0 02 1 0409-0412 ●
16 COVER; DUST,FRT S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97371-005-0 02 1 0501-0606 ●
16 COVER; DUST,FRT S/ABS
THA 		8-97944-566-0 02 1 0607- ●
17 BUSHING; RUBBER,S/ABS
4JH1 ENG<RJX> (A) THA 		8-97236-303-0 02 1 0303-0408 ●
17 BUSHING; RUBBER,S/ABS
4JJ1 ENG<LFB> (A) THA 		8-97236-303-0 02 1 0409-0412 ●
17 BUSHING; RUBBER,S/ABS
(A) THA 		8-97236-303-0 02 1 0501- ●
17 BUSHING; RUBBER,S/ABS
4JH1 ENG<RJX> (B) THA 		8-97264-184-0 02 1 0303-0408 ●
17 BUSHING; RUBBER,S/ABS
4JJ1 ENG<LFB> (B) THA 		8-97264-184-0 02 1 0409-0412 ●
17 BUSHING; RUBBER,S/ABS
(B) THA 		8-97264-184-0 02 1 0501- ●
17 BUSHING; RUBBER,S/ABS
(C) THA 		8-97120-138-0 04 1 0303- ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 0303- ●
20 BOLT; UPR LINK END TO UPR LINK
THA 		8-97245-636-0 06 1 0303- ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97235-777-0 02 1 0303-0303 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-018-0 02 1 0304-0606 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-827-0 02 1 0607- ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-94374-424-0 02 1 0303-0303 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-019-0 02 1 0304-0606 ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-826-0 02 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-883-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-011-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-837-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-882-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-010-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-836-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-081-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-080-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ●
45 BUSHING; UPR LINK,FRT
THA 		8-97220-043-0 04 1 0303-0303 ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-173-0 04 1 0304- ●
45 BUSHING; UPR LINK,FRT
THA 		8-97220-077-0 04 1 0303-0303 ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-175-0 04 1 0304- ●
47 SPRING; COIL,FRT SUSP
4JH1 ENG<RJX> THA 		8-97245-069-0 02 1 0303-0408 ●
47 SPRING; COIL,FRT SUSP
4JJ1 ENG<LFB> THA 		8-97245-069-0 02 1 0409-0412 ●
47 SPRING; COIL,FRT SUSP
THA 		8-97245-069-0 02 1 0501- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97235-776-0 02 1 0303-0303 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-020-0 02 1 0304-0606 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-874-0 02 1 0607- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-94459-465-2 02 1 0303-0303 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-021-0 02 1 0304-0606 ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 0607- ●
53 NUT; LWR LINK
(B) M18 SLOTTED THA 		8-97245-632-0 02 1 0303- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0303-0408 ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0409- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 12 1 0409- ●
53 NUT; LWR LINK
(C) M18 SLOTTED THA 		0-91116-518-0 02 1 0303-1308 ●
53 NUT; LWR LINK
(C) M18 THA 		0-91110-518-0 02 1 1309- ●
53 NUT; LWR LINK
(D) M18 FLANGE THA 		8-97245-634-0 02 1 0409- ●
58 BUSHING; LWR LINK
(A) THA 		8-97220-065-0 04 1 0303-0303 ●
58 BUSHING; LWR LINK
(A) THA 		8-97364-174-0 04 1 0304- ●
58 BUSHING; LWR LINK
(B) THA 		8-97220-115-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(B) THA 		8-97364-176-0 02 1 0304- ●
58 BUSHING; LWR LINK
(C) THA 		8-97301-506-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(C) THA 		8-97364-177-0 02 1 0304- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-678-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-164-0 02 1 0911- ●
62 ABSORBER ASM; SHOCK,FRT
4JH1 ENG<RJX> THA 		8-97236-299-0 02 1 0303-0408 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB> THA 		8-97236-299-0 02 1 0409-0412 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-299-0 02 1 0501-0606 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97944-850-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-964-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97940-815-3 02 1 0303-0306 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97368-597-0 02 1 0307-0308 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97372-287-0 02 1 0309-0606 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98005-935-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98056-028-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-663-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-216-0 02 1 0911- ●
65 WASHER; S/ABS
(D) THA 		8-97944-892-0 02 1 0911- ●
65 WASHER; S/ABS
(A) THA 		8-98005-971-0 02 1 0607- ●
65 WASHER; S/ABS
(B) THA 		8-98005-972-0 02 1 0607- ●
65 WASHER; S/ABS
4JH1 ENG<RJX> (A) THA 		8-97236-301-0 02 1 0303-0408 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB> (A) THA 		8-97236-301-0 02 1 0409-0412 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97236-301-0 02 1 0501-0606 ●
65 WASHER; S/ABS
4JH1 ENG<RJX> (B) THA 		8-97246-918-0 02 1 0303-0408 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB> (B) THA 		8-97246-918-0 02 1 0409-0412 ●
65 WASHER; S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97246-918-0 02 1 0501-0606 ●
65 WASHER; S/ABS
(C) THA 		8-97120-136-1 04 1 0303-0606 ●
65 WASHER; S/ABS
(C) THA 		8-98005-973-0 04 1 0607- ●
75 BRACKET; FRT S/ABS
THA 		8-98005-829-0 02 1 0711- ●
75 BRACKET; FRT S/ABS
4JH1 ENG<RJX> THA 		8-97236-300-0 02 1 0303-0408 ●
75 BRACKET; FRT S/ABS
4JJ1 ENG<LFB> THA 		8-97236-300-0 02 1 0409-0412 ●
75 BRACKET; FRT S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-300-0 02 1 0501-0606 ●
75 BRACKET; FRT S/ABS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98005-829-0 02 1 0607-0710 ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 0303- ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0303-1308 ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1309- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(C) M10 FLANGE THA 		8-97245-637-0 06 1 0303- ●
84 ARM; LWR CONT
THA 		8-97234-959-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-015-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-833-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-958-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-014-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-832-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-961-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-960-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 0303- ● ●
96 BOLT; LWR LINK
(B) THA 		8-97214-813-0 04 1 0409-1007 ●
96 BOLT; LWR LINK
(B) THA 		8-97946-369-0 04 1 1008-1305 ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1306- ●
96 BOLT; LWR LINK
(A) M12X45 FLANGE THA 		0-29261-245-0 08 1 0303-0401 ●
96 BOLT; LWR LINK
(C) M16X95.4 THA 		8-97214-719-0 02 1 0409- ●

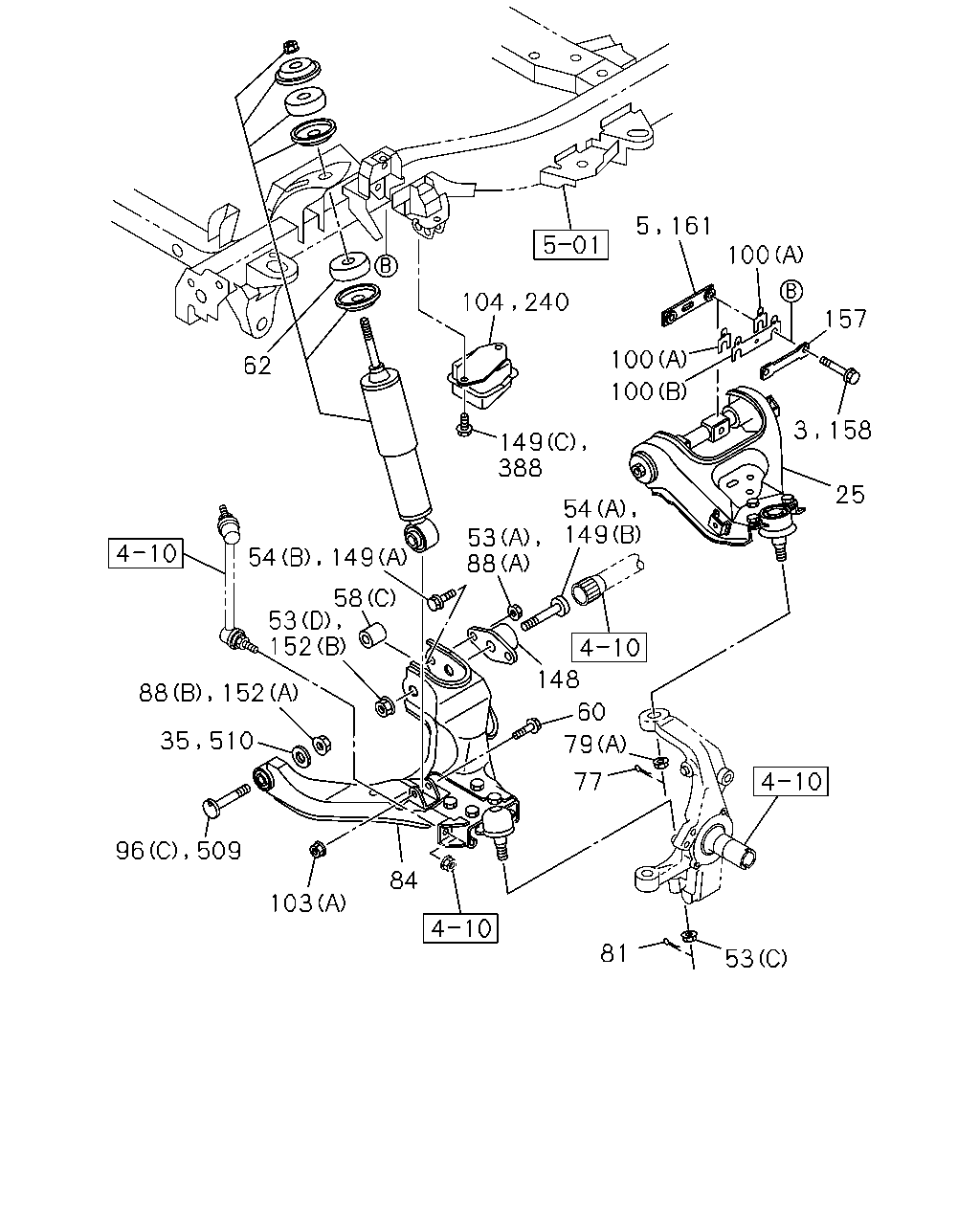

çizim 100880
53 81 77 84 103 509 96 510 35 88 152 152 53 54 149 58 53 88 148 60 79 149 54 25 158 3 157 100 161 5 100 100 388 149 240 104 62
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME
THA 		8-97214-816-0 04 1 0303- ●
3 BOLT; UPR LINK TO FRAME
THA 		8-97245-628-0 04 1 0409- ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE THA 		8-97245-635-0 04 1 0303- ●
5 NUT; UPR LINK TO FRAME
THA 		8-97245-629-0 02 1 0409- ●
25 ARM; UPR CONT
THA 		8-97306-883-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-011-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-837-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97306-882-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-010-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-836-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-081-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ●
25 ARM; UPR CONT
THA 		8-97235-080-1 01 1 0303-0303 ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0304-0606 ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-814-0 04 1 0303- ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-721-0 02 1 0409- ●
53 NUT; LWR LINK
(B) M18 SLOTTED THA 		8-97245-632-0 02 1 0303- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0303-0408 ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 0409- ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 12 1 0409- ●
53 NUT; LWR LINK
(C) M18 SLOTTED THA 		0-91116-518-0 02 1 0303-1308 ●
53 NUT; LWR LINK
(C) M18 THA 		0-91110-518-0 02 1 1309- ●
53 NUT; LWR LINK
(D) M18 FLANGE THA 		8-97245-634-0 02 1 0409- ●
54 PIN; FULCRUM,LWR LINK
(A) THA 		8-97235-908-0 02 1 0303-0408 ●
54 PIN; FULCRUM,LWR LINK
(B) THA 		8-97245-660-0 04 1 0409- ●
58 BUSHING; LWR LINK
(A) THA 		8-97220-065-0 04 1 0303-0303 ●
58 BUSHING; LWR LINK
(A) THA 		8-97364-174-0 04 1 0304- ●
58 BUSHING; LWR LINK
(B) THA 		8-97220-115-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(B) THA 		8-97364-176-0 02 1 0304- ●
58 BUSHING; LWR LINK
(C) THA 		8-97301-506-0 02 1 0303-0303 ●
58 BUSHING; LWR LINK
(C) THA 		8-97364-177-0 02 1 0304- ●
60 BOLT; S/ABS TO LWR LINK
M14X69 FLANGE THA 		8-97245-641-0 02 1 0303- ●
60 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE THA 		0-29261-260-0 02 1 0303- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-678-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-164-0 02 1 0911- ●
62 ABSORBER ASM; SHOCK,FRT
4JH1 ENG<RJX> THA 		8-97236-299-0 02 1 0303-0408 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB> THA 		8-97236-299-0 02 1 0409-0412 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97236-299-0 02 1 0501-0606 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97944-850-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-98055-964-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97940-815-3 02 1 0303-0306 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97368-597-0 02 1 0307-0308 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97372-287-0 02 1 0309-0606 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98005-935-0 02 1 0607-0705 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98056-028-0 02 1 0706-0706 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-663-0 02 1 0707-0910 ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-216-0 02 1 0911- ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 THA 		9-08113-028-0 02 1 0303-0606 ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 0607- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 0303- ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0303-1308 ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1309- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(C) M10 FLANGE THA 		8-97245-637-0 06 1 0303- ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 THA 		9-08113-028-0 02 1 0303-0606 ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 0607- ● ●
84 ARM; LWR CONT
THA 		8-97234-959-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-015-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-833-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-958-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-014-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-832-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-961-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ●
84 ARM; LWR CONT
THA 		8-97234-960-1 01 1 0303-0303 ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0304-0606 ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ●
88 NUT; LWR LINK
(B) M16 FLANGE THA 		8-97245-631-0 04 1 0409- ●
88 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 04 1 0303-0408 ●
88 NUT; LWR LINK
(B) M16 FLANGE THA 		8-97245-631-0 02 1 0409- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 0303- ● ●
96 BOLT; LWR LINK
(B) THA 		8-97214-813-0 04 1 0409-1007 ●
96 BOLT; LWR LINK
(B) THA 		8-97946-369-0 04 1 1008-1305 ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1306- ●
96 BOLT; LWR LINK
(A) M12X45 FLANGE THA 		0-29261-245-0 08 1 0303-0401 ●
96 BOLT; LWR LINK
(C) M16X95.4 THA 		8-97214-719-0 02 1 0409- ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 THA 		8-94227-053-1 AR 1 0303-0606 ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 THA 		8-98005-914-0 AR 1 0607- ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 THA 		8-94227-054-2 AR 1 0303-0606 ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 THA 		8-98005-915-0 AR 1 0607- ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 THA 		8-94241-885-3 AR 1 0303-0606 ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 THA 		8-98005-916-0 AR 1 0607- ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 THA 		8-94381-376-1 AR 1 0303-0606 ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 THA 		8-98005-917-0 AR 1 0607- ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 THA 		8-94381-377-1 AR 1 0303-0606 ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 THA 		8-98005-918-0 AR 1 0607- ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE THA 		8-97245-635-0 02 1 0303- ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE THA 		8-97245-637-0 06 1 0409- ●
103 NUT; S/ABS TO LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 02 1 0303- ●
104 RUBBER; BUMPER,STRUT
THA 		8-97215-052-0 02 1 0303-0408 ●
104 RUBBER; BUMPER,STRUT
THA 		8-97234-967-0 01 1 0303-0408 ●
104 RUBBER; BUMPER,STRUT
THA 		8-97234-966-0 01 1 0303-0408 ●
148 ARM; LWR LINK
THA 		8-97235-902-0 02 1 0303- ●
149 BOLT; ARM TO LWR CONT ARM
(C) M10X25 FLANGE THA 		0-28651-025-0 04 1 0409- ● ●
149 BOLT; ARM TO LWR CONT ARM
(A) THA 		8-97245-660-0 04 1 0303-0408 ●
149 BOLT; ARM TO LWR CONT ARM
(B) THA 		8-97235-908-0 02 1 0409- ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 FLANGE THA 		8-97245-631-0 04 1 0303-0408 ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 FLANGE THA 		8-97245-631-0 02 1 0303-0408 ●
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 FLANGE THA 		8-97245-634-0 02 1 0303-0408 ●
157 PLATE; UPR LINK TO FRAME
THA 		8-94382-920-1 02 1 0303-0606 ●
157 PLATE; UPR LINK TO FRAME
THA 		8-98005-876-0 02 1 0607- ●
158 BOLT; UPR LINK TO FRAME
THA 		8-97245-628-0 04 1 0303-0408 ●
161 NUT ASM; UPR LINK TO FRAME
THA 		8-97245-629-0 02 1 0303-0408 ●
240 BUMPER; LWR CONT ARM
THA 		8-97215-052-0 02 1 0409- ●
240 BUMPER; LWR CONT ARM
THA 		8-97234-966-0 01 1 0409- ●
240 BUMPER; LWR CONT ARM
THA 		8-97234-967-0 01 1 0409- ●
388 BOLT; BUMP RUBBER
M10X25 FLANGE THA 		0-28651-025-0 04 1 0303-0408 ● ●
509 CAM; BOLT
M16X95.4 THA 		8-97214-719-0 02 1 0303-0408 ●
510 PLATE; CAM
THA 		8-97214-721-0 02 1 0303-0408 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
