4-42 — POWER STEERING OIL PUMP (#40804) — 72 parça

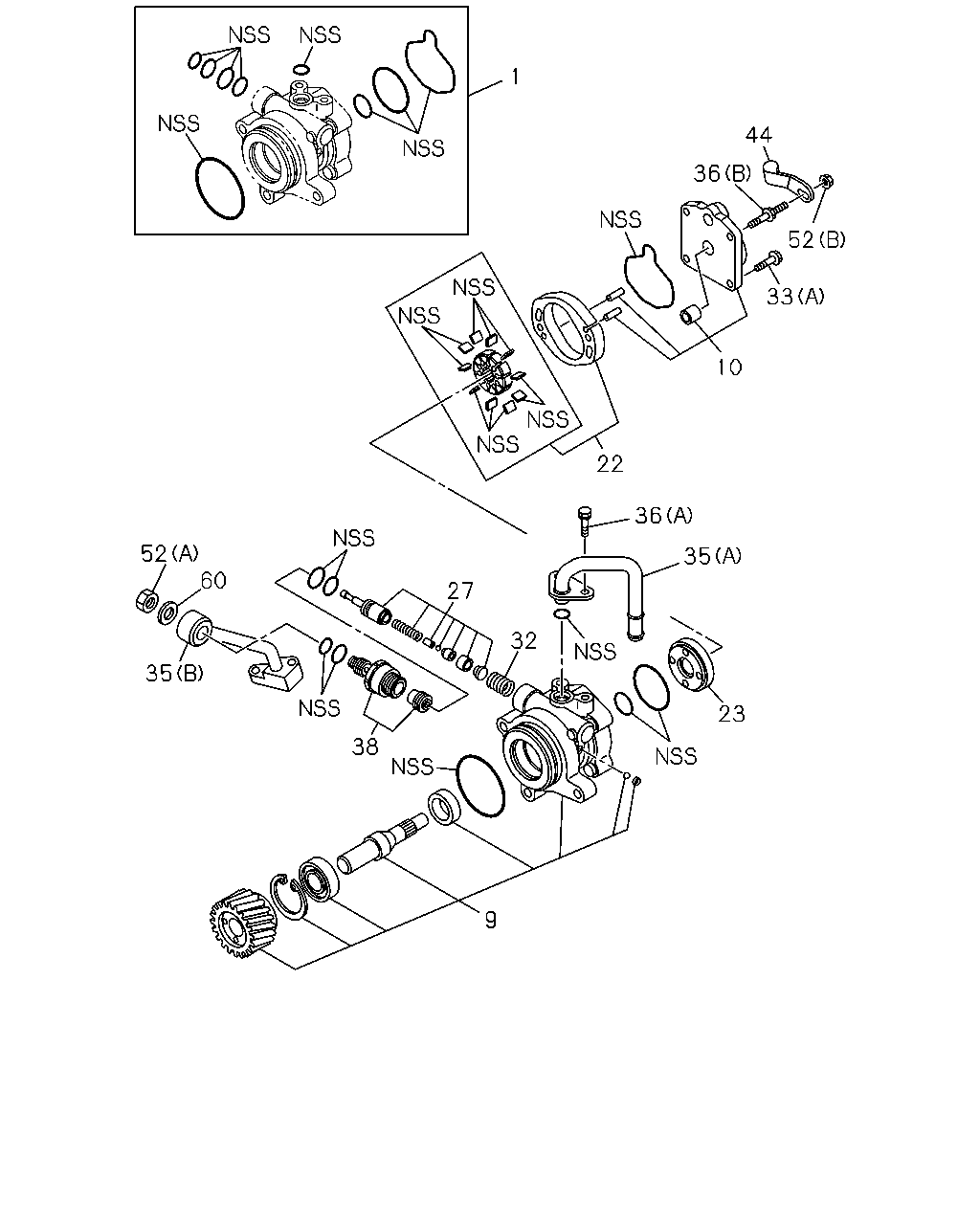

1 44 36 52 33 10 22 36 52 60 35 27 32 35 23 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP THA ASM PART: C = 8-97942-188-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP THA ASM PART: A = 8-97214-995-1	8-97205-626-0	01	1	-
1	REPAIR KIT; OIL PUMP THA ASM PART: B = 8-97355-980-3, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98002-698-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-721-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: B = 8-97355-980-3, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98002-697-0	01	1	-
10	BODY ASM; RR,OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, E = 8-97946-607-0, G = 8-98063-153-0	8-97184-730-0	01	1	-
10	BODY ASM; RR,OIL PUMP THA ASM PART: F = 8-97946-698-0	8-97946-689-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, G = 8-98063-153-0	8-97184-729-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP THA ASM PART: E = 8-97946-607-0, F = 8-97946-698-0	8-97946-615-0	01	1	-
23	PLATE; SIDE,OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97184-728-0	01	1	-
27	VALVE ASM; OIL PUMP THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-731-0	01	1	-
27	VALVE ASM; OIL PUMP THA ASM PART: B = 8-97355-980-3	8-97188-383-0	01	1	-
27	VALVE ASM; OIL PUMP THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-043-0	01	1	-
32	SPRING; OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A), IMA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0	8-97184-761-0	03	1	-
33	BOLT; COVER (B), IMA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-762-0	01	1	-
33	BOLT; COVER (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98028-773-0	03	1	-
35	PIPE; HOSE CONN,OIL PUMP (C), THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-733-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A), THA ASM PART: B = 8-97355-980-3	8-97943-867-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B), THA ASM PART: B = 8-97355-980-3	8-97943-869-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B), THA ASM PART: E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97946-174-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98033-924-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B), THA ASM PART: D = 8-97944-829-0	8-98034-046-0	01	1	-
36	BOLT; CONN,PIPE (A), IMA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-763-0	01	1	-
36	BOLT; CONN,PIPE (A), IMA ASM PART: B = 8-97355-980-3	8-97184-763-0	02	1	-
36	BOLT; CONN,PIPE (B), THA ASM PART: B = 8-97355-980-3	8-97943-876-0	01	1	-
36	BOLT; CONN,PIPE (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98028-783-0	02	1	-
36	BOLT; CONN,PIPE (B), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-052-0	01	1	-
38	CONNECTOR; OIL PUMP THA ASM PART: C = 8-97942-188-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP THA ASM PART: A = 8-97214-995-1	8-97188-391-0	01	1	-
38	CONNECTOR; OIL PUMP THA ASM PART: B = 8-97355-980-3, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97943-866-0	01	1	-
44	BRACKET; OIL PUMP,P/S & EDS THA ASM PART: B = 8-97355-980-3	8-97943-870-0	01	1	-
44	BRACKET; OIL PUMP,P/S & EDS THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-047-0	01	1	-
52	NUT; OIL PUMP (A), THA ASM PART: B = 8-97355-980-3	8-97943-874-0	01	1	-
52	NUT; OIL PUMP (B), THA ASM PART: B = 8-97355-980-3	8-97943-875-0	01	1	-
52	NUT; OIL PUMP (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-050-0	01	1	-
52	NUT; OIL PUMP (B), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-051-0	01	1	-
60	WASHER; LK,OIL PUMP THA ASM PART: B = 8-97355-980-3	8-97943-873-0	01	1	-
60	WASHER; LK,OIL PUMP THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-048-0	01	1	-

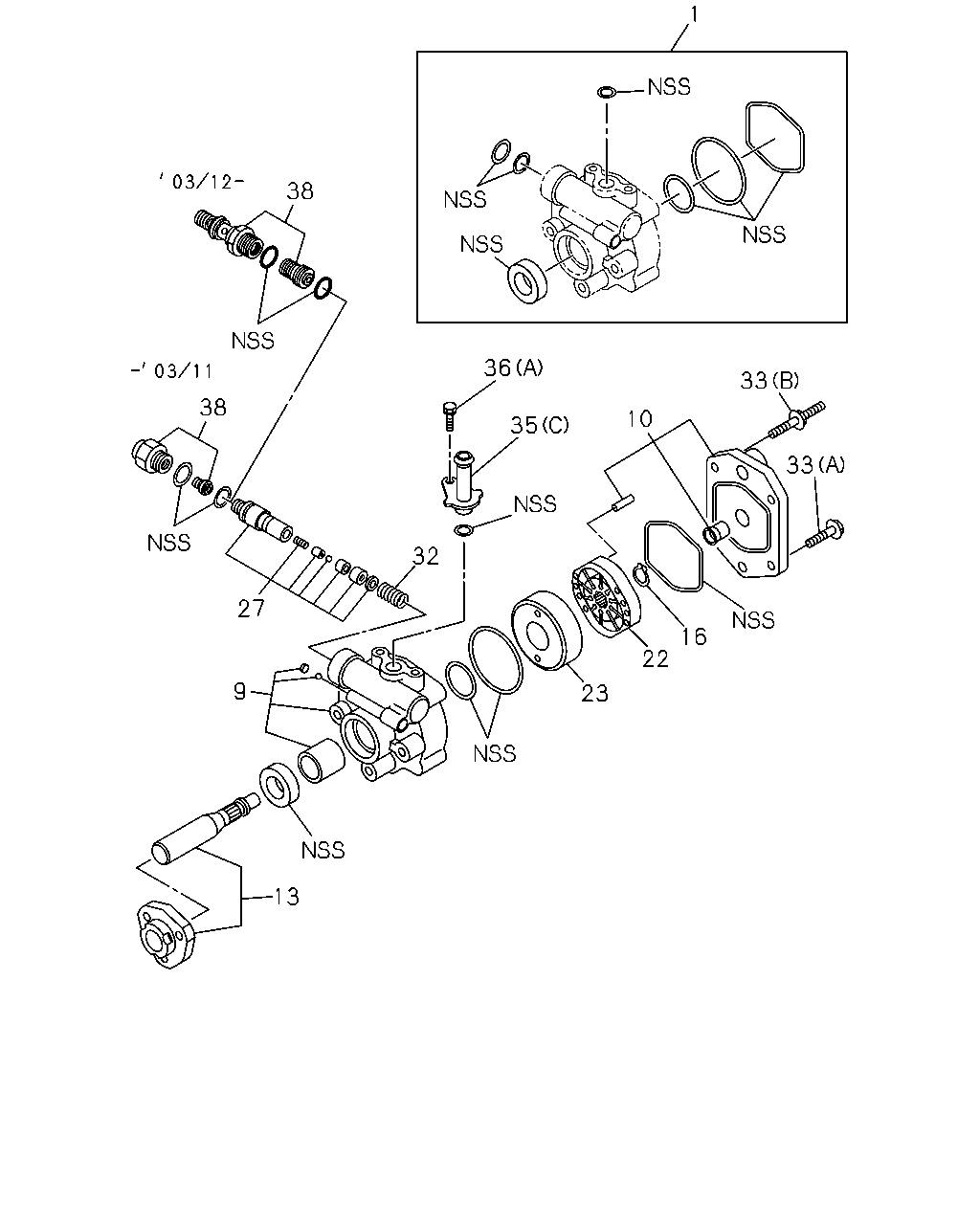

1 38 36 33 38 10 35 33 32 27 16 22 9 23 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP THA ASM PART: C = 8-97942-188-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP THA ASM PART: A = 8-97214-995-1	8-97205-626-0	01	1	-
1	REPAIR KIT; OIL PUMP THA ASM PART: B = 8-97355-980-3, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98002-698-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-721-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: B = 8-97355-980-3, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98002-697-0	01	1	-
10	BODY ASM; RR,OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, E = 8-97946-607-0, G = 8-98063-153-0	8-97184-730-0	01	1	-
10	BODY ASM; RR,OIL PUMP THA ASM PART: F = 8-97946-698-0	8-97946-689-0	01	1	-
13	SHAFT KIT; RET THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97306-614-0	01	1	-
16	RING; RET,OIL PUMP THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-94411-358-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, G = 8-98063-153-0	8-97184-729-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP THA ASM PART: E = 8-97946-607-0, F = 8-97946-698-0	8-97946-615-0	01	1	-
23	PLATE; SIDE,OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97184-728-0	01	1	-
27	VALVE ASM; OIL PUMP THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-731-0	01	1	-
27	VALVE ASM; OIL PUMP THA ASM PART: B = 8-97355-980-3	8-97188-383-0	01	1	-
27	VALVE ASM; OIL PUMP THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-043-0	01	1	-
32	SPRING; OIL PUMP THA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A), IMA ASM PART: A = 8-97214-995-1, B = 8-97355-980-3, C = 8-97942-188-0	8-97184-761-0	03	1	-
33	BOLT; COVER (B), IMA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-762-0	01	1	-
33	BOLT; COVER (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98028-773-0	03	1	-
35	PIPE; HOSE CONN,OIL PUMP (C), THA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-733-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A), THA ASM PART: B = 8-97355-980-3	8-97943-867-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B), THA ASM PART: B = 8-97355-980-3	8-97943-869-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B), THA ASM PART: E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97946-174-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98033-924-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B), THA ASM PART: D = 8-97944-829-0	8-98034-046-0	01	1	-
36	BOLT; CONN,PIPE (A), IMA ASM PART: A = 8-97214-995-1, C = 8-97942-188-0	8-97184-763-0	01	1	-
36	BOLT; CONN,PIPE (A), IMA ASM PART: B = 8-97355-980-3	8-97184-763-0	02	1	-
36	BOLT; CONN,PIPE (B), THA ASM PART: B = 8-97355-980-3	8-97943-876-0	01	1	-
36	BOLT; CONN,PIPE (A), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98028-783-0	02	1	-
36	BOLT; CONN,PIPE (B), THA ASM PART: D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-98034-052-0	01	1	-
38	CONNECTOR; OIL PUMP THA ASM PART: C = 8-97942-188-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP THA ASM PART: A = 8-97214-995-1	8-97188-391-0	01	1	-
38	CONNECTOR; OIL PUMP THA ASM PART: B = 8-97355-980-3, D = 8-97944-829-0, E = 8-97946-607-0, F = 8-97946-698-0, G = 8-98063-153-0	8-97943-866-0	01	1	-
