4-36 — POWER STEERING CONTROL; ENGINE SIDE (#40802) — 45 parça

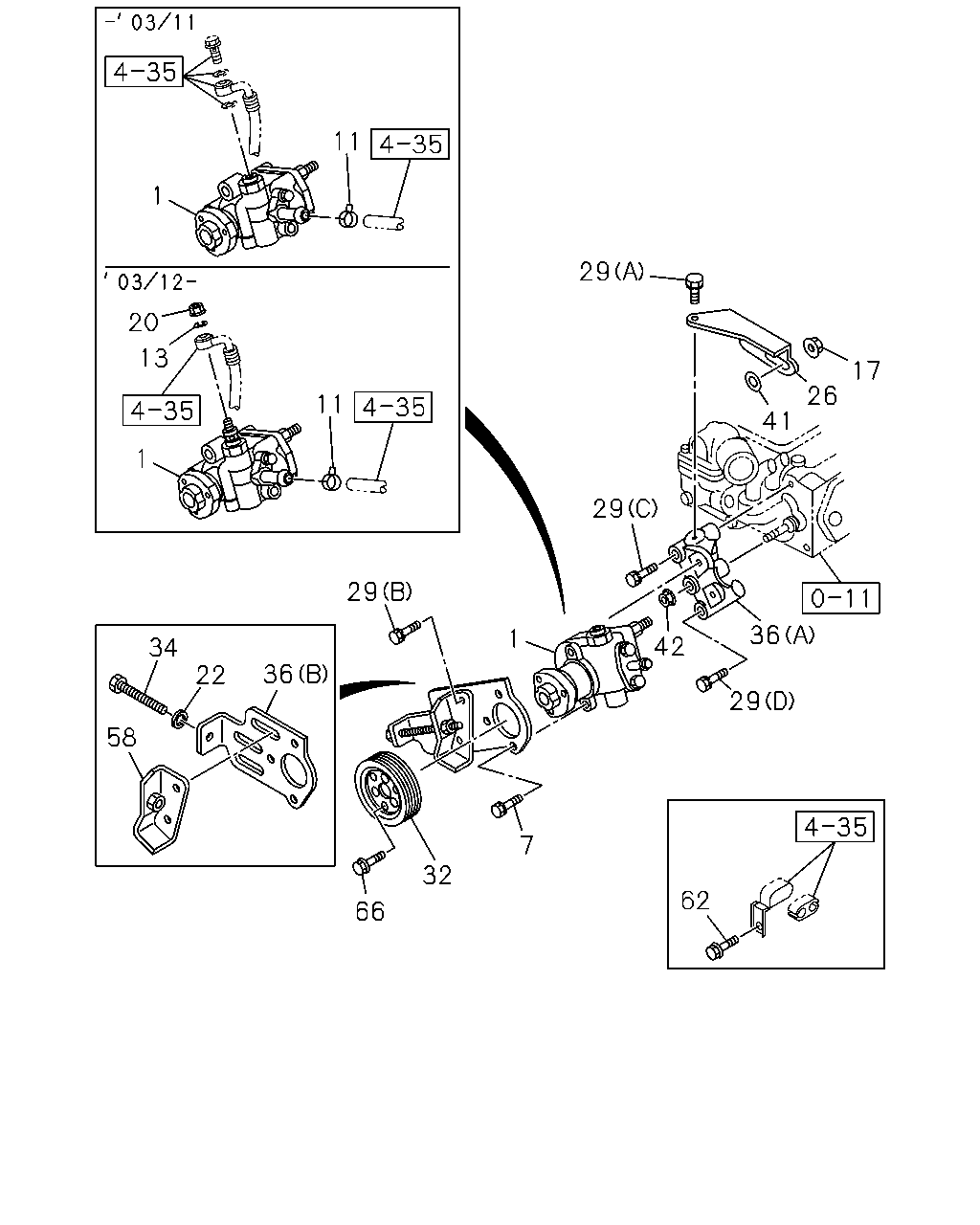

çizim 50418
11 1 29 20 13 17 26 11 41 1 29 29 36 1 42 34 36 22 29 58 7 32 62 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG<RJX> THA 		8-97214-995-1 01 1 0303-0311 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG<RJX> THA 		8-97942-188-0 01 1 0312-0408 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB> THA 		8-97355-980-3 01 1 0409-0412 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA 		8-97355-980-3 01 1 0501-0606 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97944-829-0 01 1 0607-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98063-153-0 01 1 0611-0705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97946-607-0 01 1 0706-0707 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97946-698-0 01 1 0708- ● ●
7 BOLT; OIL PUMP,P/S
4JH1 ENG<RJX> M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0303-0408 ● ●
11 CLIP; FLEX HOSE
ID=21 IMA 		8-94242-034-0 01 1 0303-0304 ● ●
13 WASHER; LK,FLEX HOSE,P/S
ID=12.2 THA 		9-09150-512-0 01 1 0312-0408 ● ●
17 NUT; POWER STRG PUMP
4JH1 ENG<RJX> M8 FLANGE THA 		0-91180-208-0 01 1 0303-0408 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB> M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 0501-0508 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8 FLANGE THA 		0-91180-208-0 03 1 0509-0606 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0607- ● ●
20 NUT; HOSE TO PUMP
M12 IMA 		9-99111-412-0 01 1 0312-0408 ● ●
22 WASHER; LK,OIL PUMP,P/S
4JH1 ENG<RJX> ID=10.2 IMA 		9-09150-510-0 01 1 0303-0408 ● ●
26 BRACKET; P/S PUMP,RR
4JH1 ENG<RJX> THA 		8-97941-415-0 01 1 0303-0408 ● ●
29 BOLT; BRKT,POWER STRG
4JH1 ENG<RJX> (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0303-0408 ● ●
29 BOLT; BRKT,POWER STRG
4JH1 ENG<RJX> (B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0303-0408 ● ●
29 BOLT; BRKT,POWER STRG
4JH1 ENG<RJX> (C) M10X60 W/LK WASHER THA 		0-50041-060-0 01 1 0303-0408 ● ●
29 BOLT; BRKT,POWER STRG
4JH1 ENG<RJX> (D) M8X60 W/LK WASHER THA 		0-50540-860-0 01 1 0303-0408 ● ●
32 PULLEY; IDLER,P/S
4JH1 ENG<RJX> THA 		8-97942-187-0 01 1 0303-0408 ● ●
34 BOLT; ADJ PLATE
4JH1 ENG<RJX> M10X70 THA 		0-20801-070-0 01 1 0303-0408 ● ●
36 BRACKET; PLATE,P/S PUMP
4JH1 ENG<RJX> (A) THA 		8-97941-414-0 01 1 0303-0408 ● ●
36 BRACKET; PLATE,P/S PUMP
4JH1 ENG<RJX> (B) THA 		8-97942-483-0 01 1 0303-0408 ● ●
41 WASHER; PL,BRKT
4JH1 ENG<RJX> ID=8.5 OD=22 T=4 THA 		9-09851-649-0 01 1 0303-0408 ● ●
42 NUT; ADJ PLATE
4JH1 ENG<RJX> M8 FLANGE THA 		0-91180-208-0 01 1 0303-0408 ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
4JH1 ENG<RJX> THA 		8-97941-329-0 01 1 0303-0408 ● ●
62 BOLT; CLIP
M6X16 FLANGE THA 		0-28650-616-0 01 1 0303-0408 ● ●
66 BOLT; PULLEY
4JH1 ENG<RJX> M8X12 FLANGE THA 		0-28050-812-0 03 1 0303-0408 ● ●

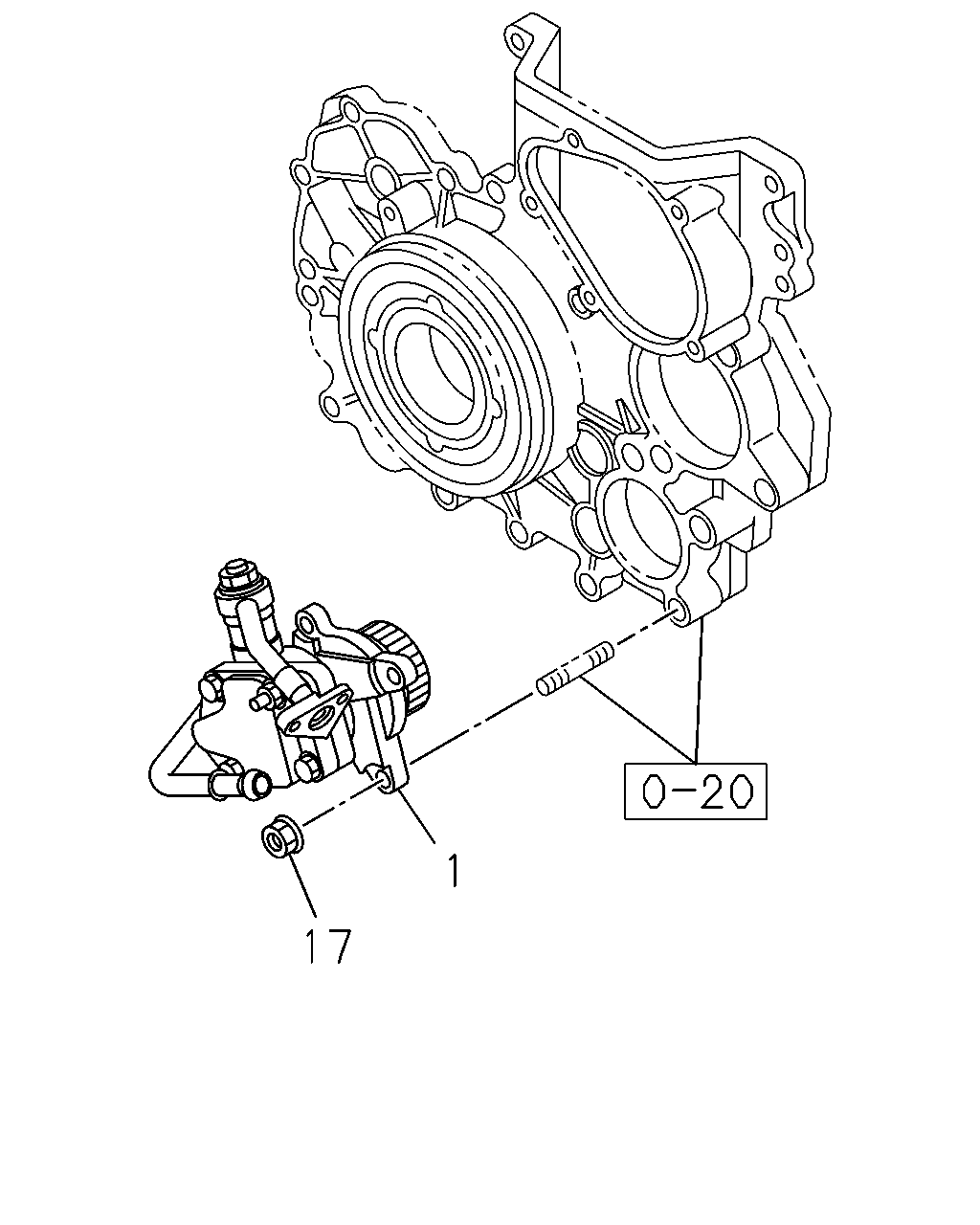

çizim 100878
1 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG<RJX> THA 		8-97214-995-1 01 1 0303-0311 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG<RJX> THA 		8-97942-188-0 01 1 0312-0408 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB> THA 		8-97355-980-3 01 1 0409-0412 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA 		8-97355-980-3 01 1 0501-0606 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97944-829-0 01 1 0607-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98063-153-0 01 1 0611-0705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97946-607-0 01 1 0706-0707 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97946-698-0 01 1 0708- ● ●
17 NUT; POWER STRG PUMP
4JH1 ENG<RJX> M8 FLANGE THA 		0-91180-208-0 01 1 0303-0408 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB> M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 0501-0508 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8 FLANGE THA 		0-91180-208-0 03 1 0509-0606 ● ●
17 NUT; POWER STRG PUMP
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-208-0 03 1 0607- ● ●
