Sayfa 4-35 - Isuzu EPC

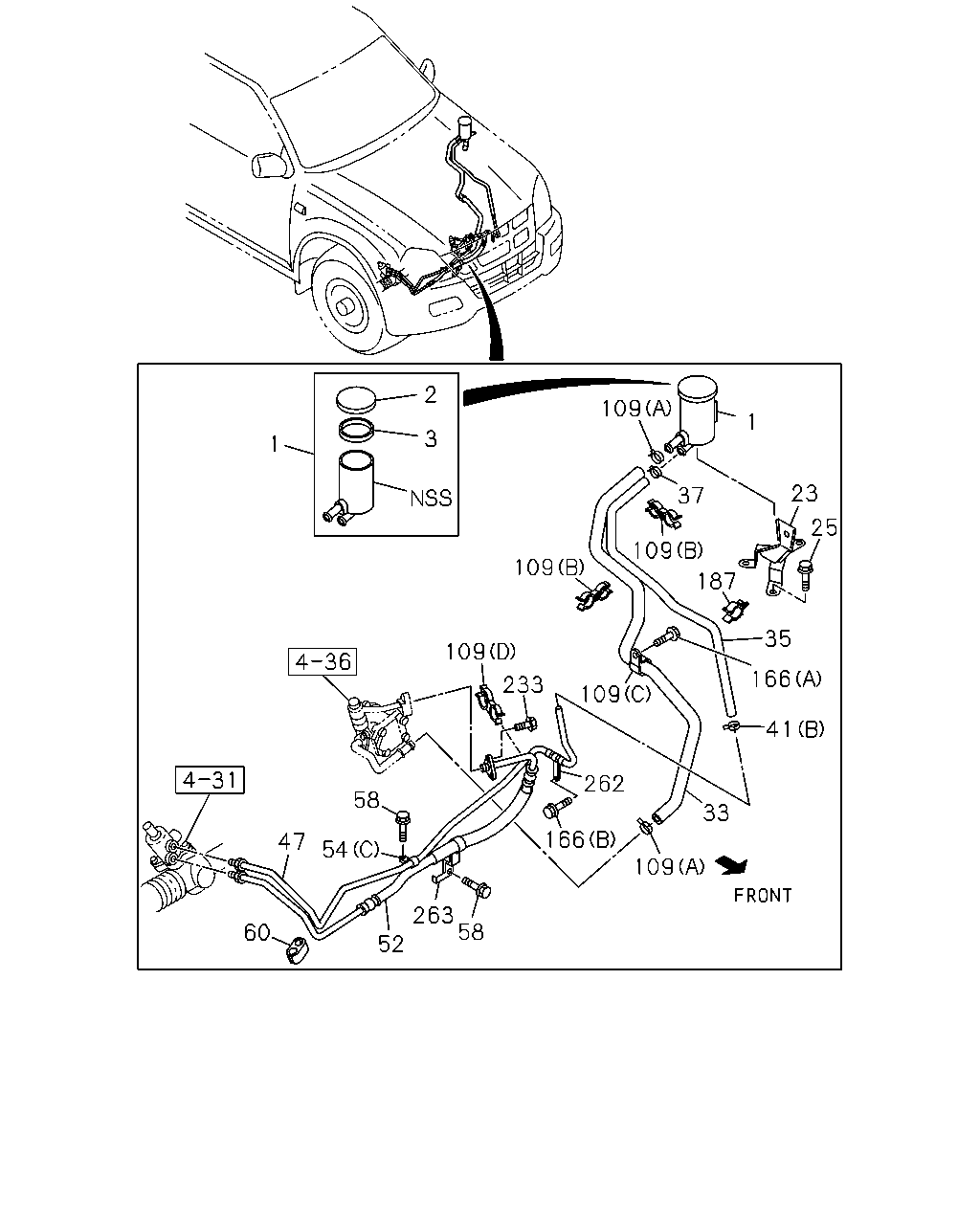

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#40801) — 266 parça

2 109 1 3 1 23 37 25 109 109 187 35 109 166 233 109 41 262 58 33 166 47 54 109 263 58 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0303-0508	●	●
1	TANK ASM; OIL,P/S POWER STEERING<N40> THA	8-97234-350-0	01	1	0509-0606	●
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0509-0606		●
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0607-	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0303-0508	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40> THA	8-97349-476-0	01	1	0509-0606	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0509-0606		●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0607-	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0303-0508	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40> THA	8-97349-477-0	01	1	0509-0606	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0509-0606		●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0607-	●	●
23	BRACKET; OIL TANK,P/S THA	8-97234-380-1	01	1	0303-0408	●	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB> THA	8-97234-380-1	01	1	0409-0412	●	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97234-380-1	01	1	0501-0508	●
23	BRACKET; OIL TANK,P/S THA	8-97234-380-1	01	1	0501-0508		●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97234-380-1	01	1	0509-0606	●	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97234-380-1	01	1	0607-	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB> THA	8-97234-380-1	01	1	0607-		●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0303-0508	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE THA	0-28650-616-0	03	1	0509-0606	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0509-0606		●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0607-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97940-825-0	01	1	0303-0304	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97943-682-0	01	1	0305-0408	●	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB> THA	8-97943-485-1	01	1	0409-0412	●	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-485-1	01	1	0501-0508	●
33	HOSE; RUBBER,POWER STRG THA	8-97943-485-1	01	1	0501-0508		●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-485-1	01	1	0509-0606	●	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-485-1	01	1	0607-	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB> THA	8-97943-485-1	01	1	0607-		●
35	HOSE; RETURN,P/S TANK 4JJ1 ENG<LFB> THA	8-97234-899-2	01	1	0409-0412	●	●
35	HOSE; RETURN,P/S TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97234-899-2	01	1	0501-0508	●
35	HOSE; RETURN,P/S TANK THA	8-97234-899-2	01	1	0501-0508		●
35	HOSE; RETURN,P/S TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97234-899-2	01	1	0509-0606	●	●
35	HOSE; RETURN,P/S TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97234-899-2	01	1	0607-	●
35	HOSE; RETURN,P/S TANK 4JJ1 ENG<LFB> THA	8-97234-899-2	01	1	0607-		●
37	CLIP; HOSE,P/S ID=16 IMA	8-94392-924-0	01	1	0303-0508	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 IMA	8-94392-924-0	01	1	0509-0604	●
37	CLIP; HOSE,P/S ID=16 IMA	8-94392-924-0	01	1	0509-0604		●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 THA	8-98030-682-0	01	1	0605-0606	●
37	CLIP; HOSE,P/S ID=16 THA	8-98030-682-0	01	1	0605-0606		●
37	CLIP; HOSE,P/S ID=16 THA	8-98030-682-0	01	1	0607-	●	●
41	CLIP; HOSE,P/S (A) ID=17 THA	8-94382-792-1	01	1	0303-0408	●	●
41	CLIP; HOSE,P/S (B) ID=16 IMA	8-94392-924-0	01	1	0303-0508	●	●
41	CLIP; HOSE,P/S POWER STEERING<N40> (B) ID=16 IMA	8-94392-924-0	01	1	0509-0604	●
41	CLIP; HOSE,P/S (B) ID=16 IMA	8-94392-924-0	01	1	0509-0604		●
41	CLIP; HOSE,P/S POWER STEERING<N40> (B) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
41	CLIP; HOSE,P/S (B) ID=16 THA	8-98030-682-0	01	1	0605-0606		●
41	CLIP; HOSE,P/S (B) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
47	PIPE; RETURN THA	8-97234-422-3	01	1	0303-0408	●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97943-517-0	01	1	0409-0412	●
47	PIPE; RETURN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-517-0	01	1	0501-0508	●
47	PIPE; RETURN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-517-0	01	1	0509-0606	●
47	PIPE; RETURN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97944-596-0	01	1	0607-	●
47	PIPE; RETURN THA	8-97234-426-3	01	1	0303-0408		●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97943-477-0	01	1	0409-0412		●
47	PIPE; RETURN THA	8-97943-477-0	01	1	0501-0508		●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97943-477-0	01	1	0509-0606		●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97944-598-0	01	1	0607-		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-282-0	01	1	0303-0307	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-492-0	01	1	0308-0311	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-802-0	01	1	0312-0408	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97943-606-1	01	1	0409-0412	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-606-1	01	1	0501-0508	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-606-1	01	1	0509-0606	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97944-576-0	01	1	0607-	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-283-0	01	1	0303-0307		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-493-0	01	1	0308-0311		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-803-0	01	1	0312-0408		●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97943-479-1	01	1	0409-0412		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-479-1	01	1	0501-0508		●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97943-479-1	01	1	0509-0606		●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97944-578-0	01	1	0607-		●
54	CLIP; OIL PIPE (A) THA	8-97026-703-0	01	1	0303-0408	●	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB> (C) ID=11 L=16 THA	9-09525-022-0	01	1	0409-0412	●	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=11 L=16 THA	9-09525-022-0	01	1	0501-0508	●
54	CLIP; OIL PIPE (C) ID=11 L=16 THA	9-09525-022-0	01	1	0501-0508		●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) ID=11 L=16 THA	9-09525-022-0	01	1	0509-0606	●	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=11 L=16 THA	0-95235-022-0	01	1	0607-	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB> (C) ID=11 L=16 THA	0-95235-022-0	01	1	0607-		●
54	CLIP; OIL PIPE (B) THA	8-97164-013-2	01	1	0303-0408	●	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	01	1	0303-0408	●	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0409-0508	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE THA	0-28650-616-0	02	1	0509-0606	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0509-0606		●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0607-	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	02	1	0303-0408	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0409-0508	●	●
60	CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22 THA	8-94252-455-2	01	1	0509-0606	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0509-0606		●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0607-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	01	1	0303-0304	●	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21 THA	8-97177-580-0	01	1	0303-0408	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	02	1	0409-0508	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21 IMA	8-94242-034-0	02	1	0509-0606	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	02	1	0509-0606		●
109	CLIP; RUBBER HOSE (A) ID=20.8 THA	8-97944-127-0	02	1	0607-	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0409-0412	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0501-0508	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0501-0508		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0509-0606	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=24 L=32 THA	8-98006-816-0	01	1	0607-	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (C) ID=24 L=32 THA	8-98006-816-0	01	1	0607-		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0409-0412	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0501-0508	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0501-0508		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0509-0606	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0607-	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0607-		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0409-0412	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0501-0508	●
109	CLIP; RUBBER HOSE (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0501-0508		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0509-0606	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0607-	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0607-		●
166	BOLT; CLIP 4JJ1 ENG<LFB> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0409-0412	●	●
166	BOLT; CLIP 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0501-0508	●
166	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0501-0508		●
166	BOLT; CLIP 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0509-0606	●	●
166	BOLT; CLIP 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0607-	●
166	BOLT; CLIP 4JJ1 ENG<LFB> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0607-		●
166	BOLT; CLIP 4JJ1 ENG<LFB> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0409-0412	●	●
166	BOLT; CLIP 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0501-0508	●
166	BOLT; CLIP (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0501-0508		●
166	BOLT; CLIP 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0509-0606	●	●
166	BOLT; CLIP 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0607-	●
166	BOLT; CLIP 4JJ1 ENG<LFB> (B) M6X16 FLANGE THA	0-28650-616-0	01	1	0607-		●
187	CLIP; P/S OIL PIPE 4JJ1 ENG<LFB> ID=17 THA	8-94382-792-1	01	1	0409-0412	●	●
187	CLIP; P/S OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=17 THA	8-94382-792-1	01	1	0501-0508	●
187	CLIP; P/S OIL PIPE ID=17 THA	8-94382-792-1	01	1	0501-0508		●
187	CLIP; P/S OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> ID=17 THA	8-94382-792-1	01	1	0509-0606	●	●
187	CLIP; P/S OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=17 THA	8-94382-792-1	01	1	0607-	●
187	CLIP; P/S OIL PIPE 4JJ1 ENG<LFB> ID=17 THA	8-94382-792-1	01	1	0607-		●
233	BOLT; PIPE CLIP,P/S 4JJ1 ENG<LFB> M6X16 FLANGE THA	0-28650-616-0	02	1	0409-0412	●	●
233	BOLT; PIPE CLIP,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M6X16 FLANGE THA	0-28650-616-0	02	1	0501-0508	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	0501-0508		●
233	BOLT; PIPE CLIP,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> M6X16 FLANGE THA	0-28650-616-0	02	1	0509-0606	●	●
233	BOLT; PIPE CLIP,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M6X16 FLANGE THA	0-28650-616-0	02	1	0607-	●
233	BOLT; PIPE CLIP,P/S 4JJ1 ENG<LFB> M6X16 FLANGE THA	0-28650-616-0	02	1	0607-		●
262	CLIP; P/S PIPE 4JJ1 ENG<LFB> ID=11 L=50 THA	9-09525-082-0	01	1	0409-0412	●	●
262	CLIP; P/S PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=11 L=50 THA	9-09525-082-0	01	1	0501-0508	●
262	CLIP; P/S PIPE ID=11 L=50 THA	9-09525-082-0	01	1	0501-0508		●
262	CLIP; P/S PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> ID=11 L=50 THA	9-09525-082-0	01	1	0509-0606	●	●
262	CLIP; P/S PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=11 L=50 THA	0-95235-082-0	01	1	0607-	●
262	CLIP; P/S PIPE 4JJ1 ENG<LFB> ID=11 L=50 THA	0-95235-082-0	01	1	0607-		●
263	BRACKET; P/S PIPE 4JJ1 ENG<LFB> THA	8-97943-484-0	01	1	0409-0412	●	●
263	BRACKET; P/S PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-484-0	01	1	0501-0508	●
263	BRACKET; P/S PIPE THA	8-97943-484-0	01	1	0501-0508		●
263	BRACKET; P/S PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-484-0	01	1	0509-0606	●	●
263	BRACKET; P/S PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97944-610-0	01	1	0607-	●
263	BRACKET; P/S PIPE 4JJ1 ENG<LFB> THA	8-97944-610-0	01	1	0607-		●

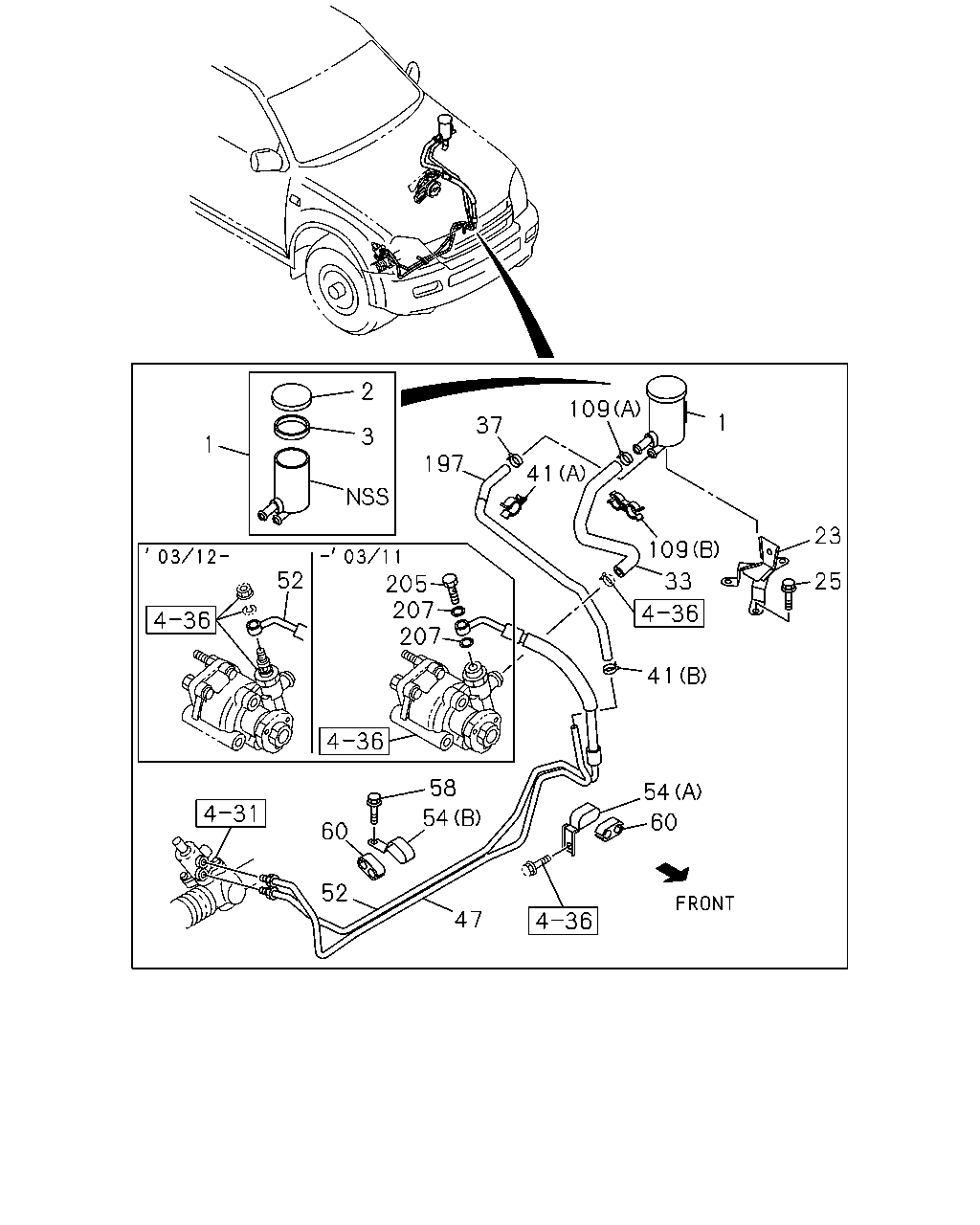

2 109 1 37 3 1 197 41 23 109 205 207 207 52 25 33 41 58 54 54 60 60 52 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0303-0508	●	●
1	TANK ASM; OIL,P/S POWER STEERING<N40> THA	8-97234-350-0	01	1	0509-0606	●
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0509-0606		●
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	0607-	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0303-0508	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40> THA	8-97349-476-0	01	1	0509-0606	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0509-0606		●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	0607-	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0303-0508	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40> THA	8-97349-477-0	01	1	0509-0606	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0509-0606		●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	0607-	●	●
23	BRACKET; OIL TANK,P/S THA	8-97234-380-1	01	1	0303-0408	●	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB> THA	8-97234-380-1	01	1	0409-0412	●	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97234-380-1	01	1	0501-0508	●
23	BRACKET; OIL TANK,P/S THA	8-97234-380-1	01	1	0501-0508		●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97234-380-1	01	1	0509-0606	●	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97234-380-1	01	1	0607-	●
23	BRACKET; OIL TANK,P/S 4JJ1 ENG<LFB> THA	8-97234-380-1	01	1	0607-		●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0303-0508	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> M6X16 FLANGE THA	0-28650-616-0	03	1	0509-0606	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0509-0606		●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	03	1	0607-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97940-825-0	01	1	0303-0304	●	●
33	HOSE; RUBBER,POWER STRG THA	8-97943-682-0	01	1	0305-0408	●	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB> THA	8-97943-485-1	01	1	0409-0412	●	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-485-1	01	1	0501-0508	●
33	HOSE; RUBBER,POWER STRG THA	8-97943-485-1	01	1	0501-0508		●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-485-1	01	1	0509-0606	●	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-485-1	01	1	0607-	●
33	HOSE; RUBBER,POWER STRG 4JJ1 ENG<LFB> THA	8-97943-485-1	01	1	0607-		●
37	CLIP; HOSE,P/S ID=16 IMA	8-94392-924-0	01	1	0303-0508	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 IMA	8-94392-924-0	01	1	0509-0604	●
37	CLIP; HOSE,P/S ID=16 IMA	8-94392-924-0	01	1	0509-0604		●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16 THA	8-98030-682-0	01	1	0605-0606	●
37	CLIP; HOSE,P/S ID=16 THA	8-98030-682-0	01	1	0605-0606		●
37	CLIP; HOSE,P/S ID=16 THA	8-98030-682-0	01	1	0607-	●	●
41	CLIP; HOSE,P/S (A) ID=17 THA	8-94382-792-1	01	1	0303-0408	●	●
41	CLIP; HOSE,P/S (B) ID=16 IMA	8-94392-924-0	01	1	0303-0508	●	●
41	CLIP; HOSE,P/S POWER STEERING<N40> (B) ID=16 IMA	8-94392-924-0	01	1	0509-0604	●
41	CLIP; HOSE,P/S (B) ID=16 IMA	8-94392-924-0	01	1	0509-0604		●
41	CLIP; HOSE,P/S POWER STEERING<N40> (B) ID=16 THA	8-98030-682-0	01	1	0605-0606	●
41	CLIP; HOSE,P/S (B) ID=16 THA	8-98030-682-0	01	1	0605-0606		●
41	CLIP; HOSE,P/S (B) ID=16 THA	8-98030-682-0	01	1	0607-	●	●
47	PIPE; RETURN THA	8-97234-422-3	01	1	0303-0408	●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97943-517-0	01	1	0409-0412	●
47	PIPE; RETURN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-517-0	01	1	0501-0508	●
47	PIPE; RETURN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-517-0	01	1	0509-0606	●
47	PIPE; RETURN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97944-596-0	01	1	0607-	●
47	PIPE; RETURN THA	8-97234-426-3	01	1	0303-0408		●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97943-477-0	01	1	0409-0412		●
47	PIPE; RETURN THA	8-97943-477-0	01	1	0501-0508		●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97943-477-0	01	1	0509-0606		●
47	PIPE; RETURN 4JJ1 ENG<LFB> THA	8-97944-598-0	01	1	0607-		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-282-0	01	1	0303-0307	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-492-0	01	1	0308-0311	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-802-0	01	1	0312-0408	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97943-606-1	01	1	0409-0412	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97943-606-1	01	1	0501-0508	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> THA	8-97943-606-1	01	1	0509-0606	●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97944-576-0	01	1	0607-	●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-283-0	01	1	0303-0307		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-493-0	01	1	0308-0311		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-803-0	01	1	0312-0408		●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97943-479-1	01	1	0409-0412		●
52	HOSE; FLEX,P/S CONT VLV THA	8-97943-479-1	01	1	0501-0508		●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97943-479-1	01	1	0509-0606		●
52	HOSE; FLEX,P/S CONT VLV 4JJ1 ENG<LFB> THA	8-97944-578-0	01	1	0607-		●
54	CLIP; OIL PIPE (A) THA	8-97026-703-0	01	1	0303-0408	●	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB> (C) ID=11 L=16 THA	9-09525-022-0	01	1	0409-0412	●	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=11 L=16 THA	9-09525-022-0	01	1	0501-0508	●
54	CLIP; OIL PIPE (C) ID=11 L=16 THA	9-09525-022-0	01	1	0501-0508		●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) ID=11 L=16 THA	9-09525-022-0	01	1	0509-0606	●	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=11 L=16 THA	0-95235-022-0	01	1	0607-	●
54	CLIP; OIL PIPE 4JJ1 ENG<LFB> (C) ID=11 L=16 THA	0-95235-022-0	01	1	0607-		●
54	CLIP; OIL PIPE (B) THA	8-97164-013-2	01	1	0303-0408	●	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	01	1	0303-0408	●	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0409-0508	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE THA	0-28650-616-0	02	1	0509-0606	●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0509-0606		●
58	BOLT; CLIP M6X16 FLANGE THA	0-28650-616-0	02	1	0607-	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	02	1	0303-0408	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0409-0508	●	●
60	CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22 THA	8-94252-455-2	01	1	0509-0606	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0509-0606		●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0607-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	01	1	0303-0304	●	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21 THA	8-97177-580-0	01	1	0303-0408	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	02	1	0409-0508	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21 IMA	8-94242-034-0	02	1	0509-0606	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-94242-034-0	02	1	0509-0606		●
109	CLIP; RUBBER HOSE (A) ID=20.8 THA	8-97944-127-0	02	1	0607-	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0409-0412	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0501-0508	●
109	CLIP; RUBBER HOSE (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0501-0508		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (C) ID=24 L=32 IMA	1-09700-766-1	01	1	0509-0606	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) ID=24 L=32 THA	8-98006-816-0	01	1	0607-	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (C) ID=24 L=32 THA	8-98006-816-0	01	1	0607-		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0409-0412	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0501-0508	●
109	CLIP; RUBBER HOSE (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0501-0508		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0509-0606	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0607-	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (B) ID=17.5 & 21 THA	8-97177-580-0	02	1	0607-		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0409-0412	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0501-0508	●
109	CLIP; RUBBER HOSE (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0501-0508		●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> POWER STEERING<N40> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0509-0606	●	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0607-	●
109	CLIP; RUBBER HOSE 4JJ1 ENG<LFB> (D) ID=21 & 9.8 IMA	8-97309-945-0	01	1	0607-		●
197	HOSE; FLEX,P/S,RETURN THA	8-97234-899-2	01	1	0303-0402	●	●
197	HOSE; FLEX,P/S,RETURN THA	8-97943-971-0	01	1	0403-0408	●	●
205	BOLT; EYE,FLEX HOSE,P/S M16X28 THA	8-97245-666-0	01	1	0303-0311	●	●
207	GASKET; FLEX HOSE,P/S PUMP ID=16.2 OD=24 THA	9-09571-416-0	02	1	0303-0311	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
