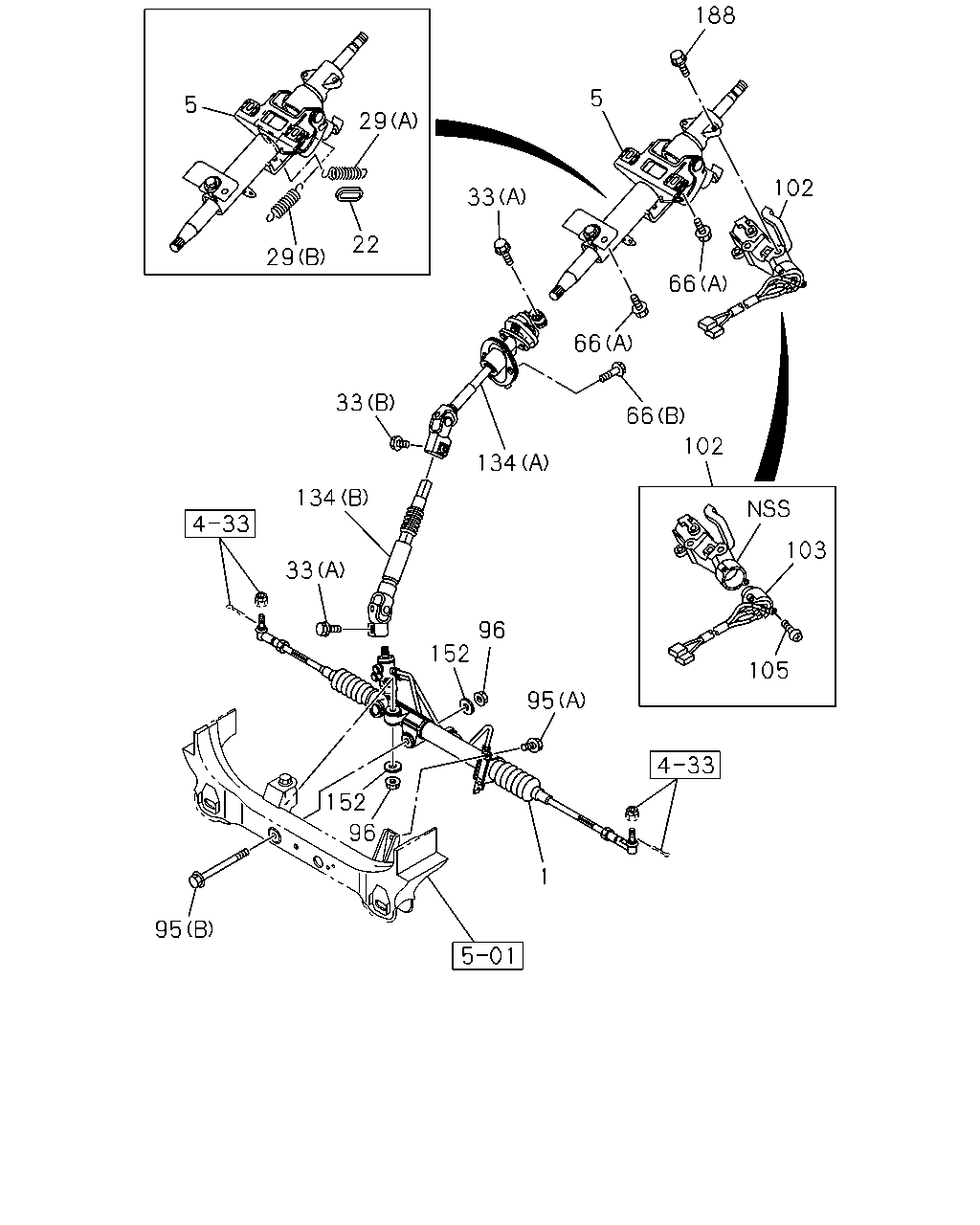

4-31 — STEERING COLUMN AND SHAFT (#40799) — 148 parça

188 5 5 29 102 33 22 29 66 66 33 66 102 134 134 103 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-440-3	01	1	0303-0305	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-520-0	01	1	0306-0508	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-1	01	1	0509-0606	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-516-0	01	1	0607-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-3	01	1	0509-0606	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-441-3	01	1	0303-0305		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-1	01	1	0306-0606		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-518-1	01	1	0607-0709		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-98101-779-0	01	1	0710-		●
5	COLUMN; STRG THA	8-97349-946-0	01	1	0303-0307	●	●
5	COLUMN; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-946-0	01	1	0308-0408	●	●
5	COLUMN; STRG THA	8-97349-946-0	01	1	0409-0508	●	●
5	COLUMN; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-946-0	01	1	0509-0606	●	●
5	COLUMN; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97945-772-0	01	1	0607-	●	●
22	BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0303-0307	●	●
22	BUSHING; STRG COLUMN WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-938-0	01	1	0308-0408	●	●
22	BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0409-0508	●	●
22	BUSHING; STRG COLUMN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-938-0	01	1	0509-	●	●
29	SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0303-0307	●	●
29	SPRING; COLUMN WARNING SYSTEM KEY REMINDER<8EQ> (A) THA	8-97349-937-0	01	1	0308-0408	●	●
29	SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0409-0508	●	●
29	SPRING; COLUMN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-97349-937-0	01	1	0509-	●	●
29	SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0303-0307	●	●
29	SPRING; COLUMN WARNING SYSTEM KEY REMINDER<8EQ> (B) THA	8-97349-939-0	01	1	0308-0408	●	●
29	SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0409-0508	●	●
29	SPRING; COLUMN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97349-939-0	01	1	0509-	●	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0303-0606	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97944-830-0	01	1	0607-1009	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-98140-802-0	01	1	1010-	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0303-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0303-		●
66	BOLT; STRG COLUMN (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0303-	●	●
66	BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0303-	●	●
95	BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0303-	●	●
95	BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0303-	●	●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0303-	●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0303-0307	●	●
102	LOCK ASM; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-940-0	01	1	0308-0408	●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0409-0508	●	●
102	LOCK ASM; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-940-0	01	1	0509-0606	●	●
102	LOCK ASM; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0607-	●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0607-	●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0303-0307	●	●
103	SWITCH; IGNITION WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-071-0	01	1	0308-0408	●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0409-0508	●	●
103	SWITCH; IGNITION 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97350-071-0	01	1	0509-	●	●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0303-0307	●	●
105	SCREW; IGN SW WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-945-0	02	1	0308-0408	●	●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0409-0508	●	●
105	SCREW; IGN SW 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-945-0	02	1	0509-	●	●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0303-	●
134	SHAFT; STRG,2ND (A) THA	8-97358-236-0	01	1	0303-0305	●
134	SHAFT; STRG,2ND (A) THA	8-97943-548-0	01	1	0306-0306	●
134	SHAFT; STRG,2ND (A) THA	8-97943-687-0	01	1	0306-0502	●
134	SHAFT; STRG,2ND (A) THA	8-97944-431-0	01	1	0503-0508	●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-431-0	01	1	0509-0606	●
134	SHAFT; STRG,2ND (A) THA	8-97944-590-0	01	1	0607-0804	●
134	SHAFT; STRG,2ND (A) THA	8-98108-807-0	01	1	0805-	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-434-0	01	1	0509-0606	●
134	SHAFT; STRG,2ND (C) THA	8-97234-439-1	01	1	0303-0305		●
134	SHAFT; STRG,2ND (C) THA	8-97943-553-0	01	1	0306-0306		●
134	SHAFT; STRG,2ND (C) THA	8-97943-692-0	01	1	0306-0502		●
134	SHAFT; STRG,2ND (C) THA	8-97944-436-0	01	1	0503-0606		●
134	SHAFT; STRG,2ND (C) THA	8-97944-592-0	01	1	0607-0804		●
134	SHAFT; STRG,2ND (C) THA	8-98108-809-0	01	1	0805-		●
134	SHAFT; STRG,2ND (D) THA	8-97358-237-0	01	1	0303-		●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97249-436-0	02	1	0303-0606	●	●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97944-809-0	02	1	0607-	●	●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0303-0307	●	●
188	BOLT; TORQUE,STEERING WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-941-0	02	1	0308-0408	●	●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0409-0508	●	●
188	BOLT; TORQUE,STEERING 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-941-0	02	1	0509-0606	●	●
188	BOLT; TORQUE,STEERING 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0607-0811	●	●
188	BOLT; TORQUE,STEERING 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98133-262-0	02	1	0812-	●	●

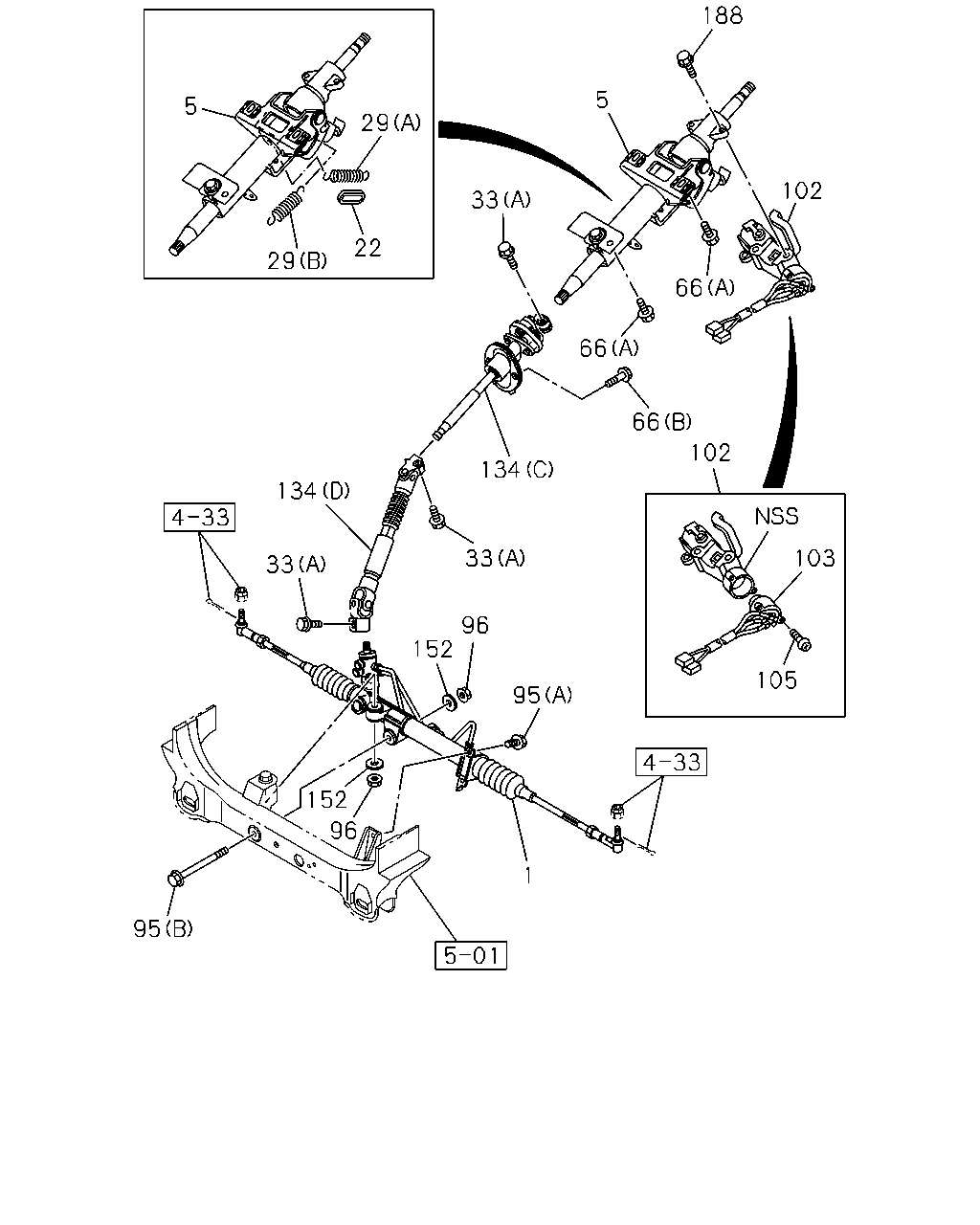

188 5 5 29 102 33 22 29 66 66 66 102 134 134 103 33 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-440-3	01	1	0303-0305	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-520-0	01	1	0306-0508	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-1	01	1	0509-0606	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-516-0	01	1	0607-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-3	01	1	0509-0606	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97234-441-3	01	1	0303-0305		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-1	01	1	0306-0606		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-518-1	01	1	0607-0709		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-98101-779-0	01	1	0710-		●
5	COLUMN; STRG THA	8-97349-946-0	01	1	0303-0307	●	●
5	COLUMN; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-946-0	01	1	0308-0408	●	●
5	COLUMN; STRG THA	8-97349-946-0	01	1	0409-0508	●	●
5	COLUMN; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-946-0	01	1	0509-0606	●	●
5	COLUMN; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97945-772-0	01	1	0607-	●	●
22	BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0303-0307	●	●
22	BUSHING; STRG COLUMN WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-938-0	01	1	0308-0408	●	●
22	BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0409-0508	●	●
22	BUSHING; STRG COLUMN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-938-0	01	1	0509-	●	●
29	SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0303-0307	●	●
29	SPRING; COLUMN WARNING SYSTEM KEY REMINDER<8EQ> (A) THA	8-97349-937-0	01	1	0308-0408	●	●
29	SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0409-0508	●	●
29	SPRING; COLUMN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-97349-937-0	01	1	0509-	●	●
29	SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0303-0307	●	●
29	SPRING; COLUMN WARNING SYSTEM KEY REMINDER<8EQ> (B) THA	8-97349-939-0	01	1	0308-0408	●	●
29	SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0409-0508	●	●
29	SPRING; COLUMN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97349-939-0	01	1	0509-	●	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0303-0606	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-97944-830-0	01	1	0607-1009	●
33	BOLT; STRG SHAFT TO UNIT (B) THA	8-98140-802-0	01	1	1010-	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0303-	●	●
33	BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0303-		●
66	BOLT; STRG COLUMN (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0303-	●	●
66	BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0303-	●	●
95	BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0303-	●	●
95	BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0303-	●	●
96	NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0303-	●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0303-0307	●	●
102	LOCK ASM; STRG WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-940-0	01	1	0308-0408	●	●
102	LOCK ASM; STRG THA	8-97349-940-0	01	1	0409-0508	●	●
102	LOCK ASM; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-940-0	01	1	0509-0606	●	●
102	LOCK ASM; STRG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0607-	●	●
102	LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0607-	●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0303-0307	●	●
103	SWITCH; IGNITION WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97350-071-0	01	1	0308-0408	●	●
103	SWITCH; IGNITION THA	8-97350-071-0	01	1	0409-0508	●	●
103	SWITCH; IGNITION 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97350-071-0	01	1	0509-	●	●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0303-0307	●	●
105	SCREW; IGN SW WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-945-0	02	1	0308-0408	●	●
105	SCREW; IGN SW THA	8-97349-945-0	02	1	0409-0508	●	●
105	SCREW; IGN SW 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-945-0	02	1	0509-	●	●
134	SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0303-	●
134	SHAFT; STRG,2ND (A) THA	8-97358-236-0	01	1	0303-0305	●
134	SHAFT; STRG,2ND (A) THA	8-97943-548-0	01	1	0306-0306	●
134	SHAFT; STRG,2ND (A) THA	8-97943-687-0	01	1	0306-0502	●
134	SHAFT; STRG,2ND (A) THA	8-97944-431-0	01	1	0503-0508	●
134	SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-431-0	01	1	0509-0606	●
134	SHAFT; STRG,2ND (A) THA	8-97944-590-0	01	1	0607-0804	●
134	SHAFT; STRG,2ND (A) THA	8-98108-807-0	01	1	0805-	●
134	SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-434-0	01	1	0509-0606	●
134	SHAFT; STRG,2ND (C) THA	8-97234-439-1	01	1	0303-0305		●
134	SHAFT; STRG,2ND (C) THA	8-97943-553-0	01	1	0306-0306		●
134	SHAFT; STRG,2ND (C) THA	8-97943-692-0	01	1	0306-0502		●
134	SHAFT; STRG,2ND (C) THA	8-97944-436-0	01	1	0503-0606		●
134	SHAFT; STRG,2ND (C) THA	8-97944-592-0	01	1	0607-0804		●
134	SHAFT; STRG,2ND (C) THA	8-98108-809-0	01	1	0805-		●
134	SHAFT; STRG,2ND (D) THA	8-97358-237-0	01	1	0303-		●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97249-436-0	02	1	0303-0606	●	●
152	WASHER; LK,STRG UNIT ID=16.5 OD=45 THA	8-97944-809-0	02	1	0607-	●	●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0303-0307	●	●
188	BOLT; TORQUE,STEERING WARNING SYSTEM KEY REMINDER<8EQ> THA	8-97349-941-0	02	1	0308-0408	●	●
188	BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0409-0508	●	●
188	BOLT; TORQUE,STEERING 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-941-0	02	1	0509-0606	●	●
188	BOLT; TORQUE,STEERING 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0607-0811	●	●
188	BOLT; TORQUE,STEERING 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98133-262-0	02	1	0812-	●	●
