4-30 — STEERING WHEEL AND COWL (#40798) — 68 parça

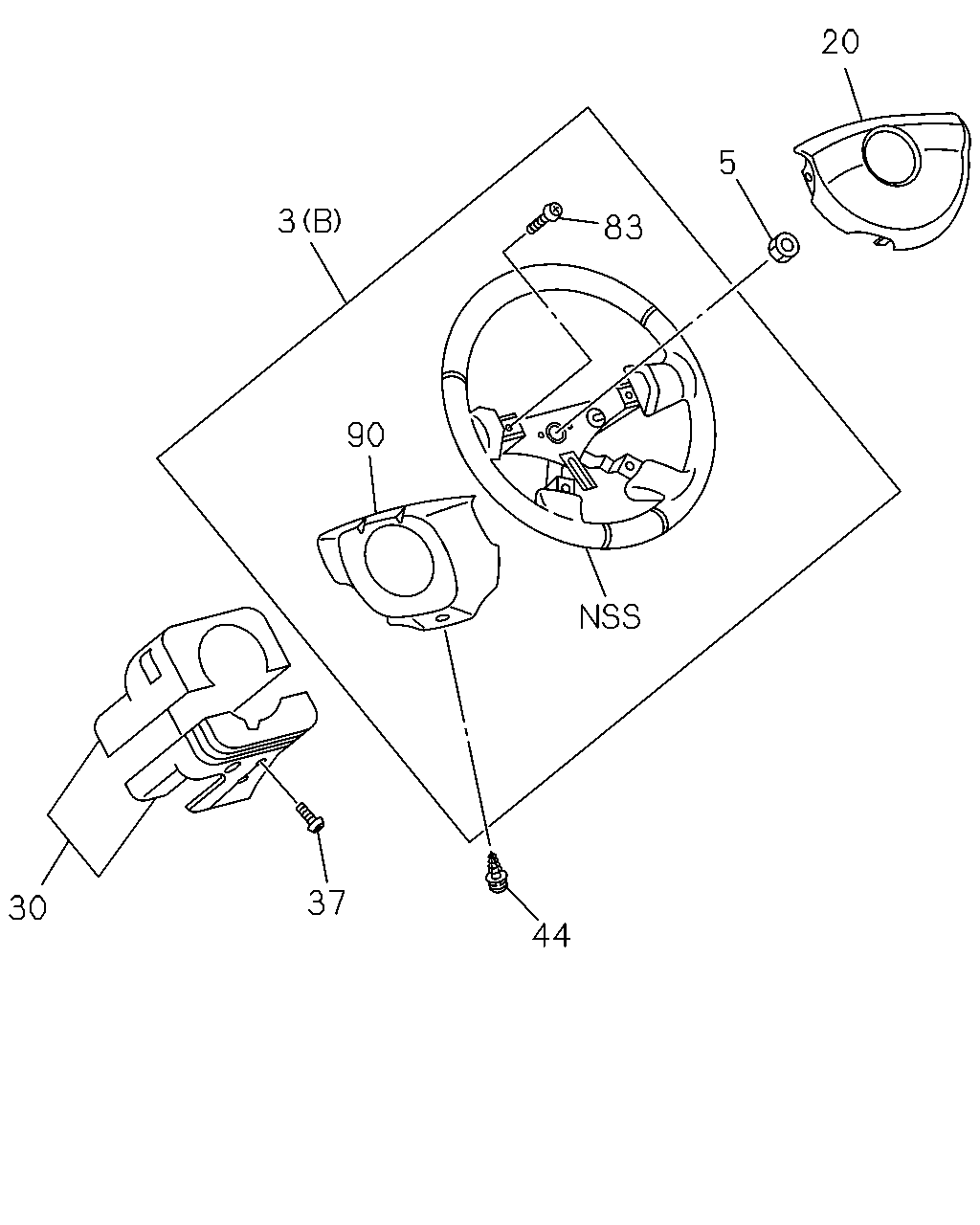

20 5 3 83 90 37 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA	8-97390-772-2	01	1	0303-0307	●	●
3	WHEEL; STRG STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA	8-97390-772-2	01	1	0308-0408	●	●
3	WHEEL; STRG EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA	8-97390-773-1	01	1	0303-0307	●	●
3	WHEEL; STRG STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA	8-97390-773-1	01	1	0308-0408	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97390-773-1	01	1	0409-0504	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97402-856-0	01	1	0505-0602	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97406-141-0	01	1	0603-0606	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97403-870-1	01	1	0607-	●	●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER IMA	8-94455-487-1	01	1	0303-	●	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97298-469-1	01	1	0303-0307	●	●
20	SHROUD; PAD,STRG WHEEL STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97298-469-1	01	1	0308-0408	●	●
20	SHROUD; PAD,STRG WHEEL DARK GRAY THA	8-97298-469-1	01	1	0409-0606	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA	8-97403-878-1	01	1	0607-0609	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA	8-97408-845-0	01	1	0610-0710	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA	8-97412-976-0	01	1	0711-0808	●	●
20	SHROUD; PAD,STRG WHEEL INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA	8-97408-845-0	01	1	0809-	●	●
20	SHROUD; PAD,STRG WHEEL EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA	8-97403-872-1	01	1	0607-0609	●	●
20	SHROUD; PAD,STRG WHEEL EXC. INTERIOR STEERING CENTER PAD BADGE<8MB> DARK GRAY THA	8-97408-848-0	01	1	0610-	●	●
30	COWL; STEERING DARK GRAY THA	8-97294-053-2	01	1	0303-0508	●	●
30	COWL; STEERING DARK GRAY THA	8-97294-054-1	01	1	0509-0606	●	●
30	COWL; STEERING DARK GRAY THA	8-97403-685-1	01	1	0607-1103	●	●
30	COWL; STEERING DARK GRAY THA	8-97422-708-0	01	1	1104-	●	●
37	SCREW; STRG COWL UPR M5X16 THA	5-09981-053-0	02	1	0303-0303	●	●
37	SCREW; STRG COWL UPR M4X12 W/LK&PL WASHER THA	9-03920-412-0	03	1	0303-0305	●	●
37	SCREW; STRG COWL UPR M4X12 W/PL WASHER THA	9-03900-412-0	03	1	0306-0606	●	●
37	SCREW; STRG COWL UPR M4X12 W/PL WASHER THA	0-36210-412-0	03	1	0607-	●	●
44	SCREW; STRG COWL EXC. AIR BAG DRIVER & PASSENGER<7FA> M5X19 W/LK&PL WASHER THA	8-94104-815-1	01	1	0303-0408	●	●
44	SCREW; STRG COWL M5X19 W/LK&PL WASHER THA	8-94104-815-1	01	1	0409-0606	●	●
44	SCREW; STRG COWL M5X19 W/LK&PL WASHER THA	8-98023-674-0	01	1	0607-	●	●
83	SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-038-0	02	1	0303-0307	●	●
83	SCREW; LWR COVER TO WHEEL STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-038-0	02	1	0308-0408	●	●
83	SCREW; LWR COVER TO WHEEL EXC. AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-037-0	04	1	0303-0307	●	●
83	SCREW; LWR COVER TO WHEEL STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-037-0	04	1	0308-0408	●	●
83	SCREW; LWR COVER TO WHEEL THA	8-97350-037-0	04	1	0409-	●	●
90	COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-463-0	01	1	0303-0307	●	●
90	COVER ASM; STRG WHEEL,LWR STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-463-0	01	1	0308-0408	●	●
90	COVER ASM; STRG WHEEL,LWR EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-464-0	01	1	0303-0307	●	●
90	COVER ASM; STRG WHEEL,LWR STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-464-0	01	1	0308-0408	●	●
90	COVER ASM; STRG WHEEL,LWR DARK GRAY THA	8-97394-464-0	01	1	0409-0606	●	●
90	COVER ASM; STRG WHEEL,LWR DARK GRAY THA	8-97403-939-1	01	1	0607-	●	●

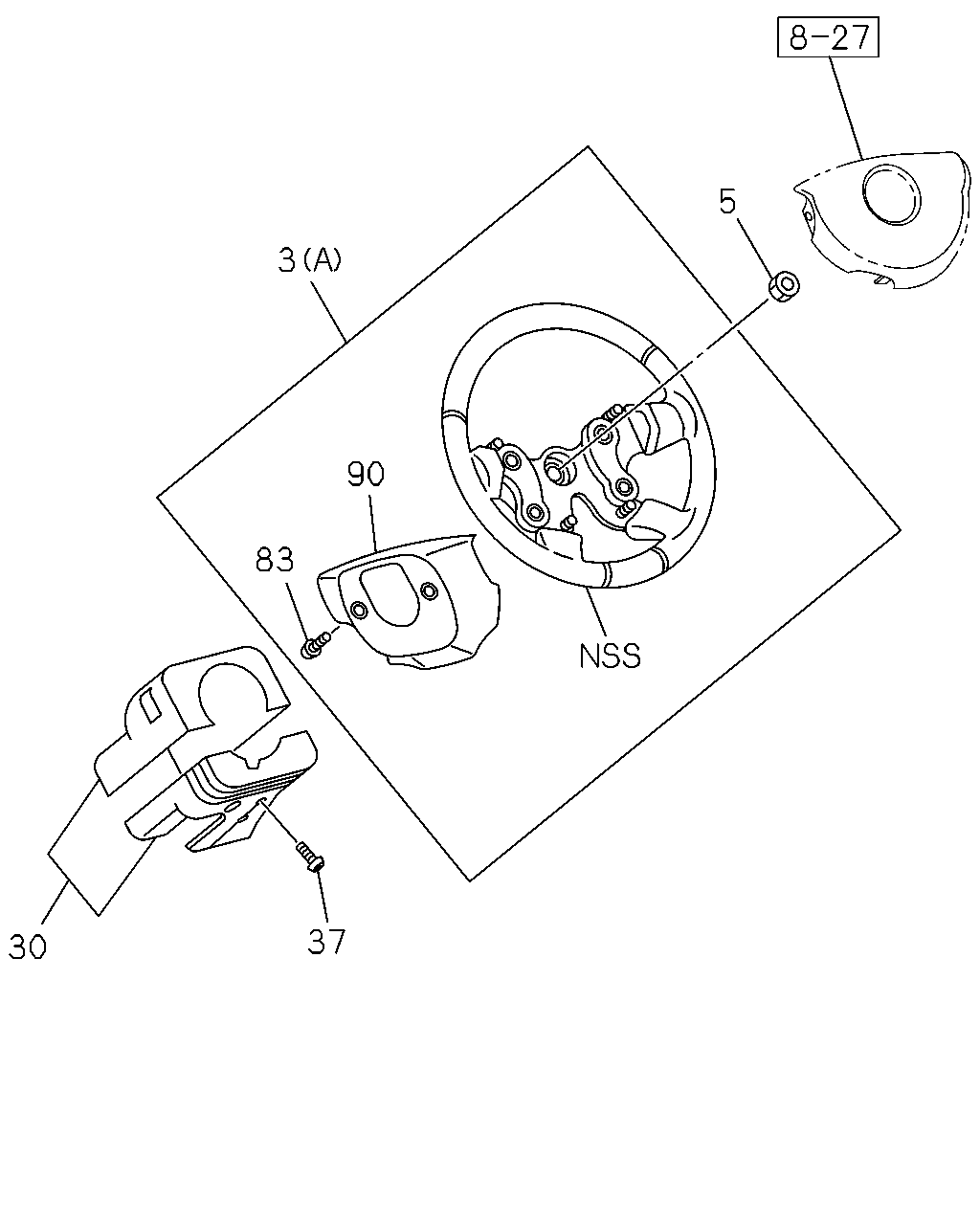

5 3 90 83 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	WHEEL; STRG AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA	8-97390-772-2	01	1	0303-0307	●	●
3	WHEEL; STRG STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA	8-97390-772-2	01	1	0308-0408	●	●
3	WHEEL; STRG EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA	8-97390-773-1	01	1	0303-0307	●	●
3	WHEEL; STRG STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA	8-97390-773-1	01	1	0308-0408	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97390-773-1	01	1	0409-0504	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97402-856-0	01	1	0505-0602	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97406-141-0	01	1	0603-0606	●	●
3	WHEEL; STRG (B) DARK GRAY THA	8-97403-870-1	01	1	0607-	●	●
5	NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER IMA	8-94455-487-1	01	1	0303-	●	●
30	COWL; STEERING DARK GRAY THA	8-97294-053-2	01	1	0303-0508	●	●
30	COWL; STEERING DARK GRAY THA	8-97294-054-1	01	1	0509-0606	●	●
30	COWL; STEERING DARK GRAY THA	8-97403-685-1	01	1	0607-1103	●	●
30	COWL; STEERING DARK GRAY THA	8-97422-708-0	01	1	1104-	●	●
37	SCREW; STRG COWL UPR M5X16 THA	5-09981-053-0	02	1	0303-0303	●	●
37	SCREW; STRG COWL UPR M4X12 W/LK&PL WASHER THA	9-03920-412-0	03	1	0303-0305	●	●
37	SCREW; STRG COWL UPR M4X12 W/PL WASHER THA	9-03900-412-0	03	1	0306-0606	●	●
37	SCREW; STRG COWL UPR M4X12 W/PL WASHER THA	0-36210-412-0	03	1	0607-	●	●
83	SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-038-0	02	1	0303-0307	●	●
83	SCREW; LWR COVER TO WHEEL STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-038-0	02	1	0308-0408	●	●
83	SCREW; LWR COVER TO WHEEL EXC. AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-037-0	04	1	0303-0307	●	●
83	SCREW; LWR COVER TO WHEEL STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> THA	8-97350-037-0	04	1	0308-0408	●	●
83	SCREW; LWR COVER TO WHEEL THA	8-97350-037-0	04	1	0409-	●	●
90	COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-463-0	01	1	0303-0307	●	●
90	COVER ASM; STRG WHEEL,LWR STEERING WHEEL LEATHER<NP5> AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-463-0	01	1	0308-0408	●	●
90	COVER ASM; STRG WHEEL,LWR EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-464-0	01	1	0303-0307	●	●
90	COVER ASM; STRG WHEEL,LWR STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA	8-97394-464-0	01	1	0308-0408	●	●
90	COVER ASM; STRG WHEEL,LWR DARK GRAY THA	8-97394-464-0	01	1	0409-0606	●	●
90	COVER ASM; STRG WHEEL,LWR DARK GRAY THA	8-97403-939-1	01	1	0607-	●	●
