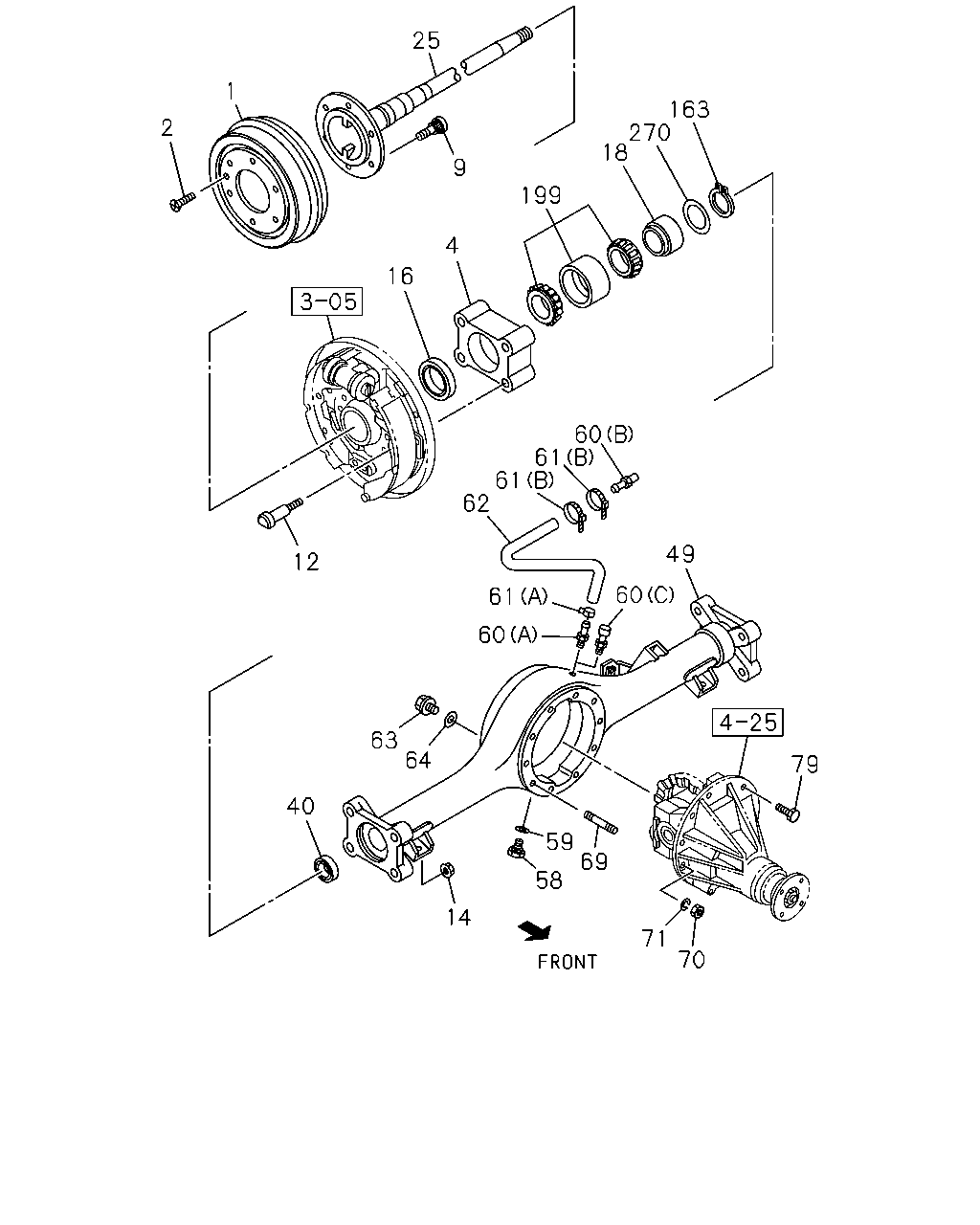

1 |
DRUM; BRK,RR
THA
|
8-97360-505-0 |
02 |
1 |
0303- |
● |
|
| |
1 |
DRUM; BRK,RR
THA
|
8-97360-506-0 |
02 |
1 |
0303-0510 |
|
● |
| |
1 |
DRUM; BRK,RR
THA
|
8-98030-385-0 |
02 |
1 |
0511- |
|
● |
| |
2 |
BOLT; BRK DRUM
M6X16 CK-HEAD
THA
|
9-03090-616-0 |
02 |
1 |
0303-0606 |
● |
● |
| |
2 |
BOLT; BRK DRUM
M6X16 CK-HEAD
THA
|
0-36410-616-0 |
02 |
1 |
0607- |
● |
● |
| |
4 |
HOLDER; BRG,AXLE SHAFT
THA
|
8-97216-780-4 |
02 |
1 |
0303- |
● |
|
| |
4 |
HOLDER; BRG,AXLE SHAFT
THA
|
8-97216-781-4 |
02 |
1 |
0303-0710 |
|
● |
| |
4 |
HOLDER; BRG,AXLE SHAFT
THA
|
8-97562-780-0 |
02 |
1 |
0711- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
THA
|
8-97213-870-0 |
12 |
1 |
0303-0606 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
THA
|
8-97944-831-0 |
12 |
1 |
0607- |
● |
● |
| |
12 |
BOLT; BRG HOLDER TO CASE
LOWER
THA
|
8-97216-806-0 |
04 |
1 |
0303-0308 |
● |
● |
| |
12 |
BOLT; BRG HOLDER TO CASE
UPPER
THA
|
8-97216-807-0 |
04 |
1 |
0303-0308 |
● |
● |
| |
12 |
BOLT; BRG HOLDER TO CASE
THA
|
8-97354-886-0 |
08 |
1 |
0309-0606 |
● |
● |
| |
12 |
BOLT; BRG HOLDER TO CASE
THA
|
8-97354-886-1 |
08 |
1 |
0607- |
● |
|
| |
12 |
BOLT; BRG HOLDER TO CASE
THA
|
8-98038-350-0 |
08 |
1 |
0607- |
|
● |
| |
14 |
NUT; BRG HOLDER TO CASE
M12 FLANGE
THA
|
0-91180-212-0 |
08 |
1 |
0303- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
THA
|
8-97216-792-0 |
02 |
1 |
0303- |
● |
● |
| |
18 |
RETAINER; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97216-753-0 |
02 |
1 |
0303-0504 |
● |
● |
| |
18 |
RETAINER; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-98009-341-0 |
02 |
1 |
0505- |
● |
● |
| |
18 |
RETAINER; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97239-868-0 |
02 |
1 |
0303- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
THA
|
8-97216-793-1 |
02 |
1 |
0303-0504 |
● |
|
| |
25 |
SHAFT; AXLE,RR
THA
|
8-97944-443-0 |
02 |
1 |
0505- |
● |
|
| |
25 |
SHAFT; AXLE,RR
THA
|
8-97216-796-1 |
02 |
1 |
0303-0504 |
|
● |
| |
25 |
SHAFT; AXLE,RR
THA
|
8-97944-442-0 |
02 |
1 |
0505- |
|
● |
| |
40 |
SEAL; OIL,REAR AXLE
THA
|
8-97323-297-0 |
02 |
1 |
0303- |
● |
● |
| |
49 |
CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97216-747-5 |
01 |
1 |
0303-0408 |
● |
|
| |
49 |
CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97373-234-2 |
01 |
1 |
0409- |
● |
|
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97239-858-2 |
01 |
1 |
0303-0303 |
● |
|
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97943-325-1 |
01 |
1 |
0303-0408 |
● |
|
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97373-233-1 |
01 |
1 |
0409-0606 |
● |
|
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-98036-672-0 |
01 |
1 |
0607- |
● |
|
| |
49 |
CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97216-748-5 |
01 |
1 |
0303-0408 |
|
● |
| |
49 |
CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97373-236-1 |
01 |
1 |
0409-0606 |
|
● |
| |
49 |
CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-98036-681-1 |
01 |
1 |
0607- |
|
● |
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97239-861-2 |
01 |
1 |
0303-0303 |
|
● |
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97943-326-1 |
01 |
1 |
0303-0408 |
|
● |
| |
49 |
CASE; RR AXLE
4JJ1 ENG<LFB>
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97373-235-1 |
01 |
1 |
0409-0412 |
|
● |
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97373-235-1 |
01 |
1 |
0501-0508 |
|
● |
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-97943-326-1 |
01 |
1 |
0509-0606 |
|
● |
| |
49 |
CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>
THA
|
8-98036-680-0 |
01 |
1 |
0607- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M16X12.5
IMA
|
8-97307-060-0 |
01 |
1 |
0303- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=16.2 OD=24
THA
|
9-09571-416-0 |
01 |
1 |
0303- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
(A)
L=37
THA
|
8-94226-849-1 |
01 |
1 |
0303-0303 |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
(C)
L=30
THA
|
8-94416-611-1 |
01 |
1 |
0304-0411 |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
(C)
L=29
THA
|
8-97383-656-0 |
01 |
1 |
0412-0606 |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
(C)
L=29
IMA
|
8-98006-960-0 |
01 |
1 |
0607- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
(B)
THA
|
8-97228-909-0 |
01 |
1 |
0303-0303 |
● |
● |
| |
61 |
CLIP; BREATHER HOSE,RR AXLE
(B)
L=112
THA
|
8-94232-618-0 |
02 |
1 |
0303-0303 |
● |
● |
| |
61 |
CLIP; BREATHER HOSE,RR AXLE
(A)
ID=11
IMA
|
8-94238-570-0 |
01 |
1 |
0303-0303 |
● |
● |
| |
62 |
HOSE; RUBBER,BREATHER,RR AXLE
THA
|
8-97261-482-0 |
01 |
1 |
0303-0303 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
THA
|
8-97307-059-1 |
01 |
1 |
0303- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
THA
|
8-94462-734-0 |
01 |
1 |
0303- |
● |
● |
| |
69 |
STUD; AXLE CASE
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0303-0608 |
● |
● |
| |
69 |
STUD; AXLE CASE
M10X31 L=43
THA
|
8-98022-413-0 |
02 |
1 |
0609- |
● |
● |
| |
70 |
NUT; CARRIER
M10
THA
|
0-91110-510-0 |
02 |
1 |
0303- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=10.2
THA
|
9-09150-610-0 |
02 |
1 |
0303-0604 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=10.2
THA
|
0-91510-610-0 |
02 |
1 |
0605-0606 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=10.2
IMA
|
0-91510-810-0 |
02 |
1 |
0607- |
● |
● |
| |
79 |
BOLT; COVER TO CASE
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0303- |
● |
● |
| |
79 |
BOLT; COVER TO CASE
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0303- |
● |
● |
| |
163 |
RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75
IMA
|
9-09180-042-0 |
AR |
1 |
0303- |
● |
● |
| |
163 |
RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00
IMA
|
9-09952-253-0 |
AR |
1 |
0303- |
● |
● |
| |
199 |
BEARING; RR AXLE
THA
|
8-97216-797-2 |
02 |
1 |
0303- |
● |
● |
| |
270 |
SHIM; RETAINER
T=0.24
IMA
|
9-41519-109-0 |
AR |
1 |
0303- |
● |
● |
