4-11 — FRONT HUB AND DRUM OR ROTOR (#40793) — 130 parça

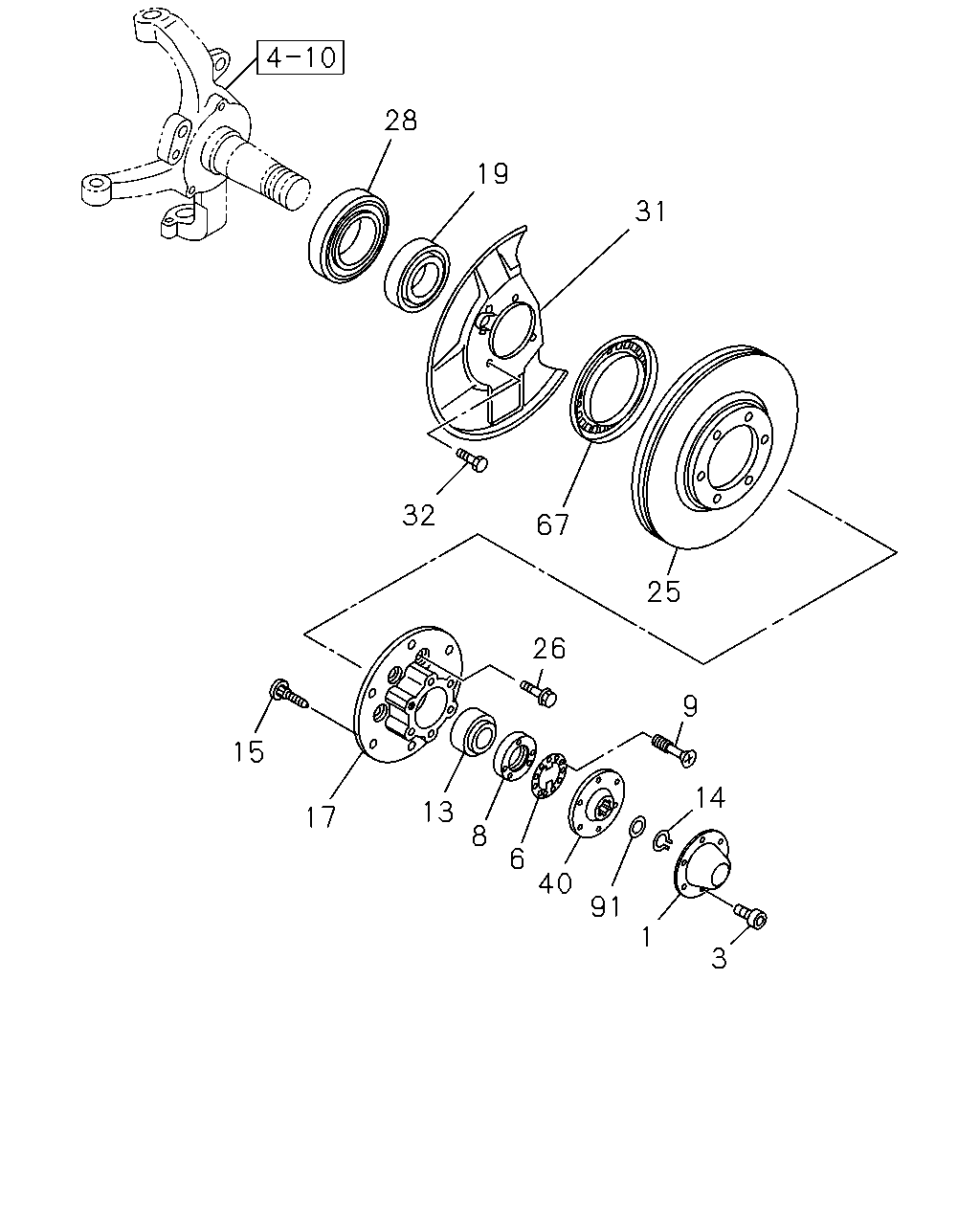

28 19 31 32 67 25 26 9 15 14 13 17 8 6 40 91 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE THA	9-42313-080-1	02	1	0303-0606	●
1	CAP; HUB,FRT AXLE IMA	8-98006-055-0	02	1	0607-	●
1	CAP; HUB,FRT AXLE THA	8-94173-314-2	02	1	0303-0606		●
1	CAP; HUB,FRT AXLE THA	8-97944-565-0	02	1	0607-		●
3	BOLT; HUB CAP,FRT WHEEL M10X33 THA	8-94176-987-1	12	1	0303-0802		●
3	BOLT; HUB CAP,FRT WHEEL M10X33 THA	8-98117-920-0	12	1	0803-		●
6	WASHER; LK,FRT HUB T=3.2 OD=35 THA	8-94256-973-0	02	1	0303-0406	●
6	WASHER; LK,FRT HUB T=3.2 OD=35 IMA	8-97382-661-0	02	1	0407-	●
6	WASHER; LK,FRT HUB T=1.8 OD=65 IMA	8-94442-398-0	02	1	0303-		●
8	NUT; ADJ,FRT HUB ID=40 OD=65 T=8 IMA	8-94442-399-1	02	1	0303-		●
9	SCREW; ADJ,NUT M4X8 CK-HEAD THA	9-93090-408-0	06	1	0303-0606		●
9	SCREW; ADJ,NUT M4X8 CK-HEAD THA	8-98008-301-0	06	1	0607-		●
13	BEARING; HUB OUTER,FRT AXLE NSK THA	8-94242-913-0	02	1	0303-	●
13	BEARING; HUB OUTER,FRT AXLE NSK THA	8-94227-041-0	02	1	0303-		●
14	RING; SPR,FRT WHEEL ID=25.9 IMA	9-09180-028-0	02	1	0303-		●
15	PIN; WHEEL,FRT AXLE M12X37.5 THA	8-97213-871-0	12	1	0303-0606	●	●
15	PIN; WHEEL,FRT AXLE M12X37.5 THA	8-97944-564-0	12	1	0607-	●	●
17	HUB; FRT AXLE THA	8-97238-417-1	02	1	0303-	●
17	HUB; FRT AXLE THA	8-97238-419-0	02	1	0303-0710		●
17	HUB; FRT AXLE THA	8-98054-665-0	02	1	0711-		●
19	BEARING; HUB INNER,FRT AXLE NSK THA	8-94242-683-0	02	1	0303-	●
19	BEARING; HUB INNER,FRT AXLE NSK THA	8-94258-819-0	02	1	0303-		●
25	ROTOR; DISC BRK,FRT THA	8-97360-676-0	02	1	0303-0408	●
25	ROTOR; DISC BRK,FRT THA	8-97370-515-0	02	1	0409-0802	●
25	ROTOR; DISC BRK,FRT THA	8-97360-677-0	02	1	0303-0802		●
25	ROTOR; DISC BRK,FRT THA	8-97360-677-0	02	1	0803-	●	●
26	BOLT; BRK,DISC TO HUB THA	8-97318-614-0	12	1	0303-0405	●	●
26	BOLT; BRK,DISC TO HUB M12X31.5 FLANGE THA	8-97943-952-0	12	1	0406-0606	●	●
26	BOLT; BRK,DISC TO HUB M12X31.5 FLANGE THA	8-98006-065-0	12	1	0607-	●	●
28	SEAL; OIL,FRT HUB THA	8-94433-718-0	02	1	0303-0604	●
28	SEAL; OIL,FRT HUB THA	8-98036-593-0	02	1	0605-	●
28	SEAL; OIL,FRT HUB THA	8-94407-711-0	02	1	0303-0604		●
28	SEAL; OIL,FRT HUB THA	8-98036-594-0	02	1	0605-		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-286-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-286-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-286-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-149-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-285-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-285-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-285-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-148-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-288-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-288-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-288-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-151-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-287-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-287-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-287-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-150-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-592-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-612-0	01	1	0409-		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-591-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-611-0	01	1	0409-		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-594-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-614-0	01	1	0409-		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-593-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-613-0	01	1	0409-		●
32	BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER THA	8-97943-023-0	06	1	0303-0606	●	●
32	BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER THA	8-98006-352-0	06	1	0607-	●	●
40	FLANGE; FRT WHEEL HUB THA	8-94173-313-0	02	1	0303-1207		●
40	FLANGE; FRT WHEEL HUB THA	8-98197-869-0	02	1	1208-		●
67	ROTOR; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-278-0	02	1	0303-0710	●
67	ROTOR; SENSOR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-278-0	02	1	0711-0711	●
67	ROTOR; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-278-0	02	1	0711-	●
67	ROTOR; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-280-0	02	1	0303-		●
91	SPACER; HUB BRG T=0.20 IMA	8-94178-929-0	AR	1	0303-		●
91	SPACER; HUB BRG T=0.30 IMA	8-94178-930-0	AR	1	0303-		●
91	SPACER; HUB BRG T=0.50 IMA	8-94178-931-0	AR	1	0303-		●
91	SPACER; HUB BRG T=1.00 IMA	8-94178-932-0	AR	1	0303-		●

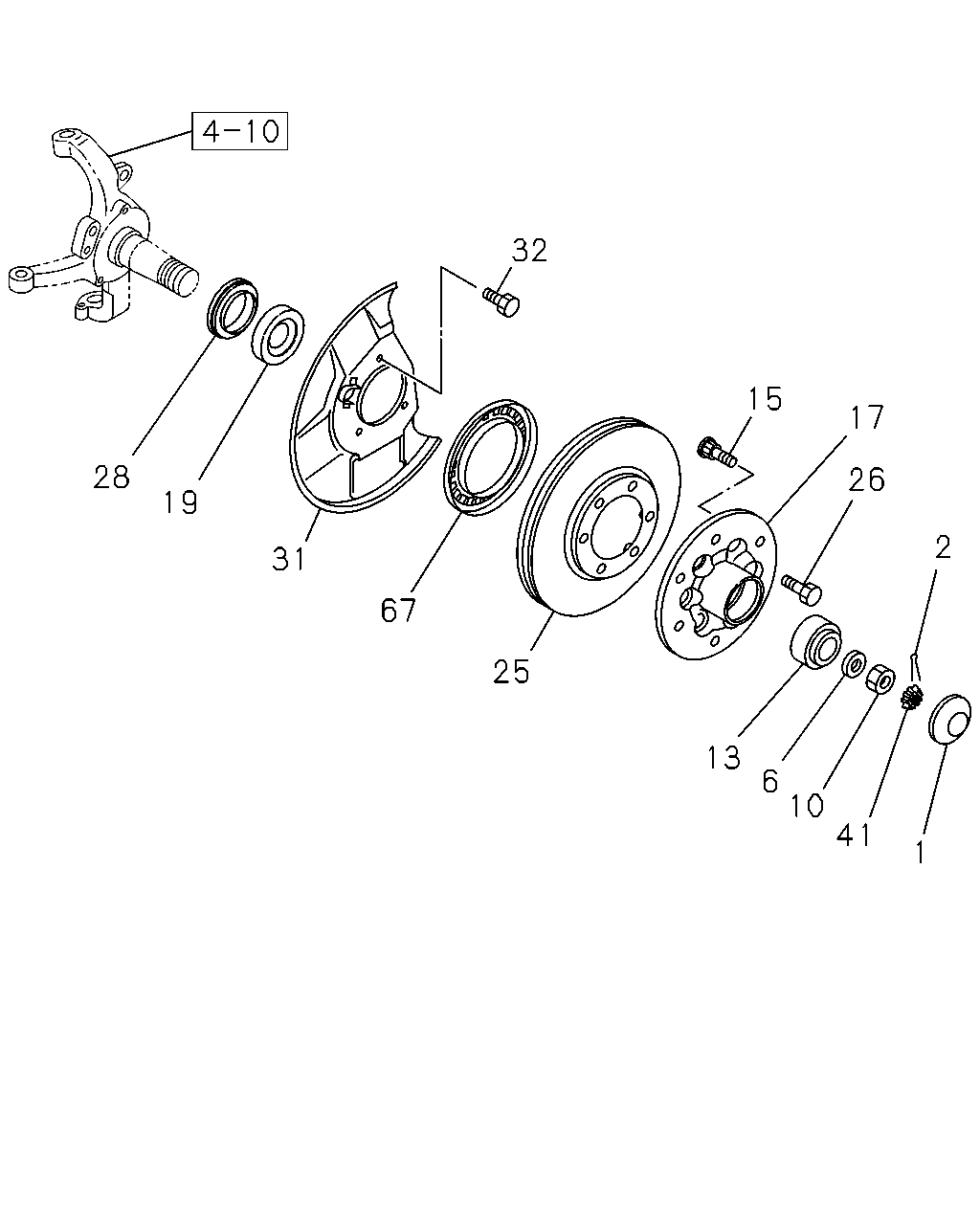

32 15 17 28 26 19 2 31 67 25 13 6 10 41 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE THA	9-42313-080-1	02	1	0303-0606	●
1	CAP; HUB,FRT AXLE IMA	8-98006-055-0	02	1	0607-	●
1	CAP; HUB,FRT AXLE THA	8-94173-314-2	02	1	0303-0606		●
1	CAP; HUB,FRT AXLE THA	8-97944-565-0	02	1	0607-		●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=3.7 L=30 THA	9-08114-030-0	02	1	0303-0606	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=3.7 L=30 IMA	0-81124-030-0	02	1	0607-	●
6	WASHER; LK,FRT HUB T=3.2 OD=35 THA	8-94256-973-0	02	1	0303-0406	●
6	WASHER; LK,FRT HUB T=3.2 OD=35 IMA	8-97382-661-0	02	1	0407-	●
6	WASHER; LK,FRT HUB T=1.8 OD=65 IMA	8-94442-398-0	02	1	0303-		●
10	NUT; FRT HUB BRG M18 IMA	8-94243-927-1	02	1	0303-	●
13	BEARING; HUB OUTER,FRT AXLE NSK THA	8-94242-913-0	02	1	0303-	●
13	BEARING; HUB OUTER,FRT AXLE NSK THA	8-94227-041-0	02	1	0303-		●
15	PIN; WHEEL,FRT AXLE M12X37.5 THA	8-97213-871-0	12	1	0303-0606	●	●
15	PIN; WHEEL,FRT AXLE M12X37.5 THA	8-97944-564-0	12	1	0607-	●	●
17	HUB; FRT AXLE THA	8-97238-417-1	02	1	0303-	●
17	HUB; FRT AXLE THA	8-97238-419-0	02	1	0303-0710		●
17	HUB; FRT AXLE THA	8-98054-665-0	02	1	0711-		●
19	BEARING; HUB INNER,FRT AXLE NSK THA	8-94242-683-0	02	1	0303-	●
19	BEARING; HUB INNER,FRT AXLE NSK THA	8-94258-819-0	02	1	0303-		●
25	ROTOR; DISC BRK,FRT THA	8-97360-676-0	02	1	0303-0408	●
25	ROTOR; DISC BRK,FRT THA	8-97370-515-0	02	1	0409-0802	●
25	ROTOR; DISC BRK,FRT THA	8-97360-677-0	02	1	0303-0802		●
25	ROTOR; DISC BRK,FRT THA	8-97360-677-0	02	1	0803-	●	●
26	BOLT; BRK,DISC TO HUB THA	8-97318-614-0	12	1	0303-0405	●	●
26	BOLT; BRK,DISC TO HUB M12X31.5 FLANGE THA	8-97943-952-0	12	1	0406-0606	●	●
26	BOLT; BRK,DISC TO HUB M12X31.5 FLANGE THA	8-98006-065-0	12	1	0607-	●	●
28	SEAL; OIL,FRT HUB THA	8-94433-718-0	02	1	0303-0604	●
28	SEAL; OIL,FRT HUB THA	8-98036-593-0	02	1	0605-	●
28	SEAL; OIL,FRT HUB THA	8-94407-711-0	02	1	0303-0604		●
28	SEAL; OIL,FRT HUB THA	8-98036-594-0	02	1	0605-		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-286-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-286-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-286-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-149-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-285-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-285-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-285-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-148-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-288-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-288-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-288-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-151-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-287-0	01	1	0303-0710	●
31	COVER; DUST,FRT BRAKE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-287-0	01	1	0711-0711	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-287-0	01	1	0711-0802	●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-98008-150-0	01	1	0803-	●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-592-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-612-0	01	1	0409-		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-591-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-611-0	01	1	0409-		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-594-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-614-0	01	1	0409-		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-593-0	01	1	0303-0408		●
31	COVER; DUST,FRT BRAKE EXC. ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97327-613-0	01	1	0409-		●
32	BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER THA	8-97943-023-0	06	1	0303-0606	●	●
32	BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER THA	8-98006-352-0	06	1	0607-	●	●
41	RETAINER; NUT,FRT HUB IMA	8-94243-928-1	02	1	0303-	●
67	ROTOR; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-278-0	02	1	0303-0710	●
67	ROTOR; SENSOR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-278-0	02	1	0711-0711	●
67	ROTOR; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-278-0	02	1	0711-	●
67	ROTOR; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> THA	8-97238-280-0	02	1	0303-		●
