4-10 — FRONT AXLE (#40792) — 74 parça

82 326 91 117 110 106 2 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE THA	8-97238-423-1	01	1	0303-0306	●
2	KNUCKLE; FRT AXLE THA	8-97943-436-0	01	1	0307-0307	●
2	KNUCKLE; FRT AXLE THA	8-97943-625-1	01	1	0308-1102	●
2	KNUCKLE; FRT AXLE THA	8-97947-028-0	01	1	1103-	●
2	KNUCKLE; FRT AXLE THA	8-97238-422-1	01	1	0303-0306	●
2	KNUCKLE; FRT AXLE THA	8-97943-435-0	01	1	0307-0307	●
2	KNUCKLE; FRT AXLE THA	8-97943-624-1	01	1	0308-1102	●
2	KNUCKLE; FRT AXLE THA	8-97947-027-0	01	1	1103-	●
2	KNUCKLE; FRT AXLE THA	8-97238-425-1	01	1	0303-0306		●
2	KNUCKLE; FRT AXLE THA	8-97943-440-0	01	1	0307-0307		●
2	KNUCKLE; FRT AXLE THA	8-97943-629-1	01	1	0308-		●
2	KNUCKLE; FRT AXLE THA	8-97238-424-1	01	1	0303-0306		●
2	KNUCKLE; FRT AXLE THA	8-97943-439-0	01	1	0307-0307		●
2	KNUCKLE; FRT AXLE THA	8-97943-628-1	01	1	0308-		●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0303-	●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0303-		●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0303-	●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0303-		●
106	BOLT; CAP FIX M8X25 FLANGE THA	0-28650-825-0	04	1	0303-	●	●
110	CLAMP; STAB TO ROD THA	8-97235-780-0	02	1	0303-0606	●	●
110	CLAMP; STAB TO ROD THA	8-98005-922-0	02	1	0607-	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0303-	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0303-	●	●
326	LINK ASM; STABILIZER THA	8-97214-822-1	02	1	0303-0507	●
326	LINK ASM; STABILIZER THA	8-97944-575-0	02	1	0508-	●
326	LINK ASM; STABILIZER THA	8-97235-787-1	01	1	0303-0507		●
326	LINK ASM; STABILIZER THA	8-97944-569-0	01	1	0508-		●
326	LINK ASM; STABILIZER THA	8-97235-786-1	01	1	0303-0507		●
326	LINK ASM; STABILIZER THA	8-97944-568-0	01	1	0508-		●

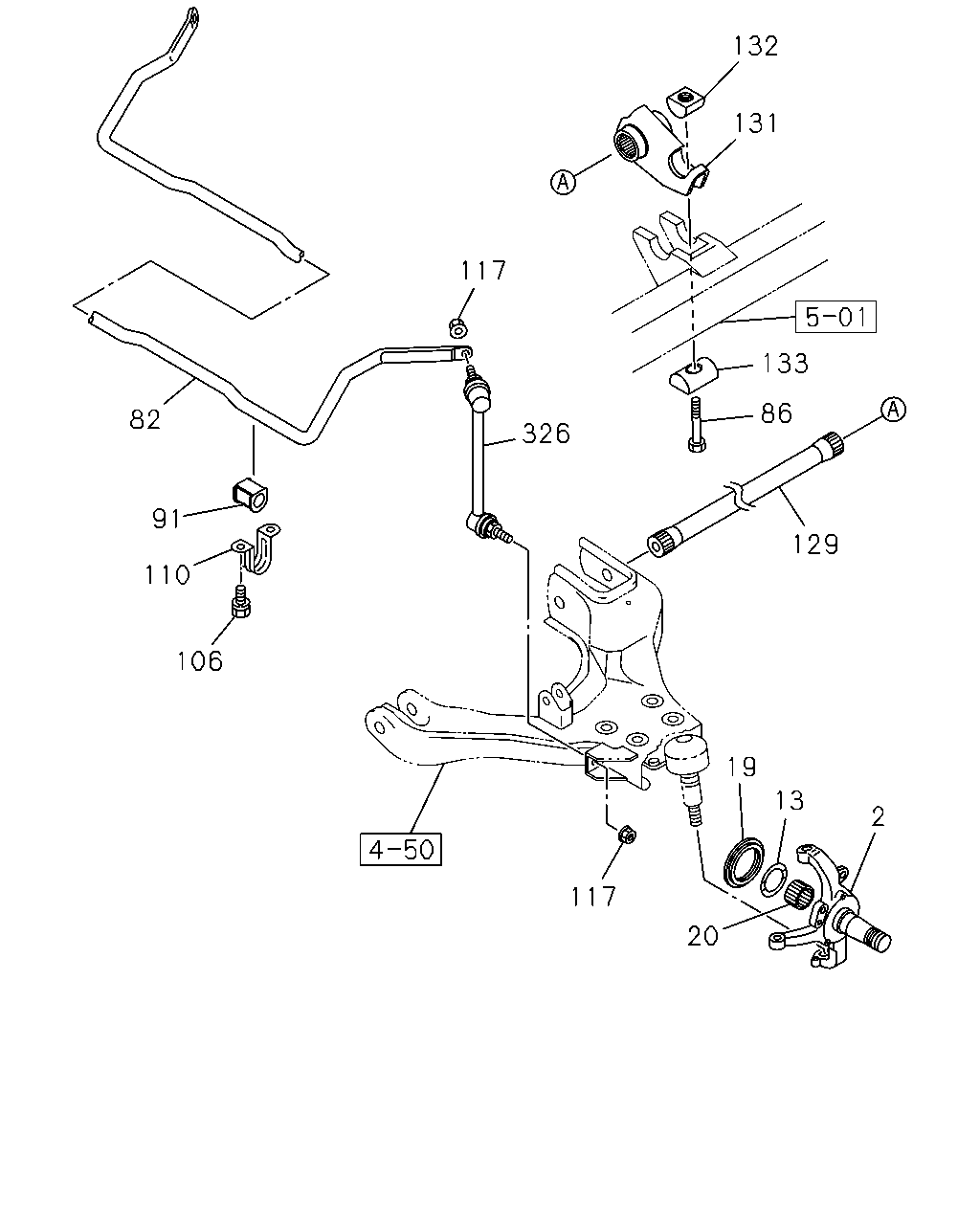

132 131 117 133 86 82 326 91 129 110 106 19 13 2 117 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	KNUCKLE; FRT AXLE THA	8-97238-423-1	01	1	0303-0306	●
2	KNUCKLE; FRT AXLE THA	8-97943-436-0	01	1	0307-0307	●
2	KNUCKLE; FRT AXLE THA	8-97943-625-1	01	1	0308-1102	●
2	KNUCKLE; FRT AXLE THA	8-97947-028-0	01	1	1103-	●
2	KNUCKLE; FRT AXLE THA	8-97238-422-1	01	1	0303-0306	●
2	KNUCKLE; FRT AXLE THA	8-97943-435-0	01	1	0307-0307	●
2	KNUCKLE; FRT AXLE THA	8-97943-624-1	01	1	0308-1102	●
2	KNUCKLE; FRT AXLE THA	8-97947-027-0	01	1	1103-	●
2	KNUCKLE; FRT AXLE THA	8-97238-425-1	01	1	0303-0306		●
2	KNUCKLE; FRT AXLE THA	8-97943-440-0	01	1	0307-0307		●
2	KNUCKLE; FRT AXLE THA	8-97943-629-1	01	1	0308-		●
2	KNUCKLE; FRT AXLE THA	8-97238-424-1	01	1	0303-0306		●
2	KNUCKLE; FRT AXLE THA	8-97943-439-0	01	1	0307-0307		●
2	KNUCKLE; FRT AXLE THA	8-97943-628-1	01	1	0308-		●
13	WASHER; THRUST,KNUCKLE ID=34 W/OIL GROOVE IMA	8-94407-718-0	02	1	0303-		●
19	SEAL; OIL,KNUCKLE THA	8-97123-691-0	02	1	0303-0604		●
19	SEAL; OIL,KNUCKLE THA	8-98036-595-0	02	1	0605-		●
20	BEARING; KNUCKLE IMA	8-94407-708-0	02	1	0303-		●
82	BAR; STAB,FRT SUSP THA	8-97214-815-1	01	1	0303-	●
82	BAR; STAB,FRT SUSP THA	8-97235-783-1	01	1	0303-		●
86	BOLT; TORSION BAR,HEIGHT CONT M18X160 THA	8-97250-133-0	02	1	0303-0310		●
86	BOLT; TORSION BAR,HEIGHT CONT M18X160 THA	8-97354-887-0	02	1	0311-		●
91	BUSHING; RUBBER,STAB BAR THA	8-97247-083-0	02	1	0303-	●
91	BUSHING; RUBBER,STAB BAR THA	8-97235-784-0	02	1	0303-		●
106	BOLT; CAP FIX M8X25 FLANGE THA	0-28650-825-0	04	1	0303-	●	●
110	CLAMP; STAB TO ROD THA	8-97235-780-0	02	1	0303-0606	●	●
110	CLAMP; STAB TO ROD THA	8-98005-922-0	02	1	0607-	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0303-	●	●
117	NUT; STAB BAR BUSHING M10 FLANGE THA	8-97245-646-0	02	1	0303-	●	●
129	BAR; TORSION,FRT SUSP THA	8-97235-865-0	01	1	0303-		●
129	BAR; TORSION,FRT SUSP THA	8-97235-864-0	01	1	0303-		●
131	ARM; HEIGHT CONT THA	8-97258-540-1	01	1	0303-0606		●
131	ARM; HEIGHT CONT THA	8-98005-920-0	01	1	0607-		●
131	ARM; HEIGHT CONT THA	8-97258-539-1	01	1	0303-0606		●
131	ARM; HEIGHT CONT THA	8-98005-919-0	01	1	0607-		●
132	COLLAR; TORSION BAR THA	8-94367-757-0	02	1	0303-0606		●
132	COLLAR; TORSION BAR THA	8-98005-877-0	02	1	0607-		●
133	SEAT; TORSION BAR,HEIGHT CONT THA	8-97032-976-1	02	1	0303-0606		●
133	SEAT; TORSION BAR,HEIGHT CONT THA	8-98005-824-0	02	1	0607-		●
326	LINK ASM; STABILIZER THA	8-97214-822-1	02	1	0303-0507	●
326	LINK ASM; STABILIZER THA	8-97944-575-0	02	1	0508-	●
326	LINK ASM; STABILIZER THA	8-97235-787-1	01	1	0303-0507		●
326	LINK ASM; STABILIZER THA	8-97944-569-0	01	1	0508-		●
326	LINK ASM; STABILIZER THA	8-97235-786-1	01	1	0303-0507		●
326	LINK ASM; STABILIZER THA	8-97944-568-0	01	1	0508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
