◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#40790) — 88 parça

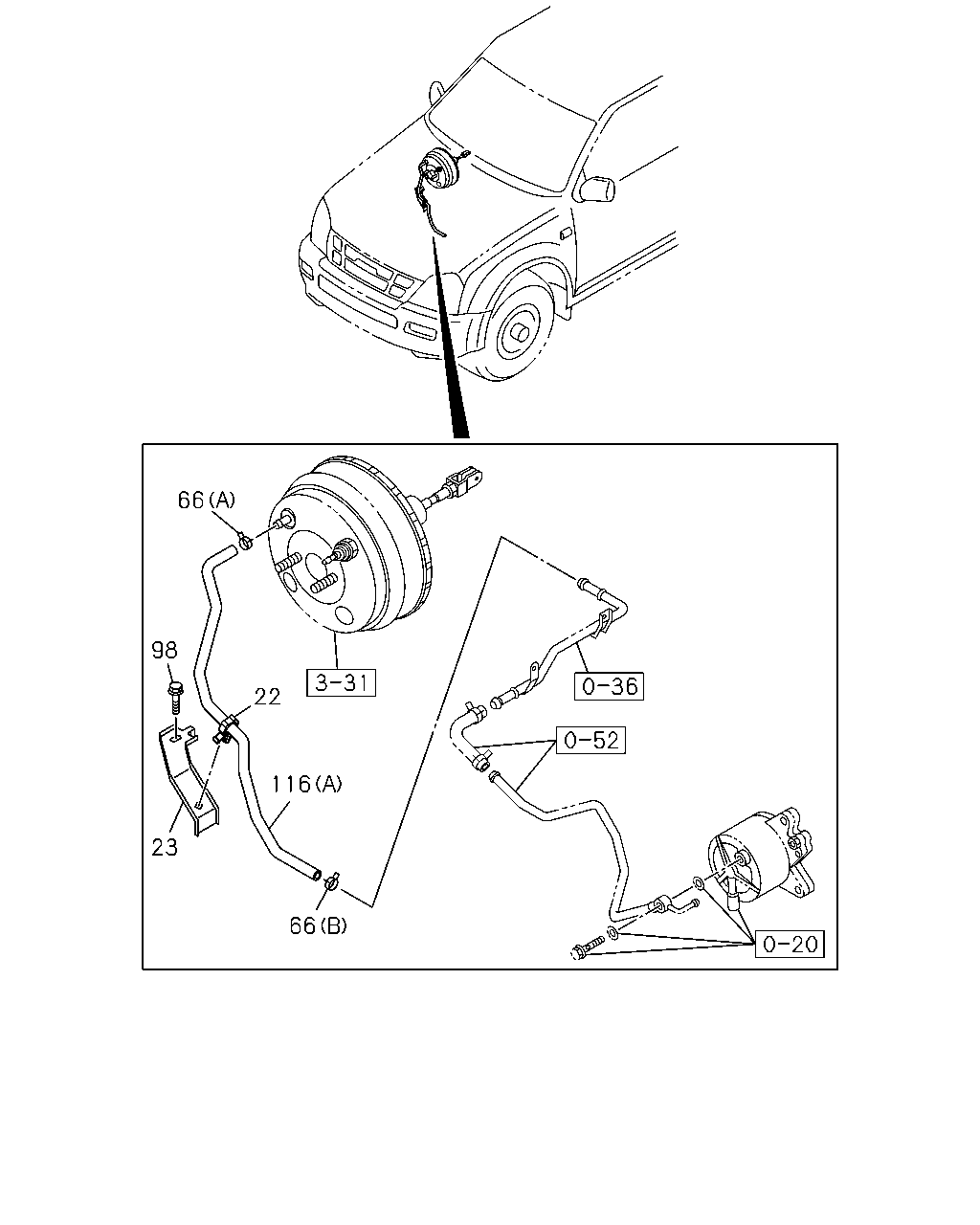

çizim 49351
66 98 22 116 23 66
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLIP; HOSE,VAC TANK
THA 		8-97089-536-0 01 1 0303-0408 ● ●
22 CLIP; HOSE,VAC TANK
4JJ1 ENG<LFB> THA 		8-97089-536-0 01 1 0409-0412 ● ●
22 CLIP; HOSE,VAC TANK
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97089-536-0 01 1 0501-0508 ●
22 CLIP; HOSE,VAC TANK
THA 		8-97089-536-0 01 1 0501-0508 ●
22 CLIP; HOSE,VAC TANK
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97089-536-0 01 1 0509-0606 ● ●
23 BRACKET; VAC PIPE
4JJ1 ENG<LFB> THA 		8-97368-824-0 01 1 0409-0412 ● ●
23 BRACKET; VAC PIPE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97368-824-0 01 1 0501-0508 ●
23 BRACKET; VAC PIPE
THA 		8-97368-824-0 01 1 0501-0508 ●
23 BRACKET; VAC PIPE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97368-824-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 IMA 		8-94367-944-0 02 1 0303-0408 ● ●
66 CLIP; VAC HOSE,M/VAC
4JH1 ENG<RJX> (A) ID=15.5 IMA 		8-94367-944-0 02 1 0303-0408 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0409-0412 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 IMA 		8-94367-944-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 THA 		8-98035-872-0 01 1 0605-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 THA 		8-98035-872-0 03 1 0607- ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB> (B) ID=16 THA 		8-97173-222-0 01 1 0409-0412 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=16 THA 		8-97173-222-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 THA 		8-97173-222-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=16 THA 		8-97173-222-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 THA 		8-98036-539-0 01 1 0607- ● ●
98 BOLT; VAC PIPE FIX
4JJ1 ENG<LFB> M6X20 FLANGE THA 		0-28650-620-0 01 1 0409-0412 ● ●
98 BOLT; VAC PIPE FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M6X20 FLANGE THA 		0-28650-620-0 01 1 0501-0508 ●
98 BOLT; VAC PIPE FIX
M6X20 FLANGE THA 		0-28650-620-0 01 1 0501-0508 ●
98 BOLT; VAC PIPE FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M6X20 FLANGE THA 		0-28650-620-0 01 1 0509-0606 ● ●
98 BOLT; VAC PIPE FIX
M6X16 FLANGE THA 		0-28650-616-0 02 1 0607- ● ●
116 HOSE; VAC,M/VAC
4JH1 ENG<RJX> (A) THA 		8-97236-453-2 01 1 0303-0408 ● ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB> (A) THA 		8-97368-829-0 01 1 0409-0412 ● ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-829-0 01 1 0501-0508 ●
116 HOSE; VAC,M/VAC
(A) THA 		8-97368-829-0 01 1 0501-0508 ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-829-0 01 1 0509-0606 ● ●
116 HOSE; VAC,M/VAC
(C) THA 		8-97944-840-1 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97944-841-0 01 1 0607- ● ●

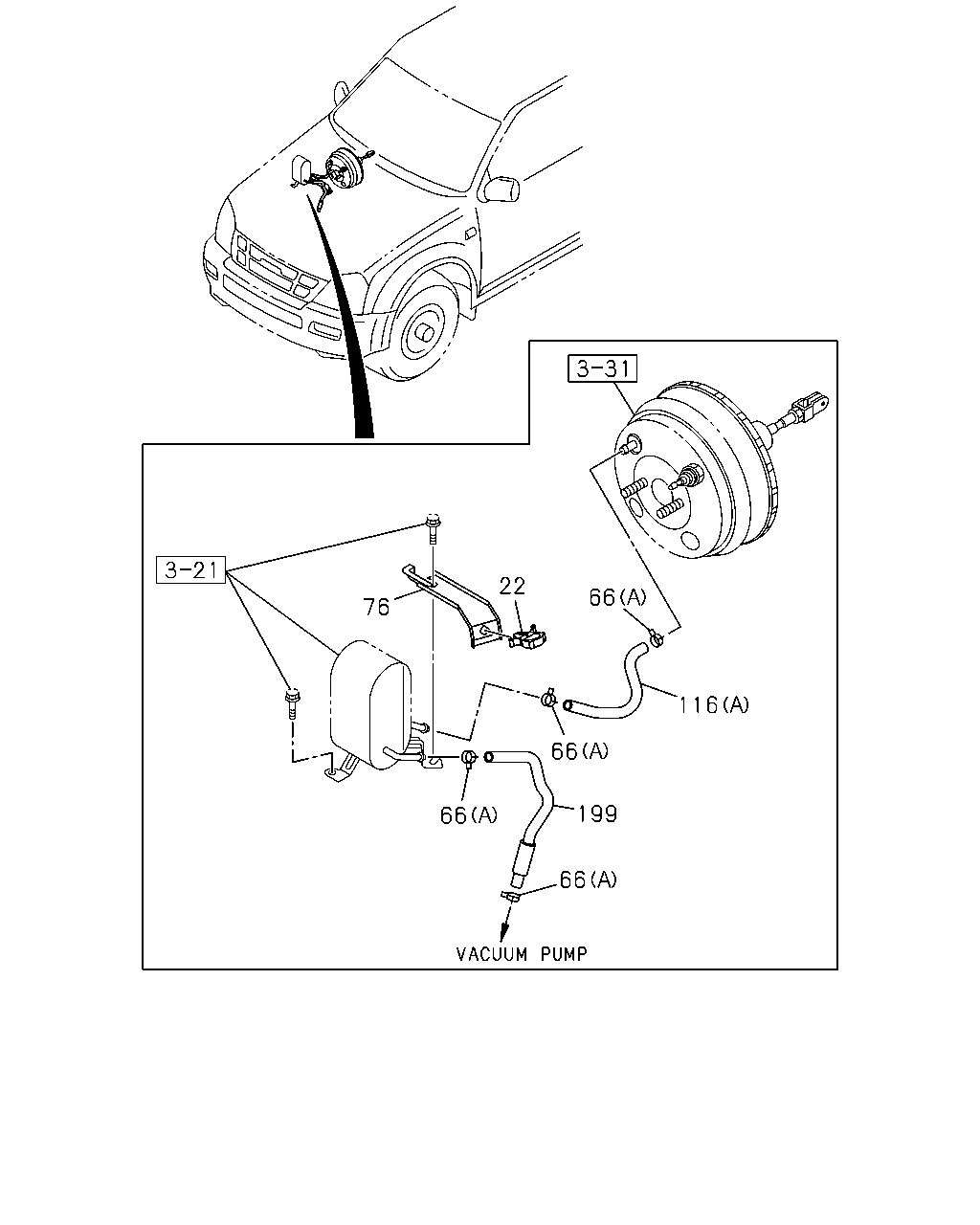

çizim 49982
22 66 76 116 66 199 66 66
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLIP; HOSE,VAC TANK
THA 		8-97089-536-0 01 1 0303-0408 ● ●
22 CLIP; HOSE,VAC TANK
4JJ1 ENG<LFB> THA 		8-97089-536-0 01 1 0409-0412 ● ●
22 CLIP; HOSE,VAC TANK
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97089-536-0 01 1 0501-0508 ●
22 CLIP; HOSE,VAC TANK
THA 		8-97089-536-0 01 1 0501-0508 ●
22 CLIP; HOSE,VAC TANK
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97089-536-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 IMA 		8-94367-944-0 02 1 0303-0408 ● ●
66 CLIP; VAC HOSE,M/VAC
4JH1 ENG<RJX> (A) ID=15.5 IMA 		8-94367-944-0 02 1 0303-0408 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0409-0412 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 IMA 		8-94367-944-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 THA 		8-98035-872-0 01 1 0605-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 THA 		8-98035-872-0 03 1 0607- ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB> (B) ID=16 THA 		8-97173-222-0 01 1 0409-0412 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=16 THA 		8-97173-222-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 THA 		8-97173-222-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=16 THA 		8-97173-222-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 THA 		8-98036-539-0 01 1 0607- ● ●
76 BRACKET; VAC HOSE CLIP
THA 		8-97301-841-2 01 1 0303-0408 ● ●
116 HOSE; VAC,M/VAC
4JH1 ENG<RJX> (A) THA 		8-97236-453-2 01 1 0303-0408 ● ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB> (A) THA 		8-97368-829-0 01 1 0409-0412 ● ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-829-0 01 1 0501-0508 ●
116 HOSE; VAC,M/VAC
(A) THA 		8-97368-829-0 01 1 0501-0508 ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-829-0 01 1 0509-0606 ● ●
116 HOSE; VAC,M/VAC
(C) THA 		8-97944-840-1 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97944-841-0 01 1 0607- ● ●
199 HOSE; VAC,VAC TANK TO VAC PUMP
4JH1 ENG<RJX> THA 		8-97250-036-3 01 1 0303-0303 ● ●
199 HOSE; VAC,VAC TANK TO VAC PUMP
4JH1 ENG<RJX> THA 		8-97365-118-0 01 1 0303-0408 ● ●

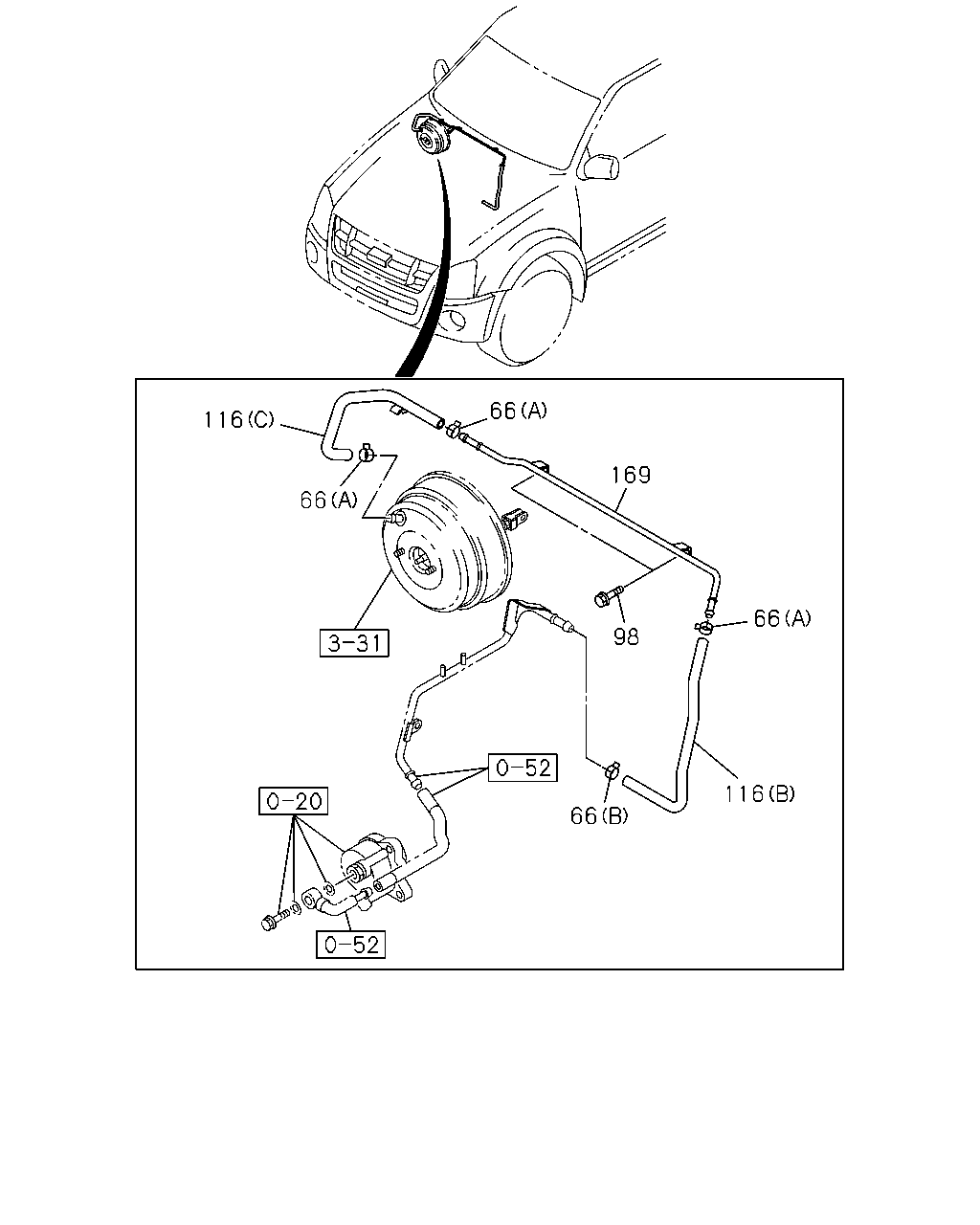

çizim 100846
66 116 169 66 66 98 116 66
BalonParca AdiParca NoAdetTipApplied Date A B
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 IMA 		8-94367-944-0 02 1 0303-0408 ● ●
66 CLIP; VAC HOSE,M/VAC
4JH1 ENG<RJX> (A) ID=15.5 IMA 		8-94367-944-0 02 1 0303-0408 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0409-0412 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 IMA 		8-94367-944-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 IMA 		8-94367-944-0 01 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) ID=15.5 THA 		8-98035-872-0 01 1 0605-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 THA 		8-98035-872-0 03 1 0607- ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB> (B) ID=16 THA 		8-97173-222-0 01 1 0409-0412 ● ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=16 THA 		8-97173-222-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 THA 		8-97173-222-0 01 1 0501-0508 ●
66 CLIP; VAC HOSE,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) ID=16 THA 		8-97173-222-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 THA 		8-98036-539-0 01 1 0607- ● ●
98 BOLT; VAC PIPE FIX
4JJ1 ENG<LFB> M6X20 FLANGE THA 		0-28650-620-0 01 1 0409-0412 ● ●
98 BOLT; VAC PIPE FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M6X20 FLANGE THA 		0-28650-620-0 01 1 0501-0508 ●
98 BOLT; VAC PIPE FIX
M6X20 FLANGE THA 		0-28650-620-0 01 1 0501-0508 ●
98 BOLT; VAC PIPE FIX
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M6X20 FLANGE THA 		0-28650-620-0 01 1 0509-0606 ● ●
98 BOLT; VAC PIPE FIX
M6X16 FLANGE THA 		0-28650-616-0 02 1 0607- ● ●
116 HOSE; VAC,M/VAC
4JH1 ENG<RJX> (A) THA 		8-97236-453-2 01 1 0303-0408 ● ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB> (A) THA 		8-97368-829-0 01 1 0409-0412 ● ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-829-0 01 1 0501-0508 ●
116 HOSE; VAC,M/VAC
(A) THA 		8-97368-829-0 01 1 0501-0508 ●
116 HOSE; VAC,M/VAC
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97368-829-0 01 1 0509-0606 ● ●
116 HOSE; VAC,M/VAC
(C) THA 		8-97944-840-1 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97944-841-0 01 1 0607- ● ●
169 PIPE; VAC,BOOSTER SIDE
THA 		8-97944-847-1 01 1 0607- ● ●
