◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#4079) — 78 parça

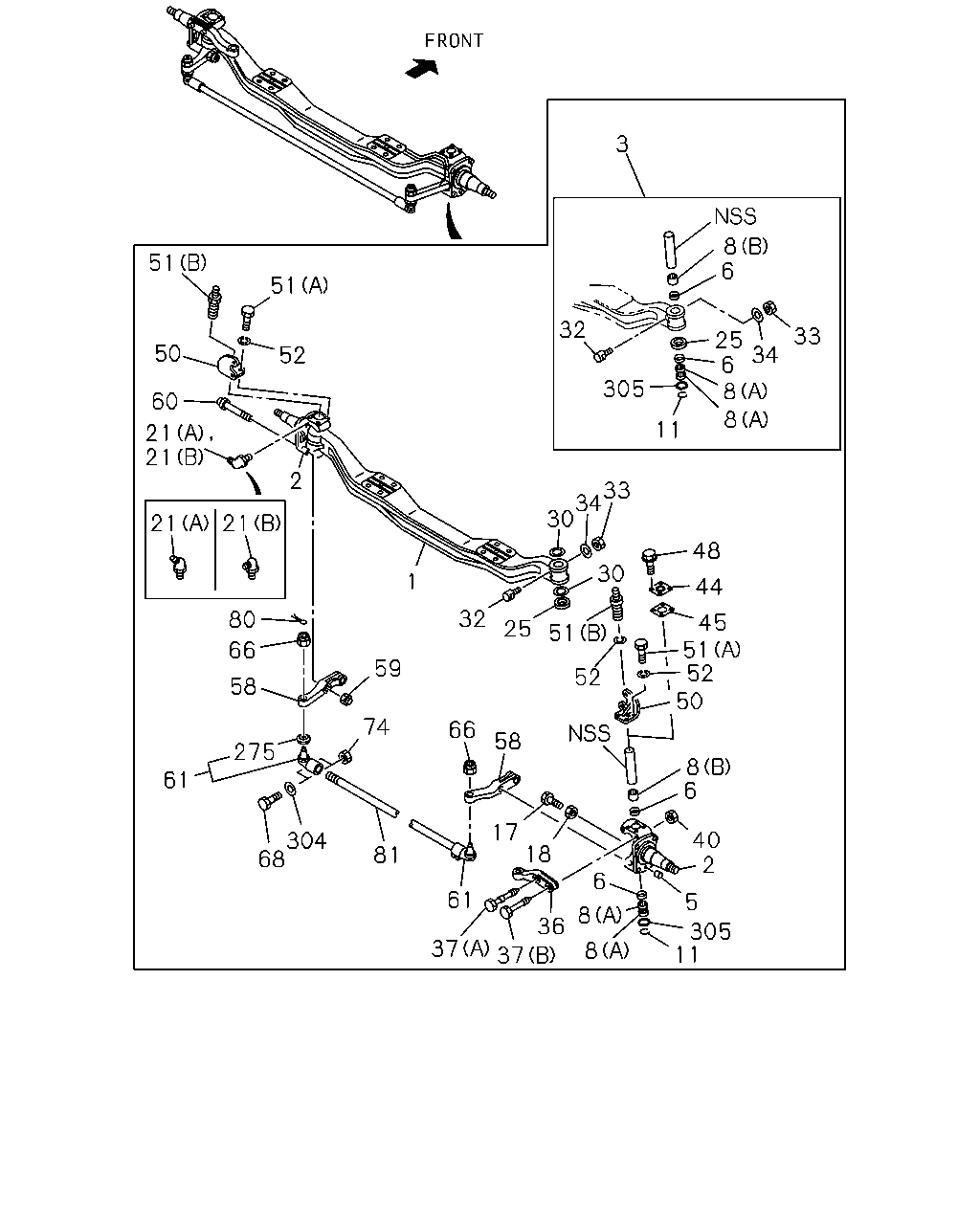

çizim 6304
3 8 6 51 51 32 33 25 34 6 8 8 50 52 305 60 11 21 21 2 33 34 30 21 21 30 48 1 44 32 80 45 51 52 50 25 51 66 59 52 58 74 66 58 275 8 6 61 17 18 40 2 304 68 81 6 61 5 8 36 305 11 37 37 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-107-4 01 1 9603- ● ●
2 KNUCKLE; FRT AXLE 1-43132-079-0 01 1 9603- ● ●
2 KNUCKLE; FRT AXLE 1-43131-079-0 01 1 9603- ● ●
3 KING PIN SET 1-87830-738-1 02 1 9603- ● ●
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 9603- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 9603- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 9603- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 9603- ● ●
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 9603- ● ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 9603-9912 ● ●
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0001- ●
17 BOLT; STOPPER KNUCKLE
EXC. TIRE FRT 12.00R20<72X> M18X43 		1-09009-065-0 02 1 0001- ●
17 BOLT; STOPPER KNUCKLE
TIRE FRT 12.00R20<72X> M18X53 		1-09009-066-0 02 1 0001- ●
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 9603- ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603-9704 ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 9705- ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 9603-9704 ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 9603- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 9603- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 9603- ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 9603- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 9603- ● ●
36 ARM; KNUCKLE 1-43133-063-2 01 1 9603- ● ●
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 9603- ● ●
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 9603- ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 9603- ● ●
44 COVER; KING PIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-43175-014-1 02 1 9911- ● ●
45 GASKET; KING PIN COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-42319-044-0 02 1 9911- ● ●
48 BOLT; COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE 		0-28081-216-0 08 1 9911- ● ●
50 BRACKET; POWER CHAMBER 1-43145-010-2 01 1 9603-9910 ● ●
50 BRACKET; POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43145-010-3 01 1 9911- ● ●
50 BRACKET; POWER CHAMBER 1-43145-009-2 01 1 9603-9910 ● ●
50 BRACKET; POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-43145-009-3 01 1 9911- ● ●
51 BOLT; POWER CHAMBER BRKT
(A) M12X60 		0-10806-260-0 02 1 9603-9910 ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X60 		0-10806-260-0 02 1 9911-0004 ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X60 FLANGE 		0-28081-260-0 02 1 0005- ● ●
51 BOLT; POWER CHAMBER BRKT
(B) M12X28 		0-20801-228-0 06 1 9603-9910 ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12X28 		0-20801-228-0 06 1 9911-0004 ● ●
51 BOLT; POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12X25 FLANGE 		0-28681-225-0 06 1 0005- ● ●
52 WASHER; LK,POWER CHAMBER BRKT
ID=12.2 		9-09150-512-0 08 1 9603-9910 ● ●
52 WASHER; LK,POWER CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 08 1 9911-0004 ● ●
58 ARM; TIE ROD 1-43134-042-0 01 1 9603-9912 ● ●
58 ARM; TIE ROD 1-43134-042-2 01 1 0001- ●
58 ARM; TIE ROD
EXC. TIRE FRT 12.00R20<72X> 		1-43134-042-2 01 1 0001- ●
58 ARM; TIE ROD 1-43135-042-0 01 1 9603-9912 ● ●
58 ARM; TIE ROD 1-43135-042-2 01 1 0001- ●
58 ARM; TIE ROD
EXC. TIRE FRT 12.00R20<72X> 		1-43135-042-2 01 1 0001- ●
58 ARM; TIE ROD
TIRE FRT 12.00R20<72X> 		1-43134-049-3 01 1 0001- ●
58 ARM; TIE ROD
TIRE FRT 12.00R20<72X> 		1-43135-049-3 01 1 0001- ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 9603- ● ●
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 04 1 9603- ● ●
61 ROD END; TIE ROD 1-43150-737-1 01 1 9603-9812 ● ●
61 ROD END; TIE ROD 1-43150-802-0 01 1 9901- ● ●
61 ROD END; TIE ROD 1-43150-736-1 01 1 9603-9812 ● ●
61 ROD END; TIE ROD 1-43150-801-0 01 1 9901- ● ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 9603- ● ●
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 9603- ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 9603- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 9603- ● ●
81 ROD; TIE 1-43151-118-0 01 1 9603- ● ●
275 BOOT; ROD END,TIE 1-43159-078-0 02 1 9603-9812 ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 9901- ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 9603- ● ●
305 COVER; KNUCKLE 1-43175-021-0 02 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
