3-30 — BRAKE MASTER CYLINDER (#40784) — 65 parça

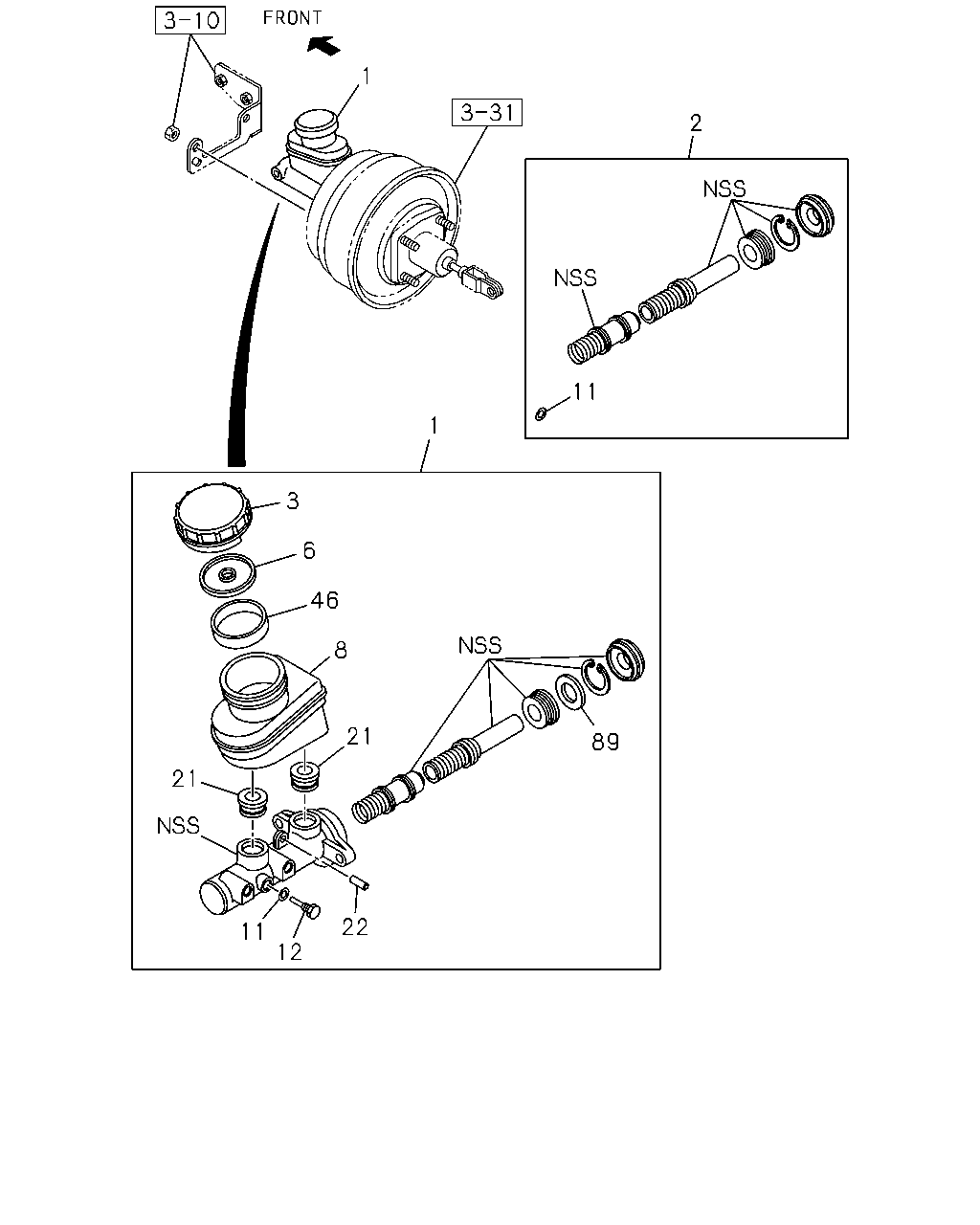

1 2 11 1 3 6 46 8 21 89 21 2 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; BRK MASTER 4JH1 ENG<RJX> THA	8-97301-532-0	01	1	0303-0408	●	●
1	CYLINDER ASM; BRK MASTER 4JJ1 ENG<LFB> THA	8-97355-870-0	01	1	0409-0412	●	●
1	CYLINDER ASM; BRK MASTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97355-870-0	01	1	0501-0508	●
1	CYLINDER ASM; BRK MASTER THA	8-97355-870-0	01	1	0501-0508		●
1	CYLINDER ASM; BRK MASTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97355-870-0	01	1	0509-0606	●	●
1	CYLINDER ASM; BRK MASTER THA	8-98006-941-0	01	1	0607-	●	●
2	REPAIR KIT; BRK,M/CYL 4JH1 ENG<RJX> THA	8-97349-828-0	01	1	0303-0408	●	●
2	REPAIR KIT; BRK,M/CYL 4JJ1 ENG<LFB> THA	8-97357-713-0	01	1	0409-0412	●	●
2	REPAIR KIT; BRK,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97357-713-0	01	1	0501-0508	●
2	REPAIR KIT; BRK,M/CYL THA	8-97357-713-0	01	1	0501-0508		●
2	REPAIR KIT; BRK,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97357-713-0	01	1	0509-0606	●	●
2	REPAIR KIT; BRK,M/CYL THA	8-98047-691-0	01	1	0607-	●	●
3	CAP; OIL TANK 4JH1 ENG<RJX> THA	8-97349-827-0	01	1	0303-0408	●	●
3	CAP; OIL TANK 4JJ1 ENG<LFB> THA	8-97349-827-0	01	1	0409-0412	●	●
3	CAP; OIL TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-827-0	01	1	0501-0508	●
3	CAP; OIL TANK THA	8-97349-827-0	01	1	0501-0508		●
3	CAP; OIL TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-827-0	01	1	0509-0606	●	●
3	CAP; OIL TANK THA	8-98047-705-0	01	1	0607-	●	●
6	DIAPHRAGM; BRK M/CYL THA	8-98047-706-0	01	1	0607-	●	●
8	TANK; OIL,M/CYL 4JH1 ENG<RJX> THA	8-97350-923-0	01	1	0303-0408	●	●
8	TANK; OIL,M/CYL 4JJ1 ENG<LFB> THA	8-97350-923-0	01	1	0409-0412	●	●
8	TANK; OIL,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97350-923-0	01	1	0501-0508	●
8	TANK; OIL,M/CYL THA	8-97350-923-0	01	1	0501-0508		●
8	TANK; OIL,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97350-923-0	01	1	0509-0606	●	●
8	TANK; OIL,M/CYL THA	8-98047-700-0	01	1	0607-	●	●
11	GASKET; STOPPER BOLT TO BRK M/CYL BODY THA	8-98047-696-0	01	1	0607-	●	●
12	BOLT; STOPPER,BRK M/CYL THA	8-98047-695-0	01	1	0607-	●	●
21	GROMMET; BRK M/CYL THA	8-97940-643-0	02	1	0607-	●	●
46	FILTER; OIL TANK,M/CYL THA	8-98047-702-0	01	1	0607-	●	●
89	PLATE; BRK M/CYL THA	8-98047-698-0	01	1	0607-	●	●

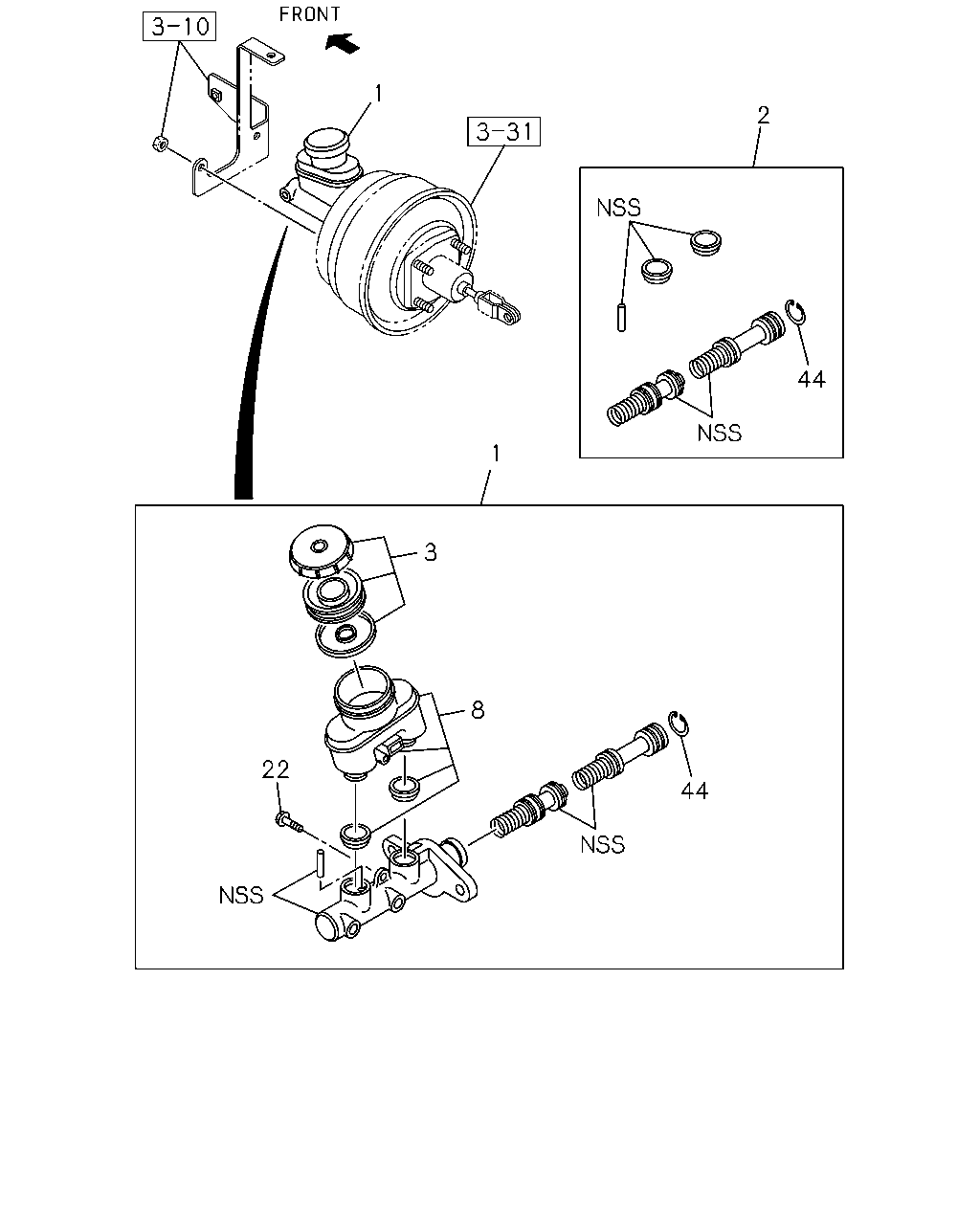

1 2 44 1 3 8 22 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER ASM; BRK MASTER 4JH1 ENG<RJX> THA	8-97301-532-0	01	1	0303-0408	●	●
1	CYLINDER ASM; BRK MASTER 4JJ1 ENG<LFB> THA	8-97355-870-0	01	1	0409-0412	●	●
1	CYLINDER ASM; BRK MASTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97355-870-0	01	1	0501-0508	●
1	CYLINDER ASM; BRK MASTER THA	8-97355-870-0	01	1	0501-0508		●
1	CYLINDER ASM; BRK MASTER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97355-870-0	01	1	0509-0606	●	●
1	CYLINDER ASM; BRK MASTER THA	8-98006-941-0	01	1	0607-	●	●
2	REPAIR KIT; BRK,M/CYL 4JH1 ENG<RJX> THA	8-97349-828-0	01	1	0303-0408	●	●
2	REPAIR KIT; BRK,M/CYL 4JJ1 ENG<LFB> THA	8-97357-713-0	01	1	0409-0412	●	●
2	REPAIR KIT; BRK,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97357-713-0	01	1	0501-0508	●
2	REPAIR KIT; BRK,M/CYL THA	8-97357-713-0	01	1	0501-0508		●
2	REPAIR KIT; BRK,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97357-713-0	01	1	0509-0606	●	●
2	REPAIR KIT; BRK,M/CYL THA	8-98047-691-0	01	1	0607-	●	●
3	CAP; OIL TANK 4JH1 ENG<RJX> THA	8-97349-827-0	01	1	0303-0408	●	●
3	CAP; OIL TANK 4JJ1 ENG<LFB> THA	8-97349-827-0	01	1	0409-0412	●	●
3	CAP; OIL TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-827-0	01	1	0501-0508	●
3	CAP; OIL TANK THA	8-97349-827-0	01	1	0501-0508		●
3	CAP; OIL TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97349-827-0	01	1	0509-0606	●	●
3	CAP; OIL TANK THA	8-98047-705-0	01	1	0607-	●	●
8	TANK; OIL,M/CYL 4JH1 ENG<RJX> THA	8-97350-923-0	01	1	0303-0408	●	●
8	TANK; OIL,M/CYL 4JJ1 ENG<LFB> THA	8-97350-923-0	01	1	0409-0412	●	●
8	TANK; OIL,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97350-923-0	01	1	0501-0508	●
8	TANK; OIL,M/CYL THA	8-97350-923-0	01	1	0501-0508		●
8	TANK; OIL,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97350-923-0	01	1	0509-0606	●	●
8	TANK; OIL,M/CYL THA	8-98047-700-0	01	1	0607-	●	●
22	SCREW; OIL TANK 4JH1 ENG<RJX> THA	8-97301-579-0	01	1	0303-0408	●	●
22	SCREW; OIL TANK 4JJ1 ENG<LFB> THA	8-97301-579-0	01	1	0409-0412	●	●
22	SCREW; OIL TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97301-579-0	01	1	0501-0508	●
22	SCREW; OIL TANK THA	8-97301-579-0	01	1	0501-0508		●
22	SCREW; OIL TANK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97301-579-0	01	1	0509-0606	●	●
22	SCREW; OIL TANK THA	8-98047-707-0	01	1	0607-	●	●
44	RING; SNAP,M/CYL 4JH1 ENG<RJX> THA	8-97301-563-0	01	1	0303-0408	●	●
44	RING; SNAP,M/CYL 4JJ1 ENG<LFB> THA	8-97301-563-0	01	1	0409-0412	●	●
44	RING; SNAP,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97301-563-0	01	1	0501-0508	●
44	RING; SNAP,M/CYL THA	8-97301-563-0	01	1	0501-0508		●
44	RING; SNAP,M/CYL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97301-563-0	01	1	0509-0606	●	●
