3-05 — REAR WHEEL BRAKE (#40780) — 86 parça

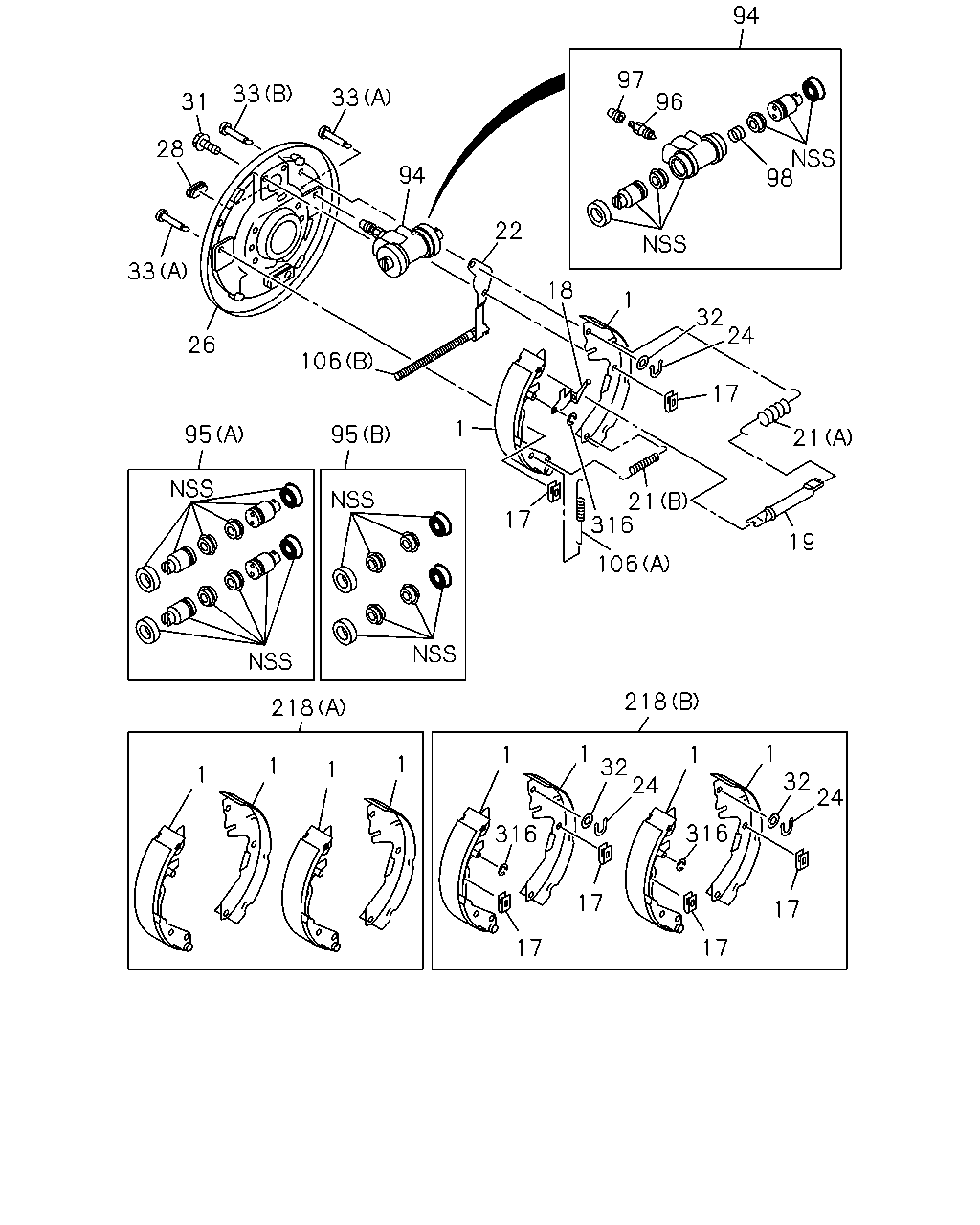

çizim 100804
94 98 96 97 32 17 24 21 19 218 106 21 316 17 1 1 18 22 17 17 24 32 1 316 24 32 1 1 17 17 316 1 1 1 1 1 218 95 106 26 33 28 31 33 33 94 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
TRAILING THA 		8-97302-635-1 02 1 0303-0408 ●
1 SHOE; BRK,RR
LEADING THA 		8-97302-637-1 01 1 0303-0408 ●
1 SHOE; BRK,RR
LEADING THA 		8-97302-636-1 01 1 0303-0408 ●
1 SHOE; BRK,RR
TRAILING THA 		8-97386-375-0 02 1 0409- ●
1 SHOE; BRK,RR
LEADING THA 		8-97386-374-0 01 1 0409-0606 ●
1 SHOE; BRK,RR
LEADING THA 		8-98007-957-0 01 1 0607- ●
1 SHOE; BRK,RR
LEADING THA 		8-97386-373-0 01 1 0409-0606 ●
1 SHOE; BRK,RR
LEADING THA 		8-98007-956-0 01 1 0607- ●
1 SHOE; BRK,RR
TRAILING THA 		8-97351-921-1 02 1 0303-0402 ●
1 SHOE; BRK,RR
TRAILING THA 		8-97376-319-0 02 1 0403- ●
1 SHOE; BRK,RR
LEADING THA 		8-97351-920-1 01 1 0303-0402 ●
1 SHOE; BRK,RR
LEADING THA 		8-97376-318-0 01 1 0403-0606 ●
1 SHOE; BRK,RR
LEADING THA 		8-98007-961-0 01 1 0607- ●
1 SHOE; BRK,RR
LEADING THA 		8-97351-919-1 01 1 0303-0402 ●
1 SHOE; BRK,RR
LEADING THA 		8-97376-317-0 01 1 0403-0606 ●
1 SHOE; BRK,RR
LEADING THA 		8-98007-960-0 01 1 0607- ●
17 SPRING; SHOE HOLD DOWN
THA 		8-97301-510-0 04 1 0303- ● ●
18 LEVER; AUTO ADJ
THA 		8-97301-504-0 01 1 0303-0606 ● ●
18 LEVER; AUTO ADJ
THA 		8-98007-997-0 01 1 0607- ● ●
18 LEVER; AUTO ADJ
THA 		8-97301-503-0 01 1 0303-0606 ● ●
18 LEVER; AUTO ADJ
THA 		8-98007-996-0 01 1 0607- ● ●
19 ADJUSTER; RR BRK
THA 		8-97301-495-0 01 1 0303-0606 ●
19 ADJUSTER; RR BRK
THA 		8-98007-978-0 01 1 0607- ●
19 ADJUSTER; RR BRK
THA 		8-97301-494-0 01 1 0303-0606 ●
19 ADJUSTER; RR BRK
THA 		8-98007-977-0 01 1 0607- ●
19 ADJUSTER; RR BRK
THA 		8-97301-528-0 01 1 0303-0606 ●
19 ADJUSTER; RR BRK
THA 		8-98007-980-0 01 1 0607- ●
19 ADJUSTER; RR BRK
THA 		8-97301-527-0 01 1 0303-0606 ●
19 ADJUSTER; RR BRK
THA 		8-98007-979-0 01 1 0607- ●
21 SPRING; SHOE,RET
(A) THA 		8-97301-501-0 02 1 0303-0606 ●
21 SPRING; SHOE,RET
(A) THA 		8-98008-001-0 02 1 0607- ●
21 SPRING; SHOE,RET
(B) THA 		8-97301-502-0 02 1 0303-0606 ● ●
21 SPRING; SHOE,RET
(B) THA 		8-98008-002-0 02 1 0607- ● ●
21 SPRING; SHOE,RET
(A) THA 		8-97301-523-0 02 1 0303-0606 ●
21 SPRING; SHOE,RET
(A) THA 		8-98008-005-0 02 1 0607- ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97301-491-0 01 1 0303-0606 ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-98007-965-0 01 1 0607- ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97301-490-0 01 1 0303-0606 ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-98007-964-0 01 1 0607- ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97301-520-0 01 1 0303-0606 ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-98007-967-0 01 1 0607- ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97301-519-0 01 1 0303-0606 ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-98007-966-0 01 1 0607- ●
24 RETAINER; PARKING BRK
THA 		8-97301-493-0 02 1 0303- ● ●
26 PLATE; BACK,RR BRK
THA 		8-97301-476-1 01 1 0303- ●
26 PLATE; BACK,RR BRK
THA 		8-97301-474-1 01 1 0303- ●
26 PLATE; BACK,RR BRK
THA 		8-97301-515-1 01 1 0303- ●
26 PLATE; BACK,RR BRK
THA 		8-97301-514-1 01 1 0303- ●
28 COVER; ADJ HOLE
THA 		8-97301-477-0 04 1 0303- ● ●
31 BOLT; RR WHEEL CYL
THA 		8-97333-973-0 04 1 0303-0606 ● ●
31 BOLT; RR WHEEL CYL
THA 		8-98008-015-0 04 1 0607- ● ●
32 WASHER; LK
THA 		8-97301-492-0 02 1 0303- ● ●
33 PIN; SHOE HOLD DOWN
(A) THA 		8-97301-509-0 04 1 0303- ● ●
33 PIN; SHOE HOLD DOWN
(B) THA 		8-97301-511-0 02 1 0303-0606 ● ●
33 PIN; SHOE HOLD DOWN
(B) THA 		8-98008-034-0 02 1 0607- ● ●
94 CYLINDER; WHEEL,RR BRK
THA 		8-97301-478-0 02 1 0303-0606 ● ●
94 CYLINDER; WHEEL,RR BRK
THA 		8-97301-478-0 02 1 0607- ●
94 CYLINDER; WHEEL,RR BRK
THA 		8-97319-300-0 02 1 0607- ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON THA 		5-87832-246-0 01 1 0909- ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON THA 		5-87832-247-0 01 1 0909- ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON THA 		5-87832-026-0 01 1 0303-0606 ● ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON THA 		5-87832-026-0 01 1 0607- ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON THA 		5-87832-068-0 01 1 0607- ●
96 SCREW; BLEEDER,RR BRK
THA 		8-97301-484-0 02 1 0303- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
THA 		8-97301-485-0 02 1 0303- ● ●
98 SPRING; RR WHEEL CYL
THA 		8-97301-483-0 02 1 0303- ● ●
106 SPRING; ADJ LEVER
(B) THA 		8-97301-512-0 02 1 0303-0606 ●
106 SPRING; ADJ LEVER
(B) THA 		8-98009-796-0 02 1 0607- ●
106 SPRING; ADJ LEVER
(A) THA 		8-97301-508-0 01 1 0303-0606 ●
106 SPRING; ADJ LEVER
(A) THA 		8-98008-004-0 01 1 0607- ●
106 SPRING; ADJ LEVER
(A) THA 		8-97301-507-0 01 1 0303-0606 ●
106 SPRING; ADJ LEVER
(A) THA 		8-98008-003-0 01 1 0607- ●
106 SPRING; ADJ LEVER
(B) THA 		8-97301-526-0 02 1 0303-0606 ●
106 SPRING; ADJ LEVER
(B) THA 		8-98009-797-0 02 1 0607- ●
106 SPRING; ADJ LEVER
(A) THA 		8-97301-525-0 01 1 0303-0606 ●
106 SPRING; ADJ LEVER
(A) THA 		8-98008-007-0 01 1 0607- ●
106 SPRING; ADJ LEVER
(A) THA 		8-97301-524-0 01 1 0303-0606 ●
106 SPRING; ADJ LEVER
(A) THA 		8-98008-006-0 01 1 0607- ●
218 SHOE KIT; BRK,RR
(A) THA 		5-87832-091-0 01 1 0303-0311 ●
218 SHOE KIT; BRK,RR
(A) THA 		5-87832-148-0 01 1 0312-0407 ●
218 SHOE KIT; BRK,RR
(A) THA 		5-87832-180-0 01 1 0408-0606 ●
218 SHOE KIT; BRK,RR
(B) THA 		8-98018-035-0 01 1 0607- ●
218 SHOE KIT; BRK,RR
(A) THA 		5-87832-090-0 01 1 0303-0311 ●
218 SHOE KIT; BRK,RR
(A) THA 		5-87832-147-0 01 1 0312-0606 ●
218 SHOE KIT; BRK,RR
(B) THA 		8-98018-036-0 01 1 0607- ●
316 RING; SNAP
THA 		8-97330-511-0 02 1 0303- ● ●
