◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#4078) — 889 parça
çizim 5784
1 1 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J> (B) L=717 		1-37124-807-0 01 1 9911- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL5 M/T<X9F> (B) L=1149 		1-37123-958-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL6 M/T<X9G> (B) L=1039 		1-37123-935-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=1062 		1-37123-826-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9603-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=1080 		1-37124-177-0 01 1 9607-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=1080 		1-37124-177-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9905-9910 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9911-9912 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> RR TIRE 12.00-20<98X> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9607-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9905- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9603-9910 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9911- ● ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=607 		1-37124-224-0 01 1 9708- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9603-9707 ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9905- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1085 		1-37124-176-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1109 		1-37124-052-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (A) L=1224 		1-37151-978-0 01 1 9603- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 9603-9912 ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> EXC. RR TIRE 12.00-20<98X> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
V TYPE ENG<91L> P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=916 		1-37152-112-0 01 1 9603-9803 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT<C5X> (A) L=916 		1-37152-112-0 01 1 9804-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9905-9905 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9906- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=871 		1-37152-114-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=871 		1-37152-114-0 01 1 9905- ● ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAG6 M/T<X9T> (A) L=1162 		1-37151-439-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAL5 M/T<X9F> (A) L=1332 		1-37151-764-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=650 		1-37124-075-0 01 1 9911- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9603-9609 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9610-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9905- ● ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9911- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJD7 M/T<X9J> (A) L=893 		1-37152-215-0 01 1 9911- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9604-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9905- ● ● ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1227 		1-37151-806-0 01 1 9603- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9708-9904 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1167 		1-37152-119-0 01 1 9911- ● ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9603-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9905-9910 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1337 		1-37152-120-0 01 1 9911- ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, BRAKESYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9911- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9610-9907 ●
1 SHAFT; PROP
L TYPE ENG<90L>,V TYPE ENG<91L> P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9908- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1602 		1-37124-188-0 01 1 9603- ●
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9603-9609 ● ● ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-0 01 1 9610-9912 ● ● ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 0001- ● ●
4 SHAFT; PROP
EXC. RR TIRE 12.00-20<98X> L=348 		1-37171-127-1 01 1 0001- ● ● ●
4 SHAFT; PROP
RR TIRE 12.00-20<98X> L=418 		1-37171-129-1 01 1 0001- ● ● ●

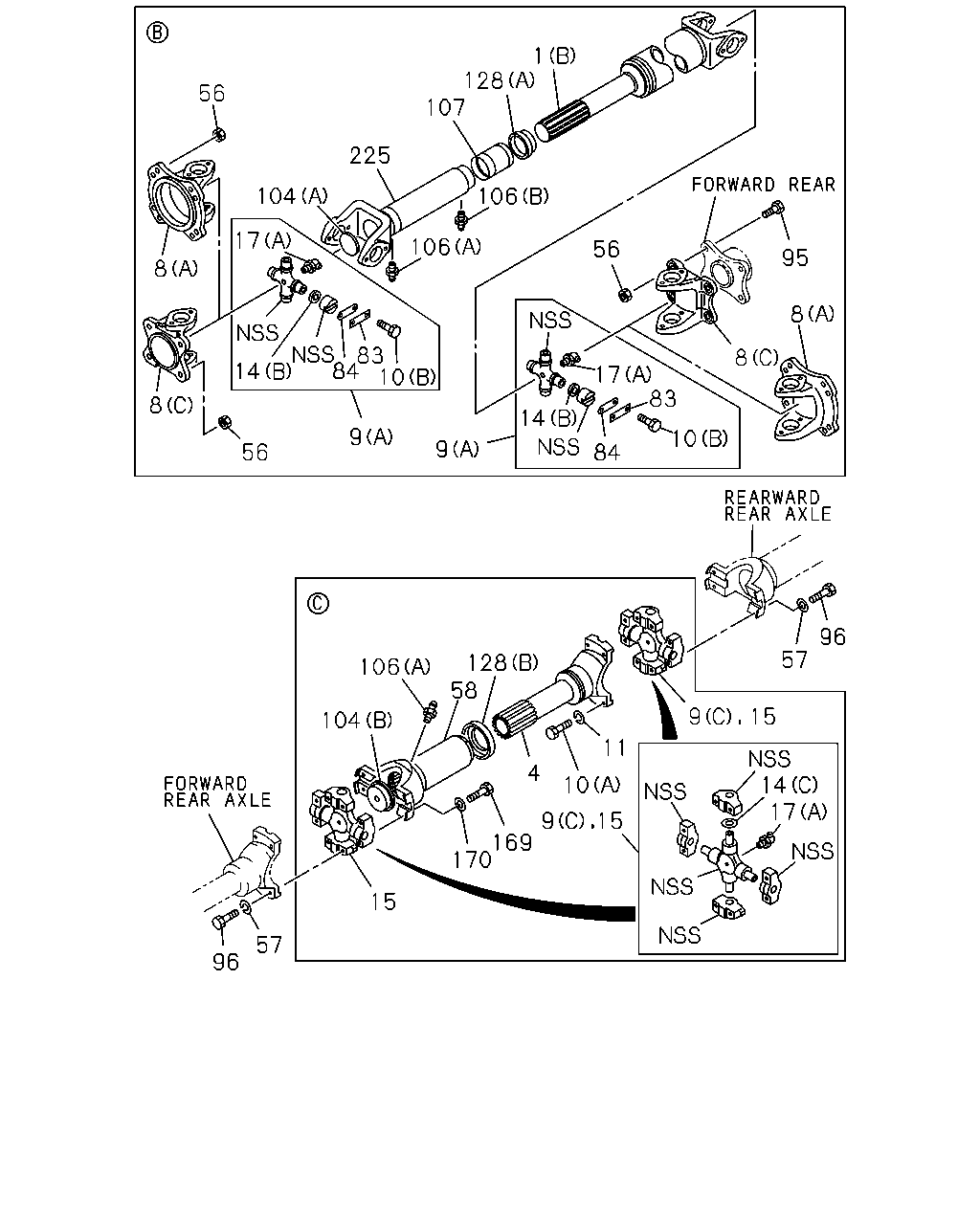

çizim 6306
1 128 107 56 225 104 106 17 106 56 95 8 8 14 84 10 8 17 83 8 14 9 10 9 56 84 96 57 128 58 106 9 15 104 11 14 17 4 10 9 15 169 170 15 57 96 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J> (B) L=717 		1-37124-807-0 01 1 9911- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL5 M/T<X9F> (B) L=1149 		1-37123-958-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL6 M/T<X9G> (B) L=1039 		1-37123-935-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=1062 		1-37123-826-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9603-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=1080 		1-37124-177-0 01 1 9607-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=1080 		1-37124-177-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9905-9910 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9911-9912 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> RR TIRE 12.00-20<98X> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9607-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9905- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9603-9910 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9911- ● ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=607 		1-37124-224-0 01 1 9708- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9603-9707 ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9905- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1085 		1-37124-176-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1109 		1-37124-052-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (A) L=1224 		1-37151-978-0 01 1 9603- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 9603-9912 ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> EXC. RR TIRE 12.00-20<98X> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
V TYPE ENG<91L> P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=916 		1-37152-112-0 01 1 9603-9803 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT<C5X> (A) L=916 		1-37152-112-0 01 1 9804-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9905-9905 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9906- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=871 		1-37152-114-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=871 		1-37152-114-0 01 1 9905- ● ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAG6 M/T<X9T> (A) L=1162 		1-37151-439-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAL5 M/T<X9F> (A) L=1332 		1-37151-764-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=650 		1-37124-075-0 01 1 9911- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9603-9609 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9610-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9905- ● ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9911- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJD7 M/T<X9J> (A) L=893 		1-37152-215-0 01 1 9911- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9604-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9905- ● ● ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1227 		1-37151-806-0 01 1 9603- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9708-9904 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1167 		1-37152-119-0 01 1 9911- ● ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9603-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9905-9910 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1337 		1-37152-120-0 01 1 9911- ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, BRAKESYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9911- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9610-9907 ●
1 SHAFT; PROP
L TYPE ENG<90L>,V TYPE ENG<91L> P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9908- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1602 		1-37124-188-0 01 1 9603- ●
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9603-9609 ● ● ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-0 01 1 9610-9912 ● ● ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 0001- ● ●
4 SHAFT; PROP
EXC. RR TIRE 12.00-20<98X> L=348 		1-37171-127-1 01 1 0001- ● ● ●
4 SHAFT; PROP
RR TIRE 12.00-20<98X> L=418 		1-37171-129-1 01 1 0001- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9603-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9603-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9610-9706 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9707-9904 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9904 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9603-9707 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9708- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9603-9606 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9607- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9603-9606 ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9607-9609 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9610-9904 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37211-069-2 01 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 02 1 9603- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 01 1 9603- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9603-9707 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9708- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9603-9701 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-9707 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9708- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-9606 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9607-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9610- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-0 AR 1 9603- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-0 AR 1 9603- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9603-9707 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9708- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 16 1 9603- ● ● ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9603- ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9603- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9603- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9603- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9603-9707 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9708- ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9603-9606 ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9607-9609 ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9610- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 08 1 9603- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9603-9609 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9610- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 04 1 9603- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9603-9707 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9708- ● ● ●
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9603-9701 ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-0 01 1 9702-9705 ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-1 02 1 9706- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9609 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9610- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706 ● ● ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706 ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9707- ● ● ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707- ● ● ●
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603- ● ● ● ● ●
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707-9904 ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9905- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9603- ● ● ● ● ●
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9603-9701 ● ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9603-9904 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9905- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9603-9606 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9607-9609 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9610- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37356-010-0 04 1 9603- ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9603-9707 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9708- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9603-9606 ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9607-9609 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9610- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 		1-37355-022-0 04 1 9603- ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-9706 ● ● ● ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X48 		1-09000-383-0 08 1 9707- ● ● ● ● ●
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603- ● ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9603- ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9603-9606 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 9603-9606 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9607-9609 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 9607-9609 ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9610- ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 9610- ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9603-9707 ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9708- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-9606 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-9606 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9607-9609 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9610- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-9606 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9607-9707 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9607-9707 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9607-9707 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9708- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9708- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT 		1-09380-006-0 01 1 9603- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT<C2M> 		1-37249-137-1 01 1 9603- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9603- ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9603-9707 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9708- ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9603-9606 ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9607-9609 ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9610- ● ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (A) 		1-37247-021-0 01 1 9603- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9603- ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9603- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 9603-9707 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 9708- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9603-9606 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9607-9609 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9610- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> L=332 		1-37241-109-1 01 1 9603- ● ●

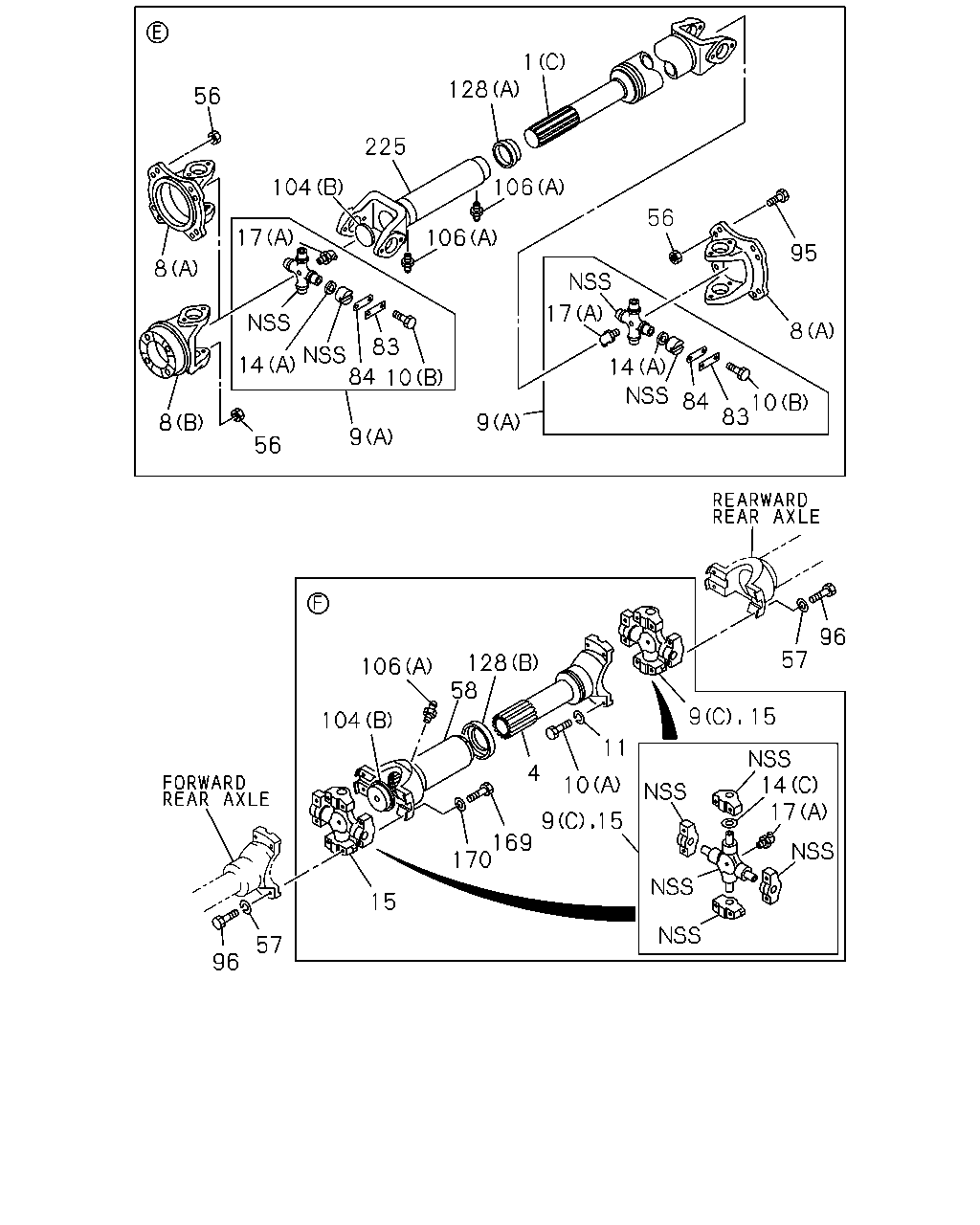

çizim 8178
1 128 56 225 104 106 56 17 106 95 8 17 8 83 84 14 14 10 84 10 83 9 8 9 56 96 57 128 58 106 9 15 104 11 14 17 4 10 9 15 169 170 15 57 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J> (B) L=717 		1-37124-807-0 01 1 9911- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL5 M/T<X9F> (B) L=1149 		1-37123-958-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL6 M/T<X9G> (B) L=1039 		1-37123-935-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=1062 		1-37123-826-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9603-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=1080 		1-37124-177-0 01 1 9607-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=1080 		1-37124-177-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9905-9910 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9911-9912 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> RR TIRE 12.00-20<98X> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9607-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9905- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9603-9910 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9911- ● ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=607 		1-37124-224-0 01 1 9708- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9603-9707 ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9905- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1085 		1-37124-176-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1109 		1-37124-052-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (A) L=1224 		1-37151-978-0 01 1 9603- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 9603-9912 ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> EXC. RR TIRE 12.00-20<98X> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
V TYPE ENG<91L> P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=916 		1-37152-112-0 01 1 9603-9803 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT<C5X> (A) L=916 		1-37152-112-0 01 1 9804-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9905-9905 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9906- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=871 		1-37152-114-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=871 		1-37152-114-0 01 1 9905- ● ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAG6 M/T<X9T> (A) L=1162 		1-37151-439-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAL5 M/T<X9F> (A) L=1332 		1-37151-764-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=650 		1-37124-075-0 01 1 9911- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9603-9609 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9610-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9905- ● ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9911- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJD7 M/T<X9J> (A) L=893 		1-37152-215-0 01 1 9911- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9604-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9905- ● ● ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1227 		1-37151-806-0 01 1 9603- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9708-9904 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1167 		1-37152-119-0 01 1 9911- ● ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9603-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9905-9910 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1337 		1-37152-120-0 01 1 9911- ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, BRAKESYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9911- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9610-9907 ●
1 SHAFT; PROP
L TYPE ENG<90L>,V TYPE ENG<91L> P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9908- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1602 		1-37124-188-0 01 1 9603- ●
4 SHAFT; PROP
L=348 		1-37171-104-0 01 1 9603-9609 ● ● ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-0 01 1 9610-9912 ● ● ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-1 01 1 0001- ● ●
4 SHAFT; PROP
EXC. RR TIRE 12.00-20<98X> L=348 		1-37171-127-1 01 1 0001- ● ● ●
4 SHAFT; PROP
RR TIRE 12.00-20<98X> L=418 		1-37171-129-1 01 1 0001- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9603-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9603-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9610-9706 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9707-9904 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9904 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9603-9707 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9708- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9603-9606 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9607- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9603-9606 ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9607-9609 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9610-9904 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37211-069-2 01 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 02 1 9603- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 01 1 9603- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9603-9707 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9708- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9603-9701 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-9707 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9708- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-9606 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9607-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9610- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-0 AR 1 9603- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-0 AR 1 9603- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9603-9707 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9708- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 16 1 9603- ● ● ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9603- ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9603- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9603- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9603- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9603-9707 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9708- ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9603-9606 ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9607-9609 ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9610- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 08 1 9603- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9603-9609 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9610- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 04 1 9603- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9603-9707 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9708- ● ● ●
15 UNIVERSAL CENTER 1-37300-079-0 01 1 9603-9701 ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-0 01 1 9702-9705 ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-1 02 1 9706- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9609 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9610- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706 ● ● ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9706 ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9707- ● ● ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16 FLANGE 		1-09449-065-0 08 1 9707- ● ● ●
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603- ● ● ● ● ●
56 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9707-9904 ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14 FLANGE 		1-09440-048-0 04 1 9905- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9603- ● ● ● ● ●
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9603-9701 ● ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 9702- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9603-9904 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9905- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9603-9606 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9607-9609 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9610- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37356-010-0 04 1 9603- ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9603-9707 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9708- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9603-9606 ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9607-9609 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9610- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 		1-37355-022-0 04 1 9603- ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-9706 ● ● ● ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X48 		1-09000-383-0 08 1 9707- ● ● ● ● ●
95 BOLT; YOKE,FINAL
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603- ● ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9603- ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9603-9606 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 9603-9606 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9607-9609 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 9607-9609 ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9610- ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 9610- ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9603-9707 ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9708- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-9606 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9603-9606 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9607-9609 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9610- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-9606 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9607-9707 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9607-9707 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9607-9707 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9708- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9708- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT 		1-09380-006-0 01 1 9603- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9603- ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9603-9707 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 9708- ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9603-9606 ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9607-9609 ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 9610- ● ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (A) 		1-37247-021-0 01 1 9603- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9603- ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9603- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 9603-9707 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=332 		1-37241-103-1 01 1 9708- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9603-9606 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9607-9609 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=345 		1-37241-107-1 01 1 9610- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> L=332 		1-37241-109-1 01 1 9603- ● ●

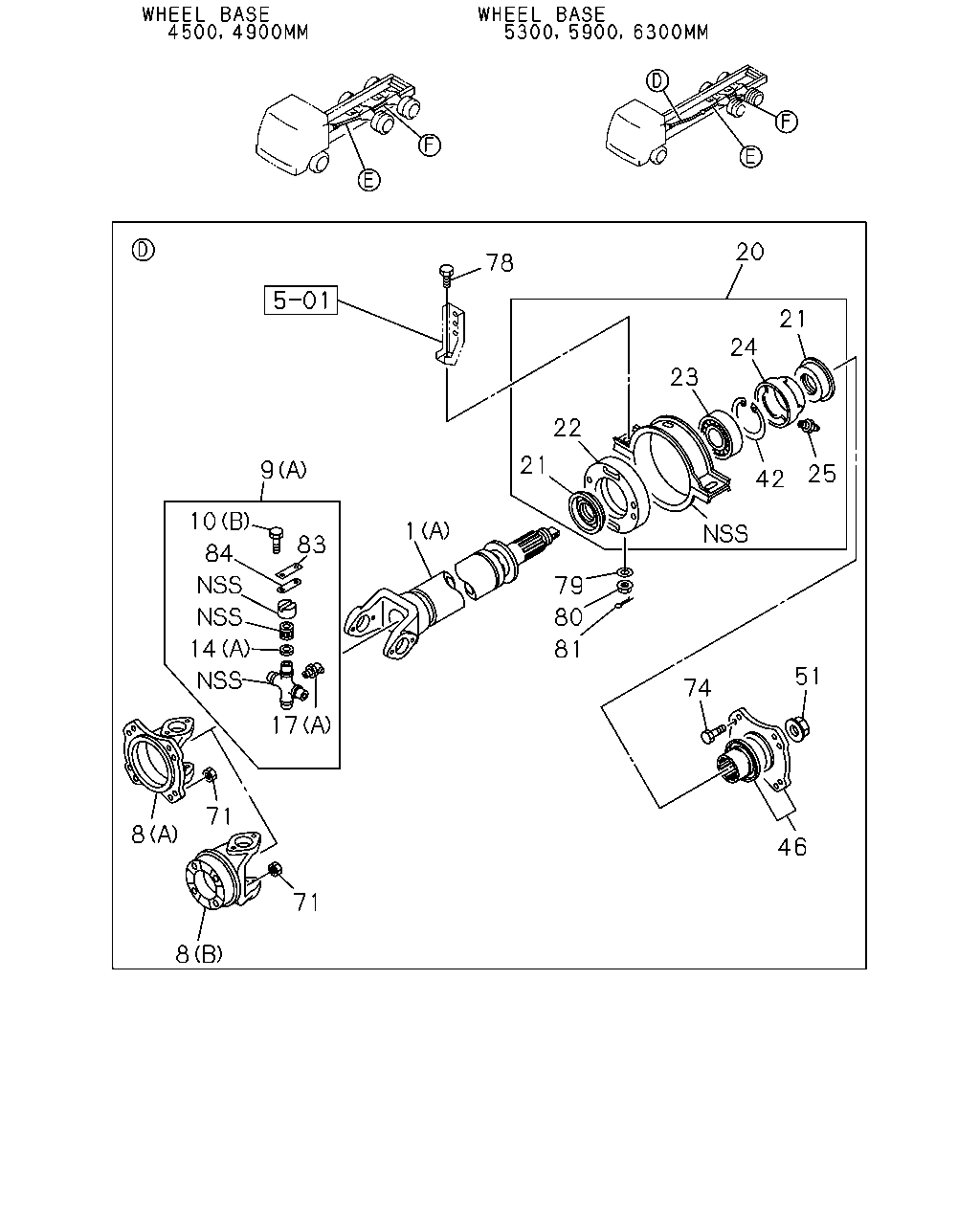

çizim 39860
20 78 21 24 23 22 21 9 25 42 10 1 83 84 79 80 14 81 51 74 17 71 8 46 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J> (B) L=717 		1-37124-807-0 01 1 9911- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL5 M/T<X9F> (B) L=1149 		1-37123-958-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL6 M/T<X9G> (B) L=1039 		1-37123-935-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=1062 		1-37123-826-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9603-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=1080 		1-37124-177-0 01 1 9607-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=1080 		1-37124-177-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9905-9910 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9911-9912 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> RR TIRE 12.00-20<98X> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9607-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9905- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9603-9910 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9911- ● ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=607 		1-37124-224-0 01 1 9708- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9603-9707 ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9905- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1085 		1-37124-176-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1109 		1-37124-052-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (A) L=1224 		1-37151-978-0 01 1 9603- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 9603-9912 ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> EXC. RR TIRE 12.00-20<98X> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
V TYPE ENG<91L> P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=916 		1-37152-112-0 01 1 9603-9803 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT<C5X> (A) L=916 		1-37152-112-0 01 1 9804-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9905-9905 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9906- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=871 		1-37152-114-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=871 		1-37152-114-0 01 1 9905- ● ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAG6 M/T<X9T> (A) L=1162 		1-37151-439-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAL5 M/T<X9F> (A) L=1332 		1-37151-764-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=650 		1-37124-075-0 01 1 9911- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9603-9609 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9610-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9905- ● ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9911- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJD7 M/T<X9J> (A) L=893 		1-37152-215-0 01 1 9911- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9604-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9905- ● ● ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1227 		1-37151-806-0 01 1 9603- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9708-9904 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1167 		1-37152-119-0 01 1 9911- ● ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9603-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9905-9910 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1337 		1-37152-120-0 01 1 9911- ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, BRAKESYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9911- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9610-9907 ●
1 SHAFT; PROP
L TYPE ENG<90L>,V TYPE ENG<91L> P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9908- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1602 		1-37124-188-0 01 1 9603- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9603-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9603-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9610-9706 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9707-9904 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9904 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9603-9707 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9708- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9603-9606 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9607- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9603-9606 ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9607-9609 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9610-9904 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37211-069-2 01 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 02 1 9603- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 01 1 9603- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9603-9707 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9708- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9603-9701 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-9707 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9708- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-9606 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9607-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9610- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-0 AR 1 9603- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-0 AR 1 9603- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9603-9707 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9708- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 16 1 9603- ● ● ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9603- ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9603- ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9603- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9603-9707 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9708- ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9603-9606 ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9607-9609 ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9610- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 08 1 9603- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9603-9609 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9610- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 04 1 9603- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9603-9707 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9708- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9609 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9610- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9603-9609 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9610- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9603- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9603-9707 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9708- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9603-9609 ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9610- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9603- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9603-9707 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9708- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9603-9609 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9610- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9603- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9603-9707 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9708- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9603-9609 ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9610- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9603- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9603-9707 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9708- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9603-9609 ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9610- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9603- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9603-9707 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9708- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9603- ● ● ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT<C5X> 		1-09587-085-0 01 1 9603-9609 ● ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT<C5X> 		1-09587-085-0 01 1 9610- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9603-9609 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9610- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-283-1 01 1 9603- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9603-9707 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9708- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 FLAMGE 		1-09449-040-0 01 1 9603-9609 ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 FLAMGE 		1-09449-040-0 01 1 9610- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M33 FLANGE 		1-09449-051-0 01 1 9603- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 9603-9707 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 9708- ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A>,FULLER M/T<X9B> P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9904 ● ● ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A> P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9905- ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9603-9904 ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9905- ● ● ● ● ●
71 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-9605 ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9606-9904 ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9606-9904 ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9905- ● ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9603- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9603- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9603- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9603- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9603-9904 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9905- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9603-9606 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9607-9609 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9610- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37356-010-0 04 1 9603- ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9603-9707 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9708- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9603-9606 ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9607-9609 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9610- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 		1-37355-022-0 04 1 9603- ● ●
çizim 39939
78 20 21 24 23 22 9 21 25 10 83 84 1 79 80 14 51 81 46 17 8 71 74 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (C) L=1025 		1-37124-174-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1002 		1-37123-846-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (B) L=1172 		1-37124-182-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=890 		1-37124-047-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJD7 M/T<X9J> (B) L=717 		1-37124-807-0 01 1 9911- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL5 M/T<X9F> (B) L=1149 		1-37123-958-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P60 PROP SHAFT<C2M> MAL6 M/T<X9G> (B) L=1039 		1-37123-935-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (B) L=1062 		1-37123-826-0 01 1 9603- ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9603-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=952 		1-37124-181-0 01 1 9905- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (C) L=1080 		1-37124-177-0 01 1 9607-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (C) L=1080 		1-37124-177-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (B) L=1422 		1-37123-967-0 01 1 9905- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9603-9904 ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (B) L=1367 		1-37124-180-0 01 1 9905- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9905-9910 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 9911-9912 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) MJD7 M/T<X9J>,MJA7 M/T<X9Q> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> RR TIRE 12.00-20<98X> (B) L=1067 		1-37124-292-0 01 1 0001- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9607-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9610-9701 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) L=1137 		1-37123-874-0 01 1 9702-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=1137 		1-37123-874-0 01 1 9905- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9603-9910 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=565 		1-37124-175-0 01 1 9911- ● ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=607 		1-37124-224-0 01 1 9708- ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9603-9707 ●
1 SHAFT; PROP
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) L=1236 		1-37152-111-0 01 1 9905- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1085 		1-37124-176-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1109 		1-37124-052-0 01 1 9603- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (A) L=1224 		1-37151-978-0 01 1 9603- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 9603-9912 ●
1 SHAFT; PROP
L TYPE ENG<90L> P90 PROP SHAFT<C5T> EXC. RR TIRE 12.00-20<98X> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
V TYPE ENG<91L> P90 PROP SHAFT<C5T> (B) L=1122 		1-37124-187-0 01 1 0001- ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=916 		1-37152-112-0 01 1 9603-9803 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) P115 PROP SHAFT<C5X> (A) L=916 		1-37152-112-0 01 1 9804-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9905-9905 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) P115 PROP SHAFT<C5X> (A) L=926 		1-37152-567-0 01 1 9906- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L TYPE ENG<90L> (A) L=871 		1-37152-114-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=871 		1-37152-114-0 01 1 9905- ● ● ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAG6 M/T<X9T> (A) L=1162 		1-37151-439-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 0002- ●
1 SHAFT; PROP
10PE1N(61L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MAL5 M/T<X9F> (A) L=1332 		1-37151-764-0 01 1 0002- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=1112 		1-37151-745-0 01 1 9603-9904 ●
1 SHAFT; PROP
L TYPE ENG<90L> P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) (B) L=650 		1-37124-075-0 01 1 9911- ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9603-9609 ●
1 SHAFT; PROP
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9610-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) P115 PROP SHAFT<C5X> (A) L=1087 		1-37152-113-0 01 1 9905- ● ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> BRAKE SYSTEM RETARDER<RE2> MJA7 M/T<X9Q> (A) L=893 		1-37152-215-0 01 1 9911- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> MJD7 M/T<X9J> (A) L=893 		1-37152-215-0 01 1 9911- ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9604-9609 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> EURO2 SPECIFICATION<THN> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-S(56L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) L=898 		1-37152-194-0 01 1 9610-9904 ●
1 SHAFT; PROP
6WA1 TC-N(54L),6WA1 TC-C(55L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=898 		1-37152-194-0 01 1 9905- ● ● ●
1 SHAFT; PROP
8PE1S(59L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> (A) L=1227 		1-37151-806-0 01 1 9603- ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9708-9904 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> (A) L=1167 		1-37152-119-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAG6 M/T<X9T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1167 		1-37152-119-0 01 1 9911- ● ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9603-9904 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> (A) L=1337 		1-37152-120-0 01 1 9905-9910 ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MAL5 M/T<X9F> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1337 		1-37152-120-0 01 1 9911- ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9603-9707 ● ●
1 SHAFT; PROP
10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9708-9904 ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9905-9910 ● ● ●
1 SHAFT; PROP
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, BRAKESYSTEM RETARDER<RE2> (A) L=1117 		1-37152-118-0 01 1 9911- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9610-9907 ●
1 SHAFT; PROP
L TYPE ENG<90L>,V TYPE ENG<91L> P115 PROP SHAFT<C5X> (C) L=1565 		1-37124-303-0 01 1 9908- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1602 		1-37124-188-0 01 1 9603- ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9603-9609 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9603-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9610-9706 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
10PE1S(60L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> (A) 		1-37211-068-1 02 1 9707-9904 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9707-9904 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-37211-068-1 02 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9603-9707 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 02 1 9708- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9603-9606 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-068-1 01 1 9607- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9603-9606 ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9607-9609 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-37211-069-2 01 1 9610-9904 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37211-069-2 01 1 9905- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 02 1 9603- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37211-072-1 01 1 9603- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9603-9707 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (C) 		1-37211-066-1 01 1 9708- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9603-9701 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-0 01 1 9702-9705 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9603-9707 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-091-0 AR 1 9708- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9603-9606 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9607-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-093-0 AR 1 9610- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-094-0 AR 1 9603- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-095-0 AR 1 9603- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9603-9707 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-092-0 AR 1 9708- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 16 1 9603- ● ● ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9603- ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 08 1 9603- ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9603- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9603-9707 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 08 1 9708- ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9603-9606 ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9607-9609 ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 08 1 9610- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 08 1 9603- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9603-9609 ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 04 1 9610- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (B) 		9-37352-023-0 04 1 9603- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9603-9707 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 9708- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9603- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9609 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9610- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9707 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MAL6Q M/T(Y1M) P60 PROP SHAFT<C2M> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9708- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9603-9609 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9610- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9603- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9603-9707 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9708- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9603-9609 ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9610- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9603- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9603-9707 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9708- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9603-9609 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9610- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9603- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9603-9707 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9708- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9603-9609 ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9610- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9603- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9603-9707 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9708- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9603-9609 ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9610- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9603- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9603-9707 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9708- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9603- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9603-9609 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9610- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-283-1 01 1 9603- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9603-9707 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9708- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 FLAMGE 		1-09449-040-0 01 1 9603-9609 ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 FLAMGE 		1-09449-040-0 01 1 9610- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M33 FLANGE 		1-09449-051-0 01 1 9603- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 9603-9707 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 9708- ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A>,FULLER M/T<X9B> P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9603-9904 ● ● ● ● ●
71 NUT; YOKE
ISUZU M/T<X9A> P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9905- ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9603-9904 ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9905- ● ● ● ● ●
71 NUT; YOKE
EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 9603- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9603-9605 ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9606-9904 ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9606-9904 ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9905- ● ● ●
74 BOLT; YOKE,TRANS
EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 9603- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9603- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9603- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9603- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9603- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9603-9904 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37356-008-0 04 1 9905- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9603-9606 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9607-9609 ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-009-0 04 1 9610- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37356-010-0 04 1 9603- ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9603-9707 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-020-0 04 1 9708- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9603-9606 ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9607-9609 ● ● ● ●
84 COVER; UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37355-021-0 04 1 9610- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 		1-37355-022-0 04 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
