◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#40777) — 83 parça

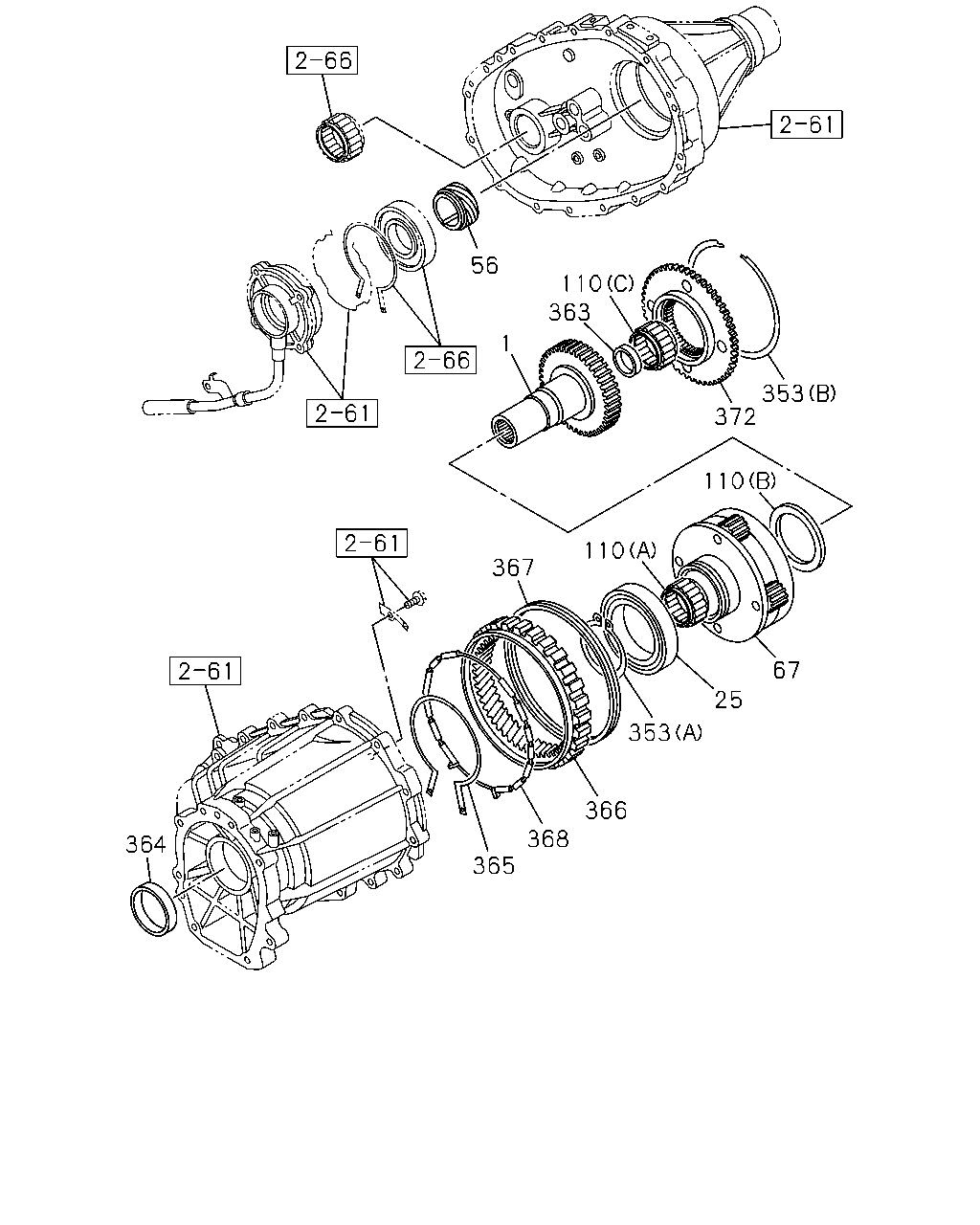

çizim 49867
56 110 363 1 353 372 110 110 367 67 25 353 366 364 368 365
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; GEAR,INPUT
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97231-827-1 01 1 0303-0310
1 SHAFT; GEAR,INPUT
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> IMA 		8-97373-467-0 01 1 0311-0408
1 SHAFT; GEAR,INPUT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97373-467-0 01 1 0409-0412
1 SHAFT; GEAR,INPUT
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97373-467-0 01 1 0501-0508
1 SHAFT; GEAR,INPUT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97373-467-0 01 1 0509-0606
1 SHAFT; GEAR,INPUT
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97373-467-0 01 1 0607-
25 BEARING; BALL,INPUT SHAFT
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> NSK IMA 		8-97234-735-0 01 1 0303-0408
25 BEARING; BALL,INPUT SHAFT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NSK IMA 		8-97234-735-0 01 1 0409-0412
25 BEARING; BALL,INPUT SHAFT
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NSK IMA 		8-97234-735-0 01 1 0501-0508
25 BEARING; BALL,INPUT SHAFT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NSK IMA 		8-97234-735-0 01 1 0509-0606
25 BEARING; BALL,INPUT SHAFT
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> NSK IMA 		8-97234-735-0 01 1 0607-
56 GEAR; SPD DRIVE,TRANSFER
A/T 4 SPEED-JATCO<RMK> Z=5 THA 		8-97238-580-0 01 1 0303-0408
56 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED<RMN> Z=6 IMA 		8-97238-581-0 01 1 0303-0408
56 GEAR; SPD DRIVE,TRANSFER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=6 IMA 		8-97238-581-0 01 1 0409-0412
56 GEAR; SPD DRIVE,TRANSFER
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=6 IMA 		8-97238-581-0 01 1 0501-0508
56 GEAR; SPD DRIVE,TRANSFER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=6 IMA 		8-97238-581-0 01 1 0509-0606
56 GEAR; SPD DRIVE,TRANSFER
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=6 IMA 		8-97238-581-0 01 1 0607-
67 CARRIER; TRANSFER
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97252-987-1 01 1 0303-0408
67 CARRIER; TRANSFER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97252-987-1 01 1 0409-0412
67 CARRIER; TRANSFER
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97252-987-1 01 1 0501-0508
67 CARRIER; TRANSFER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97252-987-1 01 1 0509-0606
67 CARRIER; TRANSFER
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97252-987-1 01 1 0607-1001
67 CARRIER; TRANSFER
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-98158-116-0 01 1 1002-
110 BEARING; NEEDLE
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (A) IMA 		8-97234-739-0 01 1 0303-0408
110 BEARING; NEEDLE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) IMA 		8-97234-739-0 01 1 0409-0412
110 BEARING; NEEDLE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) IMA 		8-97234-739-0 01 1 0501-0508
110 BEARING; NEEDLE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) IMA 		8-97234-739-0 01 1 0509-0606
110 BEARING; NEEDLE
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) IMA 		8-97234-739-0 01 1 0607-
110 BEARING; NEEDLE
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) IMA 		8-97234-741-0 01 1 0303-0408
110 BEARING; NEEDLE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) IMA 		8-97234-741-0 01 1 0409-0412
110 BEARING; NEEDLE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) IMA 		8-97234-741-0 01 1 0501-0508
110 BEARING; NEEDLE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) IMA 		8-97234-741-0 01 1 0509-0606
110 BEARING; NEEDLE
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) IMA 		8-97234-741-0 01 1 0607-
110 BEARING; NEEDLE
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (C) IMA 		8-97234-743-0 01 1 0303-0408
110 BEARING; NEEDLE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) IMA 		8-97234-743-0 01 1 0409-0412
110 BEARING; NEEDLE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) IMA 		8-97234-743-0 01 1 0501-0508
110 BEARING; NEEDLE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (C) IMA 		8-97234-743-0 01 1 0509-0606
110 BEARING; NEEDLE
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) IMA 		8-97234-743-0 01 1 0607-
353 RING; SNAP,CARRIER
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0303-0408
353 RING; SNAP,CARRIER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0409-0412
353 RING; SNAP,CARRIER
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0501-0508
353 RING; SNAP,CARRIER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0509-0606
353 RING; SNAP,CARRIER
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=65.5 IMA 		8-97305-403-0 01 1 0607-
353 RING; SNAP,CARRIER
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) ID=137 IMA 		8-97305-406-0 01 1 0303-0408
353 RING; SNAP,CARRIER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) ID=137 IMA 		8-97305-406-0 01 1 0409-0412
353 RING; SNAP,CARRIER
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) ID=137 IMA 		8-97305-406-0 01 1 0501-0508
353 RING; SNAP,CARRIER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) ID=137 IMA 		8-97305-406-0 01 1 0509-0606
353 RING; SNAP,CARRIER
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) ID=137 IMA 		8-97305-406-0 01 1 0607-
363 CAP; SEAL,INPUT SHAFT
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> IMA 		8-97238-725-0 01 1 0303-0408
363 CAP; SEAL,INPUT SHAFT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97238-725-0 01 1 0409-0412
363 CAP; SEAL,INPUT SHAFT
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97238-725-0 01 1 0501-0508
363 CAP; SEAL,INPUT SHAFT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> IMA 		8-97238-725-0 01 1 0509-0606
363 CAP; SEAL,INPUT SHAFT
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> IMA 		8-97238-725-0 01 1 0607-
364 SEAL; OIL,COVER,INPUT
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> NOK IMA 		8-97238-999-0 01 1 0303-0408
364 SEAL; OIL,COVER,INPUT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NOK IMA 		8-97238-999-0 01 1 0409-0412
364 SEAL; OIL,COVER,INPUT
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NOK IMA 		8-97238-999-0 01 1 0501-0508
364 SEAL; OIL,COVER,INPUT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> NOK IMA 		8-97238-999-0 01 1 0509-0606
364 SEAL; OIL,COVER,INPUT
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> NOK IMA 		8-97238-999-0 01 1 0607-
365 RING; RETAINING,OUTER INPUT
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> ID=97 IMA 		8-97305-010-1 01 1 0303-0408
365 RING; RETAINING,OUTER INPUT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=97 IMA 		8-97305-010-1 01 1 0409-0412
365 RING; RETAINING,OUTER INPUT
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=97 IMA 		8-97305-010-1 01 1 0501-0508
365 RING; RETAINING,OUTER INPUT
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=97 IMA 		8-97305-010-1 01 1 0509-0606
365 RING; RETAINING,OUTER INPUT
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=97 IMA 		8-97305-010-1 01 1 0607-
366 GEAR; INTERNAL,HIGH-LOW
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> Z=27 IMA 		8-97231-831-2 01 1 0303-0408
366 GEAR; INTERNAL,HIGH-LOW
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=27 IMA 		8-97231-831-2 01 1 0409-0412
366 GEAR; INTERNAL,HIGH-LOW
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=27 IMA 		8-97231-831-2 01 1 0501-0508
366 GEAR; INTERNAL,HIGH-LOW
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=27 IMA 		8-97231-831-2 01 1 0509-0606
366 GEAR; INTERNAL,HIGH-LOW
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=27 IMA 		8-97231-831-2 01 1 0607-
367 RING; RETAINING,SPIRAL TYPE
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0303-0408
367 RING; RETAINING,SPIRAL TYPE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0409-0412
367 RING; RETAINING,SPIRAL TYPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0501-0508
367 RING; RETAINING,SPIRAL TYPE
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0509-0606
367 RING; RETAINING,SPIRAL TYPE
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=162 OD=176 IMA 		8-97247-459-0 01 1 0607-
368 RING; DAMPER,TRANSFER
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0303-0408
368 RING; DAMPER,TRANSFER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0409-0412
368 RING; DAMPER,TRANSFER
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0501-0508
368 RING; DAMPER,TRANSFER
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0509-0606
368 RING; DAMPER,TRANSFER
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 0607-
372 TEETH; DOG,PLANETARY
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> Z=56 IMA 		8-97358-244-0 01 1 0303-0408
372 TEETH; DOG,PLANETARY
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=56 IMA 		8-97358-244-0 01 1 0409-0412
372 TEETH; DOG,PLANETARY
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=56 IMA 		8-97358-244-0 01 1 0501-0508
372 TEETH; DOG,PLANETARY
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> Z=56 IMA 		8-97358-244-0 01 1 0509-0606
372 TEETH; DOG,PLANETARY
4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> Z=56 IMA 		8-97358-244-0 01 1 0607-
