◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#40773) — 15 parça

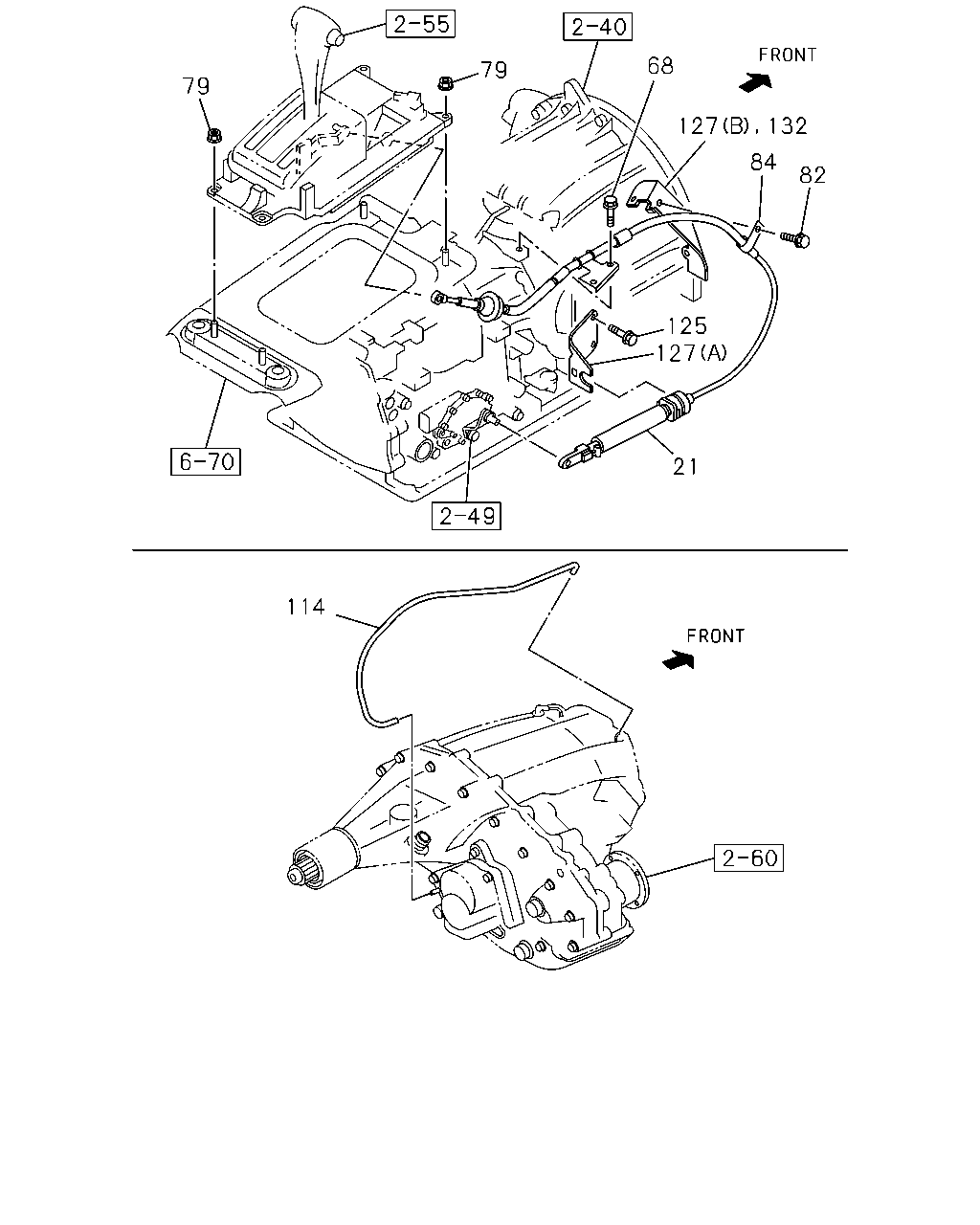

çizim 49866
68 79 79 127 132 84 82 125 127 21 114
BalonParca AdiParca NoAdetTipApplied Date A B
21 CABLE; A/T
THA 		8-97301-821-1 01 1 0303-0303 ●
21 CABLE; A/T
THA 		8-97363-357-0 01 1 0303- ●
68 BOLT; A/T CONT CABLE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0303- ●
79 NUT; CONT CABLE
M6 FLANGE THA 		8-97063-399-0 04 1 0303-0702 ●
79 NUT; CONT CABLE
M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ●
82 BOLT; A/T CONT CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 0303- ●
84 CLIP; A/T CONT CABLE
ID=11 L=28 THA 		9-09525-052-0 01 1 0303-0408 ●
84 CLIP; A/T CONT CABLE
ID=11 L=28 THA 		8-97367-952-0 01 1 0409-0702 ●
84 CLIP; A/T CONT CABLE
ID=11 L=28 THA 		0-95235-052-0 01 1 0703- ●
114 HOSE; BREATHER
4X4<TFS***> THA 		8-97236-081-0 01 1 0303-0606 ● ●
114 HOSE; BREATHER
4X4<TFS***> THA 		8-97326-218-0 01 1 0607- ● ●
125 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 02 1 0303- ●
127 BRACKET; A/T CONT CABLE
(A) THA 		8-97236-021-1 01 1 0303- ●
127 BRACKET; A/T CONT CABLE
(B) THA 		8-97301-831-1 01 1 0409- ●
132 BRACKET; A/T CONT CABLE
THA 		8-97301-831-1 01 1 0303-0408 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
