2-53 — TRANSMISSION OIL COOLER SYSTEM (#40771) — 46 parça

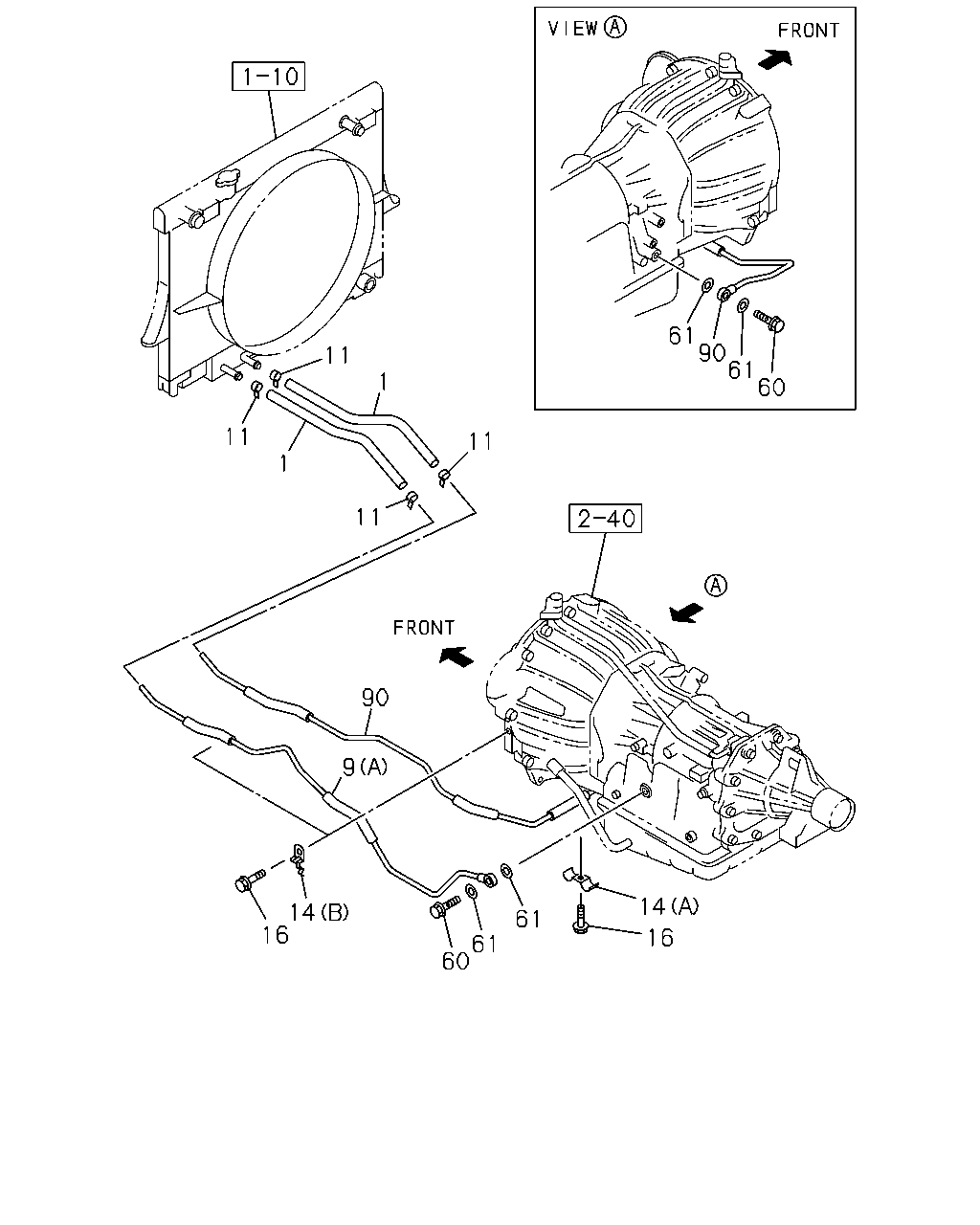

61 90 61 60 11 1 11 11 1 11 90 9 14 14 16 61 16 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF 4JH1 ENG<RJX> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0303-0408
1	HOSE; ATF 4JJ1 ENG<LFB> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0409-
9	PIPE; ATF,INL,A/T 4JH1 ENG<RJX> (A) THA	8-97941-850-0	01	1	0303-0306
9	PIPE; ATF,INL,A/T 4JH1 ENG<RJX> (A) THA	8-97368-297-0	01	1	0307-0408
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (C) THA	8-97363-584-1	01	1	0409-0712
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (C) THA	8-97946-403-0	01	1	0801-
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (B) THA	8-97363-585-2	01	1	0409-0712
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (B) THA	8-97946-404-0	01	1	0801-
11	CLIP; PIPE 4JH1 ENG<RJX> ID=13.5 THA	8-97015-754-1	04	1	0303-0408
11	CLIP; PIPE 4JJ1 ENG<LFB> ID=13.5 THA	8-97015-754-1	04	1	0409-0606
11	CLIP; PIPE 4JJ1 ENG<LFB> THA	8-98008-165-0	04	1	0607-
14	CLIP; PIPE TO ENG SIDE 4JH1 ENG<RJX> (A) THA	8-94334-345-1	01	1	0303-0408
14	CLIP; PIPE TO ENG SIDE 4JJ1 ENG<LFB> (C) THA	8-97177-700-0	03	1	0409-0606
14	CLIP; PIPE TO ENG SIDE 4JJ1 ENG<LFB> (C) THA	8-98008-163-0	03	1	0607-
14	CLIP; PIPE TO ENG SIDE 4JH1 ENG<RJX> (B) THA	8-97062-040-0	02	1	0303-0408
16	BOLT; CLIP,ENG SIDE 4JH1 ENG<RJX> M8X16 FLANGE THA	0-28050-816-0	03	1	0303-0408
16	BOLT; CLIP,ENG SIDE 4JJ1 ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	03	1	0409-
60	BOLT; EYE,ATF PIPE 4JH1 ENG<RJX> THA	1-09675-033-0	02	1	0303-0408
60	BOLT; EYE,ATF PIPE 4JJ1 ENG<LFB> THA	1-09675-033-0	02	1	0409-
61	GASKET; EYE BOLT,ATF PIPE 4JH1 ENG<RJX> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0303-0408
61	GASKET; EYE BOLT,ATF PIPE 4JJ1 ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0409-
90	PIPE ASM; ATF 4JH1 ENG<RJX> THA	8-97941-851-2	01	1	0303-0306
90	PIPE ASM; ATF 4JH1 ENG<RJX> THA	8-97368-298-0	01	1	0307-0408

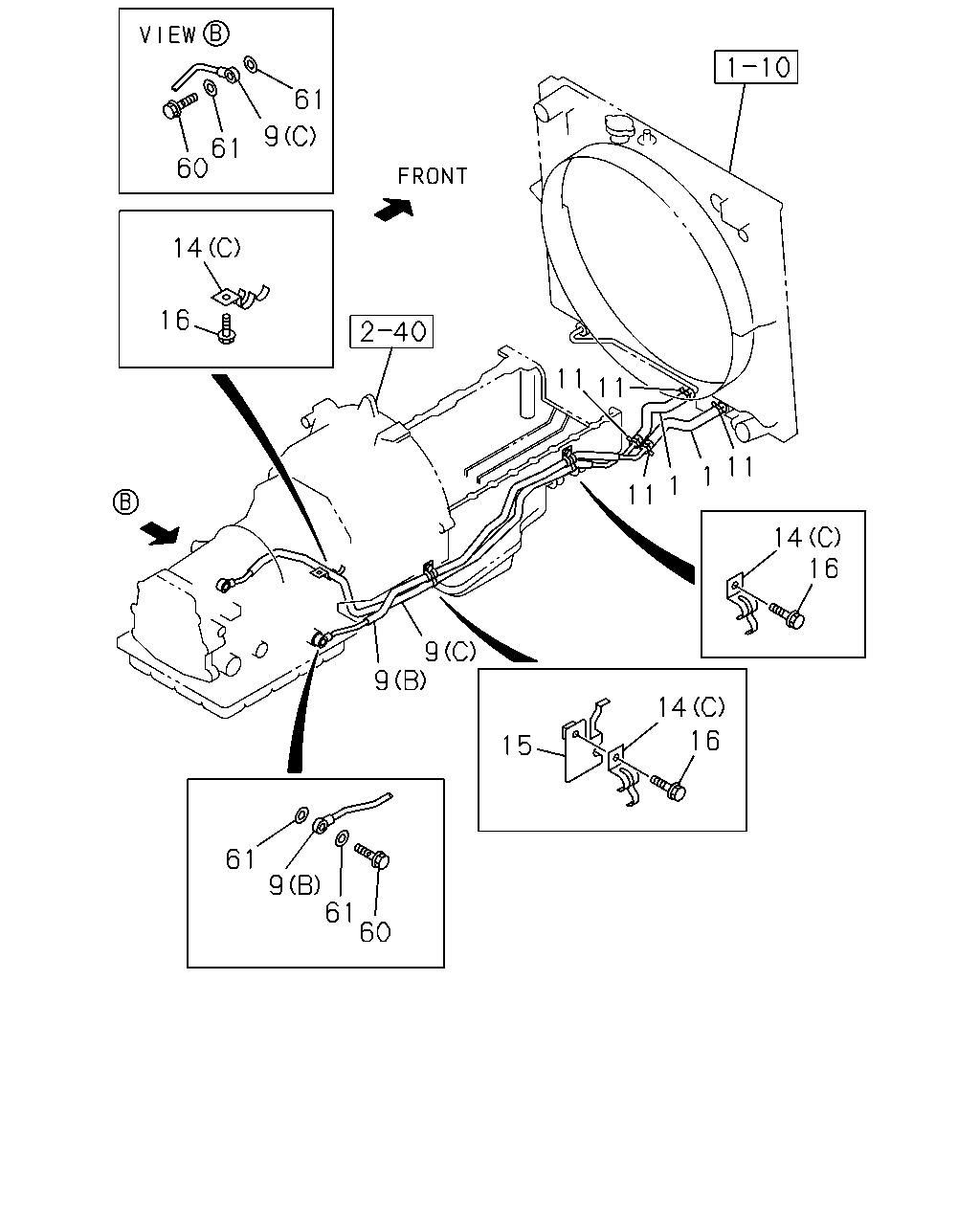

61 9 61 60 14 16 11 11 11 1 1 11 14 16 9 9 14 16 15 61 9 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF 4JH1 ENG<RJX> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0303-0408
1	HOSE; ATF 4JJ1 ENG<LFB> L=250 SERVICED BY L=3000 THA	0-02259-300-0	02	1	0409-
9	PIPE; ATF,INL,A/T 4JH1 ENG<RJX> (A) THA	8-97941-850-0	01	1	0303-0306
9	PIPE; ATF,INL,A/T 4JH1 ENG<RJX> (A) THA	8-97368-297-0	01	1	0307-0408
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (C) THA	8-97363-584-1	01	1	0409-0712
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (C) THA	8-97946-403-0	01	1	0801-
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (B) THA	8-97363-585-2	01	1	0409-0712
9	PIPE; ATF,INL,A/T 4JJ1 ENG<LFB> (B) THA	8-97946-404-0	01	1	0801-
11	CLIP; PIPE 4JH1 ENG<RJX> ID=13.5 THA	8-97015-754-1	04	1	0303-0408
11	CLIP; PIPE 4JJ1 ENG<LFB> ID=13.5 THA	8-97015-754-1	04	1	0409-0606
11	CLIP; PIPE 4JJ1 ENG<LFB> THA	8-98008-165-0	04	1	0607-
14	CLIP; PIPE TO ENG SIDE 4JH1 ENG<RJX> (A) THA	8-94334-345-1	01	1	0303-0408
14	CLIP; PIPE TO ENG SIDE 4JJ1 ENG<LFB> (C) THA	8-97177-700-0	03	1	0409-0606
14	CLIP; PIPE TO ENG SIDE 4JJ1 ENG<LFB> (C) THA	8-98008-163-0	03	1	0607-
14	CLIP; PIPE TO ENG SIDE 4JH1 ENG<RJX> (B) THA	8-97062-040-0	02	1	0303-0408
15	BRACKET; ATF PIPE 4JJ1 ENG<LFB> THA	8-97944-139-1	01	1	0409-0609
15	BRACKET; ATF PIPE 4JJ1 ENG<LFB> THA	8-98050-694-0	01	1	0610-
16	BOLT; CLIP,ENG SIDE 4JH1 ENG<RJX> M8X16 FLANGE THA	0-28050-816-0	03	1	0303-0408
16	BOLT; CLIP,ENG SIDE 4JJ1 ENG<LFB> M8X16 FLANGE THA	0-28050-816-0	03	1	0409-
60	BOLT; EYE,ATF PIPE 4JH1 ENG<RJX> THA	1-09675-033-0	02	1	0303-0408
60	BOLT; EYE,ATF PIPE 4JJ1 ENG<LFB> THA	1-09675-033-0	02	1	0409-
61	GASKET; EYE BOLT,ATF PIPE 4JH1 ENG<RJX> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0303-0408
61	GASKET; EYE BOLT,ATF PIPE 4JJ1 ENG<LFB> ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0409-
