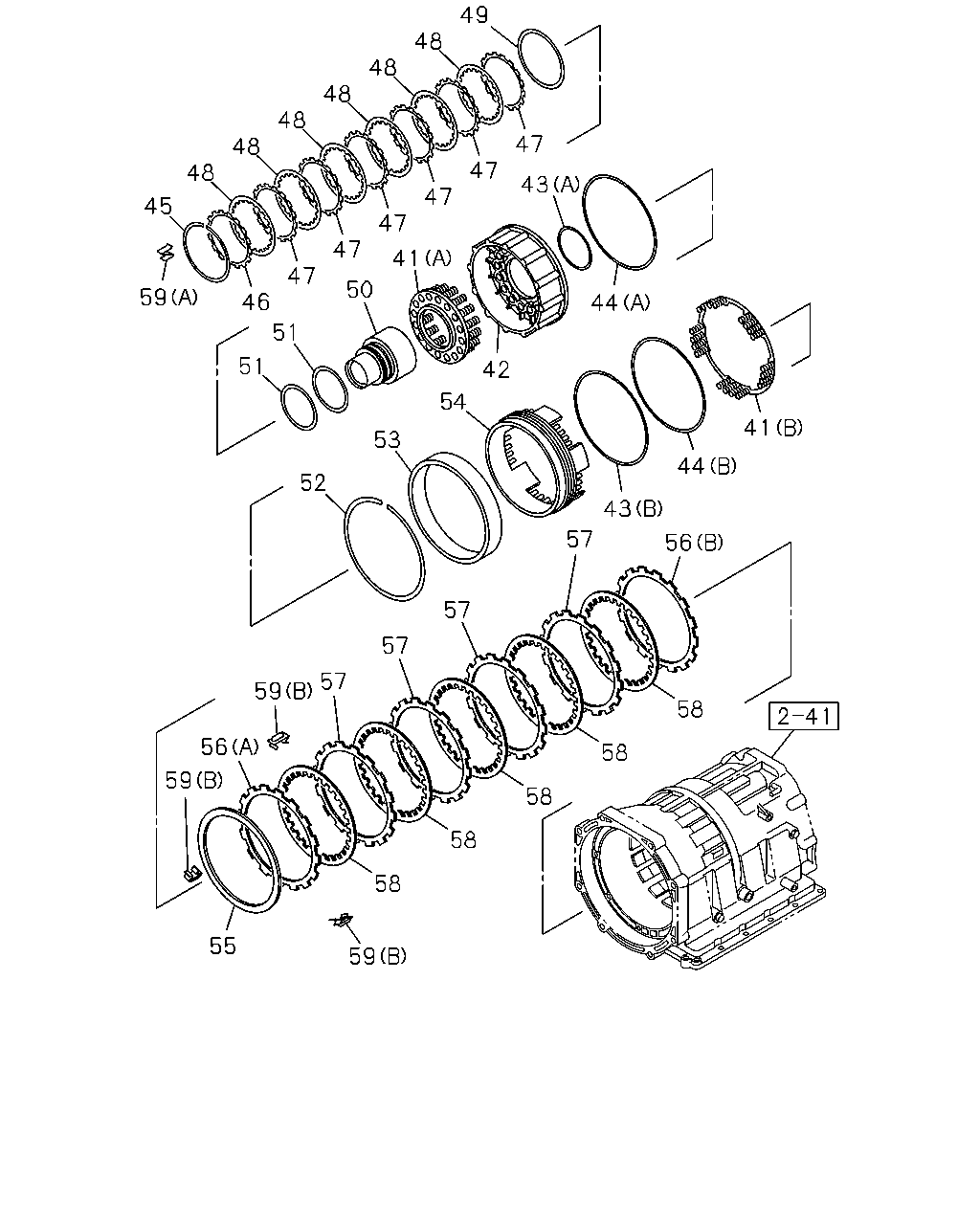

2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#40770) — 70 parça

49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 57 57 57 59 58 56 58 59 58 58 58 55 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SPRING; RETURN,PISTON,BRAKE 4JH1 ENG<RJX> (A) THA	8-97331-047-0	01	1	0303-0408
41	SPRING; RETURN,PISTON,BRAKE 4JJ1 ENG<LFB> (A) THA	8-97331-047-0	01	1	0409-
41	SPRING; RETURN,PISTON,BRAKE 4JH1 ENG<RJX> (B) THA	8-97331-048-0	01	1	0303-0408
41	SPRING; RETURN,PISTON,BRAKE 4JJ1 ENG<LFB> (B) THA	8-97331-048-0	01	1	0409-
42	PISTON; LOW BRAKE 4JH1 ENG<RJX> THA	8-97331-046-0	01	1	0303-0408
42	PISTON; LOW BRAKE 4JJ1 ENG<LFB> THA	8-97331-046-0	01	1	0409-
43	SEAL; BRAKE PISTON,INNER 4JH1 ENG<RJX> (A) THA	8-94483-385-0	01	1	0303-0408
43	SEAL; BRAKE PISTON,INNER 4JJ1 ENG<LFB> (A) THA	8-94483-385-0	01	1	0409-
43	SEAL; BRAKE PISTON,INNER 4JH1 ENG<RJX> (B) THA	8-97330-992-0	01	1	0303-0408
43	SEAL; BRAKE PISTON,INNER 4JJ1 ENG<LFB> (B) THA	8-97330-992-0	01	1	0409-
44	SEAL; BRAKE PISTON,OUTER 4JH1 ENG<RJX> (A) THA	8-94483-382-0	01	1	0303-0408
44	SEAL; BRAKE PISTON,OUTER 4JJ1 ENG<LFB> (A) THA	8-94483-382-0	01	1	0409-
44	SEAL; BRAKE PISTON,OUTER 4JH1 ENG<RJX> (B) THA	8-97330-993-0	01	1	0303-0408
44	SEAL; BRAKE PISTON,OUTER 4JJ1 ENG<LFB> (B) THA	8-97330-993-0	01	1	0409-
45	RING; SNAP,LOW BRAKE PLATE 4JH1 ENG<RJX> THA	8-97330-964-0	01	1	0303-0408
45	RING; SNAP,LOW BRAKE PLATE 4JJ1 ENG<LFB> THA	8-97330-964-0	01	1	0409-
46	PLATE; RET,LOW BRAKE 4JH1 ENG<RJX> T=5.2 THA	8-97331-051-0	01	1	0303-0408
46	PLATE; RET,LOW BRAKE 4JJ1 ENG<LFB> T=5.2 THA	8-97331-051-0	01	1	0409-
46	PLATE; RET,LOW BRAKE 4JH1 ENG<RJX> T=5.4 THA	8-97331-052-0	01	1	0303-0408
46	PLATE; RET,LOW BRAKE 4JJ1 ENG<LFB> T=5.4 THA	8-97331-052-0	01	1	0409-
46	PLATE; RET,LOW BRAKE 4JH1 ENG<RJX> T=5.6 THA	8-97331-053-0	01	1	0303-0408
46	PLATE; RET,LOW BRAKE 4JJ1 ENG<LFB> T=5.6 THA	8-97331-053-0	01	1	0409-
46	PLATE; RET,LOW BRAKE 4JH1 ENG<RJX> T=5.8 THA	8-97331-054-0	01	1	0303-0408
46	PLATE; RET,LOW BRAKE 4JJ1 ENG<LFB> T=5.8 THA	8-97331-054-0	01	1	0409-
46	PLATE; RET,LOW BRAKE 4JH1 ENG<RJX> T=6.0 THA	8-97331-055-0	01	1	0303-0408
46	PLATE; RET,LOW BRAKE 4JJ1 ENG<LFB> T=6.0 THA	8-97331-055-0	01	1	0409-
47	PLATE; DRIVEN,LOW BRAKE 4JH1 ENG<RJX> THA	8-97331-050-0	06	1	0303-0408
47	PLATE; DRIVEN,LOW BRAKE 4JJ1 ENG<LFB> THA	8-97331-050-0	06	1	0409-
48	PLATE; DRIVE,LOW BRAKE 4JH1 ENG<RJX> THA	8-97330-996-0	06	1	0303-0408
48	PLATE; DRIVE,LOW BRAKE 4JJ1 ENG<LFB> THA	8-97330-996-0	06	1	0409-
49	PLATE; DISHED,LOW BRAKE 4JH1 ENG<RJX> THA	8-97331-001-0	01	1	0303-0408
49	PLATE; DISHED,LOW BRAKE 4JJ1 ENG<LFB> THA	8-97331-001-0	01	1	0409-
50	SUPPORT; LOW BRAKE 4JH1 ENG<RJX> THA	8-97330-958-0	01	1	0303-0408
50	SUPPORT; LOW BRAKE 4JJ1 ENG<LFB> THA	8-97330-958-0	01	1	0409-
51	RING; SEAL,SUPPORT 4JH1 ENG<RJX> THA	8-97330-982-0	02	1	0303-0408
51	RING; SEAL,SUPPORT 4JJ1 ENG<LFB> THA	8-97330-982-0	02	1	0409-
52	RING; SNAP,RET,2 & 4 BRAKE 4JH1 ENG<RJX> THA	8-97330-972-0	01	1	0303-0408
52	RING; SNAP,RET,2 & 4 BRAKE 4JJ1 ENG<LFB> THA	8-97330-972-0	01	1	0409-
53	RETAINER; PISTON,2 & 4 BRAKE 4JH1 ENG<RJX> THA	8-97331-045-0	01	1	0303-0408
53	RETAINER; PISTON,2 & 4 BRAKE 4JJ1 ENG<LFB> THA	8-97331-045-0	01	1	0409-
54	PISTON; 2 & 4 BRAKE 4JH1 ENG<RJX> THA	8-97331-042-0	01	1	0303-0408
54	PISTON; 2 & 4 BRAKE 4JJ1 ENG<LFB> THA	8-97331-042-0	01	1	0409-
55	PLATE; DISHED,2 & 4 BRAKE 4JH1 ENG<RJX> THA	8-97331-002-0	01	1	0303-0408
55	PLATE; DISHED,2 & 4 BRAKE 4JJ1 ENG<LFB> THA	8-97331-002-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=5.6 THA	8-98126-858-0	01	1	0712-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=5.0 THA	8-97331-025-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=5.0 THA	8-97331-025-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=5.2 THA	8-97331-026-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=5.2 THA	8-97331-026-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=5.4 THA	8-97331-027-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=5.4 THA	8-97331-027-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (B) T=5.6 THA	8-97331-028-0	02	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (B) T=5.6 THA	8-97331-028-0	02	1	0409-0711
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (B) T=5.6 THA	8-97331-028-0	01	1	0712-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=5.8 THA	8-97331-029-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=5.8 THA	8-97331-029-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=6.0 THA	8-97331-030-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=6.0 THA	8-97331-030-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=6.2 THA	8-97331-031-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=6.2 THA	8-97331-031-0	01	1	0409-
56	PLATE; RET,2 & 4 BRAKE 4JH1 ENG<RJX> (A) T=6.4 THA	8-97331-032-0	01	1	0303-0408
56	PLATE; RET,2 & 4 BRAKE 4JJ1 ENG<LFB> (A) T=6.4 THA	8-97331-032-0	01	1	0409-
57	PLATE; DRIVEN,2 & 4 BRAKE 4JH1 ENG<RJX> THA	8-97331-009-0	04	1	0303-0408
57	PLATE; DRIVEN,2 & 4 BRAKE 4JJ1 ENG<LFB> THA	8-97331-009-0	04	1	0409-
58	PLATE; DRIVE,2 & 4 BRAKE 4JH1 ENG<RJX> THA	8-97330-999-0	05	1	0303-0408
58	PLATE; DRIVE,2 & 4 BRAKE 4JJ1 ENG<LFB> THA	8-97330-999-0	05	1	0409-
59	SPRING; PLATE HOLD 4JH1 ENG<RJX> (A) THA	8-97331-043-0	01	1	0303-0408
59	SPRING; PLATE HOLD 4JJ1 ENG<LFB> (A) THA	8-97331-043-0	01	1	0409-
59	SPRING; PLATE HOLD 4JH1 ENG<RJX> (B) THA	8-97331-044-0	03	1	0303-0408
59	SPRING; PLATE HOLD 4JJ1 ENG<LFB> (B) THA	8-97331-044-0	03	1	0409-
