◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#4077) — 192 parça
çizim 116161
274 271 268 209 285 281 280 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9510-0708 ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0604 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9510-0708 ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0604 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 9510- ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9510- ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9510-0603 ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0604- ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER 		0-50041-020-0 04 1 9510-9606 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9607-0512 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601- ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●

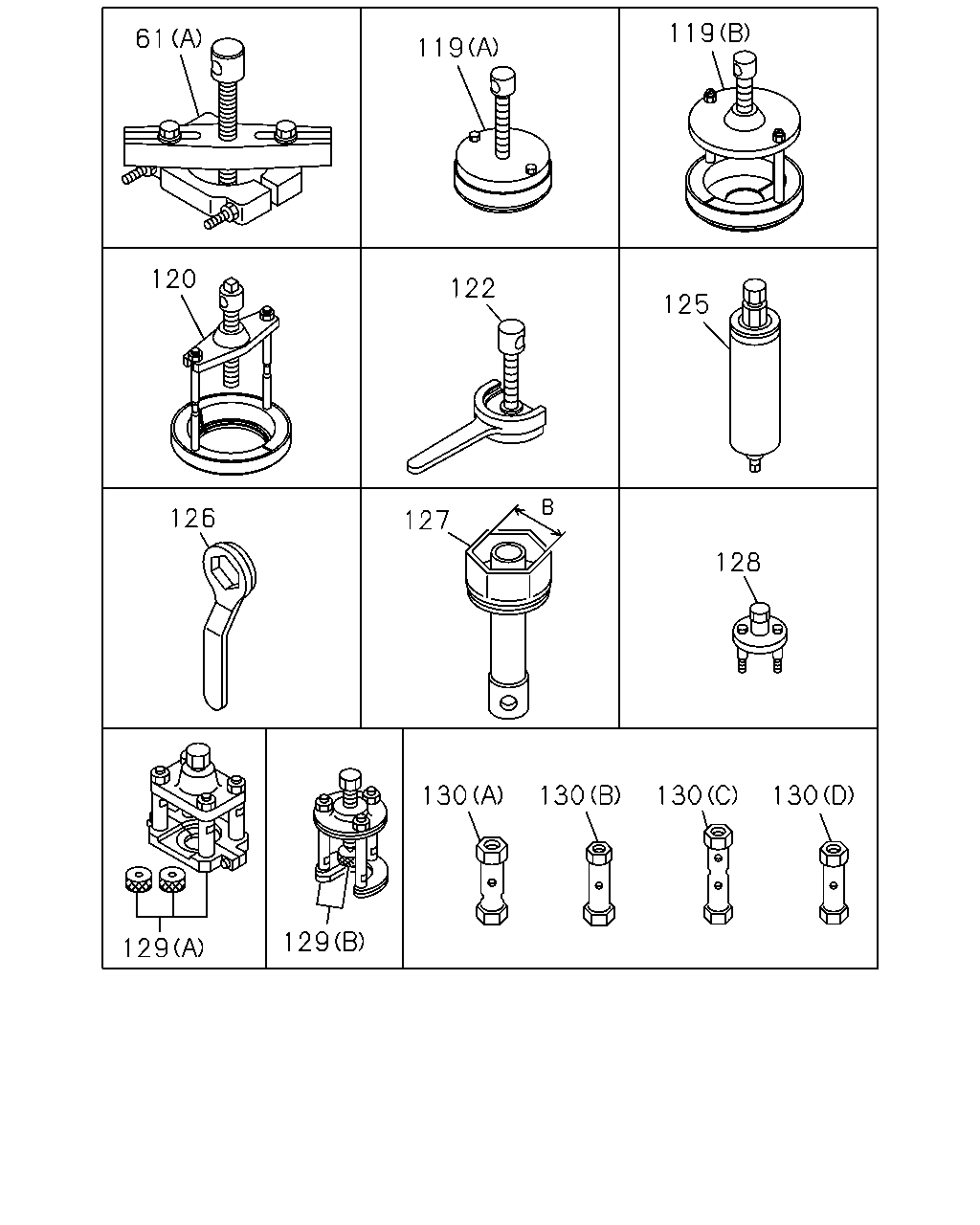

çizim 116165
119 61 119 120 122 125 126 127 128 130 130 130 130 129 129
BalonParca AdiParca NoAdetTipApplied Date A B
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9510- ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9510-0004 ● ●
119 PULLER ASM; TOP GEAR BRG
(B) 		9-85210-185-0 01 1 9510-0004 ● ●
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-186-0 01 1 9510-0004 ● ●
120 PULLER ASM; MAIN REAR BRG 9-85210-192-0 01 1 9510-0004 ● ●
122 PULLER ASM; COUNTER FRT 9-85210-129-1 01 1 9510-0004 ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9510-0004 ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9510-0004 ● ●
126 WRENCH; FRT HUB BRG NUT
FRONT AXLE F063(FS7) L=350 B=75 		1-85110-002-1 01 1 0005- ● ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 9510- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9510- ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 02 1 9510-9705 ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9706-9802 ●
129 PULLER ASM; PITMAN ARM
EXC. FRONT AXLE F063(FS7) (A) 		9-85210-147-0 01 1 9706-9802 ●
129 PULLER ASM; PITMAN ARM
EXC. FRONT AXLE F063(FS7) (A) 		9-85210-147-0 01 1 9803-0004 ● ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F063(FS7) (B) 		1-85210-011-0 01 1 9706-9802 ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F063(FS7) (B) 		1-85210-011-0 01 1 9803- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9510-0004 ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9510-0004 ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9510-0004 ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9510-0004 ● ●
çizim 116169
177 172 174 180 180 179 178 182 186
BalonParca AdiParca NoAdetTipApplied Date A B
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9510-0004 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9510- ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9510-0004 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9510- ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9510-0004 ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 01 1 9510-0004 ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9510-0004 ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9510-0004 ● ●
186 ADJUSTER; BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47165-066-0 01 1 9510- ● ●

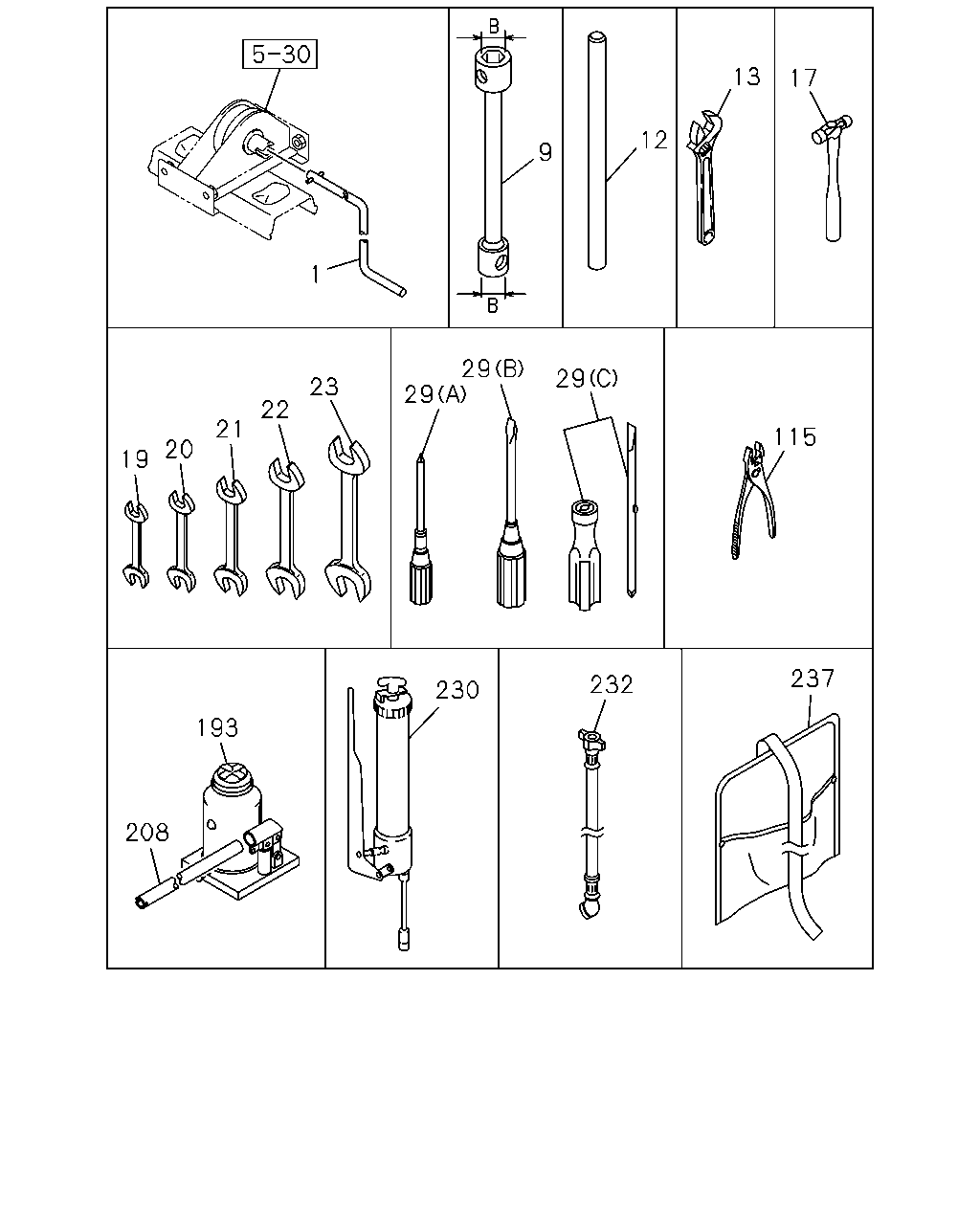

çizim 116176
13 17 12 9 1 29 29 23 29 22 21 115 20 19 237 232 230 193 208
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9510- ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33 L=450 		1-85111-033-1 01 1 9510-0208 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0209-1601 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		8-98316-700-0 01 1 1602- ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 9510-1601 ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=445 		8-98316-703-0 01 1 1602- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9510-0004 ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9510-0208 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-1407 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER 9-85121-406-0 01 1 9510-0208 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209- ● ●
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9510-9602 ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9510-0208 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0607 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9510-0208 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0607 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9510-0208 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0607 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9510-0208 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0607 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9510-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209-0611 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 		8-98061-105-0 01 1 0612- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9510- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9510-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209- ● ●
115 PLIER 5-85171-001-0 01 1 9510-9602 ● ●
115 PLIER 5-85171-002-0 01 1 9603-0208 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209-1410 ● ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ● ●
193 JACK ASM
CAUTIONS ARABIAN<WJ7> EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 10TON 		1-85510-025-0 01 1 0306-0504 ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9510-0504 ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505- ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9510-0105 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107 ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9510-0208 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0209- ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9510- ● ●
237 BAG; TOOL 8-97130-902-1 01 1 9510- ● ●

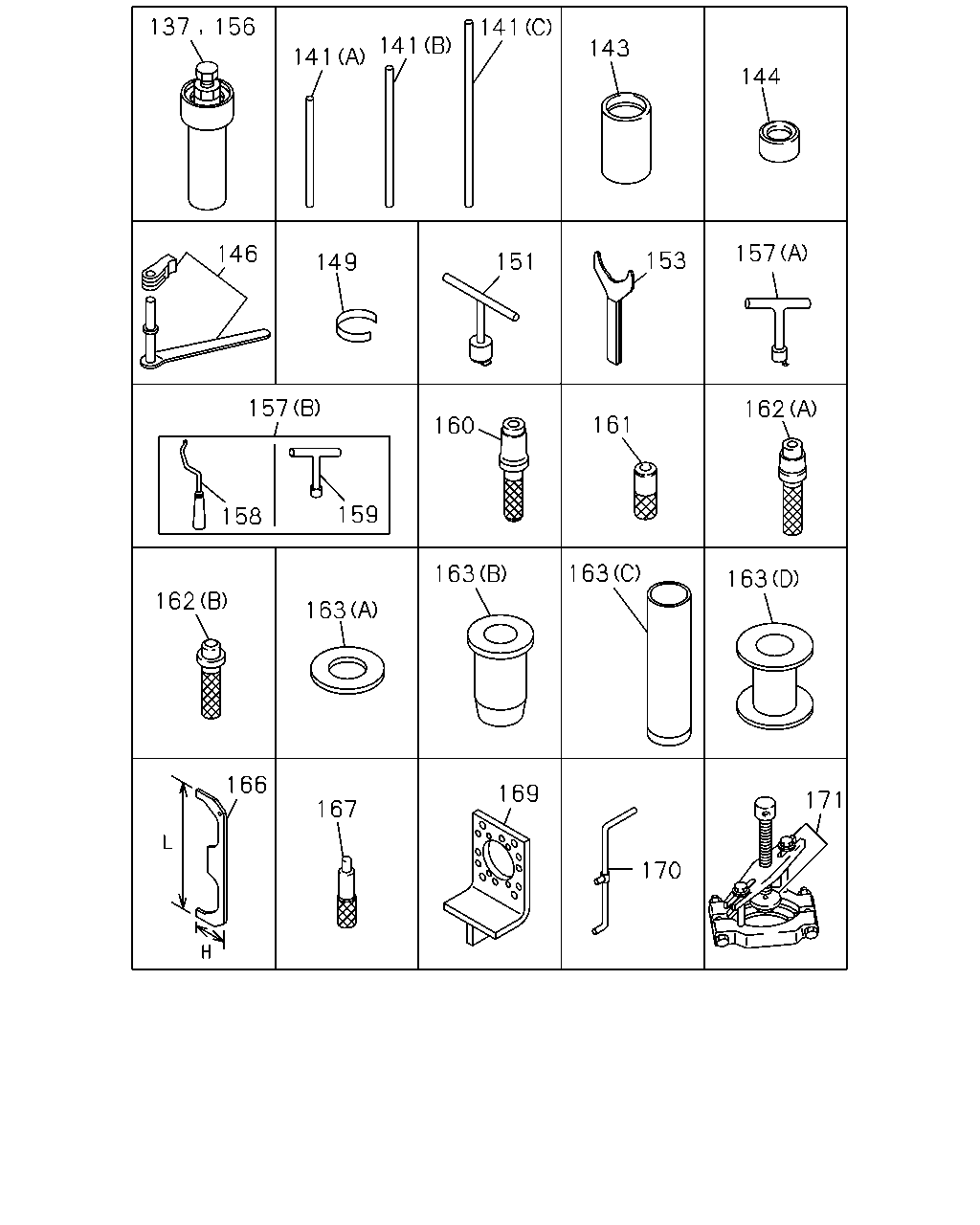

çizim 116179
137 156 141 141 143 141 144 157 146 153 151 149 157 162 161 160 159 158 163 163 163 162 163 166 169 171 167 170
BalonParca AdiParca NoAdetTipApplied Date A B
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9510-0004 ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9510-0004 ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 0005-1501 ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9510-0004 ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9510-0004 ● ●
143 GUIDE; BOOT,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-013-0 01 1 0005- ● ●
144 BASE; BOOT GUIDE,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-009-0 01 1 0005- ● ●
146 REPLACER KIT; LEAF SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85237-017-0 01 1 0005- ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9803-0004 ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 		1-85237-002-0 01 1 0005- ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0005- ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0005- ● ●
157 REPLACER KIT; RETURN SPR
(A) ID=16 		1-85237-002-0 01 1 9510-0004 ● ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 0005- ●
157 REPLACER KIT; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		9-85231-554-0 01 1 0005- ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0005- ● ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 0005- ●
159 REMOVER; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		9-85231-555-0 01 1 0005- ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 9510-0004 ● ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F049(FS4) L=228 		1-85238-010-0 01 1 0005- ● ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F063(FS7) L=220 		1-85238-001-0 01 1 0005- ● ●
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 9510-0004 ● ●
161 REMOVER; TIE ROD ARM
FRONT AXLE F063(FS7) 		1-85176-001-0 01 1 0005- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 9510- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 9510- ● ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) L=195 		1-85221-162-1 01 1 0005- ● ●
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 0005- ●
163 TOOL; SETTING
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) L=150 		1-85221-163-0 01 1 0005- ● ●
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 0005- ●
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 9510-0004 ● ●
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 9510-0004 ● ●
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 9510-0004 ● ●
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 9510-0004 ● ●
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 9510-0004 ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9510-0004 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9803-0004 ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-008-0 01 1 9803-0004 ●
167 ALIGNER; CLU PILOT
14" CLUTCH(WF6) L=185 		1-85253-008-0 01 1 0005- ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0005- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9510-9802 ● ●
167 ALIGNER; CLU PILOT
15" CLUTCH(RE9) L=185 		1-85253-012-0 01 1 9803- ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9510-0004 ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9510-0004 ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9510-0004 ● ●

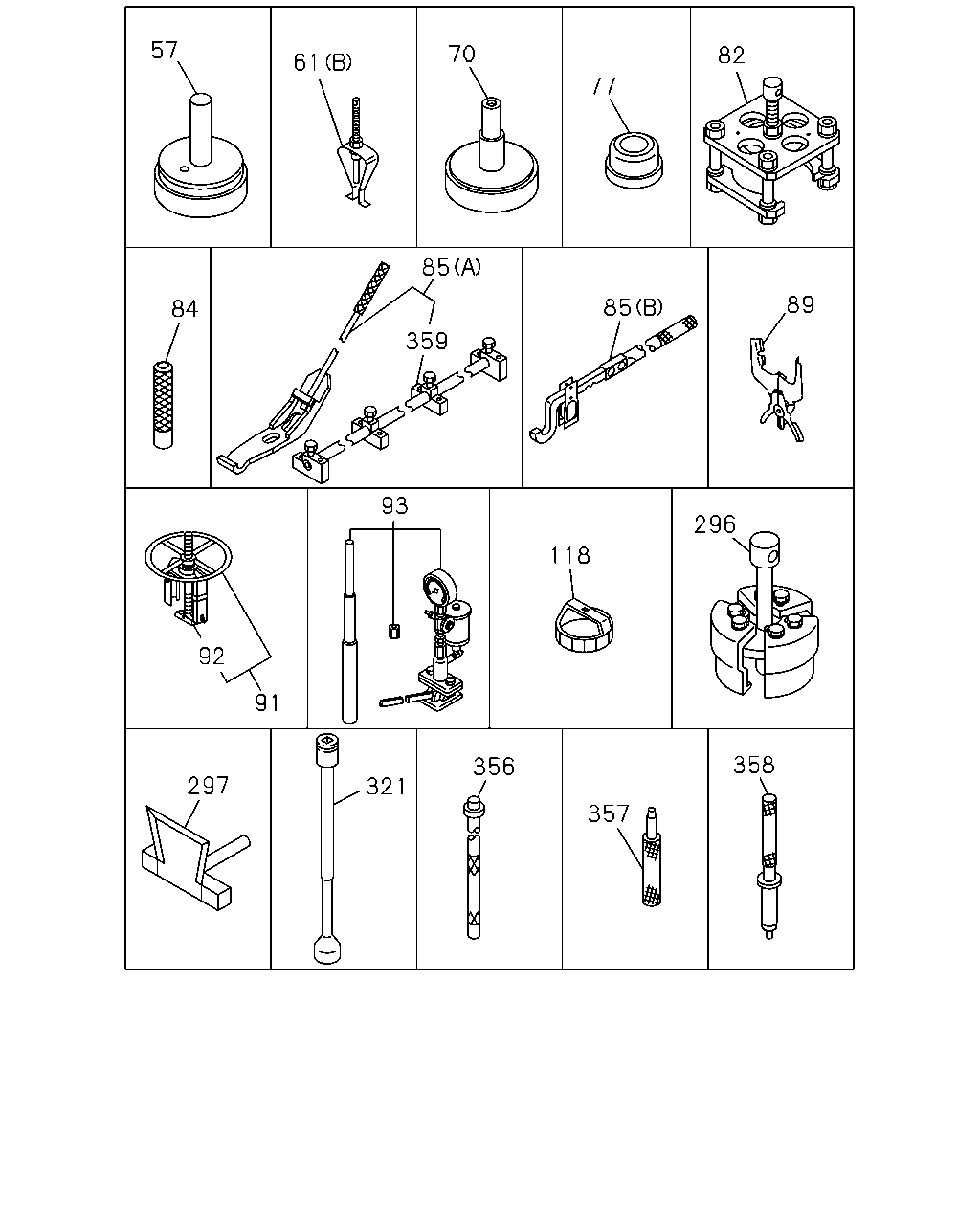

çizim 116201
57 70 82 61 77 85 89 85 84 359 93 296 118 92 91 358 356 297 321 357
BalonParca AdiParca NoAdetTipApplied Date A B
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9510-0004 ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9510- ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9510-0004 ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9510-0004 ● ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L) 		8-94396-816-0 01 1 9511-9709 ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		8-94396-816-0 01 1 9710-9802 ●
77 TOOL; SETTING,CYL LINER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		8-94396-816-0 01 1 9803- ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9510-0004 ● ●
84 REPLACER; VALVE SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-815-0 01 1 9510-0101 ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 0102-0106 ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 0107- ●
84 REPLACER; VALVE SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-815-0 01 1 0107- ●
85 REPLACER ASM; VALVE SPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 		8-94396-861-0 01 1 9510-0004 ● ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6) (B) 		8-94391-528-0 01 1 0005-0607 ●
85 REPLACER ASM; VALVE SPR
6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) (B) 		8-94391-528-0 01 1 0608- ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9510-0004 ● ●
91 REPLACER ASM; CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-849-0 01 1 9510-0106 ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 0107- ●
91 REPLACER ASM; CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-849-0 01 1 0107- ●
92 ANKLE; REPLACER,CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-821-0 01 1 9510-0106 ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 0107- ●
92 ANKLE; REPLACER,CYL LINER
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-821-0 01 1 0107- ●
93 SETTING KIT; VALVE GUIDE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		1-85220-001-0 01 1 9510-0106 ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 0107- ●
93 SETTING KIT; VALVE GUIDE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		1-85220-001-0 01 1 0107- ●
118 WRENCH; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-85221-097-0 01 1 9510-0004 ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9510-0004 ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9510-0004 ● ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 9803-0004 ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD
6HK1 TCC ENG(81L) 		8-94391-527-0 01 1 0608- ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-555-0 01 1 0005-0010 ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94391-555-0 01 1 0011-0607 ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-555-0 01 1 0011-0607 ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94391-555-0 01 1 0608- ●
357 REPLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-555-0 01 1 0608- ●
357 REPLACER; NOZZLE SLEEVE
6HK1 TCC ENG(81L) 		8-94391-555-0 01 1 0608- ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-556-0 01 1 0005-0010 ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94391-556-0 01 1 0011-0607 ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-556-0 01 1 0011-0607 ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94391-556-0 01 1 0608- ●
358 PLACER; NOZZLE SLEEVE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94391-556-0 01 1 0608- ●
358 PLACER; NOZZLE SLEEVE
6HK1 TCC ENG(81L) 		8-94391-556-0 01 1 0608- ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94396-862-0 01 1 0005-0010 ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94396-862-0 01 1 0011-0607 ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94396-862-0 01 1 0011-0607 ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94396-862-0 01 1 0608- ●
359 PIVOT
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-94396-862-0 01 1 0608- ●
359 PIVOT
6HK1 TCC ENG(81L) 		8-94396-862-0 01 1 0608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
