2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#40768) — 118 parça

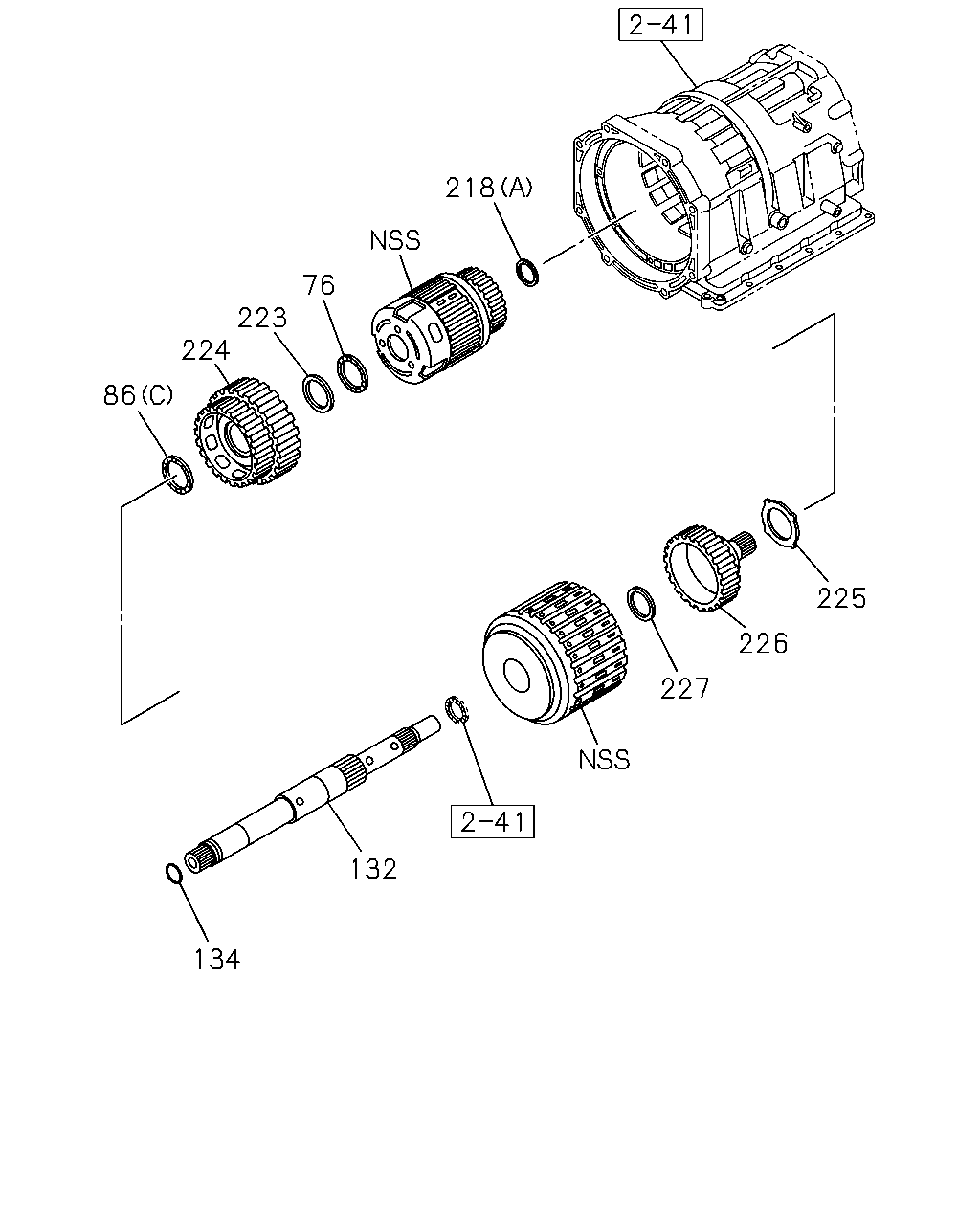

218 76 223 224 86 225 226 227 132 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	BEARING; THRUST,CARRIER 4JH1 ENG<RJX> THA	8-97330-927-0	01	1	0303-0408
76	BEARING; THRUST,CARRIER 4JJ1 ENG<LFB> THA	8-97330-927-0	01	1	0409-
86	BEARING; THRUST,SUN GEAR 4JH1 ENG<RJX> (A) THA	8-97330-919-0	01	1	0303-0408
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (A) THA	8-97330-919-0	01	1	0409-
86	BEARING; THRUST,SUN GEAR 4JH1 ENG<RJX> (B) THA	8-97330-920-0	01	1	0303-0408
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (B) THA	8-97330-920-0	01	1	0409-
86	BEARING; THRUST,SUN GEAR 4JH1 ENG<RJX> (C) THA	8-97330-926-0	01	1	0303-0408
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (C) THA	8-97330-926-0	01	1	0409-0711
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (C) THA	8-97374-016-0	01	1	0712-
132	SHAFT; INPUT,A/T 4JH1 ENG<RJX> THA	8-97330-931-0	01	1	0303-0408
132	SHAFT; INPUT,A/T 4JJ1 ENG<LFB> THA	8-97330-931-0	01	1	0409-
134	SEAL; INPUT SHAFT,FRT 4JH1 ENG<RJX> THA	8-97331-697-0	01	1	0303-0408
134	SEAL; INPUT SHAFT,FRT 4JJ1 ENG<LFB> THA	8-97331-697-0	01	1	0409-
218	BEARING; THRUST,INTERNAL GEAR 4JH1 ENG<RJX> (A) THA	8-97330-928-0	01	1	0303-0408
218	BEARING; THRUST,INTERNAL GEAR 4JJ1 ENG<LFB> (A) THA	8-97330-928-0	01	1	0409-
218	BEARING; THRUST,INTERNAL GEAR 4JH1 ENG<RJX> (B) THA	8-97330-938-0	01	1	0303-0408
218	BEARING; THRUST,INTERNAL GEAR 4JJ1 ENG<LFB> (B) THA	8-97330-938-0	01	1	0409-
223	RACE; BRG,CARRIER 4JH1 ENG<RJX> THA	8-97330-946-0	01	1	0303-0408
223	RACE; BRG,CARRIER 4JJ1 ENG<LFB> THA	8-97330-946-0	01	1	0409-
224	GEAR ASM; SUN,FRT 4JH1 ENG<RJX> IMA	8-97330-955-0	01	1	0303-0408
224	GEAR ASM; SUN,FRT 4JJ1 ENG<LFB> THA	8-97357-796-0	01	1	0409-0711
224	GEAR ASM; SUN,FRT 4JJ1 ENG<LFB> THA	8-97374-015-0	01	1	0712-
225	RACE; BRG,SUN GEAR 4JH1 ENG<RJX> THA	8-97330-949-0	01	1	0303-0408
225	RACE; BRG,SUN GEAR 4JJ1 ENG<LFB> THA	8-97330-949-0	01	1	0409-
226	HUB; HIGH CLUTCH 4JH1 ENG<RJX> THA	8-97331-038-0	01	1	0303-0408
226	HUB; HIGH CLUTCH 4JJ1 ENG<LFB> THA	8-97331-038-0	01	1	0409-
227	BEARING; HUB,HIGH CLUTCH 4JH1 ENG<RJX> THA	8-97330-925-0	01	1	0303-0408
227	BEARING; HUB,HIGH CLUTCH 4JJ1 ENG<LFB> THA	8-97330-925-0	01	1	0409-

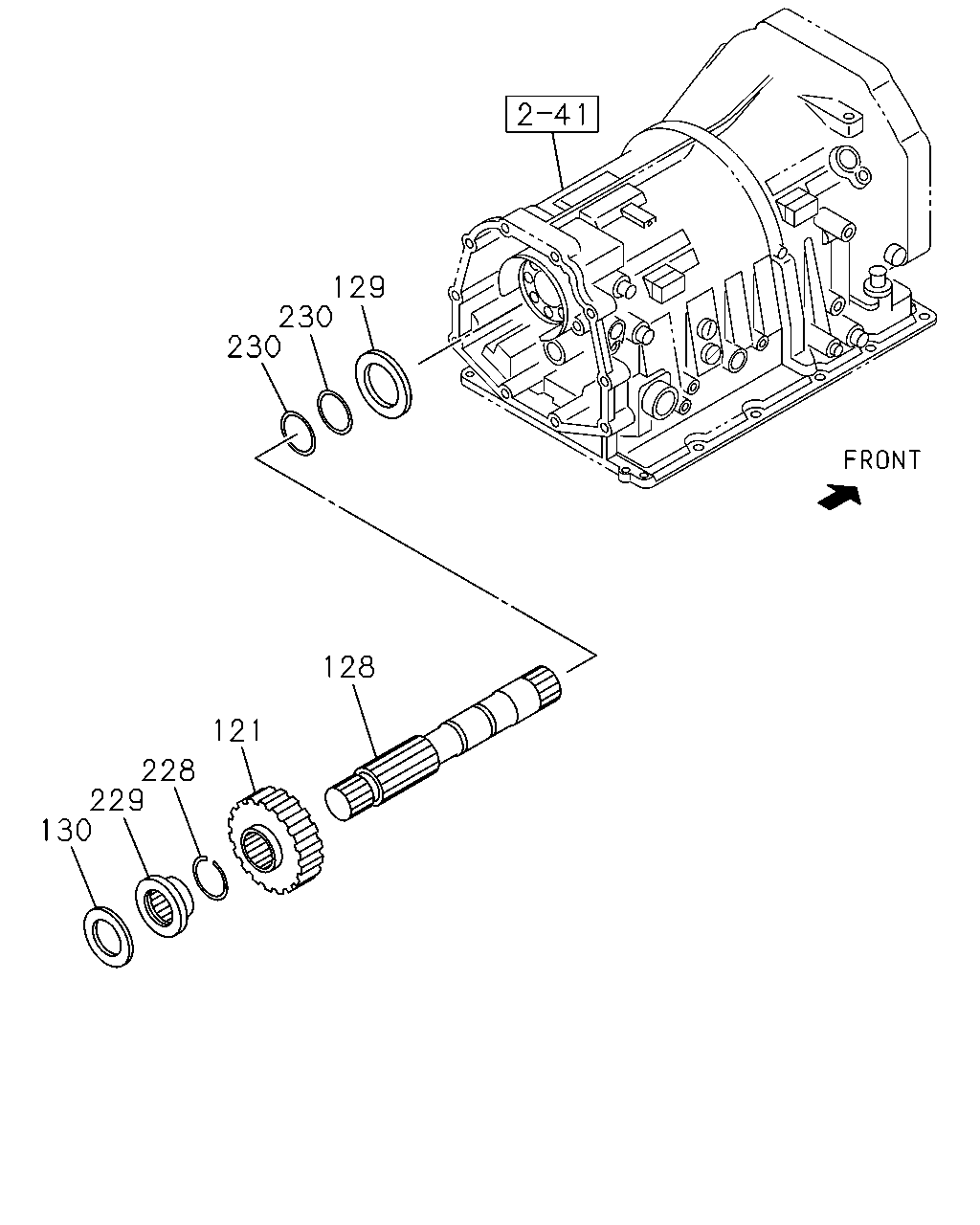

129 230 230 128 121 228 229 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
121	GEAR; PARKING LK,A/T 4JH1 ENG<RJX> THA	8-97330-962-0	01	1	0303-0408
121	GEAR; PARKING LK,A/T 4JJ1 ENG<LFB> THA	8-97330-962-0	01	1	0409-
128	SHAFT; OUTPUT,A/T 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97330-960-0	01	1	0303-0408
128	SHAFT; OUTPUT,A/T 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-97330-960-0	01	1	0409-
128	SHAFT; OUTPUT,A/T 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97330-961-0	01	1	0303-0408
128	SHAFT; OUTPUT,A/T 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97330-961-0	01	1	0409-
129	BEARING; OUTPUT SHAFT,FRT,A/T 4JH1 ENG<RJX> THA	8-97330-918-0	01	1	0303-0408
129	BEARING; OUTPUT SHAFT,FRT,A/T 4JJ1 ENG<LFB> THA	8-97330-918-0	01	1	0409-
130	BEARING; OUTPUT SHAFT,RR,A/T 4JH1 ENG<RJX> THA	8-97330-918-0	01	1	0303-0408
130	BEARING; OUTPUT SHAFT,RR,A/T 4JJ1 ENG<LFB> THA	8-97330-918-0	01	1	0409-
228	RING; SNAP,OUTPUT SHAFT 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97330-963-0	02	1	0303-0408
228	RING; SNAP,OUTPUT SHAFT 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-97330-963-0	02	1	0409-
228	RING; SNAP,OUTPUT SHAFT 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97330-963-0	01	1	0303-0408
228	RING; SNAP,OUTPUT SHAFT 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97330-963-0	01	1	0409-
229	SPACER; OUTPUT SHAFT 4JH1 ENG<RJX> THA	8-97330-951-0	01	1	0303-0408
229	SPACER; OUTPUT SHAFT 4JJ1 ENG<LFB> THA	8-97330-951-0	01	1	0409-
230	RING; SEAL,OUTPUT SHAFT 4JH1 ENG<RJX> THA	8-97330-983-0	02	1	0303-0408
230	RING; SEAL,OUTPUT SHAFT 4JJ1 ENG<LFB> THA	8-97330-983-0	02	1	0409-

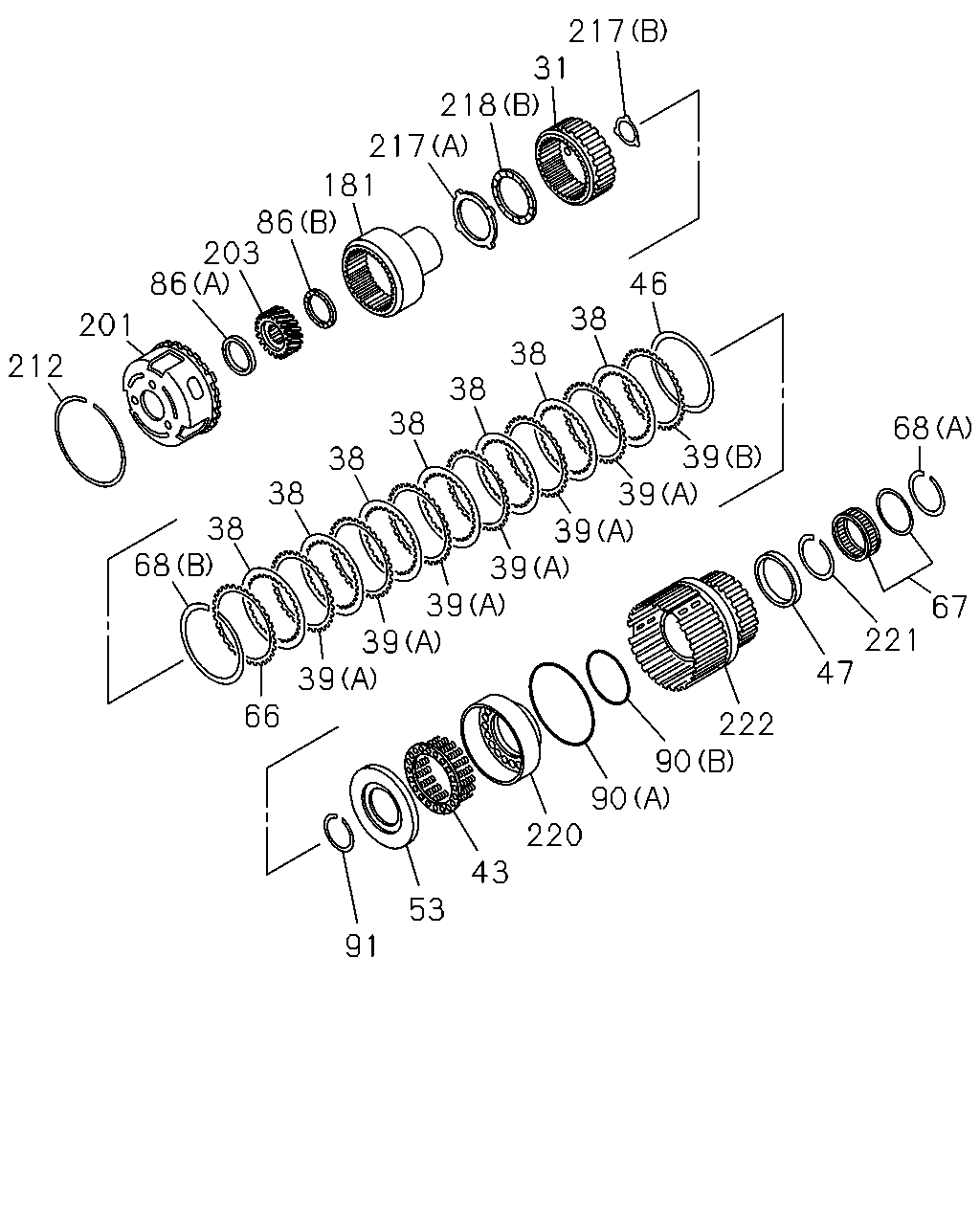

217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JH1 ENG<RJX> THA	8-97330-953-0	01	1	0303-0408
31	GEAR ASM; INTERNAL,PLANETARY,A/T 4JJ1 ENG<LFB> THA	8-97330-953-0	01	1	0409-
38	PLATE; DRIVE,LOW & REV,A/T 4JH1 ENG<RJX> THA	8-97330-998-0	07	1	0303-0408
38	PLATE; DRIVE,LOW & REV,A/T 4JJ1 ENG<LFB> THA	8-97330-998-0	07	1	0409-0711
38	PLATE; DRIVE,LOW & REV,A/T 4JJ1 ENG<LFB> THA	8-98126-848-0	07	1	0712-
39	PLATE; DRIVEN,LOW & REV,A/T 4JH1 ENG<RJX> (A) THA	8-97331-005-0	06	1	0303-0408
39	PLATE; DRIVEN,LOW & REV,A/T 4JJ1 ENG<LFB> (A) THA	8-97331-005-0	06	1	0409-0711
39	PLATE; DRIVEN,LOW & REV,A/T 4JJ1 ENG<LFB> (A) THA	8-97331-005-0	07	1	0712-
39	PLATE; DRIVEN,LOW & REV,A/T 4JH1 ENG<RJX> (B) THA	8-97331-008-0	01	1	0303-0408
39	PLATE; DRIVEN,LOW & REV,A/T 4JJ1 ENG<LFB> (B) THA	8-97331-008-0	01	1	0409-0711
43	SPRING; PISTON RETURN,A/T 4JH1 ENG<RJX> THA	8-97330-981-0	01	1	0303-0408
43	SPRING; PISTON RETURN,A/T 4JJ1 ENG<LFB> THA	8-97330-981-0	01	1	0409-
46	PLATE; DISHED,LOW & REV,A/T 4JH1 ENG<RJX> THA	8-97331-004-0	01	1	0303-0408
46	PLATE; DISHED,LOW & REV,A/T 4JJ1 ENG<LFB> THA	8-97331-004-0	01	1	0409-
47	BEARING; NEEDLE,LOW & REV 4JH1 ENG<RJX> THA	8-97330-954-0	01	1	0303-0408
47	BEARING; NEEDLE,LOW & REV 4JJ1 ENG<LFB> THA	8-97330-954-0	01	1	0409-
53	RETAINER; LOW & REV,CLU SPR 4JH1 ENG<RJX> THA	8-97331-041-0	01	1	0303-0408
53	RETAINER; LOW & REV,CLU SPR 4JJ1 ENG<LFB> THA	8-97331-041-0	01	1	0409-
66	PLATE; RET,CLU,LOW & REV,A/T 4JH1 ENG<RJX> T=3.8 THA	8-97331-010-0	01	1	0303-0408
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> T=3.8 THA	8-97331-010-0	01	1	0409-
66	PLATE; RET,CLU,LOW & REV,A/T 4JH1 ENG<RJX> T=4.0 THA	8-97331-011-0	01	1	0303-0408
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> T=4.0 THA	8-97331-011-0	01	1	0409-
66	PLATE; RET,CLU,LOW & REV,A/T 4JH1 ENG<RJX> T=4.2 THA	8-97331-012-0	01	1	0303-0408
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> T=4.2 THA	8-97331-012-0	01	1	0409-
66	PLATE; RET,CLU,LOW & REV,A/T 4JH1 ENG<RJX> T=4.4 THA	8-97331-013-0	01	1	0303-0408
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> T=4.4 THA	8-97331-013-0	01	1	0409-
66	PLATE; RET,CLU,LOW & REV,A/T 4JH1 ENG<RJX> T=4.6 THA	8-97331-014-0	01	1	0303-0408
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> T=4.6 THA	8-97331-014-0	01	1	0409-
66	PLATE; RET,CLU,LOW & REV,A/T 4JH1 ENG<RJX> T=4.8 THA	8-97331-024-0	01	1	0303-0408
66	PLATE; RET,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> T=4.8 THA	8-97331-024-0	01	1	0409-
67	CLUTCH ASM; ONEWAY,LOW & REV,A/T 4JH1 ENG<RJX> THA	8-97330-959-0	01	1	0303-0408
67	CLUTCH ASM; ONEWAY,LOW & REV,A/T 4JJ1 ENG<LFB> THA	8-97330-959-0	01	1	0409-
68	RING; SNAP,CLU,LOW & REV,A/T 4JH1 ENG<RJX> (A) THA	8-97330-965-0	01	1	0303-0408
68	RING; SNAP,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> (A) THA	8-97330-965-0	01	1	0409-
68	RING; SNAP,CLU,LOW & REV,A/T 4JH1 ENG<RJX> (B) THA	8-97330-966-0	01	1	0303-0408
68	RING; SNAP,CLU,LOW & REV,A/T 4JJ1 ENG<LFB> (B) THA	8-97330-966-0	01	1	0409-
86	BEARING; THRUST,SUN GEAR 4JH1 ENG<RJX> (A) THA	8-97330-919-0	01	1	0303-0408
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (A) THA	8-97330-919-0	01	1	0409-
86	BEARING; THRUST,SUN GEAR 4JH1 ENG<RJX> (B) THA	8-97330-920-0	01	1	0303-0408
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (B) THA	8-97330-920-0	01	1	0409-
86	BEARING; THRUST,SUN GEAR 4JH1 ENG<RJX> (C) THA	8-97330-926-0	01	1	0303-0408
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (C) THA	8-97330-926-0	01	1	0409-0711
86	BEARING; THRUST,SUN GEAR 4JJ1 ENG<LFB> (C) THA	8-97374-016-0	01	1	0712-
90	SEAL; PISTON,LOW & REV 4JH1 ENG<RJX> (A) THA	8-97330-990-0	01	1	0303-0408
90	SEAL; PISTON,LOW & REV 4JJ1 ENG<LFB> (A) THA	8-97330-990-0	01	1	0409-
90	SEAL; PISTON,LOW & REV 4JH1 ENG<RJX> (B) THA	8-97330-991-0	01	1	0303-0408
90	SEAL; PISTON,LOW & REV 4JJ1 ENG<LFB> (B) THA	8-97330-991-0	01	1	0409-
91	RING; SNAP,SPRING RET 4JH1 ENG<RJX> THA	8-97330-969-0	01	1	0303-0408
91	RING; SNAP,SPRING RET 4JJ1 ENG<LFB> THA	8-97330-969-0	01	1	0409-
181	CARRIER ASM; RR PLANETARY,A/T 4JH1 ENG<RJX> THA	8-97330-952-0	01	1	0303-0408
181	CARRIER ASM; RR PLANETARY,A/T 4JJ1 ENG<LFB> THA	8-97330-952-0	01	1	0409-
201	CARRIER; PLANETARY 4JH1 ENG<RJX> IMA	8-97330-933-0	01	1	0303-0408
201	CARRIER; PLANETARY 4JJ1 ENG<LFB> THA	8-97357-797-0	01	1	0409-
203	GEAR; SUN 4JH1 ENG<RJX> THA	8-97330-956-0	01	1	0303-0408
203	GEAR; SUN 4JJ1 ENG<LFB> THA	8-97330-956-0	01	1	0409-
212	RING; SNAP,PLANETARY CARRIER 4JH1 ENG<RJX> THA	8-97330-967-0	01	1	0303-0408
212	RING; SNAP,PLANETARY CARRIER 4JJ1 ENG<LFB> THA	8-97330-967-0	01	1	0409-
217	RACE; THRUST BRG,INTERNAL GEAR 4JH1 ENG<RJX> (A) THA	8-97330-939-0	01	1	0303-0408
217	RACE; THRUST BRG,INTERNAL GEAR 4JJ1 ENG<LFB> (A) THA	8-97330-939-0	01	1	0409-
217	RACE; THRUST BRG,INTERNAL GEAR 4JH1 ENG<RJX> (B) THA	8-97330-947-0	01	1	0303-0408
217	RACE; THRUST BRG,INTERNAL GEAR 4JJ1 ENG<LFB> (B) THA	8-97330-947-0	01	1	0409-
218	BEARING; THRUST,INTERNAL GEAR 4JH1 ENG<RJX> (A) THA	8-97330-928-0	01	1	0303-0408
218	BEARING; THRUST,INTERNAL GEAR 4JJ1 ENG<LFB> (A) THA	8-97330-928-0	01	1	0409-
218	BEARING; THRUST,INTERNAL GEAR 4JH1 ENG<RJX> (B) THA	8-97330-938-0	01	1	0303-0408
218	BEARING; THRUST,INTERNAL GEAR 4JJ1 ENG<LFB> (B) THA	8-97330-938-0	01	1	0409-
220	PISTON; LOW CLUTCH 4JH1 ENG<RJX> THA	8-97331-040-0	01	1	0303-0408
220	PISTON; LOW CLUTCH 4JJ1 ENG<LFB> THA	8-97331-040-0	01	1	0409-0711
220	PISTON; LOW CLUTCH 4JJ1 ENG<LFB> THA	8-97374-932-0	01	1	0712-
221	RING; SNAP,BRG,LOW CLUTCH 4JH1 ENG<RJX> THA	8-94483-379-0	01	1	0303-0408
221	RING; SNAP,BRG,LOW CLUTCH 4JJ1 ENG<LFB> THA	8-94483-379-0	01	1	0409-
222	DRUM; LOW CLUTCH 4JH1 ENG<RJX> THA	8-97331-039-0	01	1	0303-0408
222	DRUM; LOW CLUTCH 4JJ1 ENG<LFB> THA	8-97331-039-0	01	1	0409-
