◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-45 - AUTO TRANS CLUTCH AND PLANETARY GEAR ▶
2-45 — AUTO TRANS CLUTCH AND PLANETARY GEAR (#40767) — 60 parça

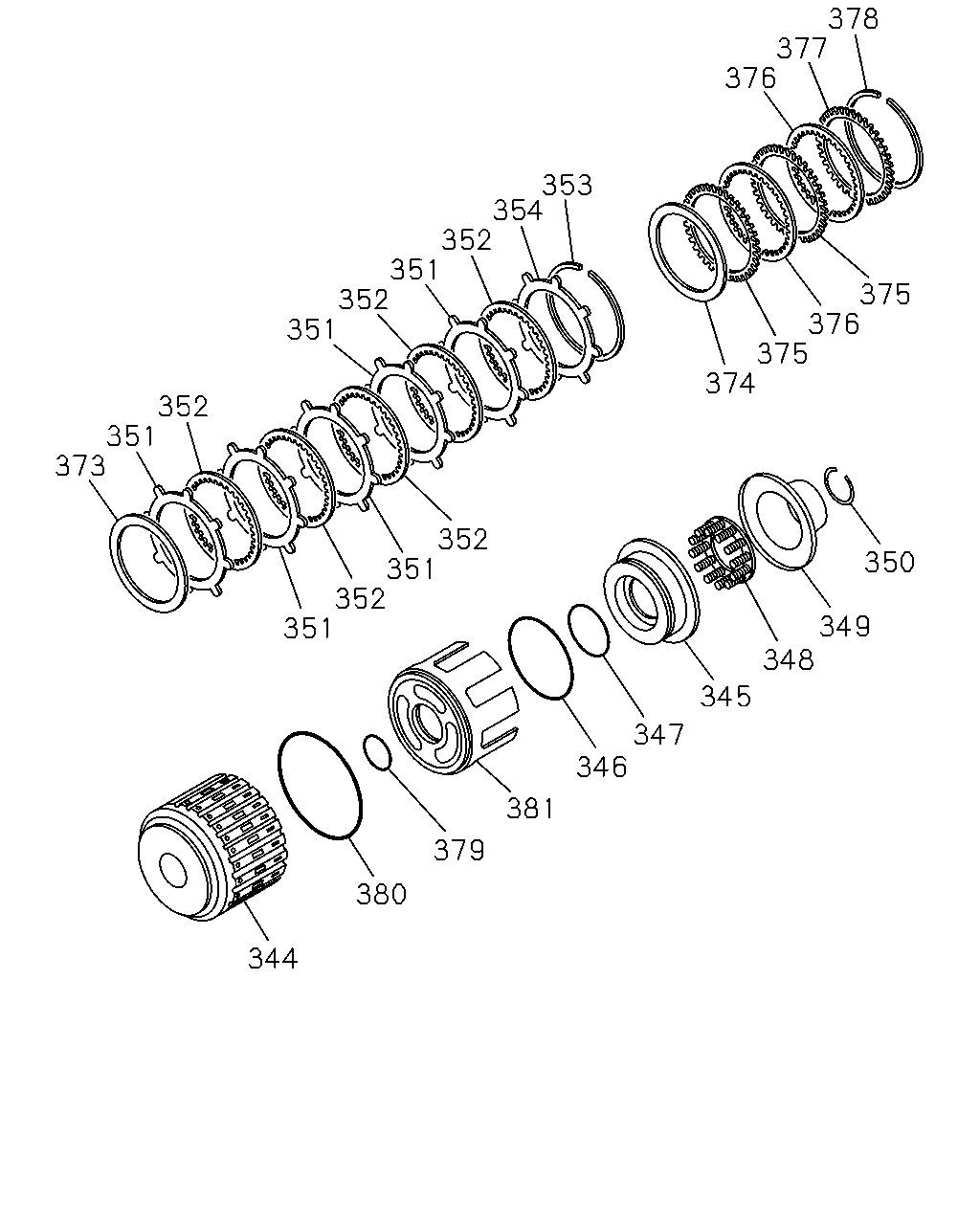

çizim 49418
378 377 376 353 354 352 351 352 351 375 376 375 374 352 351 373 352 351 352 351 350 349 348 345 347 346 381 379 380 344
BalonParca AdiParca NoAdetTipApplied Date
344 DRUM; HIGH CLU
4JH1 ENG<RJX> THA 		8-97330-978-0 01 1 0303-0408
344 DRUM; HIGH CLU
4JJ1 ENG<LFB> THA 		8-97330-978-0 01 1 0409-
345 PISTON; HIGH CLU
4JH1 ENG<RJX> THA 		8-97331-033-0 01 1 0303-0408
345 PISTON; HIGH CLU
4JJ1 ENG<LFB> THA 		8-97331-033-0 01 1 0409-0711
345 PISTON; HIGH CLU
4JJ1 ENG<LFB> THA 		8-97376-053-0 01 1 0712-
346 SEAL; HIGH CLU PISTON,OUTER
4JH1 ENG<RJX> THA 		8-97330-989-0 01 1 0303-0408
346 SEAL; HIGH CLU PISTON,OUTER
4JJ1 ENG<LFB> THA 		8-97330-989-0 01 1 0409-
347 SEAL; HIGH CLU PISTON,INNER
4JH1 ENG<RJX> THA 		8-97331-035-0 01 1 0303-0408
347 SEAL; HIGH CLU PISTON,INNER
4JJ1 ENG<LFB> THA 		8-97331-035-0 01 1 0409-
348 SPRING; RETURN,HIGH CLU PISTON
4JH1 ENG<RJX> THA 		8-97330-980-0 01 1 0303-0408
348 SPRING; RETURN,HIGH CLU PISTON
4JJ1 ENG<LFB> THA 		8-97330-980-0 01 1 0409-
349 RETAINER; RETURN SPRING,CLU PISTON
4JH1 ENG<RJX> THA 		8-97331-034-0 01 1 0303-0408
349 RETAINER; RETURN SPRING,CLU PISTON
4JJ1 ENG<LFB> THA 		8-97331-034-0 01 1 0409-
350 RING; SNAP,SPRING RET,HIGH CLU
4JH1 ENG<RJX> THA 		8-97330-975-0 01 1 0303-0408
350 RING; SNAP,SPRING RET,HIGH CLU
4JJ1 ENG<LFB> THA 		8-97330-975-0 01 1 0409-
351 PLATE; DRIVEN,HIGH CLU,A/T
4JH1 ENG<RJX> T=2.0 THA 		8-97331-007-0 05 1 0303-0408
351 PLATE; DRIVEN,HIGH CLU,A/T
4JJ1 ENG<LFB> T=2.0 THA 		8-97331-007-0 01 1 0409-
351 PLATE; DRIVEN,HIGH CLU,A/T
4JJ1 ENG<LFB> T=2.9 THA 		8-97357-799-0 04 1 0409-
352 PLATE; DRIVE,HIGH CLU,A/T
4JH1 ENG<RJX> THA 		8-97331-000-0 05 1 0303-0408
352 PLATE; DRIVE,HIGH CLU,A/T
4JJ1 ENG<LFB> THA 		8-97331-000-0 05 1 0409-
353 RING; SNAP,HIGH CLU PLATE
4JH1 ENG<RJX> THA 		8-97330-976-0 01 1 0303-0408
353 RING; SNAP,HIGH CLU PLATE
4JJ1 ENG<LFB> THA 		8-97330-976-0 01 1 0409-
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=4.7 THA 		8-98126-849-0 01 1 0712-
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=4.9 THA 		8-98126-850-0 01 1 0712-
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=5.1 THA 		8-98126-851-0 01 1 0712-
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=5.3 THA 		8-98126-852-0 01 1 0712-
354 PLATE; RET,HIGH CLU
4JH1 ENG<RJX> T=4.6 THA 		8-97331-019-0 01 1 0303-0408
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=4.6 THA 		8-97331-019-0 01 1 0409-
354 PLATE; RET,HIGH CLU
4JH1 ENG<RJX> T=4.8 THA 		8-97331-020-0 01 1 0303-0408
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=4.8 THA 		8-97331-020-0 01 1 0409-
354 PLATE; RET,HIGH CLU
4JH1 ENG<RJX> T=5.0 THA 		8-97331-021-0 01 1 0303-0408
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=5.0 THA 		8-97331-021-0 01 1 0409-
354 PLATE; RET,HIGH CLU
4JH1 ENG<RJX> T=5.2 THA 		8-97331-022-0 01 1 0303-0408
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=5.2 THA 		8-97331-022-0 01 1 0409-
354 PLATE; RET,HIGH CLU
4JH1 ENG<RJX> T=5.4 THA 		8-97331-023-0 01 1 0303-0408
354 PLATE; RET,HIGH CLU
4JJ1 ENG<LFB> T=5.4 THA 		8-97331-023-0 01 1 0409-
373 PLATE; DISHED,HIGH CLU
4JH1 ENG<RJX> THA 		8-97331-003-0 01 1 0303-0408
373 PLATE; DISHED,HIGH CLU
4JJ1 ENG<LFB> THA 		8-97331-003-0 01 1 0409-
374 PLATE; DISHED,REV CLU
4JH1 ENG<RJX> THA 		8-97331-049-0 01 1 0303-0408
374 PLATE; DISHED,REV CLU
4JJ1 ENG<LFB> THA 		8-97331-049-0 01 1 0409-
375 PLATE; DRIVEN,REV CLU
4JH1 ENG<RJX> THA 		8-97331-006-0 02 1 0303-0408
375 PLATE; DRIVEN,REV CLU
4JJ1 ENG<LFB> THA 		8-97331-006-0 02 1 0409-
376 PLATE; DRIVE,REV CLU
4JH1 ENG<RJX> THA 		8-97330-997-0 02 1 0303-0408
376 PLATE; DRIVE,REV CLU
4JJ1 ENG<LFB> THA 		8-97330-997-0 02 1 0409-
377 PLATE; RET,REV CLU
4JH1 ENG<RJX> T=4.8 THA 		8-97331-015-0 01 1 0303-0408
377 PLATE; RET,REV CLU
4JJ1 ENG<LFB> T=4.8 THA 		8-97331-015-0 01 1 0409-
377 PLATE; RET,REV CLU
4JH1 ENG<RJX> T=5.0 THA 		8-97331-016-0 01 1 0303-0408
377 PLATE; RET,REV CLU
4JJ1 ENG<LFB> T=5.0 THA 		8-97331-016-0 01 1 0409-
377 PLATE; RET,REV CLU
4JH1 ENG<RJX> T=5.2 THA 		8-97331-017-0 01 1 0303-0408
377 PLATE; RET,REV CLU
4JJ1 ENG<LFB> T=5.2 THA 		8-97331-017-0 01 1 0409-
377 PLATE; RET,REV CLU
4JH1 ENG<RJX> T=5.4 THA 		8-97331-018-0 01 1 0303-0408
377 PLATE; RET,REV CLU
4JJ1 ENG<LFB> T=5.4 THA 		8-97331-018-0 01 1 0409-
378 RING; SNAP,REV CLU PLATE
4JH1 ENG<RJX> THA 		8-97330-973-0 01 1 0303-0408
378 RING; SNAP,REV CLU PLATE
4JJ1 ENG<LFB> THA 		8-97330-973-0 01 1 0409-
379 SEAL; REV CLU PISTON,INNER
4JH1 ENG<RJX> THA 		8-97330-994-0 01 1 0303-0408
379 SEAL; REV CLU PISTON,INNER
4JJ1 ENG<LFB> THA 		8-97330-994-0 01 1 0409-
380 SEAL; REV CLU PISTON,OUTER
4JH1 ENG<RJX> THA 		8-97330-995-0 01 1 0303-0408
380 SEAL; REV CLU PISTON,OUTER
4JJ1 ENG<LFB> THA 		8-97330-995-0 01 1 0409-
381 PISTON; REV CLUTCH
4JH1 ENG<RJX> IMA 		8-97330-979-0 01 1 0303-0408
381 PISTON; REV CLUTCH
4JJ1 ENG<LFB> THA 		8-97357-798-0 01 1 0409-
