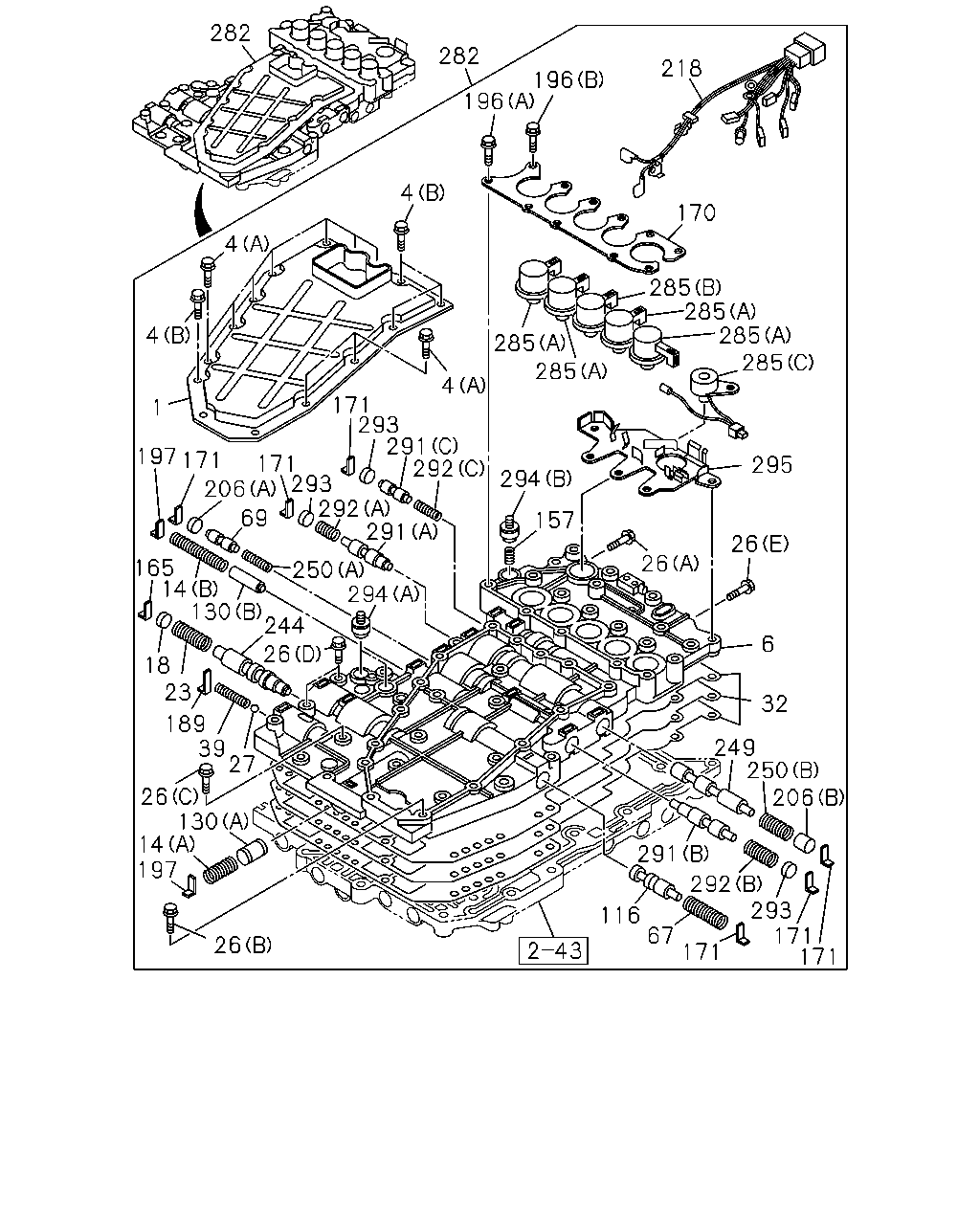

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#40766) — 100 parça

282 282 218 196 196 4 170 4 285 285 285 285 4 285 285 4 171 293 291 292 1 197 171 171 293 206 292 291 295 294 69 157 165 14 130 244 26 26 250 294 6 26 18 23 32 189 39 27 249 250 206 292 293 171 171 26 130 14 197 291 116 67 26 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STRAINER ASM; OIL,A/T 4JH1 ENG<RJX> THA	8-97331-063-0	01	1	0303-0408
1	STRAINER ASM; OIL,A/T 4JJ1 ENG<LFB> THA	8-97331-063-0	01	1	0409-
4	BOLT; OIL STRAINER,A/T 4JH1 ENG<RJX> (A) THA	8-97331-102-0	09	1	0303-0408
4	BOLT; OIL STRAINER,A/T 4JJ1 ENG<LFB> (A) THA	8-97331-102-0	09	1	0409-
4	BOLT; OIL STRAINER,A/T 4JH1 ENG<RJX> (B) M6X45 FLANGE THA	8-97331-104-0	04	1	0303-0408
4	BOLT; OIL STRAINER,A/T 4JJ1 ENG<LFB> (B) M6X45 FLANGE THA	8-97331-104-0	04	1	0409-
6	BODY ASM; VLV LWR,A/T 4JH1 ENG<RJX> THA	8-97331-059-0	01	1	0303-0408
6	BODY ASM; VLV LWR,A/T 4JJ1 ENG<LFB> THA	8-97331-059-0	01	1	0409-
14	SPRING; ACCUMLATOR CONT VALVE 4JH1 ENG<RJX> (A) THA	8-97092-821-0	01	1	0303-0408
14	SPRING; ACCUMLATOR CONT VALVE 4JJ1 ENG<LFB> (A) THA	8-97092-821-0	01	1	0409-
14	SPRING; ACCUMLATOR CONT VALVE 4JH1 ENG<RJX> (B) THA	8-97331-078-0	01	1	0303-0408
14	SPRING; ACCUMLATOR CONT VALVE 4JJ1 ENG<LFB> (B) THA	8-97331-078-0	01	1	0409-
18	PLUG; PRESSURE 4JH1 ENG<RJX> THA	8-97331-096-0	01	1	0303-0408
18	PLUG; PRESSURE 4JJ1 ENG<LFB> THA	8-97331-096-0	01	1	0409-
23	SPRING; REG VLV,VLV LWR,A/T 4JH1 ENG<RJX> THA	8-97331-075-0	01	1	0303-0408
23	SPRING; REG VLV,VLV LWR,A/T 4JJ1 ENG<LFB> THA	8-97331-075-0	01	1	0409-
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (A) M6X40 THA	8-94385-941-0	10	1	0303-0408
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1 ENG<LFB> (A) M6X40 THA	8-94385-941-0	10	1	0409-0711
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (B) M6X50 FLANGE THA	8-97331-101-0	02	1	0303-0408
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1 ENG<LFB> (B) M6X50 FLANGE THA	8-97331-101-0	02	1	0409-
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (C) M6X35 FLANGE THA	8-97331-103-0	13	1	0303-0408
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1 ENG<LFB> (C) M6X35 FLANGE THA	8-97331-103-0	13	1	0409-
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (D) M6X45 FLANGE THA	8-97331-104-0	02	1	0303-0408
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1 ENG<LFB> (D) M6X45 FLANGE THA	8-97331-104-0	02	1	0409-
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (E) M6X30 FLANGE THA	8-97331-122-0	02	1	0303-0408
26	BOLT; BODY FIX,VLV LWR,A/T 4JJ1 ENG<LFB> (E) M6X30 FLANGE THA	8-97331-122-0	02	1	0409-0711
27	BALL; STEEL,VLV,A/T 4JH1 ENG<RJX> THA	8-97330-895-0	01	1	0303-0408
27	BALL; STEEL,VLV,A/T 4JJ1 ENG<LFB> THA	8-97330-895-0	01	1	0409-
32	PLATE; SEPARATOR,VLV BODY,A/T 4JH1 ENG<RJX> THA	8-97331-060-0	01	1	0303-0408
32	PLATE; SEPARATOR,VLV BODY,A/T 4JJ1 ENG<LFB> THA	8-97331-060-0	01	1	0409-
39	SPRING; BALL VALVE 4JH1 ENG<RJX> THA	8-97331-071-0	01	1	0303-0408
39	SPRING; BALL VALVE 4JJ1 ENG<LFB> THA	8-97331-071-0	01	1	0409-
67	SPRING; PRESSURE,RELIEF VLV,A/T 4JH1 ENG<RJX> THA	8-97331-072-0	01	1	0303-0408
67	SPRING; PRESSURE,RELIEF VLV,A/T 4JJ1 ENG<LFB> THA	8-97331-072-0	01	1	0409-
69	VALVE; SHIFT,LOW COAST,VLV LWR,A/T 4JH1 ENG<RJX> THA	8-97331-082-0	01	1	0303-0408
69	VALVE; SHIFT,LOW COAST,VLV LWR,A/T 4JJ1 ENG<LFB> THA	8-97331-082-0	01	1	0409-
116	VALVE; PRESSURE RELIEF 4JH1 ENG<RJX> THA	8-97331-091-0	01	1	0303-0408
116	VALVE; PRESSURE RELIEF 4JJ1 ENG<LFB> THA	8-97331-091-0	01	1	0409-
130	PISTON; ACCUMLATOR CONT 4JH1 ENG<RJX> (A) THA	8-94342-922-0	01	1	0303-0408
130	PISTON; ACCUMLATOR CONT 4JJ1 ENG<LFB> (A) THA	8-94342-922-0	01	1	0409-
130	PISTON; ACCUMLATOR CONT 4JH1 ENG<RJX> (B) THA	8-97331-057-0	01	1	0303-0408
130	PISTON; ACCUMLATOR CONT 4JJ1 ENG<LFB> (B) THA	8-97331-057-0	01	1	0409-
157	FILTER; OIL,LWR VALVE BODY 4JH1 ENG<RJX> THA	8-97331-062-0	01	1	0303-0408
157	FILTER; OIL,LWR VALVE BODY 4JJ1 ENG<LFB> THA	8-97331-062-0	01	1	0409-
165	PLATE; PRESS REG VLV,A/T 4JH1 ENG<RJX> THA	8-94385-905-0	01	1	0303-0408
165	PLATE; PRESS REG VLV,A/T 4JJ1 ENG<LFB> THA	8-94385-905-0	01	1	0409-
170	PLATE; VLV,A/T 4JH1 ENG<RJX> THA	8-97331-081-0	01	1	0303-0408
170	PLATE; VLV,A/T 4JJ1 ENG<LFB> THA	8-97331-081-0	01	1	0409-
171	PLATE; SHIFT VLV,A/T 4JH1 ENG<RJX> THA	8-97331-080-0	06	1	0303-0408
171	PLATE; SHIFT VLV,A/T 4JJ1 ENG<LFB> THA	8-97331-080-0	06	1	0409-
189	RETAINER; SPR 4JH1 ENG<RJX> THA	8-94385-905-0	01	1	0303-0408
189	RETAINER; SPR 4JJ1 ENG<LFB> THA	8-94385-905-0	01	1	0409-
196	BOLT; SOLENOID 4JH1 ENG<RJX> (A) M6X45 FLANGE THA	8-97331-104-0	07	1	0303-0408
196	BOLT; SOLENOID 4JJ1 ENG<LFB> (A) M6X45 FLANGE THA	8-97331-104-0	07	1	0409-
196	BOLT; SOLENOID 4JH1 ENG<RJX> (B) M6X16 THA	8-97331-121-0	05	1	0303-0408
196	BOLT; SOLENOID 4JJ1 ENG<LFB> (B) M6X16 THA	8-97331-121-0	05	1	0409-
197	PLATE; ACCUMLATOR CONT VLV 4JH1 ENG<RJX> THA	8-97331-080-0	02	1	0303-0408
197	PLATE; ACCUMLATOR CONT VLV 4JJ1 ENG<LFB> THA	8-97331-080-0	02	1	0409-
206	PLUG; SHIFT VALVE 4JH1 ENG<RJX> (A) THA	8-97331-099-0	01	1	0303-0408
206	PLUG; SHIFT VALVE 4JJ1 ENG<LFB> (A) THA	8-97331-099-0	01	1	0409-
206	PLUG; SHIFT VALVE 4JH1 ENG<RJX> (B) THA	8-97331-100-0	01	1	0303-0408
206	PLUG; SHIFT VALVE 4JJ1 ENG<LFB> (B) THA	8-97331-100-0	01	1	0409-
218	HARNESS; SOLENOID WIRE 4JH1 ENG<RJX> THA	8-97331-115-0	01	1	0303-0408
218	HARNESS; SOLENOID WIRE 4JJ1 ENG<LFB> THA	8-97331-115-0	01	1	0409-
244	VALVE; PRESSURE CONT 4JH1 ENG<RJX> THA	8-97331-064-0	01	1	0303-0408
244	VALVE; PRESSURE CONT 4JJ1 ENG<LFB> THA	8-97331-064-0	01	1	0409-
249	VALVE; SHIFT 4JH1 ENG<RJX> THA	8-97331-083-0	01	1	0303-0408
249	VALVE; SHIFT 4JJ1 ENG<LFB> THA	8-97331-083-0	01	1	0409-
250	SPRING; SHIFT VALVE 4JH1 ENG<RJX> (A) THA	8-97331-070-0	01	1	0303-0408
250	SPRING; SHIFT VALVE 4JJ1 ENG<LFB> (A) THA	8-97331-070-0	01	1	0409-
250	SPRING; SHIFT VALVE 4JH1 ENG<RJX> (B) THA	8-97331-076-0	01	1	0303-0408
250	SPRING; SHIFT VALVE 4JJ1 ENG<LFB> (B) THA	8-97331-076-0	01	1	0409-
282	BODY ASM; VLV,A/T 4JH1 ENG<RJX> THA	8-97333-561-0	01	1	0303-0408
282	BODY ASM; VLV,A/T 4JJ1 ENG<LFB> THA	8-97333-561-0	01	1	0409-
285	SOLENOID; LWR VLV BODY 4JH1 ENG<RJX> (A) THA	8-97331-109-0	04	1	0303-0408
285	SOLENOID; LWR VLV BODY 4JJ1 ENG<LFB> (A) THA	8-97331-109-0	04	1	0409-
285	SOLENOID; LWR VLV BODY 4JH1 ENG<RJX> (B) THA	8-97331-110-0	01	1	0303-0408
285	SOLENOID; LWR VLV BODY 4JJ1 ENG<LFB> (B) THA	8-97331-110-0	01	1	0409-
285	SOLENOID; LWR VLV BODY 4JH1 ENG<RJX> (C) THA	8-97331-111-0	01	1	0303-0408
285	SOLENOID; LWR VLV BODY 4JJ1 ENG<LFB> (C) THA	8-97331-111-0	01	1	0409-
291	VALVE; SPOOL,LWR VLV 4JH1 ENG<RJX> (A) THA	8-97331-086-0	01	1	0303-0408
291	VALVE; SPOOL,LWR VLV 4JJ1 ENG<LFB> (A) THA	8-97331-086-0	01	1	0409-
291	VALVE; SPOOL,LWR VLV 4JH1 ENG<RJX> (B) THA	8-97331-087-0	01	1	0303-0408
291	VALVE; SPOOL,LWR VLV 4JJ1 ENG<LFB> (B) THA	8-97331-087-0	01	1	0409-
291	VALVE; SPOOL,LWR VLV 4JH1 ENG<RJX> (C) THA	8-97331-089-0	01	1	0303-0408
291	VALVE; SPOOL,LWR VLV 4JJ1 ENG<LFB> (C) THA	8-97331-089-0	01	1	0409-
292	SPRING; SPOOL VALVE 4JH1 ENG<RJX> (A) THA	8-97331-068-0	01	1	0303-0408
292	SPRING; SPOOL VALVE 4JJ1 ENG<LFB> (A) THA	8-97331-068-0	01	1	0409-
292	SPRING; SPOOL VALVE 4JH1 ENG<RJX> (B) THA	8-97331-069-0	01	1	0303-0408
292	SPRING; SPOOL VALVE 4JJ1 ENG<LFB> (B) THA	8-97331-069-0	01	1	0409-
292	SPRING; SPOOL VALVE 4JH1 ENG<RJX> (C) THA	8-97331-073-0	01	1	0303-0408
292	SPRING; SPOOL VALVE 4JJ1 ENG<LFB> (C) THA	8-97331-073-0	01	1	0409-
293	PLUG; SPOOL VALVE 4JH1 ENG<RJX> THA	8-97331-098-0	03	1	0303-0408
293	PLUG; SPOOL VALVE 4JJ1 ENG<LFB> THA	8-97331-098-0	03	1	0409-
294	SWITCH; OIL PRESSURE 4JH1 ENG<RJX> (A) THA	8-97330-896-0	02	1	0303-0408
294	SWITCH; OIL PRESSURE 4JJ1 ENG<LFB> (A) THA	8-97330-896-0	02	1	0409-
294	SWITCH; OIL PRESSURE 4JH1 ENG<RJX> (B) THA	8-97330-897-0	01	1	0303-0408
294	SWITCH; OIL PRESSURE 4JJ1 ENG<LFB> (B) THA	8-97330-897-0	01	1	0409-
295	BRACKET; HARNESS,LWR VLV BODY 4JH1 ENG<RJX> THA	8-97331-061-0	01	1	0303-0408
295	BRACKET; HARNESS,LWR VLV BODY 4JJ1 ENG<LFB> THA	8-97331-061-0	01	1	0409-
